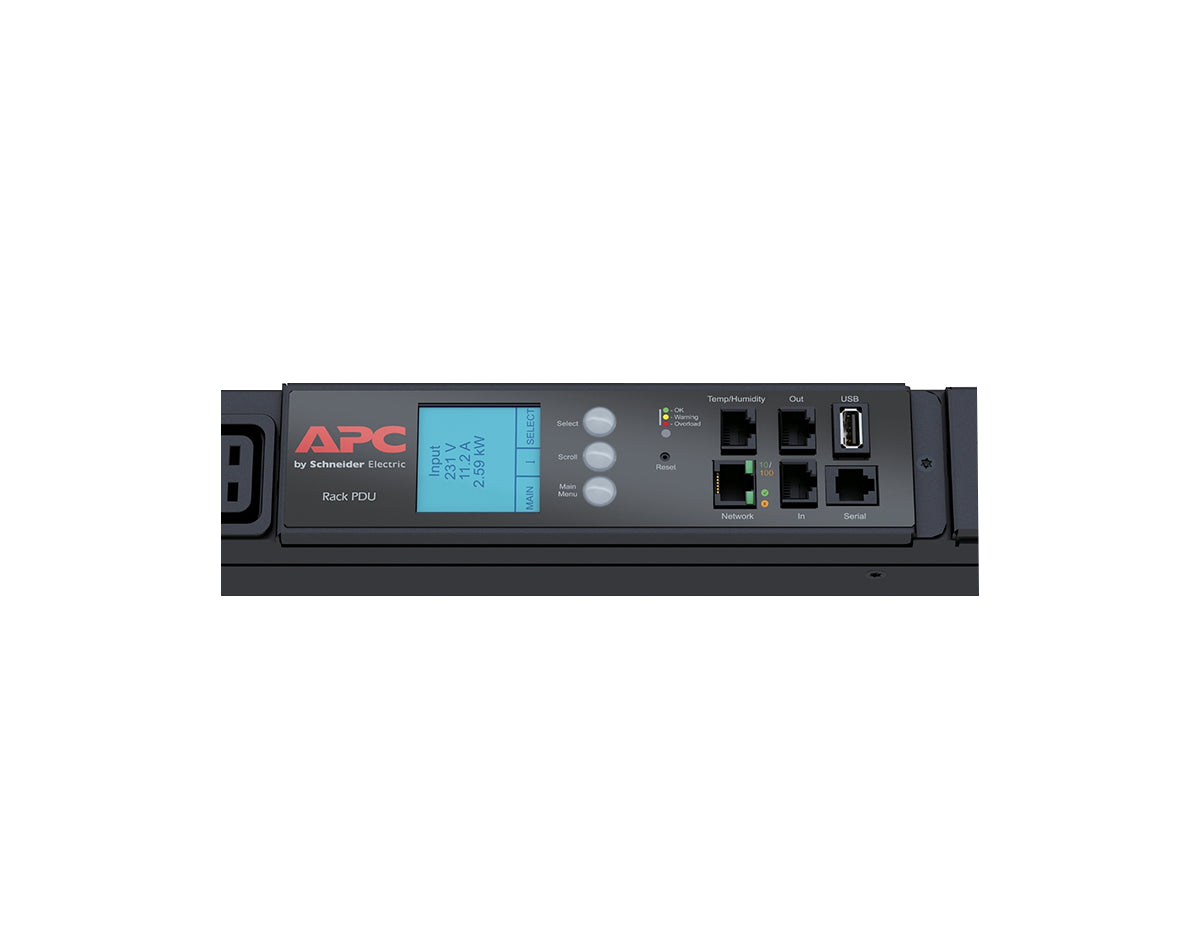

APC AP8868 – NetShelter Metered Rack PDU 10kW 0U Vertical
10kW / 208V, 0U Vertical PDU, 36x C13 & 6x C19 Outlets, Remote Monitoring, User-Defined Alarms, Locking IEC Receptacles Brand APC by Schneider Electric Model AP8868 Product Type NetShelter Metered Rack PDU Form Factor 0U Vertical Dimensions (H x W x D) 72.01″ x 2.20″ x 2.01″ (1829 x 56 x 51 mm)
Price
1-Year Manufacturer Warranty
Free Shipping on Orders Over $500
Secure Payment
10kW / 208V, 0U Vertical PDU, 36x C13 & 6x C19 Outlets, Remote Monitoring, User-Defined Alarms, Locking IEC Receptacles
| Brand | APC by Schneider Electric |
| Model | AP8868 |
| Product Type | NetShelter Metered Rack PDU |
| Form Factor | 0U Vertical |
| Dimensions (H x W x D) | 72.01″ x 2.20″ x 2.01″ (1829 x 56 x 51 mm) |
| Weight | 18.78 lb (8.52 kg) |
| Color | Black |
| Number of Rack Units | 0U |
| Mounting Mode | Rack-mounted (Vertical, Side Mountable) |
| Cooling | Passive |
| PDU Type | Metered |
| Input Voltage | 208 V (3 Phase) |
| Output Voltage | 208 V |
| Input Plug Type | CS8365 |
| Input Frequency | 50/60 Hz |
| Line Rated Current | 35 A (Max 35 A) |
| Load Capacity | 10,000 VA |
| Outlets | 36 × IEC C13, 6 × IEC C19 |
| Communication Ports | Web, SNMP, CLI, Serial configuration |
| Operating Temperature | 23–140 °F (-5–60 °C) |
| Storage Temperature | -13–149 °F (-25–65 °C) |
| Operating Humidity | 5–95% non-condensing |
| Storage Humidity | 5–95% non-condensing |
| Operating Altitude | 0–10,000 ft |
| Storage Altitude | 0–50,000 ft |
| Compliance | cUL Listed, UL Listed, VCCI Class A, FCC Part 15 Class A, ICES-003, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3 |
| Warranty | 2 years repair or replace |
| Installation Guide | Included in the box |
| Rack Mounting Brackets | Included in the box |
| Serial Configuration Cable | Included in the box |
| Safety Guide | Included in the box |
Overview
The APC AP8868 Metered Rack PDU is a high-density, 0U vertical power distribution solution engineered to deliver 10kW at 208V. With integrated metering, remote monitoring, and user-defined alarms, it ensures efficient power management in mission-critical data center environments. Designed for APC NetShelter enclosures, it installs without tools, saving valuable rack space.
Key Features & Benefits
- 10kW Load Capacity: Provides reliable high-density power distribution for modern data centers.
- Remote Monitoring: Access via Web, SNMP, or CLI for proactive power management.
- User-Defined Alarms: Prevent overloads with real-time threshold alerts.
- Locking IEC Receptacles: Secures power cords, reducing accidental disconnections.
- 0U Vertical Mount: Saves rack space and increases equipment capacity.
- Environmental Monitoring: Supports temperature/humidity sensors for full rack insight.
Technical Deep Dive
The AP8868 leverages a 3-phase 208V input with a maximum line current of 35A, delivering consistent power across 36 C13 and 6 C19 outlets. By integrating real-time kW and kWh metering, it enables precise load balancing and energy efficiency tracking.
Its ultra-low-profile breakers and embedded memory enhance operational reliability by logging historical data, allowing IT teams to analyze consumption trends. The locking outlet design prevents load drops caused by accidental disconnections, a critical safeguard in high-uptime environments.
The environmental monitoring port extends visibility by integrating external sensors, giving administrators real-time awareness of temperature and humidity conditions in the rack.
Ideal Applications
- Enterprise data centers with high-density racks
- Colocation facilities requiring remote visibility
- Server rooms and network closets
- Industries with continuous uptime requirements such as finance, healthcare, and telecom
Frequently Asked Questions (FAQs)
Q1: How is the AP8868 installed?
A: It mounts vertically (0U) in APC NetShelter racks without tools, preserving valuable horizontal rack space.
Q2: What power output does it provide?
A: The AP8868 delivers up to 10kW at 208V with 36x C13 and 6x C19 outlets. Runtime depends on connected load and input source capacity.
Q3: How can the unit be managed?
A: The PDU supports remote management through Web, SNMP, and CLI, with the option to integrate external environmental sensors.
| Weight | 19.0 lbs |
|---|---|
| Capacity | Provides reliable high-density power distribution for modern data centers. |
