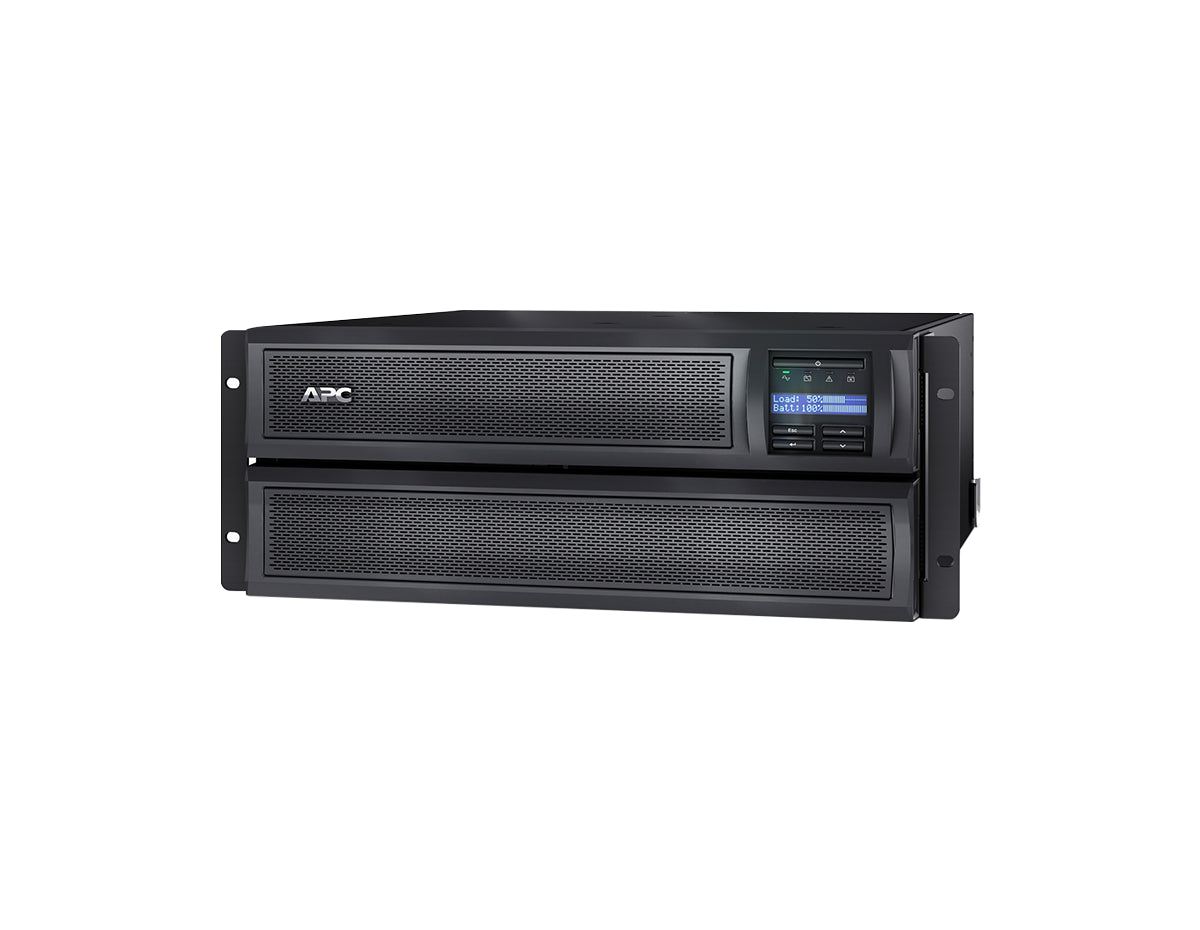

APC SMX2000LV - Smart-UPS X 2000VA Rack/Tower 4U
APC SMX2000LV - Smart-UPS X 2000VA Rack/Tower 4U — photo 2
APC SMX2000LV - Smart-UPS X 2000VA Rack/Tower 4U — photo 3
APC SMX2000LV - Smart-UPS X 2000VA Rack/Tower 4U — photo 4
APC SMX2000LV - Smart-UPS X 2000VA Rack/Tower 4U — photo 5

APC SKU SMX2000LV

APC SMX2000LV - Smart-UPS X 2000VA Rack/Tower 4U

2000VA / 1800W, Line-Interactive UPS, 4U Rack/Tower Convertible, 6x NEMA 5-15R + 3x NEMA 5-20R + 1x NEMA L5-20R Outlets, AVR, LCD Console, SmartSlot

$1,985.00

Ask an engineer about this model

Add several items, then request a quote at checkout.

  • Free US shipping on orders over $300
  • Manufacturer warranty
  • 30-day returns on unopened items

2000VA / 1800W, Line-Interactive UPS, 4U Rack/Tower Convertible, 6x NEMA 5-15R + 3x NEMA 5-20R + 1x NEMA L5-20R Outlets, AVR, LCD Console, SmartSlot.

BrandAPC
Product TypeSmart-UPS X Rack/Tower Convertible
Form FactorRackmount 4U / Tower Convertible
ColorBlack
Dimensions (H x W x D)17.01 x 7.01 x 19.02 in (43.2 x 17.8 x 48.3 cm)
Weight85.19 lb (38.64 kg)
Mounting TypeRack-mounted / Tower Convertible
Input Voltage120 V (100 V / 110 V / 127 V compatible)
Input Frequency50/60 Hz ±3 Hz auto-sensing
Plug TypeNEMA 5-20P
Output Voltage120 V (100 V / 110 V / 127 V compatible)
Power Capacity1920 VA / 1800 W
Output Connections6 x NEMA 5-15R, 3 x NEMA 5-20R, 1 x NEMA L5-20R
TopologyLine Interactive
WaveformSine wave
Transfer Time4 ms typical, 8 ms maximum
Battery TypeLead-Acid
Recharge Time3 hours typical
Battery Life3–5 years
Replacement BatteryAPCRBC143
Surge Protection540 J
Operating Temperature0…40°C
Operating Humidity0…95%
Warranty3 years repair or replace (excluding battery) and 2 years for battery
CD with SoftwareIncluded in the box
Documentation CDIncluded in the box
Installation GuideIncluded in the box
Rack Mounting HardwareIncluded in the box
Rack Mounting BracketsIncluded in the box
Rack Mounting Support RailsIncluded in the box
Removable Support FeetIncluded in the box
RS-232 CableIncluded in the box
USB CableIncluded in the box

2000VA / 1800W, Line-Interactive UPS, 4U Rack/Tower Convertible, 6x NEMA 5-15R + 3x NEMA 5-20R + 1x NEMA L5-20R Outlets, AVR, LCD Console, SmartSlot.

Overview

The APC Smart-UPS X SMX2000LV provides 2000VA / 1800W of reliable backup power in a versatile 4U rack/tower convertible design. With line-interactive topology, Automatic Voltage Regulation (AVR), and pure sine wave output, it ensures consistent and high-quality power for IT infrastructure. Featuring SmartSlot expandability, an intuitive LCD control panel, and support for extended runtime through external battery packs, this UPS is built for enterprise-grade performance and scalability.

Key Features & Benefits

  • 2000VA / 1800W Capacity: Provides dependable power for servers, storage, and network devices.
  • Pure Sine Wave Output: Maintains compatibility with sensitive IT equipment and active PFC power supplies.
  • Automatic Voltage Regulation (AVR): Stabilizes voltage during fluctuations without discharging the battery.
  • Extended Runtime Support: Connects with external battery modules for scalable backup during long outages.
  • SmartSlot Expansion: Enables integration of network management and monitoring accessories.
  • 4U Convertible Design: Deployable as either rackmount or tower with included hardware for flexibility.
  • LCD Status Console: Provides clear visibility into UPS performance, alarms, and configuration settings.

Technical Deep Dive

The SMX2000LV uses a line-interactive design with AVR to regulate input voltages between 75–154V without engaging the battery, reducing wear and extending lifecycle performance. With a transfer time of just 2–4ms, it guarantees smooth transitions and uninterrupted operation during voltage disturbances.

Delivering pure sine wave output at up to 1800W, the UPS protects mission-critical IT loads, from enterprise servers to edge devices. Its scalable design allows connection of external battery packs, enabling organizations to tailor runtime based on business continuity needs. Recharge cycles are optimized to complete within 3 hours, ensuring readiness for subsequent events.

Equipped with a SmartSlot, the unit supports optional network management cards that enhance visibility and control. Combined with the front-panel LCD, administrators gain comprehensive tools for monitoring and management, both locally and remotely, strengthening IT resilience.

Ideal Applications

  • Enterprise and branch office servers
  • Networking devices including routers, switches, and firewalls.
  • Retail point-of-sale and back-office IT systems
  • Healthcare and financial IT requiring extended runtime

Frequently Asked Questions (FAQs)

Q1: How is the SMX2000LV installed? A: It is a 4U rack/tower convertible UPS that includes rack mounting hardware, support rails, and removable support feet for flexible installation.

Q2: What performance can I expect? A: The UPS provides 2000VA / 1800W of pure sine wave output. Runtime depends on connected load but can be expanded with optional external battery packs. Refer to APC runtime charts for detailed values. Actual performance depends on load and battery condition.

Q3: How can the UPS be managed? A: Local management is handled through the LCD console, while advanced remote monitoring can be achieved via SmartSlot cards, providing network and environmental control.
