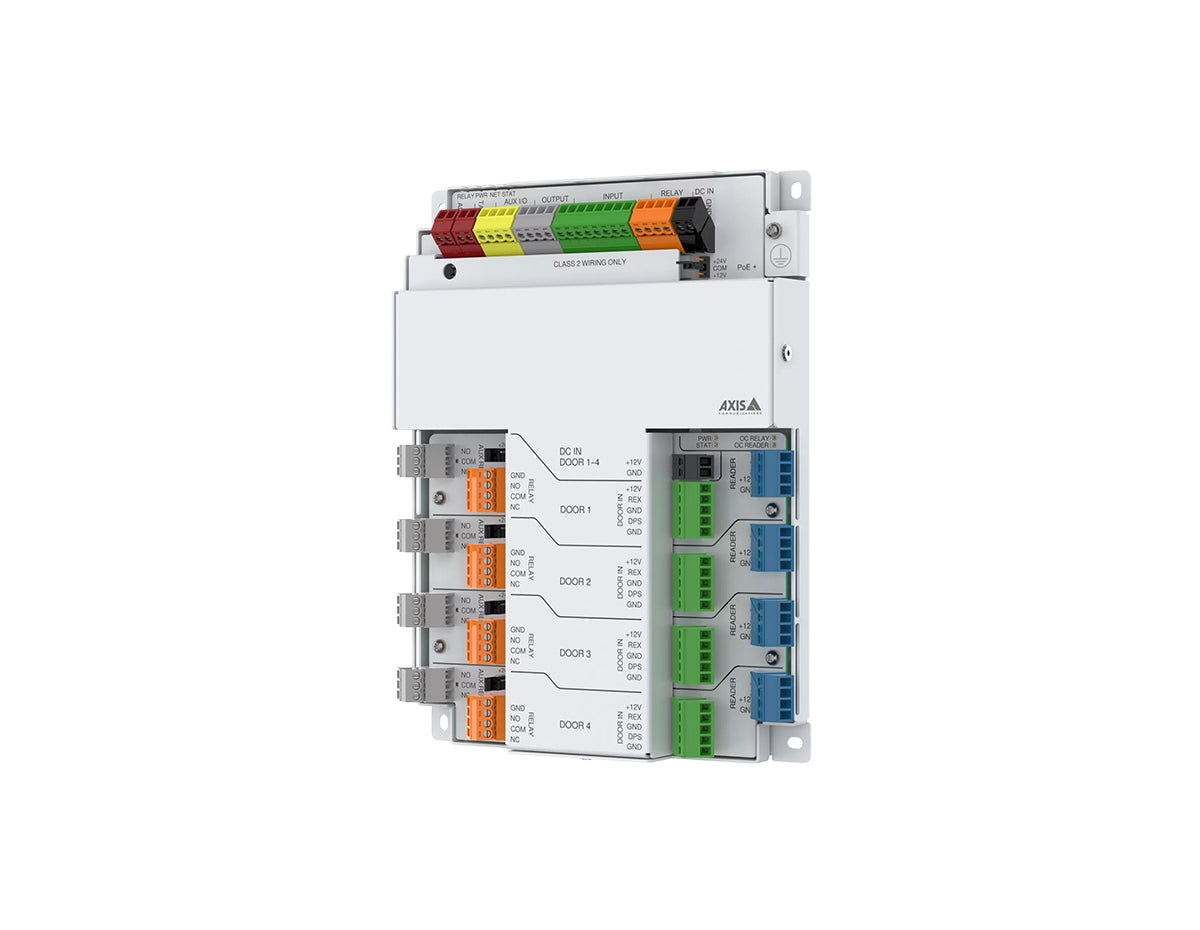

AXIS A1710-B Network Door Controller (03078-001)
AXIS A1710-B Network Door Controller (03078-001) — photo 2

Axis SKU 03078-001

AXIS A1710-B Network Door Controller (03078-001)

4-door control, 8 OSDP readers, PoE/12V DC input, built-in lock power, secure boot platform, DIN-rail mount Model AXIS A1710-B (03078-001) Product Type Network Door Controller Doors Supported 4 doors (two relays per door for double locks) Supported Readers Up…

PortsRJ45 10/100/1000BASE-T (PoE)

$1,463.00

Ask an engineer about this model

Add several items, then request a quote at checkout.

  • Free US shipping on orders over $300
  • Manufacturer warranty
  • 30-day returns on unopened items

4-door control, 8 OSDP readers, PoE/12V DC input, built-in lock power, secure boot platform, DIN-rail mount.

Product TypeNetwork Door Controller
Doors Supported4 doors (two relays per door for double locks)
Supported ReadersUp to 8 OSDP readers; Wiegand with accessory AXIS TA110-B
Credentials CapacityUp to 250,000 stored locally
Event BufferUp to 250,000 events stored locally
Power OptionsPoE IEEE 802.3at Type 2 Class 4; 12 V DC input
Network InterfaceRJ45 10/100/1000BASE-T (PoE)
Operating Temperature40 °C to 55 °C (-40 °F to 131 °F)
Storage Temperature40 °C to 70 °C (-40 °F to 158 °F)
Humidity10–85% RH (non-condensing)
MaterialSteel enclosure
ColorWhite NCS S 1002-B
DimensionsSee dimension drawing in datasheet
Weight880 g (1.9 lb)
Reader SupportUp to 8 OSDP/RS485 readers (multidrop); OSDP Secure Channel; optional Wiegand
LocksEight locks (two per door)
Relay Outputs1 main relay + 4 door relays + 4 AUX relays (form C, NO/NC)
Digital Inputs3 digital inputs + 4 REX + 4 door position inputs + 2 AUX IO + external tamper + alarm input
Digital Outputs3 open-drain outputs; multiple 12 V DC outputs
Power Output to Readers4x 12 V DC outputs (combined max 2 A)
System Memory512 MB RAM, 2 GB Flash
Network ProtocolsIPv4/IPv6, HTTPS/TLS, QoS, SNMP, DHCP, MQTT, Syslog and more
CybersecurityAxis Edge Vault secure element (CC EAL 6+), secure boot, signed firmware, 802.1X
CertificationsCE, FCC, RCM, UL/cUL, VCCI, KC, WEEE
Environmental StandardsIEC 60068-2 series (temperature, vibration, humidity)
Mounting OptionsDIN rail or cabinet mount
Supported SoftwareAXIS Camera Station Secure Entry; ACAP apps
Included in the BoxDoor controller; installation guide; connector kit (mounted); grounding kit; splicing connectors

4-door control, 8 OSDP readers, PoE/12V DC input, built-in lock power, secure boot platform, DIN-rail mount.

Centralized Access Control with Scalable Multi-Door Management

The AXIS A1710-B Network Door Controller delivers streamlined, centralized control for up to four doors while supporting eight OSDP readers and eight locks. Designed for both new and retrofit installations, it combines compact hardware, built-in lock power management, and strong cybersecurity features to protect high-security access environments. With support for third-party cabinets and multiple reader types, it fits enterprise, industrial, and critical infrastructure deployments.

Key Benefits & Features

  • Full four-door control: Manage up to four doors with double-lock support and integrated I/O options for sensors, REX devices, and alarms.
  • Eight OSDP reader support: Connect up to eight secure OSDP readers with multidrop architecture and OSDP Secure Channel verification.
  • Built-in power management: Simplify installations with onboard 12 V DC power outputs for locks, sensors, and door peripherals.
  • Advanced cybersecurity: Axis Edge Vault hardware platform, secure boot, signed firmware, and strong authentication protocols safeguard device integrity.
  • Flexible power and mounting: Operates via PoE+, 12 V DC, or multi-input power setups; supports DIN rail and cabinet mounting.

Ideal Use Cases

  • Enterprise facilities requiring centralized multi-door access control.
  • Industrial and critical infrastructure sites with strict cybersecurity needs.
  • Retrofit projects integrating OSDP or Wiegand readers
  • AXIS Camera Station Secure Entry deployments
  • Multi-building campuses standardizing on network-based access control.

Technical Specifications

  • Doors: Up to 4 doors with double-lock relay support
  • Reader Support: 8 OSDP readers, multidrop RS485
  • Credentials: Stores up to 250,000 local credentials
  • Event Buffer: 250,000 local events
  • Power Input: PoE IEEE 802.3at Type 2 or 12 V DC
  • Outputs: 12/24 V DC wet relays, overcurrent-protected
  • Network Interface: 10/100/1000BASE-T RJ45
  • Operating Temperature: -40 °C to 55 °C
  • Memory: 512 MB RAM, 2 GB Flash
  • Cybersecurity: Axis Edge Vault, secure element (CC EAL 6+), secure boot.

Upgrade Your Access Control Today

Enhance your security infrastructure with powerful multi-door control and advanced cybersecurity. Order now .
