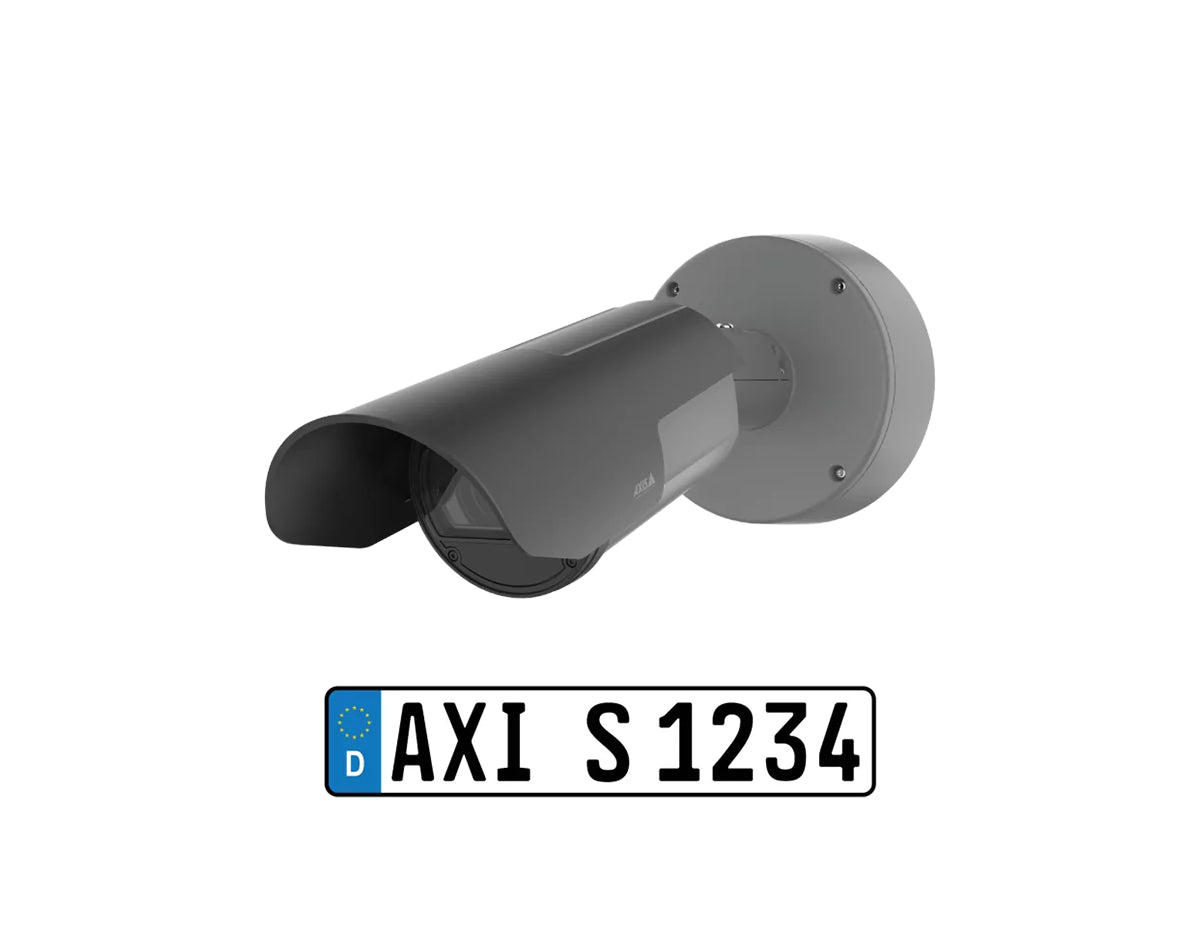

AXIS Q1800-LE-3 License Plate Verifier Kit (03108-001)
AXIS Q1800-LE-3 License Plate Verifier Kit (03108-001) — photo 2

Axis SKU 03108-001

AXIS Q1800-LE-3 License Plate Verifier Kit (03108-001)

200 km/h LPR capture, 20–100 m range, OptimizedIR, ARTPEC-8 SoC, IK10/IP66, Varifocal 7–137 mm lens Model AXIS Q1800-LE-3 (03108-001) Product Type License Plate Verifier Kit Image Sensor 1/2.8” progressive scan RGB CMOS Lens Varifocal 7–137 mm, F1.5–4.0;…

$2,301.00

Ask an engineer about this model

Add several items, then request a quote at checkout.

  • Free US shipping on orders over $300
  • Manufacturer warranty
  • 30-day returns on unopened items

200 km/h LPR capture, 20–100 m range, OptimizedIR, ARTPEC-8 SoC, IK10/IP66, Varifocal 7–137 mm lens.

Product TypeLicense Plate Verifier Kit
Image Sensor1/2.8” progressive scan RGB CMOS
LensVarifocal 7–137 mm, F1.5–4.0; Remote zoom & focus; P-Iris
Field of ViewHorizontal 38°–2.3°; Vertical 22°–1.3°
Minimum IlluminationColor: 0.06 lux; B/W: 0.01 lux; 0 lux with IR on
IR IlluminationOptimizedIR, 850 nm, 40–50 m range (scene dependent)
Vehicle Speed SupportUp to 200 km/h (124 mph)
Detection RangeDay: 20–100 m; Night: 20–50 m (up to 100 m with optional IR)
Internal StoragemicroSD/microSDHC/microSDXC supported
Operating Temperature−40 °C to 60 °C (−40 °F to 140 °F)
PowerPoE IEEE 802.3af/at; 10–28 V DC; 20–24 V AC
Power ConsumptionTypical 12.6 W; Max 25.5 W
DimensionsSee datasheet dimension diagram
Weight3200 g (7.05 lb)
CasingIP66 / NEMA 4X; IK10 aluminum; IK08 glass
Video Resolution1400×1050 to 160×120 (4:3); 1920×1080 to 320×180 (16:9)
Frame RateUp to 25/30 fps with WDR; Up to 90 fps without WDR
WDRForensic WDR up to 120 dB
Image ProcessingZipstream, Lightfinder 2.0, OptimizedIR
Shutter Speed1/111000 s to 2 s (depending on mode)
System on ChipARTPEC-8 with Deep Learning Processing Unit (DLPU)
Network ProtocolsIPv4/IPv6, HTTPS, TLS, QoS, FTP/SFTP, RTSP, TCP/UDP, DHCP, ONVIF Profiles G/M/S/T
AudioTwo-way audio; AAC-LC, LPCM, G.711, Opus
I/O Ports2 configurable supervised inputs/outputs
Storage OptionsmicroSD; SD card encryption; NAS recording
Operating Humidity10–100% RH (condensing)
Environmental RatingsIEC/EN 60529 IP66; IK10; NEMA TS 2
Supported AnalyticsLicense Plate Verifier, Scene Metadata, Speed Monitor, VMD, Tampering Alarm
CybersecurityAxis Edge Vault, TPM 2.0, Secure Boot, Signed OS, Encrypted Filesystem
Included in the BoxCamera, installation guide, terminal block connector, RJ45 cable, connector guard, cable gaskets, owner authentication key
Optional AccessoriesAXIS T8415 Wireless Installation Tool; AXIS Surveillance Cards; Additional accessories listed on Axis product page

200 km/h LPR capture, 20–100 m range, OptimizedIR, ARTPEC-8 SoC, IK10/IP66, Varifocal 7–137 mm lens.

High-Speed, Precision License Plate Recognition in Any Environment

The AXIS Q1800-LE-3 License Plate Verifier Kit delivers 24/7, purpose-built vehicle plate recognition for demanding environments. Powered by the ARTPEC-8 SoC and AXIS License Plate Verifier preinstalled, it captures plates at speeds up to 200 km/h (124 mph) with exceptional accuracy in both day and night conditions. This robust, weatherproof system ensures consistent performance in extreme temperatures and harsh outdoor deployments.

With a powerful varifocal 7-137 mm lens, OptimizedIR, and intelligent analytics at the edge, the AXIS Q1800-LE-3 enables fast, reliable vehicle verification without the need for expensive external servers or complex infrastructure. The unit is designed with a built-in weathershield to withstand wind forces up to 60 m/s (134 mph), making it ideal for exposed traffic installations.

Key Benefits & Features

  • High-speed LPR accuracy: Captures clear license plates at up to 200 km/h using purpose-tuned optics and built-in edge analytics.
  • Long-range detection: Daytime reading range of 20–100 m and nighttime range up to 50 m, extendable to 100 m with optional IR illuminator.
  • Edge-based processing: ARTPEC-8 with Deep Learning Processing Unit (DLPU) enables fast recognition, lower bandwidth use, and reduced server dependency.
  • Rugged outdoor build: IP66, IK10, NEMA 4X-rated housing with integrated dehumidifying membrane ensures reliability in tough weather.
  • OptimizedIR illumination: Adaptive 850 nm IR LEDs deliver even coverage in full darkness for higher recognition accuracy without external light sources.

Ideal Use Cases

  • Highway and expressway speed checkpoints
  • Commercial and industrial gate control and access management
  • Parking facility automation, vehicle search, and enforcement
  • Perimeter security for logistics and distribution centers
  • Municipal traffic monitoring and law enforcement

Technical Specifications

  • Sensor: 1/2.8” progressive scan RGB CMOS
  • Lens: Varifocal 7–137 mm, F1.5–4.0, remote zoom and focus
  • Field of View: 38°–2.3° horizontal, 22°–1.3° vertical
  • IR Range: 40 m wide FOV, 50 m tele, scene dependent
  • Vehicle Speed Support: Up to 200 km/h (124 mph)
  • Detection Distance: 20–100 m (day), 20–50 m (night)
  • Video Resolution: Up to 1920×1080, 90 fps (without WDR)
  • WDR: Forensic WDR up to 120 dB
  • Operating Temperature: -40 °C to 60 °C (-40 °F to 140 °F)
  • Power: PoE 802.3af/at, 10–28 V DC, 20–24 V AC

Upgrade Your Vehicle Monitoring Today

Enhance your traffic or access control system with reliable high-speed plate verification. Order now to secure your perimeter with the AXIS Q1800-LE-3.
