Axis T8640 PoE+ Over Coax Adapter Kit (5026-401)

• Supports PoE and PoE+ over coaxial cable, 100+100 Mbps symmetrical to full range over coaxial cable, Supports coaxial cable runs up to 500 meters.

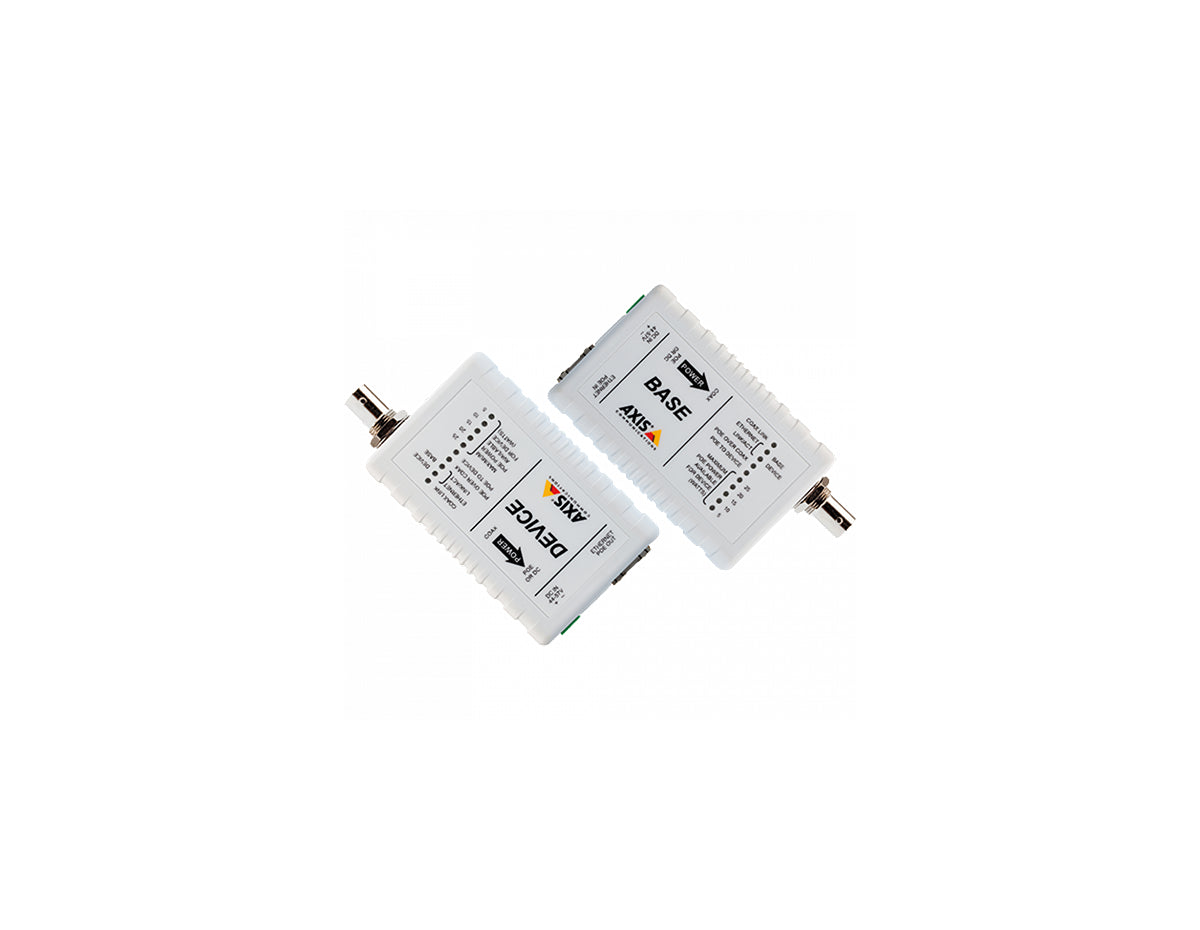

The Axis T8640 PoE+ Over Coax Adapter Kit offers a seamless upgrade to IP technology while retaining your existing coax cabling infrastructure. This kit includes the AXIS T8641 PoE+ Over Coax Base Unit and the AXIS T8642 PoE+ Over Coax Device Unit, allowing you to convert an analog system to digital without the need for re-cabling. It delivers Power over Ethernet (PoE) and PoE+ over coaxial cables, making it suitable for long-range installations. The adapter kit also features an intuitive LED display that provides clear network and power status indicators, ensuring ease of installation and reliable performance.

Key Features

• Seamless Upgrade: Enables the use of existing coax cabling when upgrading to IP technology, saving time and costs.
• PoE+ Over Coax: Supports PoE and PoE+ over coaxial cable, delivering up to 25.5 W to connected devices.
• Easy Installation: Plug-and-play design with auto-detection of PoE devices and intuitive LED indicators for network and power status.
• Long-Range Capabilities: Supports coaxial cable runs up to 500 meters (1600 feet) at full data rate, suitable for extended installations.
• Compatibility: Works with Axis network video products, ensuring seamless integration into existing systems.

Technical Overview

• Recommended for: Upgrading analog systems to digital IP using existing coax cabling, suitable for long-range installations in various environments.
• Data Rate: 100+100 Mbps symmetrical to full range over coaxial cable; 100 Base-TX Full Duplex over Ethernet cable.

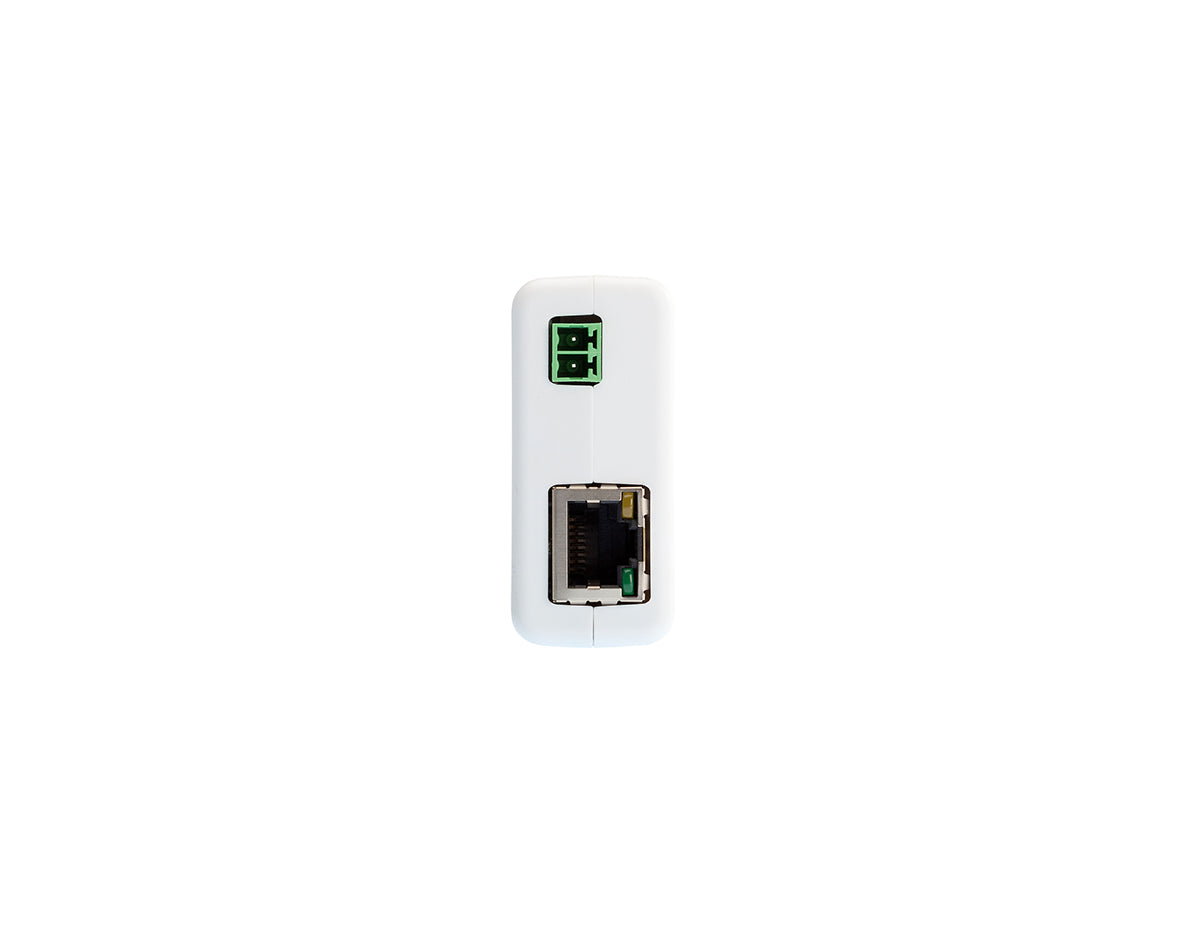

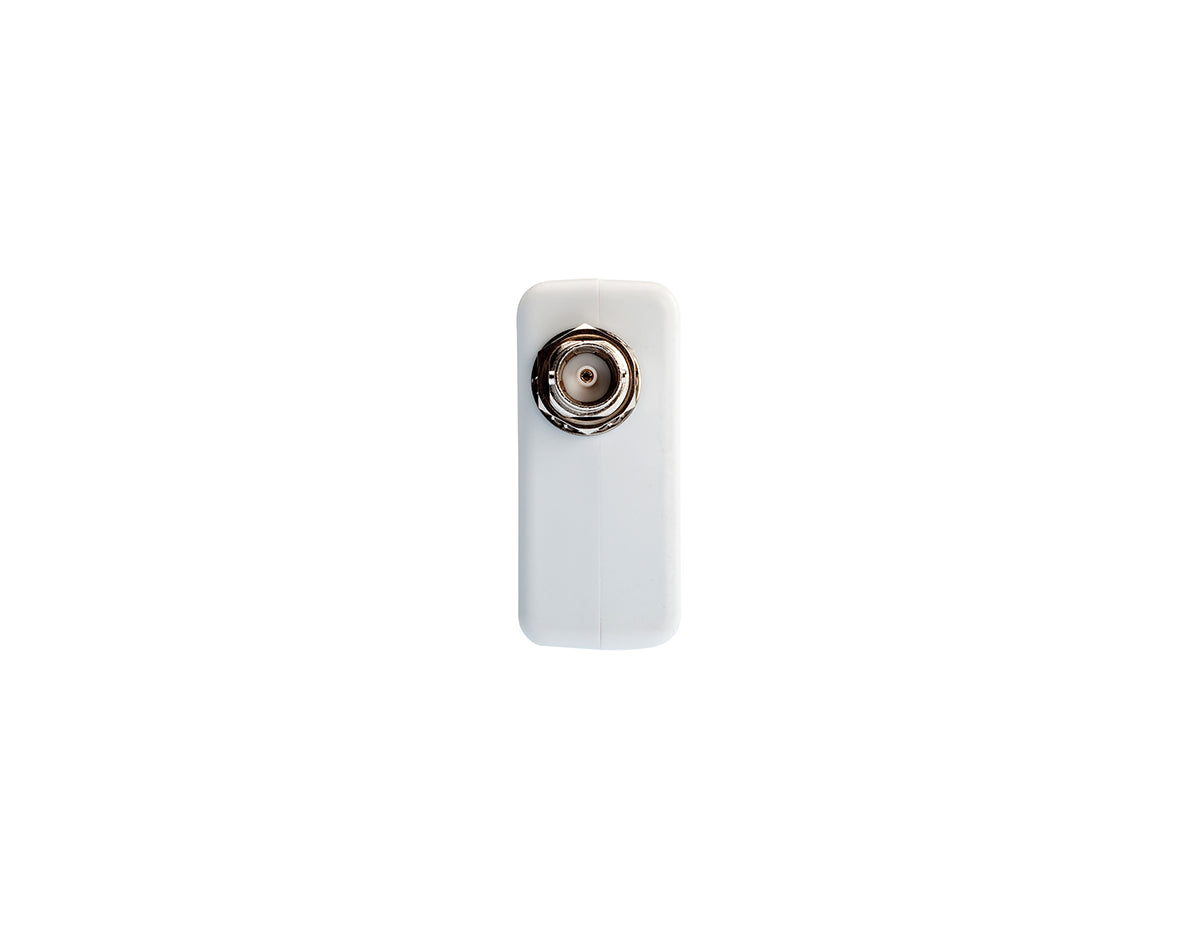

• Connectors: Coaxial: BNC 75 Ohm; Ethernet: Shielded RJ45, EIA 568A and 568B.
• Power Input: PoE (IEEE 802.3at Class 4) or DC power supply
• Power Output: PoE over Coax with safe auto-detection and auto-cutout; PoE (IEEE 802.3af/at) enabled for devices up to 25.5 W.
• Operating Conditions: -10°C to 50°C (14°F to 122°F), max. 95% RH (non-condensing).
• Dimensions: AXIS T8641: 104 x 54 x 24 mm (4.1 x 2.2 x 0.9 in); AXIS T8642: 104 x 54 x 24 mm (4.1 x 2.2 x 0.9 in).
• Weight: AXIS T8641: 90 g (0.2 lb); AXIS T8642: 88 g (0.2 lb)
• Compliance: IEEE 802.3af, IEEE 802.3at, RoHS, WEEE, CE, and other relevant standards.
