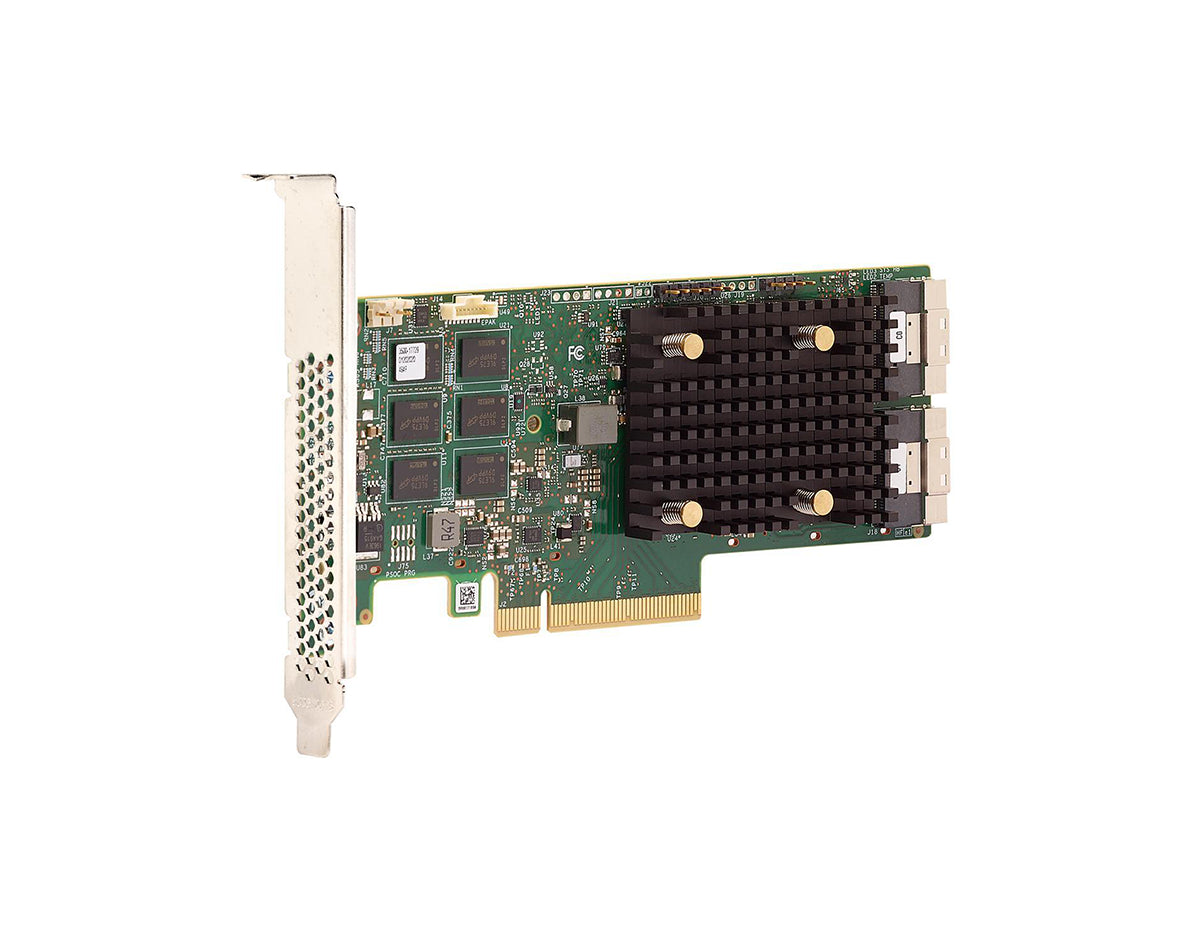

Broadcom MegaRAID 9560-8i Storage Controller

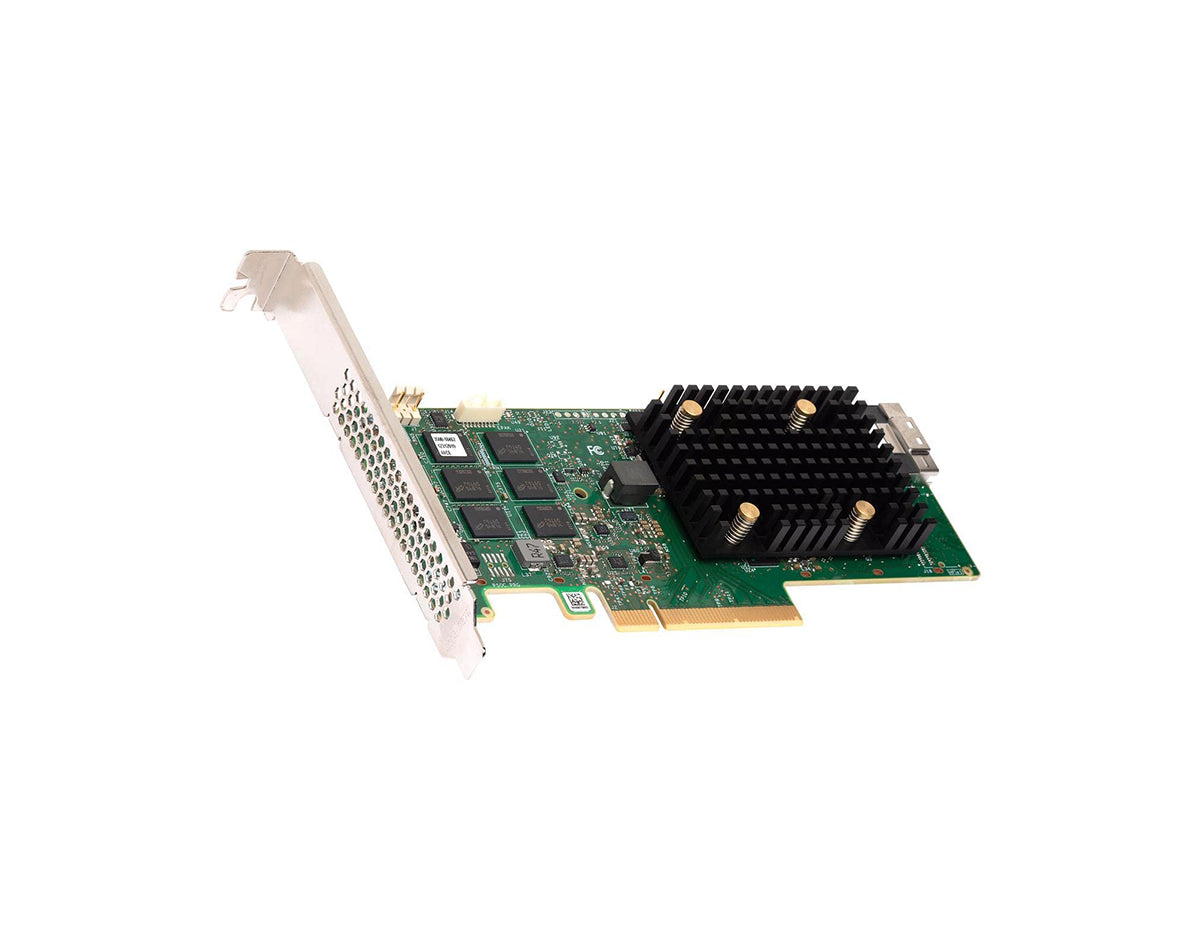

Broadcom MegaRAID 9560-8i Storage Controller — photo 2
Broadcom MegaRAID 9560-8i Storage Controller — photo 3

Broadcom SKU 9560-8i

Broadcom MegaRAID 9560-8i Storage Controller

8i, 8 Channel, RAID 0, 5, 10, JBOD, PCIe 4.0 x8, Storage controller (RAID), SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe), 1, 6, 50, 60

$895.00

Ask an engineer about this model

Add several items, then request a quote at checkout.

  • Free US shipping on orders over $300
  • Manufacturer warranty
  • 30-day returns on unopened items

The MegaRAID 9500 series represents the first RAID adapter family in the industry to utilize PCIe Gen 4.0 technology, providing support for both PCIe Gen 4.0 host and storage interfaces. The MegaRAID 9560-8i adapter, which is built on the SAS3908 high-port count PCIe 4.0 x8 RAID-on-Chip (RoC), offers a performance improvement of up to two times compared to previous generations. Additionally, the 9560-8i is designed to be compatible with existing PCIe SFF-8639 Module (U.2) backplanes, enabling users to enhance performance in today’s increasingly bandwidth-intensive environments.

Product NameBroadcom MegaRAID 9560-8i Storage Controller
Product FamilyBroadcom MegaRAID™ 9500 Series
Product TypeStorage Adapter
Host Bus Typex8 lane PCI Express 4.0
Storage Interface12Gb/s SAS, 6Gb/s SATA, Gen 4.0 PCIe (NVMe)
Internal Connectors1 x8 SFF-8654 (SlimSAS)
Internal Ports8
I/O ControllerSAS3908
Devices SupportedSAS/SATA: 240, NVMe: 24
Physical Dimensions6.127in x 2.712in
Operating Temperature0°C to 55°C
MTBF> 3,000,000 hours at 40°C
Management SoftwareLSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
Regulatory CertificationsFCC 47 CFR part 15 Subpart B, class B
Form-factor Friendly Cable ExitYes
Connects Up To240 SAS/SATA devices or 32 NVMe devices
Universal Bay Management (UBM) ReadyYes

The MegaRAID 9500 series represents the first RAID adapter family in the industry to utilize PCIe Gen 4.0 technology, providing support for both PCIe Gen 4.0 host and storage interfaces. The MegaRAID 9560-8i adapter, which is built on the SAS3908 high-port count PCIe 4.0 x8 RAID-on-Chip (RoC), offers a performance improvement of up to two times compared to previous generations. Additionally, the 9560-8i is designed to be compatible with existing PCIe SFF-8639 Module (U.2) backplanes, enabling users to enhance performance in today’s increasingly bandwidth-intensive environments.

Quick Specs

  • Form-factor friendly cable exit
  • Connects up to 240 SAS/SATA devices or 32NVMe devices
  • Universal Bay Management (UBM) ready
  • 8 internal ports
