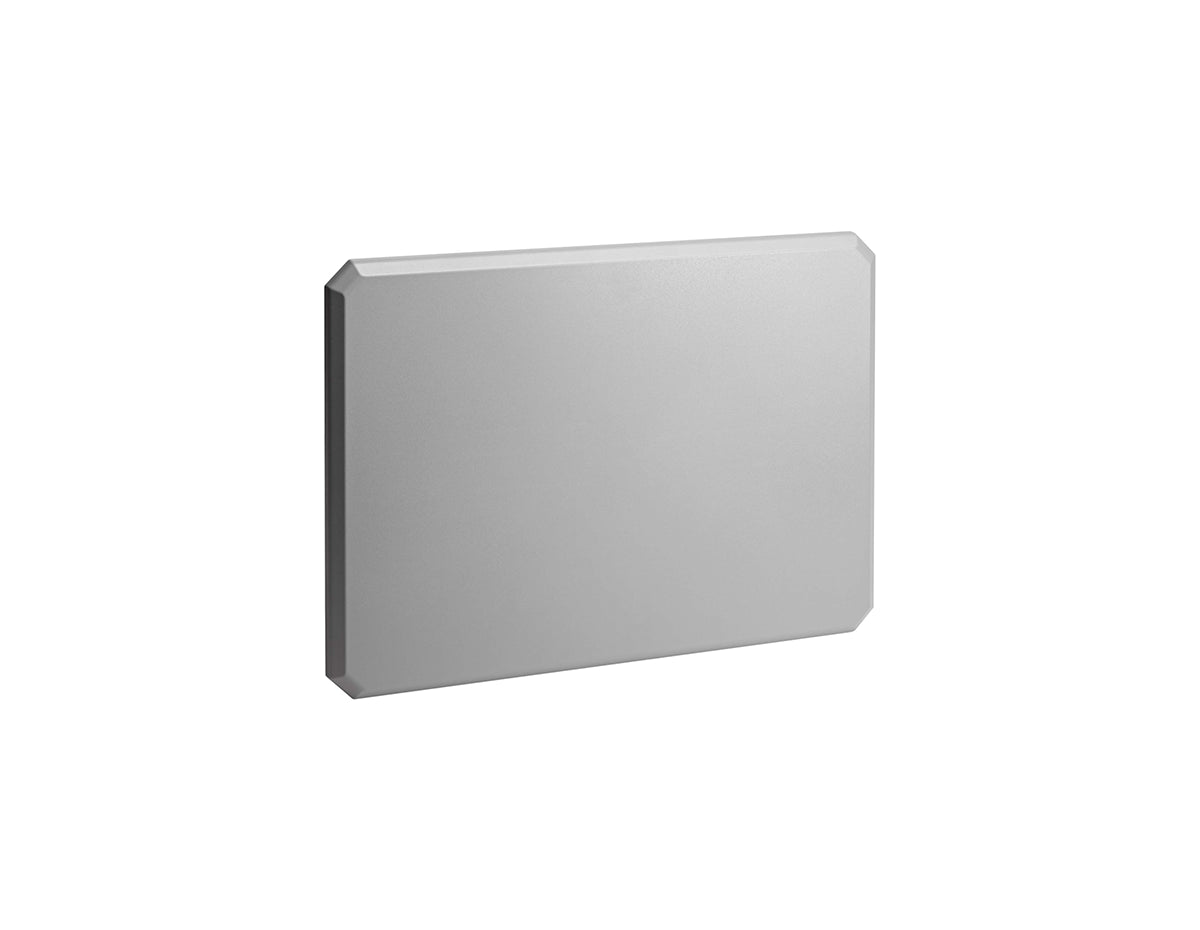

Cisco AIR-ANT2513P4M-N Antenna
Antenna Wi-Fi 13 dBi Directional Ceiling mountable Wall-mountable For Aironet 3802E Series Access Points
Price
1-Year Manufacturer Warranty
Free Shipping on Orders Over $500
Secure Payment
- Antenna
- Wi-Fi
- 13 dBi
- Directional
- Ceiling mountable
- Wall-mountable
- For Aironet 3802E Series Access Points
| Specifications | AIR-ANT2513P4M-N |
| Description | The Cisco AIR-ANT2513P4M-N antenna is a four-port polarization-diverse patch array that operates over the 2.4-GHz and 5-GHz Wi-Fi bands. |
| Product Family | Cisco Aironet Series |
| Product Type | Antenna |
| Dimensions | 14.5x 20 x 0.8 in |
| Operating Temperature Range | -40° C to 85° C |
| Connector Type | N-Female Bulkhead |
| Peak Gain | 13 dBi |
| Polarization (Ports A & C) | Dual Linear |
| Polarization (Ports B & D) | Vertical |
| Nominal Input Impedance | 50 Ohms |
| Front-to-Back Ratio | > 30 dB |
| Compatibility | Cisco Aironet 3702P and 1570 Series access points |
| 2.4-2.5 GHz VSWR | 1.6:1 |
| 5.15-5.925 VSWR | 1.5:1 (above 5.7 GHz to 5.9 GHz) 2:1 (from 5.15 GHz to 5.7 GHz) |
| Operational Frequency Ranges | 2.4-2.5 GHz & 5.15-5.9 GHz |
| 2.4 – 2.5 GHz Elevation Plane Beamwidth | 33° |
| 2.4 – 2.5 GHz Azimuth Plane 3-dB Beamwidth | 31° |
| 5.15 – 5.925 GHz Azimuth Plane 3-dB Beamwidth | 31° |
| 5.15 – 5.925 GHz Elevation Plane Beamwidth | 27° |
Cisco AIR-ANT2513P4M-N Antenna

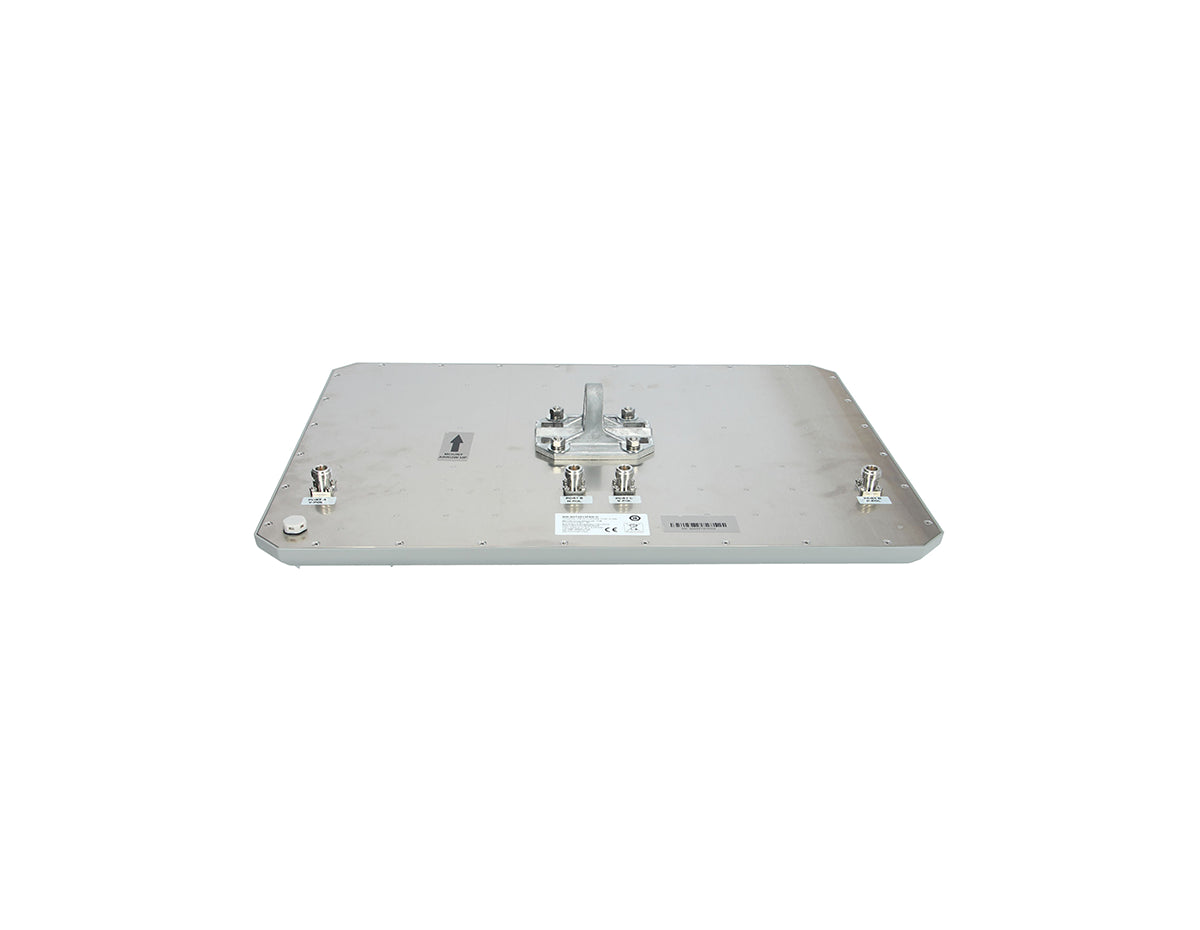

The Cisco AIR-ANT2513P4M-N atenna is a four-port polarization-diverse patch array that supports 2.4-GHz and 5-GHz Wi-Fi bands, and is compatible with Cisco Aironet 3702P and 1570 series access points. It comes with an articulating mount for flat surfaces and masts, and can be adjusted in horizontal and vertical planes.
Key Features:
- Indoor and outdoor environments
- Dual-band wall-mount stadium antenna
- Aironet 3702P and 1570 Series
For detailed specifications, refer to the AIR-ANT2513P4M-N datasheet in the tabs.
| Weight | 15.0 lbs |
|---|---|
| Ports | |
| Power | |
| Frequency | |
| Brand |
