Cisco AIR-ANT2588P3M-N Antenna
Antenna 8 dBi Directional Outdoor
$285.00
Ask an engineer about this modelAdd several items, then request a quote at checkout.
- Free US shipping on orders over $300
- Manufacturer warranty
- 30-day returns on unopened items

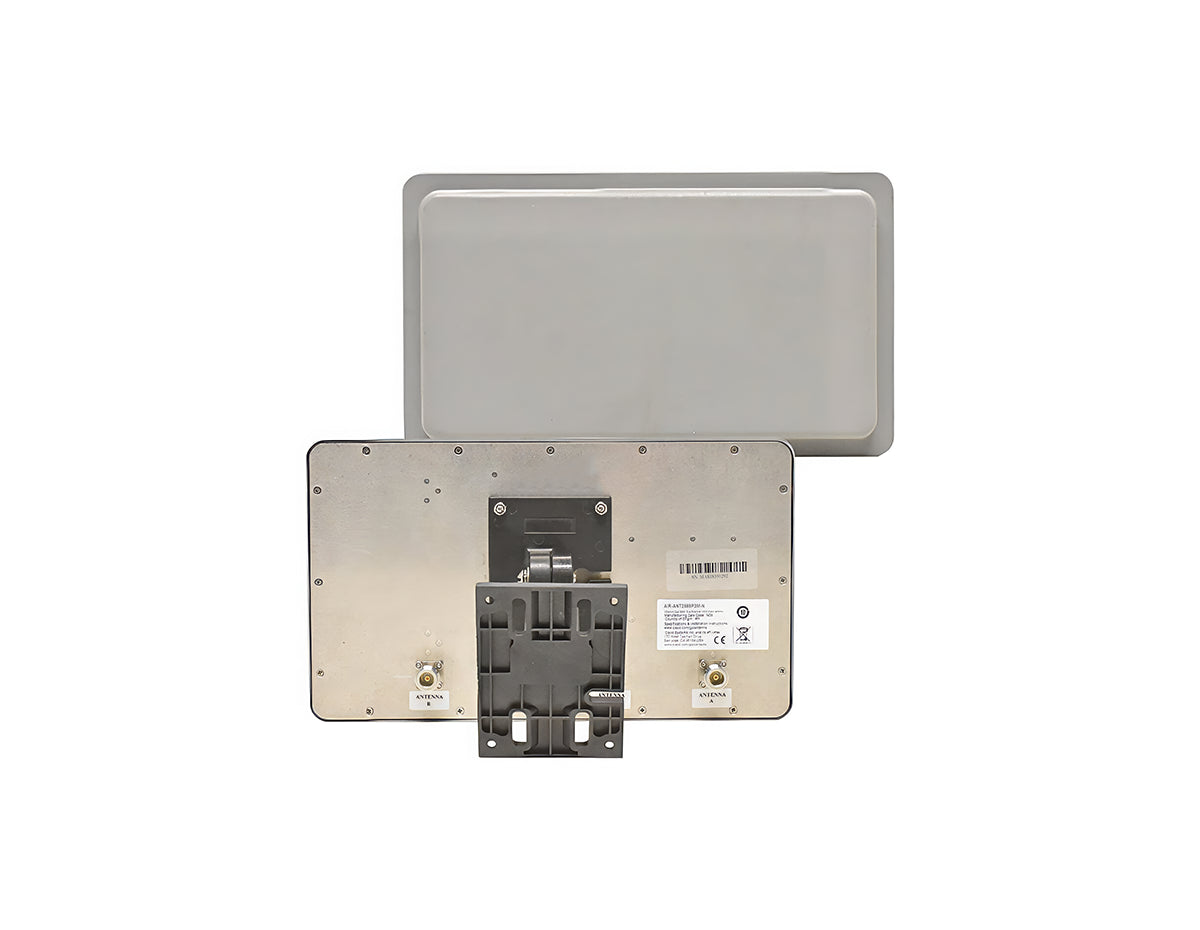

The AIR-ANT2588P3M-N is a Cisco Aironet dual-band directional antenna with N-connectors, boasting an 8-dBi 2.4/5-GHz 3-port configuration. This antenna can be utilized with outdoor access points and does not require cable attachments. It is specifically designed to be used alongside the Cisco 1552E access point.
| Product Type | Outdoor Dual-Band Directional Antenna |
|---|---|
| Compatibility | Cisco access points requiring 3 dual-band antenna ports |
| Mount Type | Pole or wall mount with included adjustable bracket |
| Antenna Type | 3-element dual-polarized patch |
| Frequency Range | 2400–2500 MHz / 5150–5900 MHz |
| Peak Gain | 8 dBi (both bands) |
| Polarization | Linear, Dual |
| Beamwidth (Elevation) | 30° |
| Beamwidth (Azimuth) | 120° |
| Impedance | 50 Ohms |
| VSWR | ≤ 2:1 |
|---|---|
| Connector | 3 x N-Female Bulkhead |
| Dimensions (L x W x H) | 30.48 x 17.78 x 2.79 cm |
| Weight | 0.45 kg |
| Operating Temperature | 40°C to +55°C |
| Ingress Protection | IP67 |
| Included Items | Antenna unit, adjustable elevation and azimuth brackets, mounting hardware (included in the box) |
| Compatible Devices | Cisco outdoor access points such as the 1552E with 3 antenna ports |
| Optional Accessories | Low-loss coaxial cables AIR-CAB005LL-N, AIR-CAB010LL-N (not included) |
The AIR-ANT2588P3M-N is a Cisco Aironet dual-band directional antenna with N-connectors, boasting an 8-dBi 2.4/5-GHz 3-port configuration. This antenna can be utilized with outdoor access points and does not require cable attachments. It is specifically designed to be used alongside the Cisco 1552E access point.
Key Features
- dual-band patch
- 8 dBi, both bands
- For Aironet 1550 Series
For detailed specifications, refer to the Cisco AIR-ANT2588P3M-N datasheet in the tabs.
