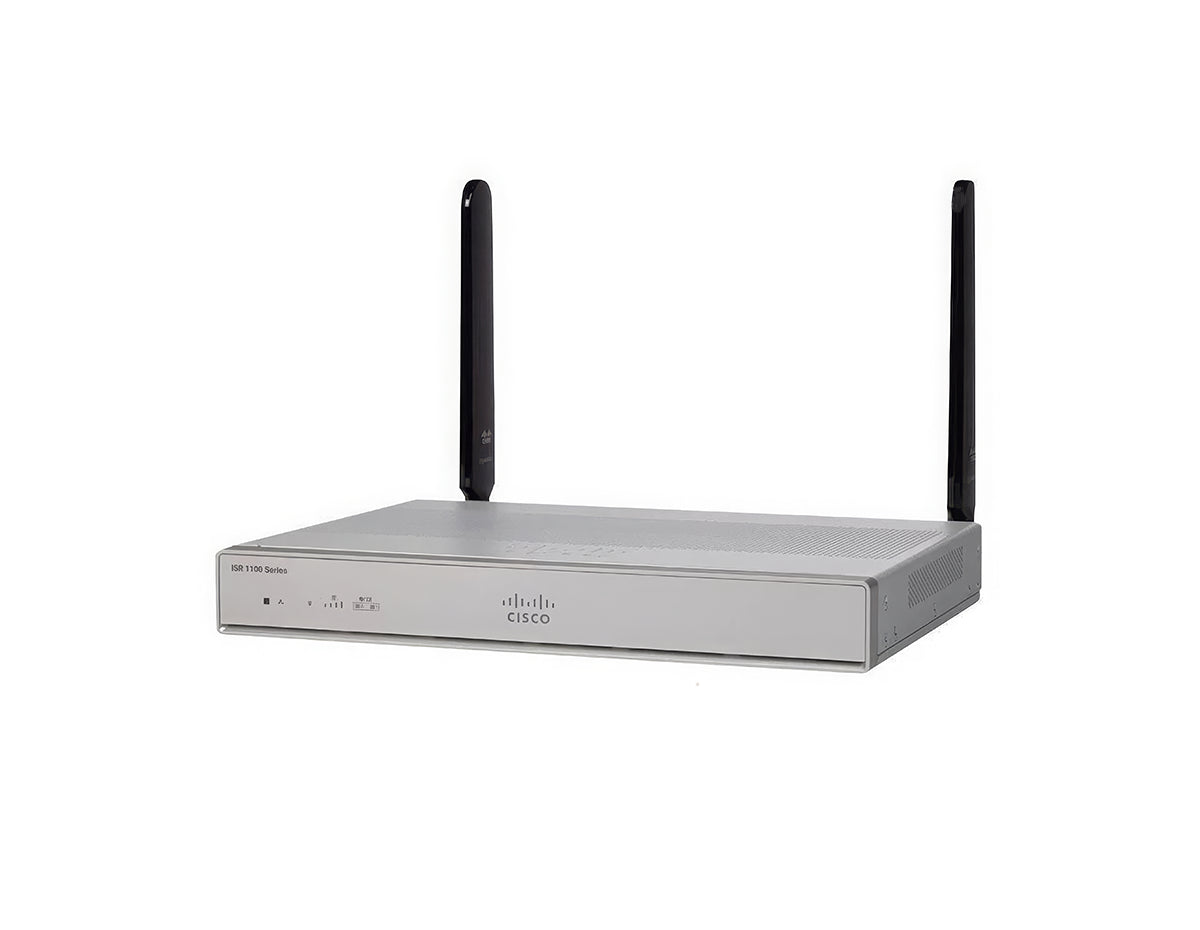

Name: Cisco C1161X-8PLTEP Router
SKU: C1161X-8PLTEP-NEW
Price: 1295 USD
Availability: InStock

On Sale

Cisco C1161X-8PLTEP Router

Router 8-port switch GigE WAN ports: 2

Categories: Networking, RoutersSKU: C1161X-8PLTEP-NEW

Price

1-Year Manufacturer Warranty

Free Shipping on Orders Over $500

Secure Payment

Description
Additional information

Router
8-port switch
GigE
WAN ports: 2

Properties	C1161X-8PLTEP
Product Family	Cisco 1100 Series
Product Type	Integrated Services Routers
WAN GE	1
WAN GE/SFP combo	1
10/100/1000 Ethernet ports	up to 10
ADSL2/VDSL2+	N/A
LTE Advanced (CAT6)	Yes with Pluggable Technology
802.11ac	N/A
LAN GE	8
PoE	4
PoE+	2
Integrated USB 3.0 AUX/console	Yes
Dimensions in. (H x W x D)	1.65 x 12.7 x 8.9
Integrated USB 3.0 AUX/console	Yes

Specifications	C1161X-8PLTEP
Dram	4 GB
Flash Memory	4 GB
AC input voltage	Universal 100 to 240 VAC
Operating Temperature	32° to 104°F (0° to 40°C).
Operating humidity	10% to 85% relative humidity (noncondensing)
Standard safety certifications	UL 60950-1, 2nd edition. CAN/CSA C22.2 No. 60950-1, 2nd edition. EN 60950-1, 2nd edition. CB to IEC 60950-1, 2nd edition with all group differences and national deviations
EMC emissions	EN55022/CISPR22, CFR 47 Part 15, ICES003, VCCI-V-3, AS/NZS CISPR22, CNS13438, EN300-386, EN61000-3-2, EN61000-3-3, and EN61000-6-1.
LEDs	WWAN (green/amber). SIM status (green/amber). Received signal strength indication (RSSI) bar (green). 3G/LTE service (green/amber). GPS (green/amber). Speed and link for Gigabit Ethernet WAN port (green). Speed and link for all Fast Ethernet LAN ports (green).
Bands Supported	LTE bands 1-5, 7, 12, 13, 20, 25, 26, 29, 30, and 41. FDD LTE 700 MHz (band 12), 700 MHz (band 29), 800 MHz (band 20), 850 MHz (band 5 CLR), 850 MHz (band 26 Low), 900 MHz (band 8), 1800 MHz (band 3), 1900 MHz (band 2), 1900 MHz (PCS band 25), 1700 MHz and 2100 MHz (band 4 AWS), 2100 MHz (band 1), 2300 MHz (band 30), or 2600 MHz (band 7). TDD LTE 2500 MHz (band 41). Carrier aggregation band combinations: 1+8; 2+(2,5,12,13,29); 3+(7,20); 4+(4,5,12,13,29); 7+(7,20); 12+30, 5+30, and 41+41.
TELNET & CLI	Yes

Accessories	Rack-mount kit for all 1100 Series ISRs.
Small Form-Factor Pluggable
GLC-EX-SMD	1000BASE-EX SFP transceiver module, SMF, 1310nm, DOM.
GLC-ZX-SMD	1000BASE-ZX SFP; with DOM.
GLC-LH-SMD	GE SFP, LC connector LX/LH transceiver; with DOM.
GLC-FE-100ZX	100BASE-ZX SFP (80km).
GLC-SX-MMD	GE SFP, LC connector SX transceiver; with DOM.
GLC-ZX-SM	1000BASE-ZX SFP.
GLC-BX-D	1000BASE-BX SFP, 1490NM.
GLC-BX-U	1000BASE-BX SFP, 1310NM.

Cisco C1161X-8PLTEP Router

Get Internet access, advanced security, and wireless services in one device. Cisco 1000 Series Integrated Services Routers (ISRs) are fixed, high-performance routers that are easy to deploy and manage. Small yet powerful, they provide highly secure broadband, Metro Ethernet, and wireless LAN connectivity.
