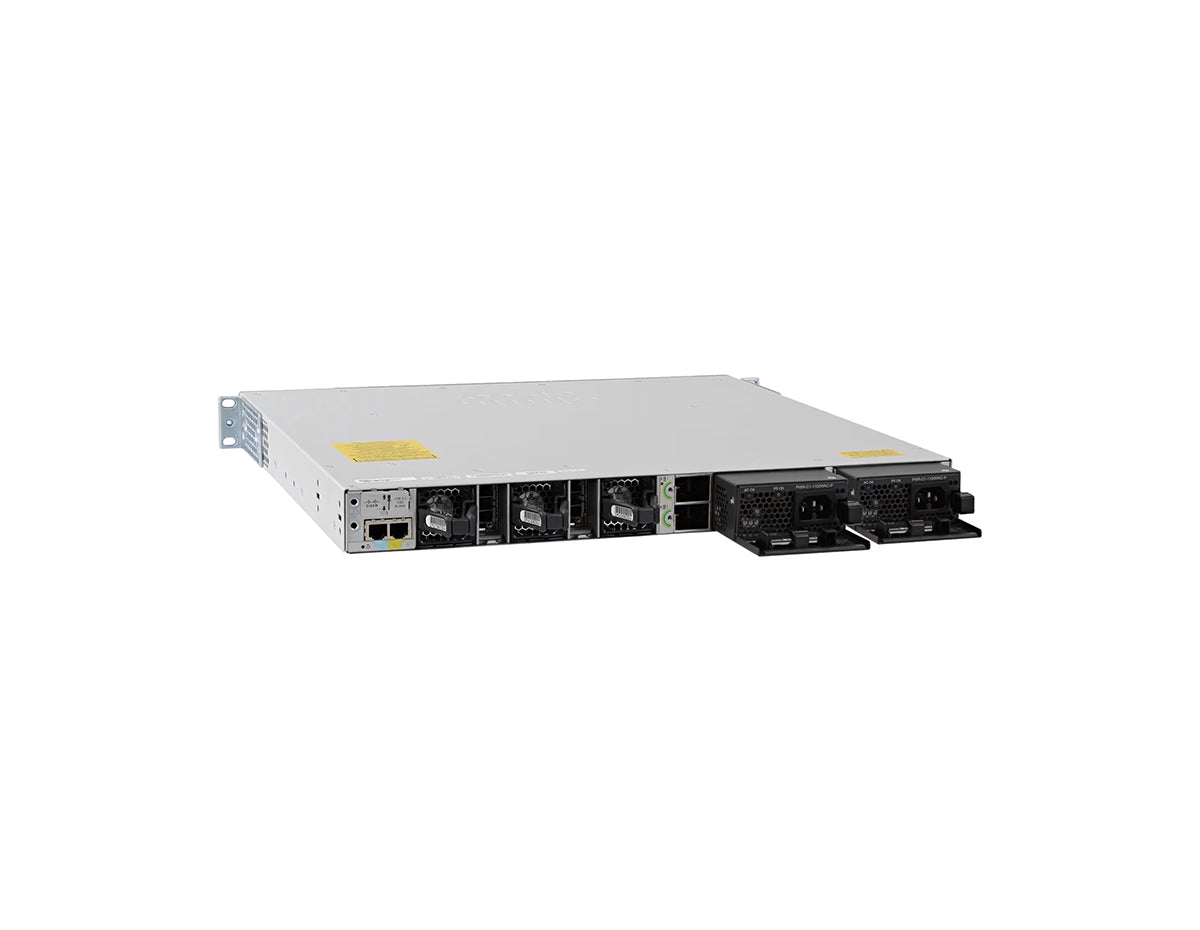

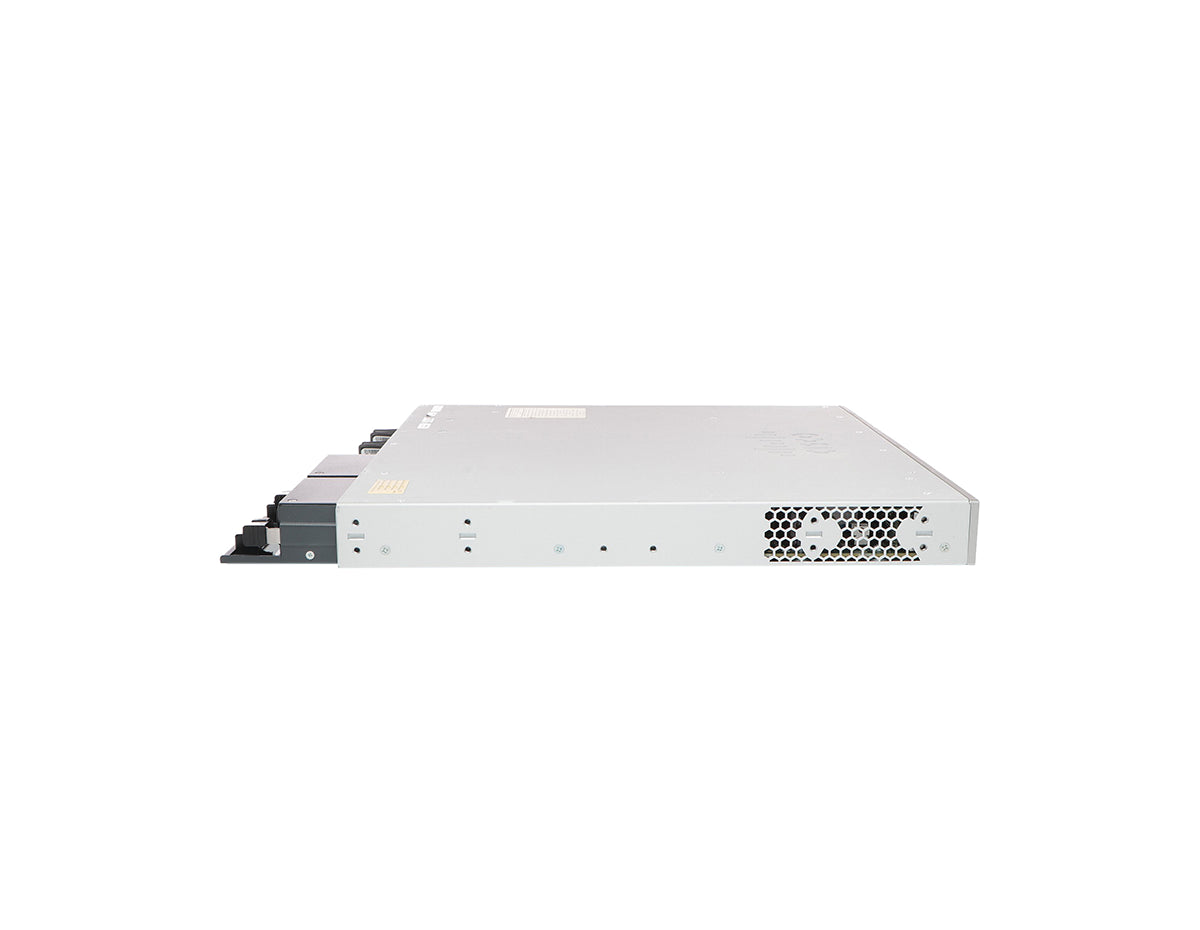

Cisco C9300-48U-A Switch
Cisco C9300-48U-A Switch — photo 2
Cisco C9300-48U-A Switch — photo 3

Cisco SKU C9300-48U-A

Cisco C9300-48U-A Switch

Managed, Rack-mountable, 48 x 1G ports, Modular Uplinks, UPOE

Throughput480 Gbps
Switching capacity208 Gbps

$7,794.90

Ask an engineer about this model

Add several items, then request a quote at checkout.

  • Free US shipping on orders over $300
  • Manufacturer warranty
  • 30-day returns on unopened items

The Cisco Catalyst C9300-48U-A Switch is a powerful enterprise-class solution designed for organizations that require robust networking, enhanced security, and superior power delivery. Equipped with 48 UPOE Gigabit Ethernet ports, this switch is ideal for powering connected devices such as IP phones, cameras, and access points, providing reliable connectivity across your network. Its modular uplink options and advanced Layer 3 routing capabilities make it a flexible and scalable choice for modern network infrastructures.

Product FamilyCatalyst 9300
Product TypeEthernet Switch
Number of Ports48
Downlinks total 10/100/1000 or PoE+ copper ports48 port Cisco UPOE
Uplink configurationModular uplink options
Cisco IOS SoftwareNetwork Advantage
Default primary AC power supplyPWR-C1-1100WAC-P
Available PoE power with additional secondary power supply1800W** (With 1100W Secondary PS)
FansThree field-replaceable fans
Chassis + FEP + Fan Dimensions (HxWxD) Inches1.73 x 17.5 x 19.2
Console PortsRJ-45-to-DB9 cable for PC connections
DRAM8 GB
Flash Memory16 GB
Switching capacity256 Gbps
Forwarding rate190.48 Mpps
MAC addresses32000
Operating Temperature Up to 5,000 ft (1500 m)5°C to +45°C
Operating Temperature Up to 10,000 ft (3000 m)5°C to +40°C
SafetyUL 60950-1 CAN/CSA-C222.2 No. 60950-1 EN 60950-1 IEC 60950-1 AS/NZS 60950.1 IEEE 802.3
EnvironmentalReduction of Hazardous Substances (ROHS) 5
Stacking SupportStackwise-480
Stacking bandwidth support480 Gbps
Stacking hardwareStackWise Cable
Number of members8
Supported stack membersOther C9300 SKUs with same license level C9300 higher scale SKUs only stack with other like higher scale models
STACK-T1-50CMData stack 50 cm (cable option with C9300 and C9300X SKUs)
STACK-T1-1MData stack 1m (cable option with C9300 and C9300X SKUs)
STACK-T1-3MData stack 3m (cable option with C9300 and C9300X SKUs)

Cisco Catalyst C9300-48U-A Switch

The Cisco Catalyst C9300-48U-A Switch is a powerful enterprise-class solution designed for organizations that require robust networking, enhanced security, and superior power delivery. Equipped with 48 UPOE Gigabit Ethernet ports, this switch is ideal for powering connected devices such as IP phones, cameras, and access points, providing reliable connectivity across your network. Its modular uplink options and advanced Layer 3 routing capabilities make it a flexible and scalable choice for modern network infrastructures.

Key Features

  • 48 x Gigabit Ethernet Ports with UPOE: Supports up to 60W per port, delivering efficient power and high-speed data transmission to connected devices.
  • Modular Uplinks: Includes flexible uplink options supporting 1G, 10G, and 40G, providing scalability for future network growth.
  • Advanced Layer 3 Routing: Features protocols like OSPF, EIGRP, and BGP for dynamic routing and optimized network management.
  • StackWise-480 Technology: Offers up to 480 Gbps of stacking bandwidth, ensuring high availability and simplified management across multiple switches.
  • Energy-Efficient Design: Compliant with IEEE 802.3az standards, reducing power consumption while maintaining excellent performance.
  • Enhanced Security: Integrates MACsec encryption, ACLs, and advanced security protocols to safeguard your network from unauthorized access.

Technical Overview

  • Recommended for: Enterprise environments, large campuses, and data-intensive operations.
  • Ports: 48 x 10/100/1000 Mbps Gigabit Ethernet ports with UPOE (up to 60W per port).
  • Uplink Modules: Modular uplinks supporting 1G, 10G, and 40G for flexible network expansion.
  • Switching Capacity: 208 Gbps
  • Forwarding Rate: 154.76 Mpps
  • Layer 3 Features: OSPF, EIGRP, BGP, VLANs, and ACLs for advanced network control.
  • Management: Web-based GUI, CLI, SNMP, and Cisco DNA for comprehensive network automation and monitoring.
  • Licensing: Network Advantage
  • Security: MACsec encryption and advanced access control features.
  • Energy Efficiency: Meets IEEE 802.3az standards for energy-efficient operation.
