Cisco C9400-LC-48T Switch Line Card
Switch, 48 x 10/100/1000, Plug-in module (60 W), For 9400 Chassis
$2,375.00
Ask an engineer about this modelAdd several items, then request a quote at checkout.
- Free US shipping on orders over $300
- Manufacturer warranty
- 30-day returns on unopened items

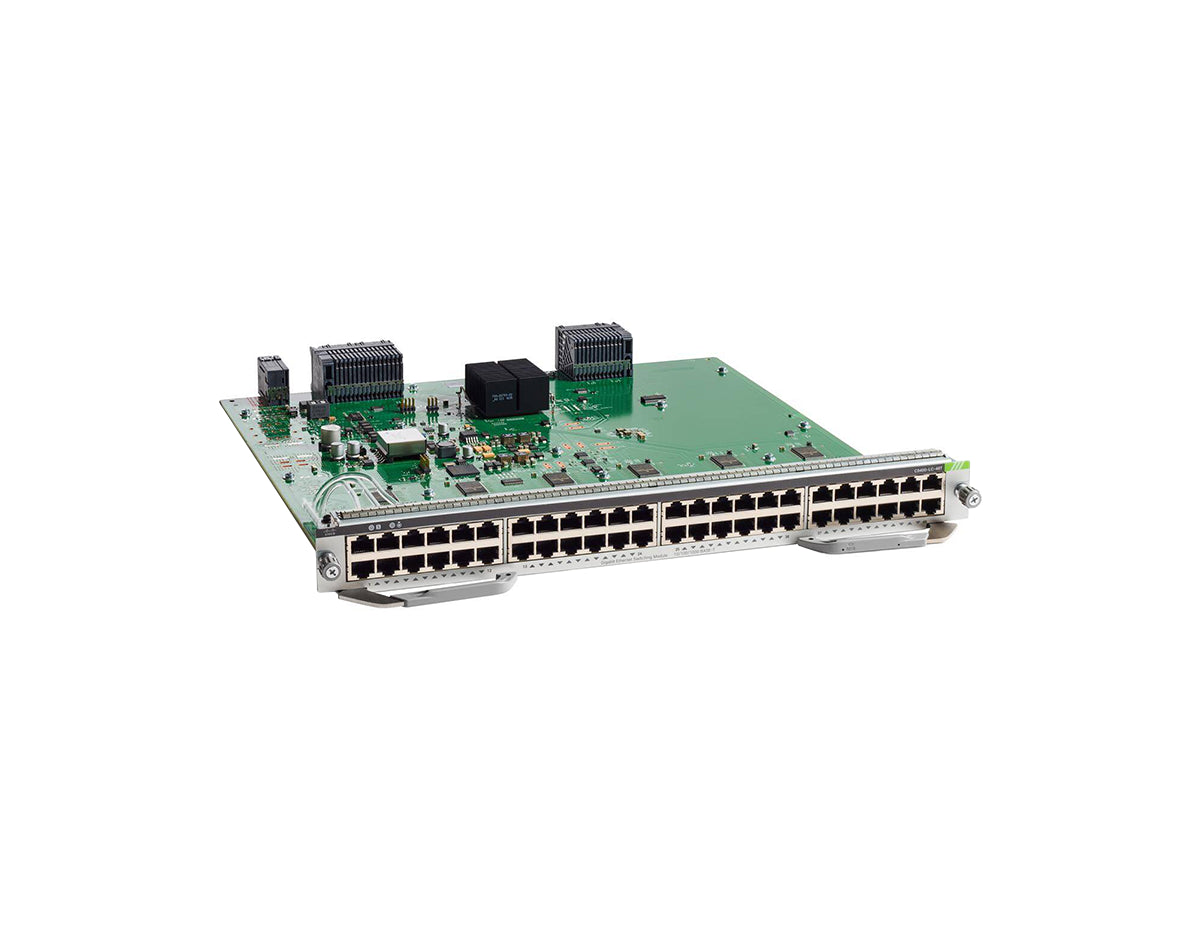

The Cisco Catalyst C9400-LC-48T Line Card is a high-performance module designed for the Cisco Catalyst 9400 Series modular switches, offering robust and scalable connectivity for enterprise networks. This line card provides 48 ports of Gigabit Ethernet, ensuring reliable and high-speed data transfer across your network. Ideal for large-scale deployments, the C9400-LC-48T is engineered to meet the demanding needs of modern enterprise environments, providing flexibility and scalability for growing network infrastructures.
| Product Family | Catalyst 9400 |
|---|---|
| Product Type | Switch Line Card |
| Number of ports | 48 |
| Port speed | 10/100/1000M |
| Port type | RJ-45 |
| C9404R | 48/96 |
| C9407R | 48/240 |
| C9410R | 48/384 |
| Physical dimensions | Occupies one slot in Cisco Catalyst 9400 Series switches Dimensions (H x W x D): 1.6 x 14.92 x 14.57 in. (4.06 x 37.90 x 37.00 cm) |
| Max rated power (W) | 65 |
| Standards | Gigabit Ethernet: IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3bt, IEEE 802.3at, IEEE 802.3af, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3an, IEEE 802.3an |
| C9400 Supervisor Engine-1 (C9400-SUP-1) | Bandwidth per slot Chassis C9404R: 80 Gbps Chassis C9407R: 80 Gbps Chassis C9410R: 80 Gbps Oversubscription: 1:1 |
| C9400 Supervisor Engine-1XL (C9400-SUP-1XL) | Bandwidth per slot Chassis C9404R: 240 Gbps Chassis C9407R: 120 Gbps Chassis C9410R: 80 Gbps Oversubscription: 1:1 |
|---|---|
| C9400 Supervisor Engine-1XL-Y (C9400-SUP-1XL-Y) | Bandwidth per slot Chassis C9404R: 240 Gbps Chassis C9407R: 120 Gbps Chassis C9410R: 80 Gbps Oversubscription: 1:1 |
| C9400 Supervisor Engine-2XL (C9400X-SUP-2XL) | Bandwidth per slot Chassis C9404R: 480 Gbps Chassis C9407R: 480 Gbps Chassis C9410R: 480 Gbps Oversubscription: 1:1 |
| C9400 Supervisor Engine-2 (C9400X-SUP-2) | Bandwidth per slot Chassis C9404R: 240 Gbps Chassis C9407R: 240 Gbps Chassis C9410R: 240 Gbps Oversubscription: 1:1 |
| Storage temperature | 40° to 158° F (-40° to 70°C) |
| Relative humidity | 10 to 95%, noncondensing |
| Operating altitude | 60 to 3000m |
| Rated MTBF (hours) | 1,214,080 |
| Safety conditions | Fiber optic lasers: Class 1 laser products |
| Safety certifications | UL 60950-1 CAN/CSA-C222.2 No. 60950-1 EN 60950-1 IEC 60950-1 AS/NZS 60950.1 IEEE 802.3 |
| ROHS compliance | ROHS5 |
Cisco Catalyst C9400-LC-48T Line Card
The Cisco Catalyst C9400-LC-48T Line Card is a high-performance module designed for the Cisco Catalyst 9400 Series modular switches, offering robust and scalable connectivity for enterprise networks. This line card provides 48 ports of Gigabit Ethernet, ensuring reliable and high-speed data transfer across your network. Ideal for large-scale deployments, the C9400-LC-48T is engineered to meet the demanding needs of modern enterprise environments, providing flexibility and scalability for growing network infrastructures.
Key Features
- 48 x Gigabit Ethernet Ports: Delivers high-speed connectivity for a wide range of network devices, ensuring efficient data transfer and network performance.
- Scalable Architecture: Designed to work seamlessly with the Cisco Catalyst 9400 Series chassis, allowing for easy network expansion as your business grows.
- Enterprise-Grade Security: Integrated with advanced security features to protect your network from threats and unauthorized access.
- Redundant Design: Supports high availability and minimizes downtime with redundant power and cooling options.
- Energy Efficient: Compliant with energy-efficient standards to reduce power consumption and operational costs.
Technical Overview
- Recommended for: Large enterprise networks requiring scalable and high-performance connectivity.
- Ports: 48 x 10/100/1000 Mbps Gigabit Ethernet ports
- Compatibility: Compatible with Cisco Catalyst 9400 Series modular switches.
- Management: Fully manageable through Cisco DNA Center and other Cisco management tools.
- Security: Integrated with advanced security features, including network segmentation and access control.
