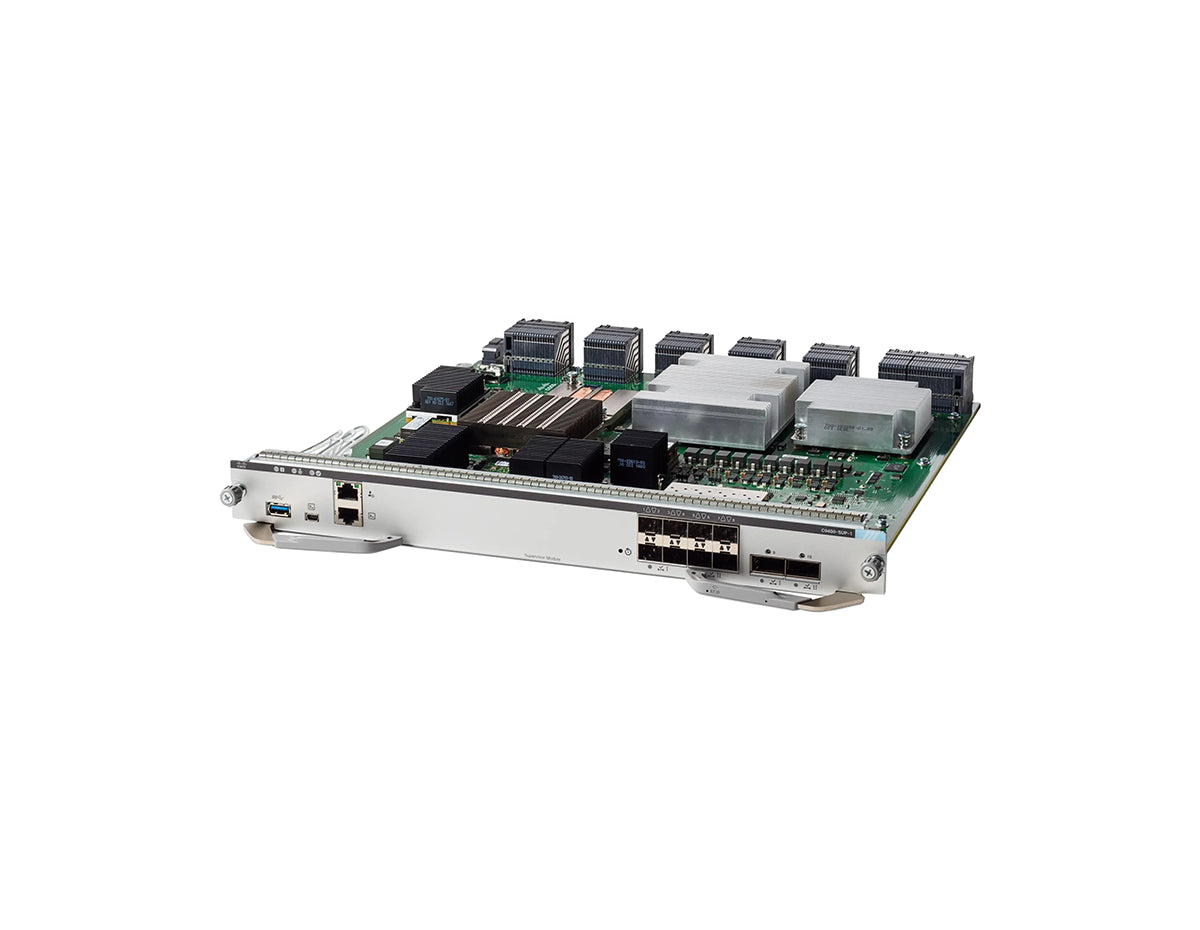

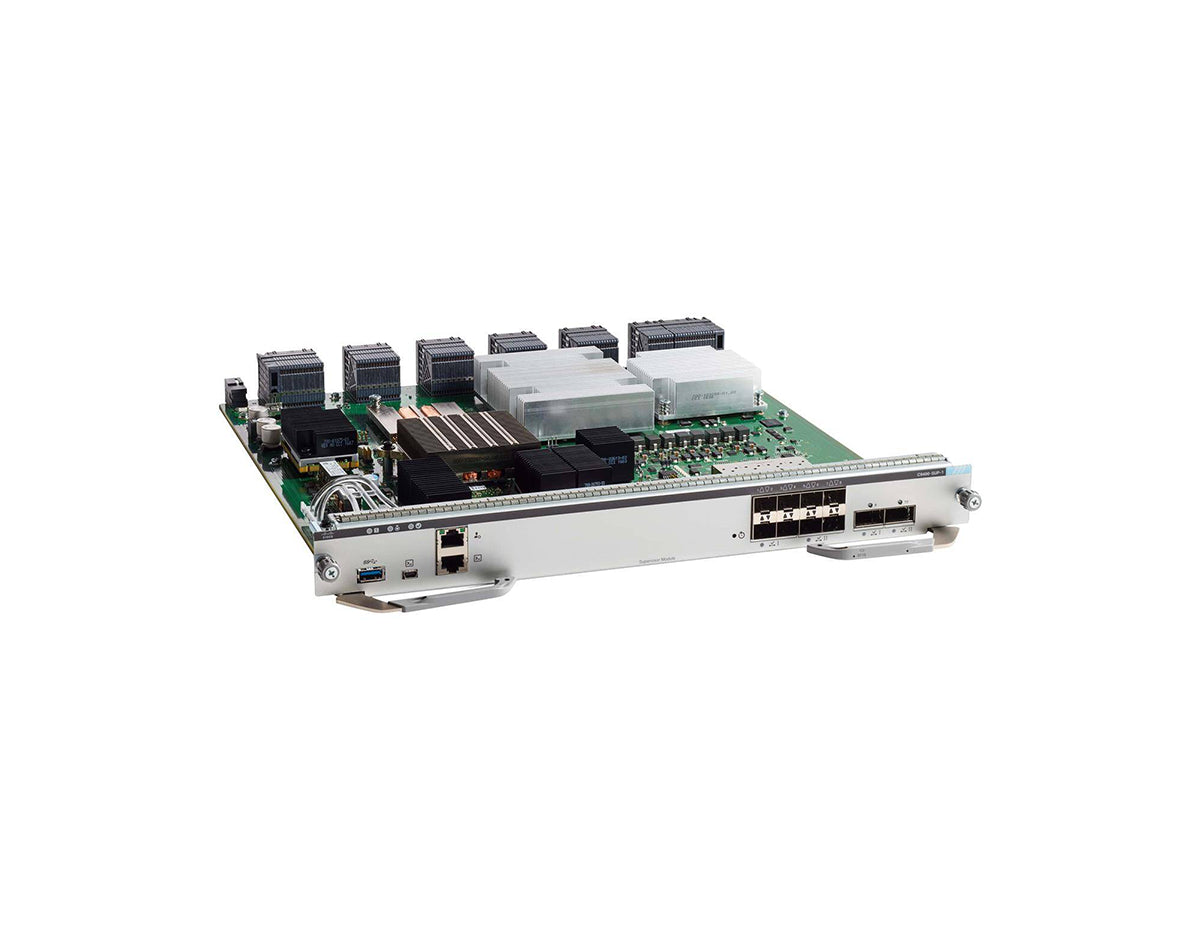

Cisco C9400-SUP-1 Supervisor Engine Module
Control processor 10 GigE 40 Gigabit LAN Plug-in module for Catalyst 9400 Series chassis
$4,850.00
Ask an engineer about this modelAdd several items, then request a quote at checkout.
- Free US shipping on orders over $300
- Manufacturer warranty
- 30-day returns on unopened items
The Cisco Catalyst C9400-SUP-1 Supervisor Engine is a powerful and versatile module designed to deliver advanced control and management functions for the Cisco Catalyst 9400 Series modular switches. This supervisor engine provides the foundation for high-performance, secure, and resilient enterprise networks. Equipped with robust processing power, the C9400-SUP-1 is ideal for large-scale network deployments that demand scalability, reliability, and comprehensive network management features.
| Product Family | Catalyst 9400 |
|---|---|
| Product Type | Supervisor Engine |
| C9404R | 80 Gbps per slot |
| C9407R | 80 Gbps per slot |
| C9410R | 80 Gbps per slot |
| C9404R | Cisco IOS XE 16.9.1 |
| C9407R | Cisco IOS XE 16.6.1 |
| C9410R | Cisco IOS XE 16.6.1 |
| Line Card and Module Support | C9400-LC-48U C9400-LC-48T C9400-LC-48UX C9400-LC-24XS C9400-LC-48P C9400-LC-24S C9400-LC-48S C9400-LC-48H C9400-LC-48HN |
| Active supervisor C9400-SUP-1/XL/XL-Y power | Maximum power (400W) |
| Standby supervisor C9400-SUP-1/XL/XL-Y power | Maximum power (400W) |
| Dimensions (H x W x D) | 1.6 x 14.92 x 14.57 in. (4.06 x 37.90 x 37.00 cm) |
| Weight | 10 lb (4.5 kg) |
| Centralized wired capacity | Up to 1.44 Tbps |
| Per-slot switching Capacity | 80 Gbps |
| Total number of MAC addresses | Up to 64,000 |
| Total number of IPv4 routes (ARP plus learned routes) | Up to 112,000 |
| FNF entries (v4/v6) | Up to 384,000/192,000 |
| DRAM | 16 GB |
| Flash | 10 GB |
| VLAN Ids | 4096 |
| PVST Instances | 3007 |
| STP Virtual Ports (Port* VLANs) for PVST | 13,000 |
|---|---|
| STP Virtual Ports (Port* VALNs) for MST | 13,000 |
| SSD capacity | 960 GB |
| Total Switched Virtual Interfaces (SVIs) | 1,000 |
| Jumbo frame | 9216 bytes |
| Forwarding rate | 900 Mpps for IPv4 782.6 Mpps for IPv6 (@95 byte) |
| IPv4 routing entries | Up to 112,000 |
| IPv6 routing entries | Up to 56,000 |
| Multicast routes | Up to 16,000 |
| QoS hardware entries | Up to 18,000 |
| Security ACL hardware entries | Up to 18,000 |
| 2 Packet buffer | 96 MB |
| Storage temperature | 40° to 158°F (-40° to 70°C) |
| Relative humidity operating and nonoperating noncondensing | 10 to 95 percent, noncondensing |
| Altitude | 60 to 3000m |
| MTBF | 253,010 hours |
| Safety certifications | UL 60950-1 CAN/CSA-C222.2 No. 60950-1 EN 60950-1 IEC 60950-1 AS/NZS 60950.1 IEEE 802.3 |
| Environmental | Reduction Of Hazardous Substances (ROHS) 5 |
| C9400-SSD-240GB | Cisco Catalyst 9400 Series 240GB M2 SATA memory (Supervisor) |
| C9400-SSD-480GB | Cisco Catalyst 9400 Series 480GB M2 SATA memory (Supervisor) |
| C9400-SSD-960GB | Cisco Catalyst 9400 Series 960GB M2 SATA memory (Supervisor) |
Cisco Catalyst C9400-SUP-1 Supervisor Engine
The Cisco Catalyst C9400-SUP-1 Supervisor Engine is a powerful and versatile module designed to deliver advanced control and management functions for the Cisco Catalyst 9400 Series modular switches. This supervisor engine provides the foundation for high-performance, secure, and resilient enterprise networks. Equipped with robust processing power, the C9400-SUP-1 is ideal for large-scale network deployments that demand scalability, reliability, and comprehensive network management features.
Key Features
- High-Performance Processing: Delivers robust performance for demanding enterprise applications, ensuring smooth and efficient network operations.
- Advanced Security Features: Integrated with Cisco TrustSec, MACsec encryption, and other advanced security protocols to protect your network from threats.
- Resilient Architecture: Supports redundant configurations to ensure high availability and minimize network downtime.
- Comprehensive Network Management: Fully manageable through Cisco DNA Center, providing centralized control and visibility across your network.
- Scalability: Designed to scale with your network, supporting future growth and expansion.
Technical Overview
- Recommended for: Large enterprise networks requiring advanced management, security, and high availability features.
- Compatibility: Compatible with Cisco Catalyst 9400 Series modular switches.
- Management: Managed through Cisco DNA Center, offering comprehensive network automation and monitoring capabilities.
- Security: Features Cisco TrustSec, MACsec encryption, and other advanced security protocols.
- High Availability: Supports redundant supervisor configurations for maximum uptime.
