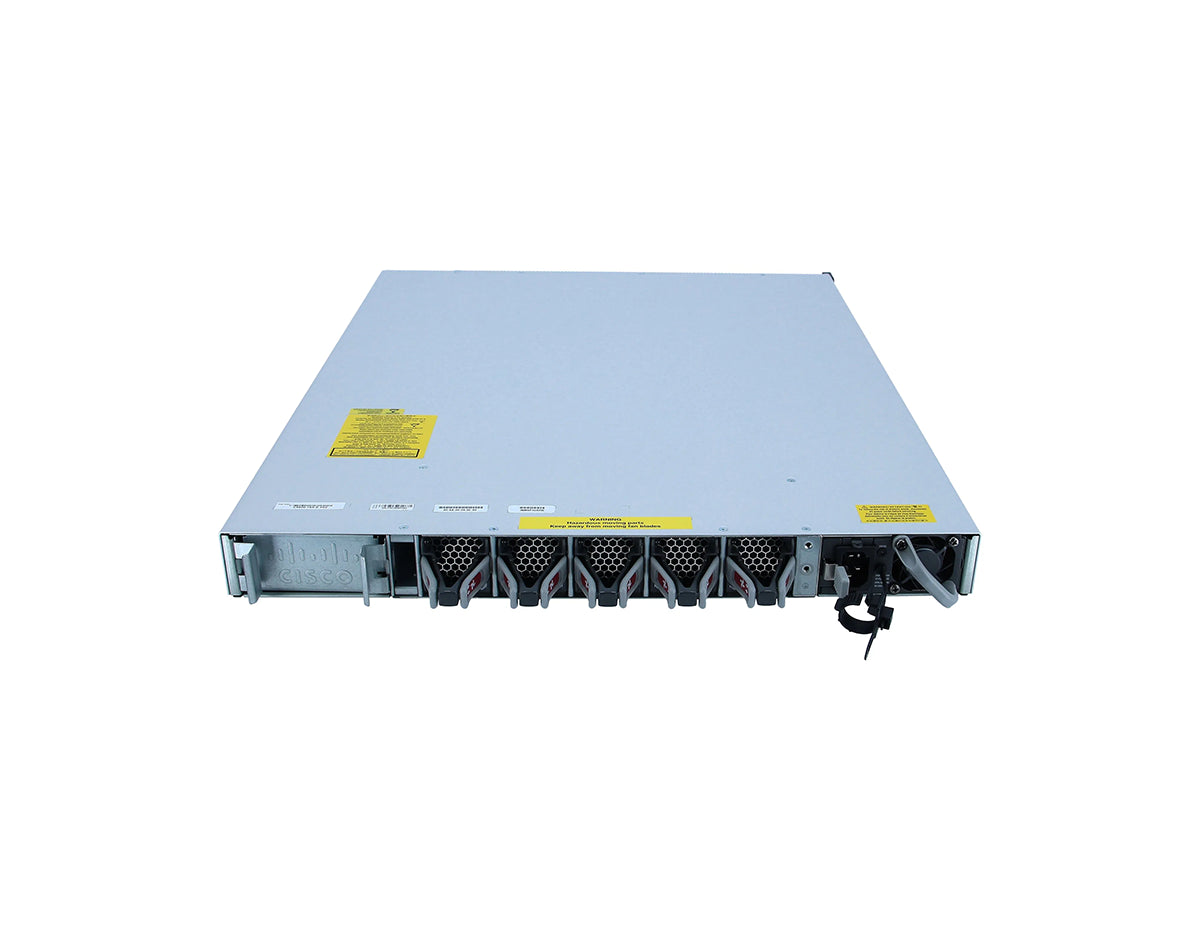

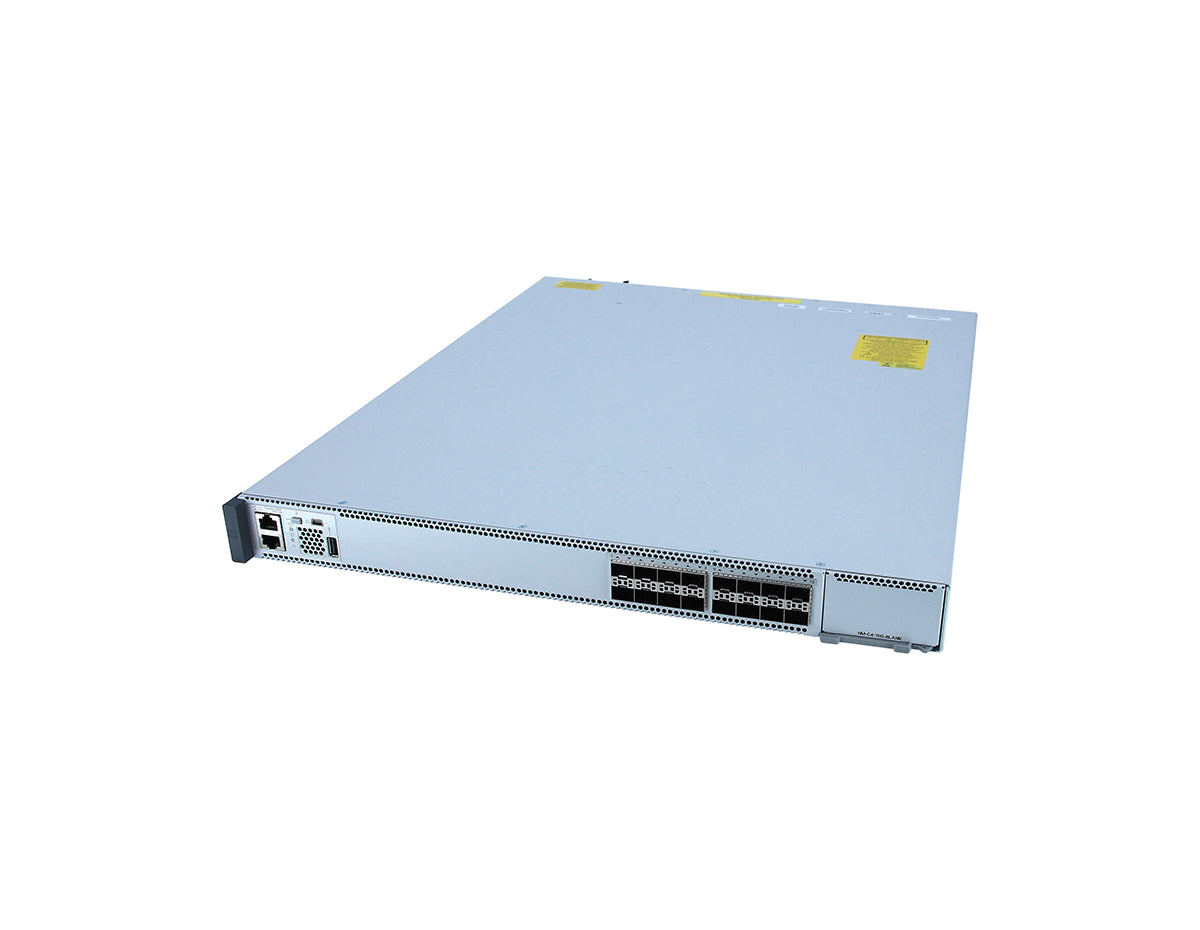

Cisco C9500-16X-E Switch
Managed, Rack-mountable, 16 x 10G ports, No PoE (Data Only), Layer 3, Network Essentials License
| Form factor | 1 RU |
|---|---|
| Switching capacity | Up to 480 Gbps |
$5,995.00
Ask an engineer about this modelAdd several items, then request a quote at checkout.
- Free US shipping on orders over $300
- Manufacturer warranty
- 30-day returns on unopened items
Where it fits
The Cisco Catalyst C9500-16X-E Switch is designed for high-performance, scalable enterprise networks, offering reliable 10G Ethernet connectivity. With 16 non-blocking 10G Ethernet ports, this switch is ideal for core and aggregation layers in data centers and large campuses. Powered by Cisco’s Network Essentials license, it delivers essential routing, security, and automation features for seamless network operations.
| Product Family | Catalyst 9500 |
|---|---|
| Product Type | Ethernet Switch |
| Cisco IOS Software | Network Essentials |
| Number of Ports | 16 |
| 1G port density | 16+8* |
| 10G port density | 16+8* |
| 25G port density | – |
| 40G port density | 2 |
| 100G port density | – |
| 10G port density with breakout cable | 8* |
| 25G port density with breakout cable | – |
| FAN-T4-R (Max # of fans) | Yes (5) |
| C9K-T1-FANTRAY (Max # of fans) | No |
| Power Supply Selection | PWR-C4-950WAC-R or PWR-C4-950WDC-R |
| Input Voltage | 90 to 264 VAC |
| Dimensions (HxWxD) Inches | 1.73 x 17.5 x 21.52 |
| Weight | 23.6 lb (10.7 kg) |
| Rack Units (RU) | 1 RU |
| Minimum Software Requirements | Open Cisco IOS XE Software Release 16.8.1 |
| IoT integration PTP (IEEE1588v2) | – |
| Security MACsec-256, WAN MACsec | – |
| DRAM | 16 GB |
| Flash Memory | 16 GB |
| Switching Capacity | Up to 480 Gbps |
| Forwarding Rate | Up to 360 Mpps |
| Total Number of MAC addresses | Up to 64,000 |
| Total Number of IPv4 routes (Indirect Routes) | Up to 64,000 indirect |
| Total Number of IPv6 (NDP and Direct Routes) | Up to 40,000 host |
| Total Number of IPv6 routes (Indirect Routes) | Up to 32,000 indirect |
| VLAN IDs | 4,094 |
| Total Number of IPv4 Multicast Routes | Up to 32,000 |
|---|---|
| Total Number of IPv6 Multicast Routes | Up to 16,000 |
| QoS ACL Scale | Up to 18,000 |
| Security ACL Scale | Up to 18,000 |
| FNF entries | Up to 512,000 |
| Jumbo Frame | 9,198 bytes |
| PVST Instances | 300 |
| STP Virtual Ports (Port VLANs) for PVST | 13,000 |
| STP Virtual Ports (Port VLANs) for MST | 13,000 |
| Total Switched Virtual Interfaces (SVIs) | 1,000 |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Storage Temperature | 4° to 149°F (-20° to 65°C) |
| Operating Altitude | Operation up to 10,000 feet at 40°C; up to 6,000 feet at 45°C |
| Relative humidity operating and nonoperating (noncondensing) | Ambient (noncondensing) operating: 5% to 90% Ambient (noncondensing) nonoperating and storage: 5% to 95% |
| Mean-time between failures (MTBF) | 315,790 |
| Safety Certifications | UL 60950-1 CAN/CSA-C22.2 No. 60950-1 EN 60950-1 IEC 60950-1 AS/NZS 60950-1 GB4943 |
| C9500-NM-8X | Cisco Catalyst 9500 Series Network Module 8-port 1/10 Gigabit Ethernet with SFP/SFP+ |
| C9500-NM-2Q | Cisco Catalyst 9500 Series Network Module 2-port 40 Gigabit Ethernet with QSFP+ |
| C9500- ACCKIT-19I= | Accessory Kit for Cisco Catalyst 9500 Series – 19″ rack mount |
| C9500- ACCKIT-23I= | Accessory Kit for Cisco Catalyst 9500 Series – 23″ rack mount |
| C9500- 4PT-KIT= | Extension rails and brackets for four-point mounting for Cisco Catalyst 9500 Series |
| PWR-C4-950WAC-R | 950W AC Config 4 Power Supply front-to-back cooling |
| PWR-C4-950WDC-R | 950W DC Config 4 Power Supply front-to-back cooling |
| C9500-DNA-L-E-3Y | Catalyst 9500 NW and Cisco DNA Essentials. low port density license (3Y) for 12Q, 16X, 24Y4C SKU |
| C9500-DNA-L-E-5Y | Catalyst 9500 NW and Cisco DNA Essentials. low port density license (5Y) for 12Q, 16X, 24Y4C SKU |
| C9500-DNA-L-E-7Y | Catalyst 9500 NW and Cisco DNA Essentials. low port density license (7Y) for 12Q, 16X, 24Y4C SKU |
| C9500-DNA-L-A-3Y | Catalyst 9500 NW and Cisco DNA Advantage low port density license (3Y) for 12Q, 16X, 24Y4C SKU |
| C9500-DNA-L-A-5Y | Catalyst 9500 NW and Cisco DNA Advantage low port density license (5Y) for 12Q, 16X, 24Y4C SKU |
| C9500-DNA-L-A-7Y | Catalyst 9500 NW and Cisco DNA Advantage low port density license (7Y) for 12Q, 16X, 24Y4C SKU |
The Cisco Catalyst C9500-16X-E Switch is designed for high-performance, scalable enterprise networks, offering reliable 10G Ethernet connectivity. With 16 non-blocking 10G Ethernet ports, this switch is ideal for core and aggregation layers in data centers and large campuses. Powered by Cisco’s Network Essentials license, it delivers essential routing, security, and automation features for seamless network operations.
Key Features
- 16 x 10G Ethernet Ports : Provides high-speed, non-blocking connectivity for demanding network environments.
- Cisco StackWise Virtual Technology : Enables simplified management and redundancy across multiple switches.
- Layer 3 Routing : Supports OSPF, EIGRP, and BGP for efficient routing and traffic segmentation.
- Energy-Efficient : Compliant with IEEE standards, optimizing power consumption while maintaining top performance.
- Network Essentials License : Unlocks core routing, security, and automation features for enterprise networks.
Technical Overview
- Recommended for : Enterprise core networks, data centers, and large campuses.
- Ports : 16 x 10G SFP+ ports
- Switching Capacity : 480 Gbps
- Forwarding Rate : 360 Mpps
- Layer 3 Features : OSPF, EIGRP, BGP, MPLS, and VRF-Lite
- Management : Web-based GUI, CLI, SNMP, and Cisco DNA Center
- Licensing : Network Essentials
- Energy Efficiency : Complies with IEEE 802.3az standards for energy-efficient operations.
