Cisco SKU C9500-24Y4C-E

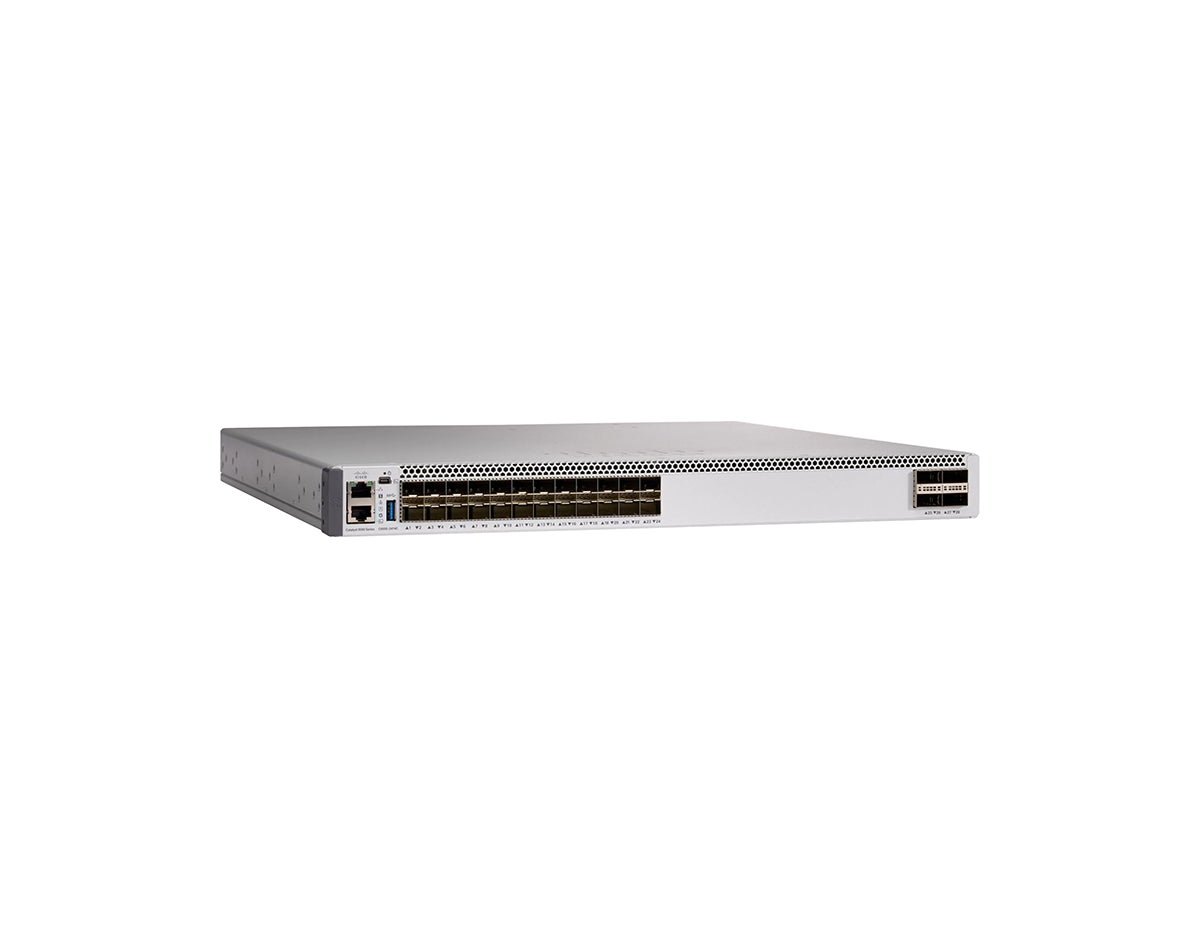

Cisco C9500-24Y4C-E Switch

Managed, Rack-mountable, 24 x 1/10/25G ports, 4 x 40/100G Uplinks, No PoE (Data Only), Layer 3, Network Essentials License

Form factor	1 RU

$11,495.00

Ask an engineer about this model

Add several items, then request a quote at checkout.

Free US shipping on orders over $300
Manufacturer warranty
30-day returns on unopened items

Where it fits

Firewalls · 149 products · from $515

Transceivers · 50 products · from $29

Access Points · 119 products · from $29

Cisco Catalyst 9500 Series high performance 24-port 1/10/25G switch, NW Ess. License.

Product Family	Catalyst 9500
Product Type	Ethernet Switch
Cisco IOS Software	Network Essentials
Number of Ports	48
1G port density	24
10G port density	24
25G port density	24
40G port density	4
100G port density	4
10G port density with breakout cable	–
25G port density with breakout cable	–
FAN-T4-R (Max # of fans)	No
C9K-T1-FANTRAY (Max # of fans)	Yes (4)
Power Supply Selection	C9K-PWR-650WAC-R, C9KPWR650WACL-R or C9K-PWR-930WDC-R
Input Voltage	90 to 264 VAC
Dimensions (HxWxD) Inches	1.73 x 17.5 x 18.0
Weight	21.96 lb (9.96 kg)
Rack Units (RU)	1 RU
Minimum Software Requirements	Cisco IOS XE Software Release 16.8.1a
IoT integration PTP (IEEE1588v2)	–
Security MACsec-256, WAN MACsec	–
DRAM	16 GB
Flash Memory	16 GB
Switching Capacity	Up to 2.0 Tbps
Forwarding Rate	Up to 1 Bpps
Total Number of MAC addresses	Up to 82,000
Total Number of IPv4 routes (Indirect Routes)	Up to 256,000 indirect + direct
Total Number of IPv6 (NDP and Direct Routes)	Up to 90,000 host
Total Number of IPv6 routes (Indirect Routes)	Up to 256,000 indirect + direct
VLAN IDs	4,094

Total Number of IPv4 Multicast Routes	Up to 32,000
Total Number of IPv6 Multicast Routes	Up to 32,000
QoS ACL Scale	Up to 16,000
Security ACL Scale	Up to 27,000
FNF entries	Up to 256,000
Total Switched Virtual Interfaces (SVIs)	4.000
Jumbo Frame	9,216 bytes
PVST Instances	4,000
STP Virtual Ports (Port VLANs) for PVST	16,000
STP Virtual Ports (Port VLANs) for MST	52,000
Operating Temperature	32° to 104°F (0° to 40°C)
Storage Temperature	4° to 149°F (-20° to 65°C)
Operating Altitude	Operation up to 10,000 feet at 40°C; up to 6,000 feet at 45°C
Relative humidity operating and nonoperating (noncondensing)	Ambient (noncondensing) operating: 5% to 90% Ambient (noncondensing) nonoperating and storage: 5% to 95%
Mean-time between failures (MTBF)	336,780
C9500- ACCKITH -19I=	Accessory Kit for Cisco Catalyst 9500 Series High-End – 19″ rack mount
C9500- ACCKITH -23I=	Accessory Kit for Cisco Catalyst 9500 Series High-End – 23″ rack mount
C9500-4PTH-KIT=	Extension rails and brackets for four-point mounting for Cisco Catalyst 9500 Series High-End
C9K-F1-SSD-240G	Cisco pluggable SSD storage 240 GB
C9K-F1-SSD-480G	Cisco pluggable SSD storage 480 GB
C9K-F1-SSD-960G	Cisco pluggable SSD storage 960 GB
C9K-PWR-650WAC-R	650W AC Power Supply
C9KPWR650WACL-R	650W AC Power Supply
C9K-PWR-930WDC-R	930W DC Power Supply
C9500-DNA-L-E-3Y	Catalyst 9500 NW and Cisco DNA Essentials. low port density license (3Y) for 12Q, 16X, 24Y4C SKU
C9500-DNA-L-E-5Y	Catalyst 9500 NW and Cisco DNA Essentials. low port density license (5Y) for 12Q, 16X, 24Y4C SKU
C9500-DNA-L-E-7Y	Catalyst 9500 NW and Cisco DNA Essentials. low port density license (7Y) for 12Q, 16X, 24Y4C SKU
C9500-DNA-L-A-3Y	Catalyst 9500 NW and Cisco DNA Advantage low port density license (3Y) for 12Q, 16X, 24Y4C SKU
C9500-DNA-L-A-5Y	Catalyst 9500 NW and Cisco DNA Advantage low port density license (5Y) for 12Q, 16X, 24Y4C SKU
C9500-DNA-L-A-7Y	Catalyst 9500 NW and Cisco DNA Advantage low port density license (7Y) for 12Q, 16X, 24Y4C SKU
