Name: Cisco Catalyst C9200-24PXG-E 24-Port mGig PoE+ Switch, Network Essentials
SKU: C9200-24PXG-E-NEW
Price: 3945 USD
Availability: InStock

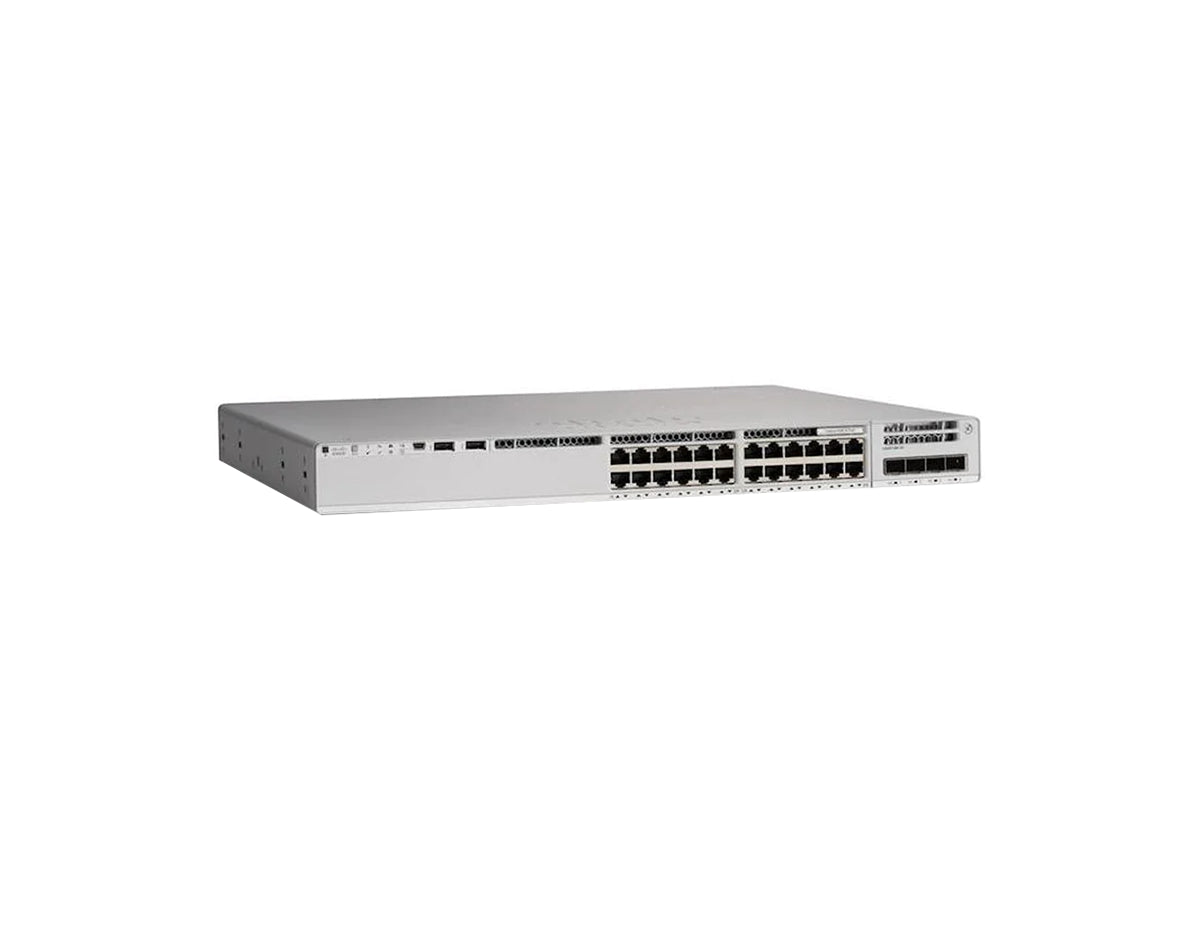

Cisco Catalyst C9200-24PXG-E 24-Port mGig PoE+ Switch, Network Essentials

The Catalyst 9200 is a 24-port PoE+ switch featuring 8 mGig ports with capabilities up to 10G and 16 ports up to 1G. It’s designed with modular uplink options and comes with the Network Essentials package.

Categories: Networking, SwitchesSKU: C9200-24PXG-E-NEW

Price

$3,945.00

1-Year Manufacturer Warranty

Free Shipping on Orders Over $500

Secure Payment

Description
Additional information

The Catalyst 9200 is a 24-port PoE+ switch featuring 8 mGig ports with capabilities up to 10G and 16 ports up to 1G. It’s designed with modular uplink options and comes with the Network Essentials package.

Properties	C9200-24PXG-E
Description	Catalyst 9200 24-port 8xmGig, 16x1G, PoE+, Network Essentials
Product Family	Catalyst 9200
Product Type	Ethernet Switch
Number of Ports	24
Downlinks total 10/100/1000 or PoE+ copper ports	24 ports full PoE+ (8 mGig ports up to 10G, 16 ports up to 1G)
Uplink configuration	Modular uplink options
Cisco IOS Software	Network Essentials
Default primary AC power supply	PWR-C6-600WAC
Available PoE power with additional secondary power supply	740W
Fans	FRU redundant
Chassis + FEP + Fan Dimensions (HxWxD) Inches	1.73 x 17.5 x 13.8

Specifications	C9200-24PXG-E
Console Ports	RJ-45-to-DB9 cable for PC connections, USB-C adaptor, USB adaptor
DRAM	4 GB
Flash Memory	4 GB
Switching capacity	352 Gbps
Forwarding rate	261.90 Mpps
MAC addresses	32000
Operating Temperature Up to 5,000 ft (1500 m)	-5°C to +45°C
Operating Temperature Up to 10,000 ft (3000 m)	-5°C to +40°C
Safety	IEC 60950-1 UL 60950-1 CAN/CSA C22.2 No. 60950-1 EN 60950-1 AS/NZS 60950.1 Class I Equipment
Electromagnetic compatibility certifications	47 CFR Part 15 CISPR 32 Class A CNS 13438 EN 300 386* EN 55032 Class A EN61000-3-2 EN61000-3-3 ICES-003 Class A KN 32 TCVN 7189 Class A V-3 Class A CISPR 35 EN 300 386* EN 55035 KN 35 TCVN 7317
EMC compliance	FCC Part 15 (CFR 47) Class A ICES-003 Class A EN 55032 Class A CISPR 32 Class A AS/NZS 3548 Class A BSMI Class A VCCI Class A CISPR 35 EN 55035, EN300 386* EN 61000-3-2, EN 61000-3-3
Safety compliance	UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CCC, CE Marking
Environmental	Reduction of Hazardous Substances (ROHS) 5

Stacking Support	StackWise-160
Stacking bandwidth support	160 Gbps
Stacking hardware	C9200-STACK-KIT
Number of members	8
Supported stack members	Other C9200 models with same license level
Stacking accessories
C9200-STACK-KIT	Stack kit for C9200 SKUs only: Two data stack adapters and one data stack cable
STACK-T4-50CM	Data stack 50 cm cable (default cable with Stack Kit)
STACK-T4-1M	Data stack 1 m cable
STACK T4-3M	Data stack 3 m cable
Mounting Accessories
ACC-KIT-T1=	Accessory kit with 19 inch Type 1 rack mount
RACK-KIT-T1=	19, 23, 24 inch and ETSI Type 1 rack mount kit
4PT-KIT-T2=	4 Point rack mount kit New
C9K-MGNT-TRAY	Magnet and Mounting Tray for compact switches
C9K-CMPCT-DIN-MNT	DIN Rail Mount for compact switches
RACKMNT-19-CMPACT	19-Inch Rack Mounting Brackets for compact switches
C9K-CMPCT-CBLE-GRD	Cable guard for compact switches (for C9K-WALL-TRAY)
C9K-WALL-TRAY	Wall mount bracket for compact switches
C9K-CMPCT-DESK-MNT	Under desk mount for compact switches

Cisco Catalyst C9200-24PXG-E Switch

The Cisco Catalyst C9200-24PXG-E Switch is a versatile networking solution designed for small to medium-sized businesses and branch offices that require high-performance, scalability, and enhanced security. This switch features 24 Multigigabit Ethernet PoE+ ports and modular uplinks, providing reliable and high-speed connectivity for various network devices. With a substantial 740W PoE budget, the C9200-24PXG-E is ideal for powering devices such as IP phones, cameras, and wireless access points. This switch ensures network resilience with advanced Layer 3 routing capabilities, comprehensive security features, and simplified management through Cisco DNA Center.

Key Features:

24 x Multigigabit Ethernet PoE+ Ports: Delivers power and high-speed data connectivity for PoE-enabled devices, supporting a total PoE budget of 740W.
Modular Uplinks: Offers flexible uplink options, including 1G, 10G, and 40G, ensuring network scalability and future-proofing your infrastructure.
Advanced Security: Includes features such as MACsec encryption and segmentation for enhanced network protection.
Layer 3 Routing: Supports static routing, OSPF, EIGRP stub, and BGP for efficient traffic management and network segmentation.
Easy Management: Managed through Cisco DNA Center, CLI, and a web-based UI, simplifying network operations and administration.

Technical Overview:

Recommended for: Small to medium-sized businesses, branch offices, and enterprise networks requiring high-speed connectivity, PoE, and advanced routing features.
Ports: 24 x Multigigabit Ethernet PoE+ ports with modular uplink options.
PoE Budget: 740W.
Switching Capacity: 128 Gbps (depending on uplink modules).
Forwarding Rate: 95.23 Mpps.
Management: Cisco DNA Center, CLI, and web-based GUI for comprehensive network management.
Security: MACsec encryption and advanced segmentation for enhanced network security.
Energy Efficiency: Compliant with IEEE 802.3az Energy Efficient Ethernet standards.

You can check the related tab for the C9200-24PXG-E datasheet.

Weight	0.02 lbs
Ports	Delivers power and high-speed data connectivity for PoE-enabled devices, supporting a total PoE budget of 740W.
Speed	160 Gbps
PoE	Delivers power and high-speed data connectivity for PoE-enabled devices, supporting a total PoE budget of 740W.
Power	Includes features such as MACsec encryption and segmentation for enhanced network protection.
Connectivity	Offers flexible uplink options, including 1G, 10G, and 40G, ensuring network scalability and future-proofing your infrastructure.
Frequency	160 Gbps
Capacity	128 Gbps (depending on uplink modules).
Brand	Cisco
