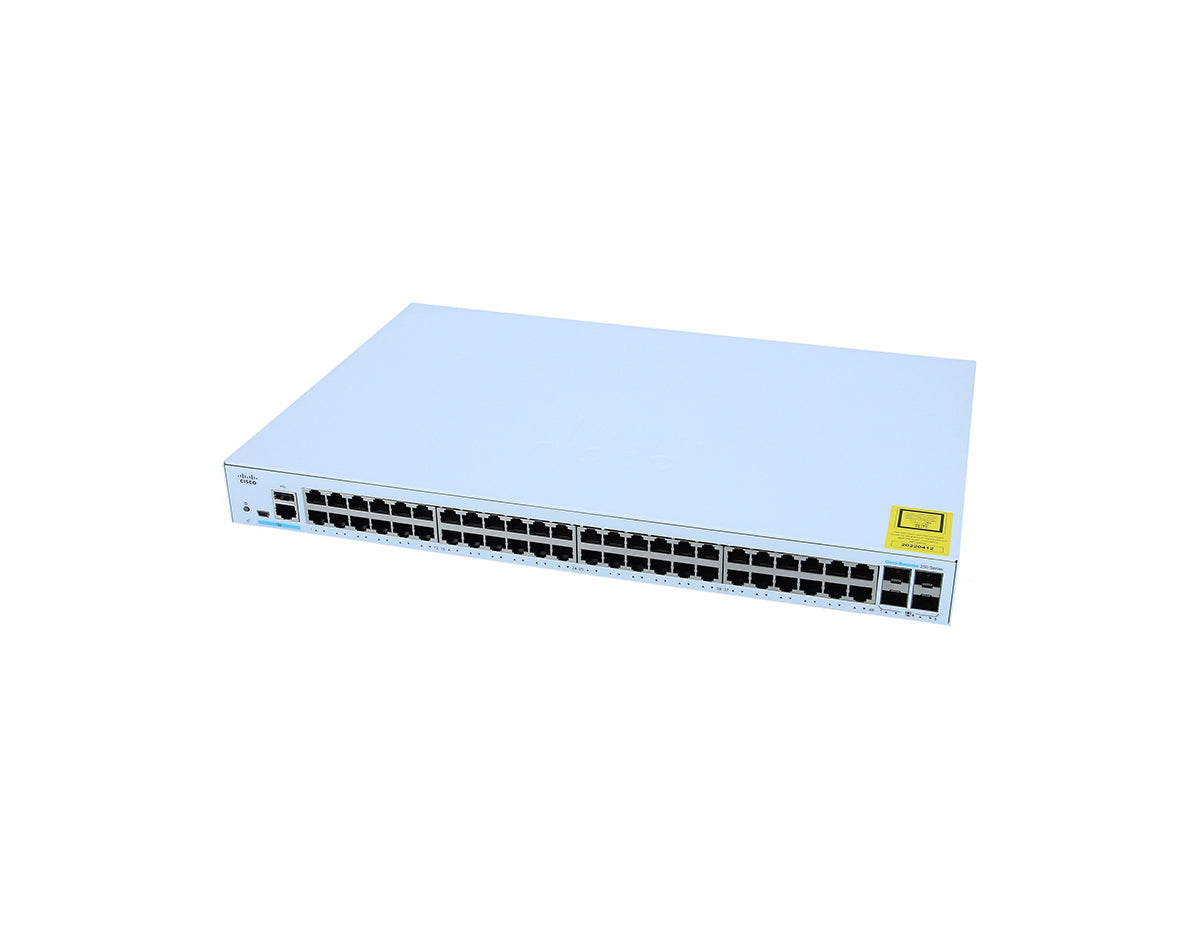

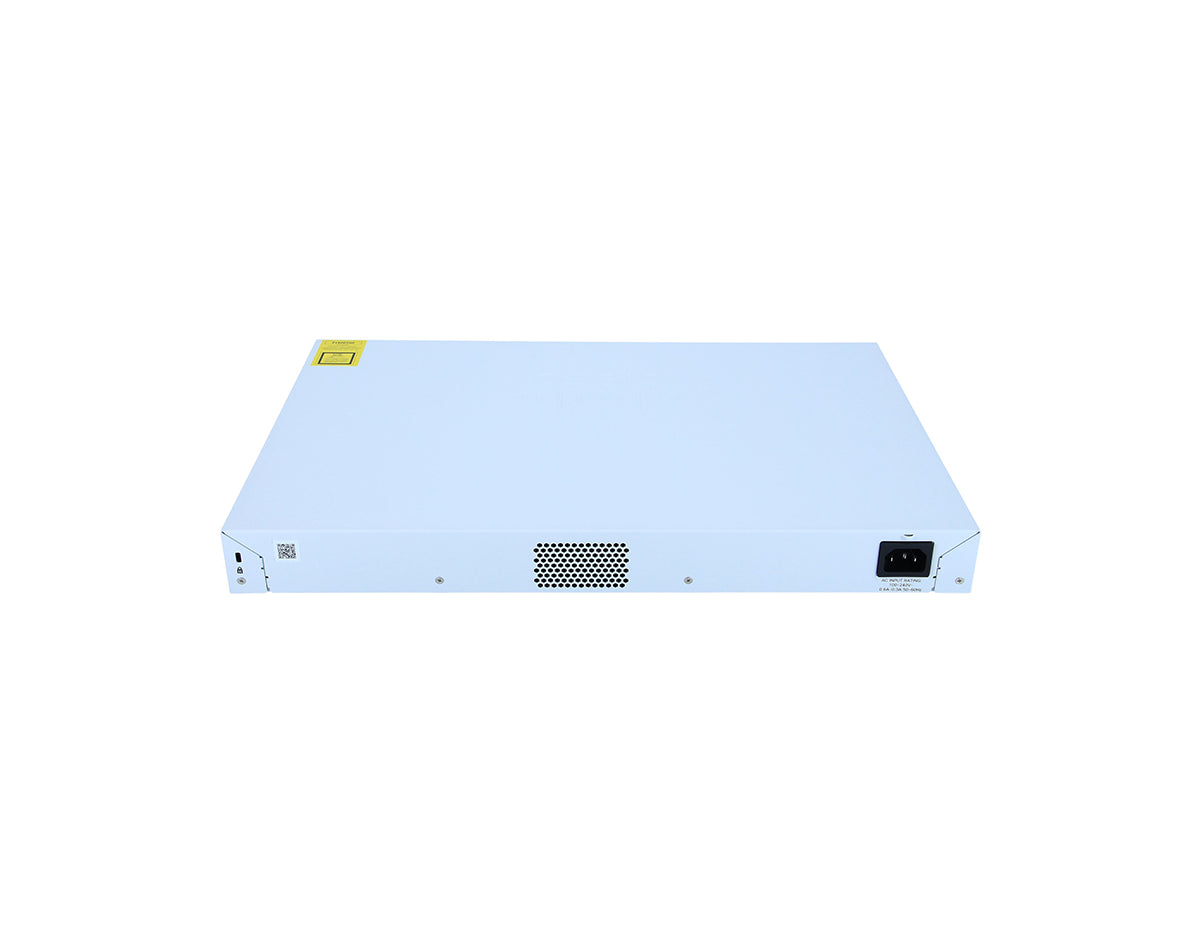

Cisco CBS250-48T-4X Switch
Managed, Rack-mountable, 48 x 1G ports, 4 x 10G SFP+ Uplinks, No PoE (Data Only), Layer 3
$950.00
Ask an engineer about this modelAdd several items, then request a quote at checkout.
- Free US shipping on orders over $300
- Manufacturer warranty
- 30-day returns on unopened items
Where it fits
The Cisco CBS250-48T-4X Switch is an ideal networking solution for growing businesses that require fast, reliable, and scalable connectivity. Equipped with 48 Gigabit Ethernet ports and 4 SFP+ uplink ports, this Layer 2 switch offers enhanced flexibility and high-speed performance, perfect for expanding networks. The CBS250-48T-4X supports advanced security features, static routing, and energy-efficient technologies, making it a cost-effective choice for small and medium-sized enterprises.
| Product Family | CBS 250 Series |
|---|---|
| Product Type | Small Business Switch |
| Number of Ports | 48 Gigabit Ethernet + 4 10 Gigabit Ethernet |
| RJ-45 ports | 48 Gigabit Ethernet |
| Downlinks total 10/100/1000 ports | 48 |
| Power dedicated to PoE | – |
| Number of ports that support PoE | – |
| Power | 100 to 240V 50 to 60 Hz, internal, universal |
| Fans | 1 |
| Unit dimensions in. (W x D x H) | 17.5 x 11.33 x 1.73 |
| Rack-mountable | Yes |
| Capacity in millions of packets | 130.94 mpps |
| Switching capacity | 176.0 Gbps |
| Flash Memory | 16 MB |
| DRAM | 512 MB |
| CPU | 400 MHz ARM |
| CPU Memory | 128 MB |
| Packet Buffer | 3 MB |
| MAC addresses | 8K |
| Head-of-line (HOL) blocking | HOL blocking prevention |
|---|---|
| Quality of Service (QoS) | 802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR) |
| Loop detection | Helps discover loops in the network to avoid broadcast storms |
| Cable diagnostics | Quickly identify and troubleshoot network cable faults and/or shorts |
| Media-dependent interface | Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X) |
| Operating Temperature | 23° to 122°F (-5° to 50°C) |
| Operating humidity | 10% to 90%, relative, noncondensing |
| Compliance/certifications | UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
| LEDs | Power, link/activity (cable diagnostics, loop detection), Gigabit, * PoE, * Max PoE |
| Cabling type | Category 5e or better |
| Mounting options | Desktop, wall-mount or rack mount |
| Physical security lock | Kensington lock slot |
| Accessories | There is no additional accessories other than the power supply and the mounting kit which are included with the device package |
| Supported SFP modules | SKU |
| MGBSX1 | Multimode fiber |
| MGBLX1 | Single-mode fiber |
| MGBLH1 | Single-mode fiber |
| MGBT1 | UTP cat 5e |
The Cisco CBS250-48T-4X Switch is an ideal networking solution for growing businesses that require fast, reliable, and scalable connectivity. Equipped with 48 Gigabit Ethernet ports and 4 SFP+ uplink ports, this Layer 2 switch offers enhanced flexibility and high-speed performance, perfect for expanding networks. The CBS250-48T-4X supports advanced security features, static routing, and energy-efficient technologies, making it a cost-effective choice for small and medium-sized enterprises.
Key Features
- 48 x Gigabit Ethernet Ports: Delivers reliable connectivity for devices such as computers, printers, and IP phones, ensuring optimal network performance.
- 4 x SFP+ Uplink Ports: Supports up to 10Gbps speeds for fast, flexible uplink connectivity.
- Layer 3 Static Routing: Allows for efficient network segmentation and internal traffic management, freeing up routers for external connections.
- Energy-Efficient Design: Complies with IEEE 802.3az standards to reduce power consumption without compromising network performance.
- Comprehensive Security: Features 802.1X authentication, access control lists (ACLs), and port security to safeguard your network.
Technical Overview
- Recommended for: Small to medium businesses and branch offices.
- Ports: 48 x 10/100/1000 Mbps Gigabit Ethernet ports
- Uplink Modules: 4 x 10 Gigabit SFP+ ports
- Switching Capacity: 176 Gbps
- Forwarding Rate: 130.94 Mpps
- Layer 3 Features: Static routing, VLAN support, and ACLs for enhanced network control.
- Management: Cisco Business Dashboard, web-based interface, and CLI.
- Licensing: Network Essentials
- Security: 802.1X, ACLs, and port security
- Energy Efficiency: IEEE 802.3az compliant
