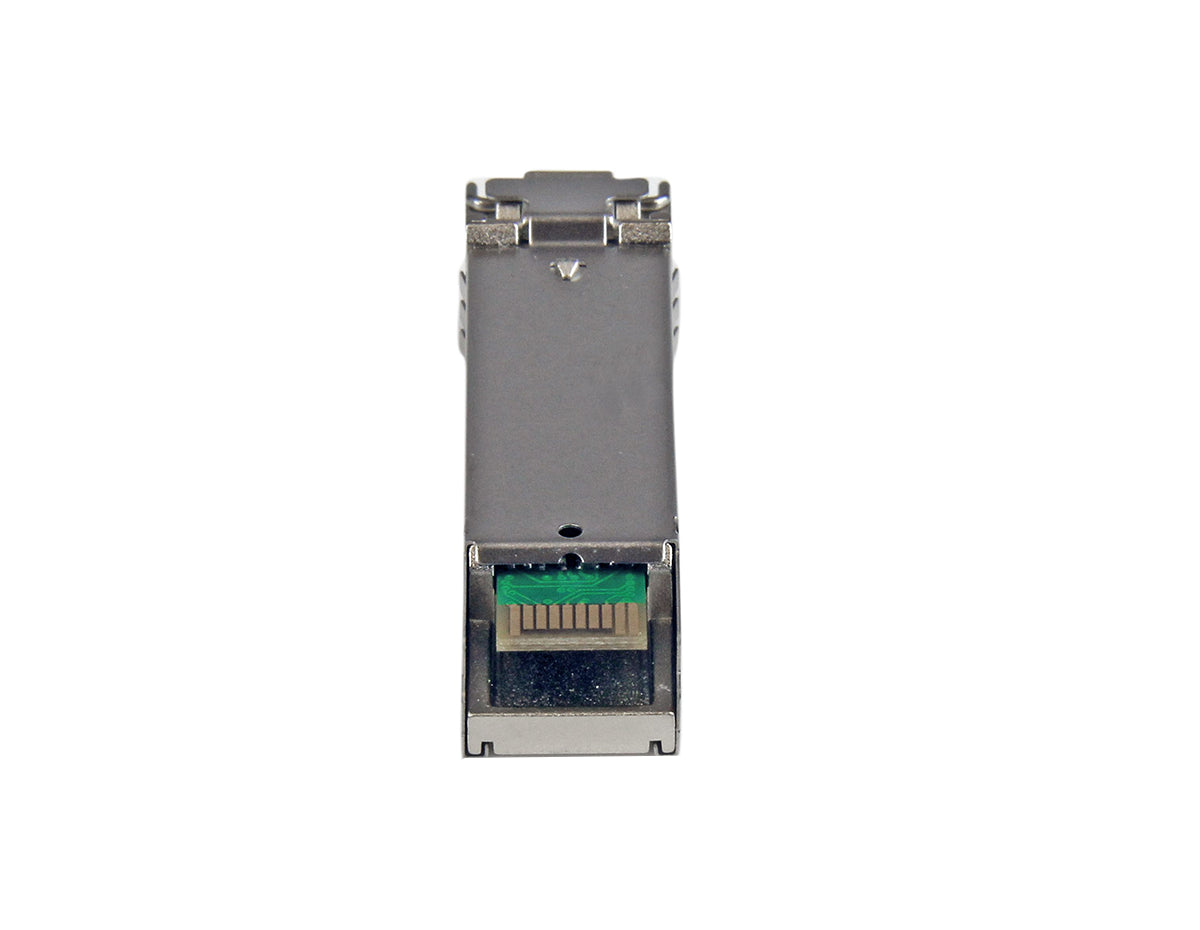

Name: Cisco GLC-FE-100FX Transceiver Module
SKU: GLC-FE-100FX-NEW
Price: 184 USD
Availability: InStock

On Sale

Cisco GLC-FE-100FX Transceiver Module

SFP (mini-GBIC) transceiver module 100Mb LAN 100Base-FX LC multi-mode Up to 1.2 miles 1310 nm for Catalyst 2960

Categories: Modules & Cards, TransceiversSKU: GLC-FE-100FX-NEW

Price

1-Year Manufacturer Warranty

Free Shipping on Orders Over $500

Secure Payment

Description
Additional information

SFP (mini-GBIC) transceiver module
100Mb LAN
100Base-FX
LC multi-mode
Up to 1.2 miles
1310 nm
for Catalyst 2960

Specifications	GLC-FE-100FX
Description	GLC-FE-100FX is a 100BASE-FX SFP for Fast Ethernet SFP Ports that operate in Fast Ethernet or dual-rate Fast/Gigabit Ethernet ports of Cisco Industrial Ethernet and SmartGrid switches and routers.
Product Family	Cisco Fast Ethernet Applications
Product Type	Transceiver Module
Connectors	Dual LC connector
Wavelength (nm)	1300
Fiber Type	MMF
Cable Distance	2 km (6,562 ft)
Fiber-loss budgets: Transmit (dBm) (Min-Max)	(-20) – (-14)
Fiber-loss budgets: Receive (dBm) (Min-Max)	(-31) – (-14)
Power consumption	Up to 1 per port
Dimensions	8.5 x 13.4 x 56.5 mm
Temperature Range	-5 to 85°C (23 to 185°F)
Safety	● Laser Class 1 21CFR1040 LN#50 7/2001
Safety	● Laser Class I IEC 60825
Standards	● IEEE 802.3u
	● IEEE 802.3z
	● IEEE 802.3ah
	● GR-20-CORE: Generic Requirements for Optical Fiber and Optical Fiber Cable
	● GR-326-CORE: Generic Requirements for Single-Mode Optical Connectors and Jumper Assemblies
	● GR-1435-CORE: Generic Requirements for Multifiber Optical Connectors
	● RoHS 5

Cisco GLC-FE-100FX Transceiver Module

The Cisco 100BASE-X SFP devices are hot-swappable input/output devices linking the port with the fiber cabling network. GLC-FE-100FX modules operate in Fast Ethernet or dual-rate Fast/Gigabit Ethernet ports of Cisco switches and routers. The Cisco 100BASE-FX SFP operates on an ordinary multimode fiber-optic (MMF) link that spans up to 2 kilometers (km) long.
