Cisco SKU IE-2000-4T-G-B

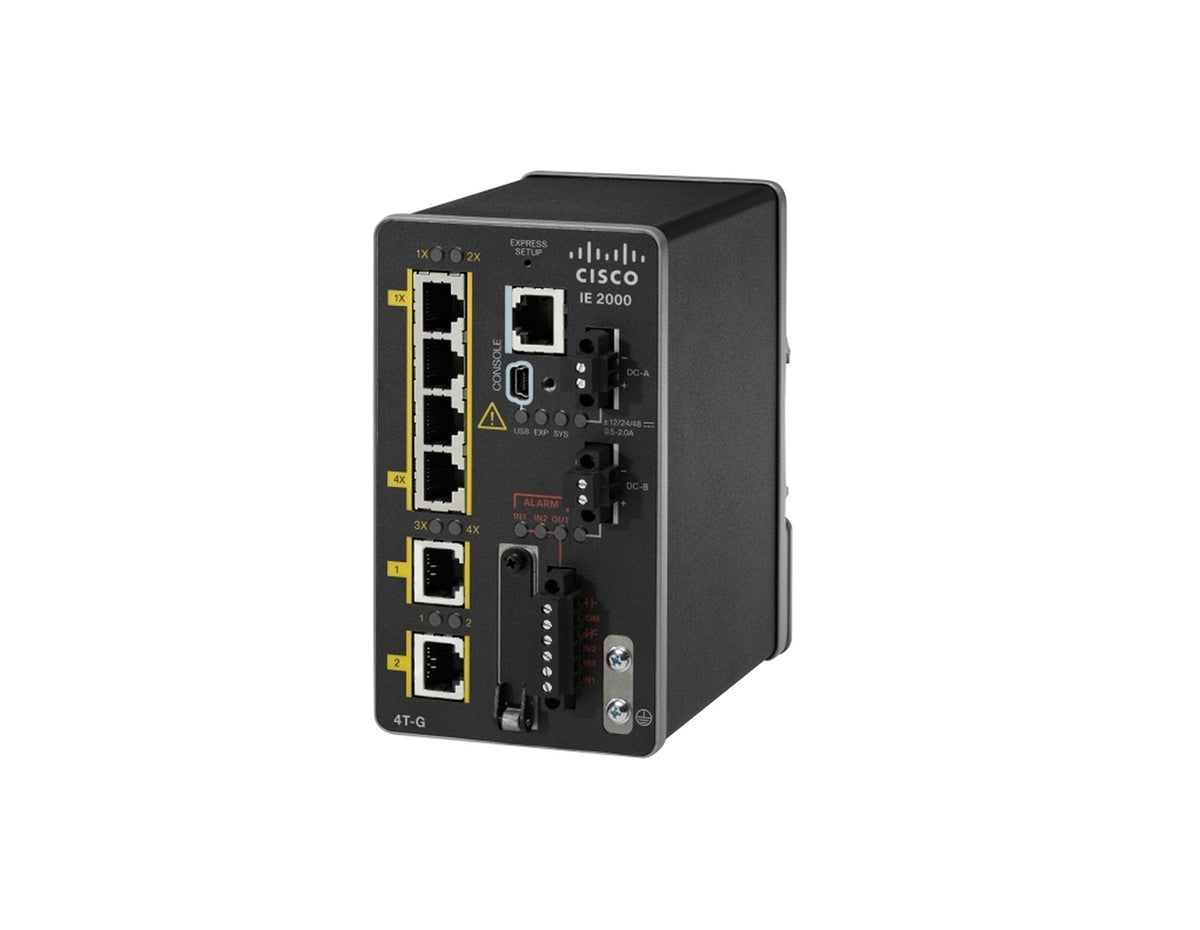

Cisco IE-2000-4T-G-B Switch

Switch Managed 4 x 10/100 + 2 x 10/100/1000 DIN Rail Mountable

Throughput	3.8 Gbps

$866.00

Ask an engineer about this model

Add several items, then request a quote at checkout.

Free US shipping on orders over $300
Manufacturer warranty
30-day returns on unopened items

Where it fits

Firewalls · 149 products · from $515

Transceivers · 50 products · from $29

Access Points · 119 products · from $29

The Cisco IE-2000-4T-G-B is a compact, rugged industrial Ethernet switch designed to provide reliable and secure network connectivity in challenging environments. This switch features 4 Fast Ethernet ports and 2 Gigabit Ethernet ports, making it an ideal solution for connecting a variety of industrial devices such as IP cameras, sensors, and controllers. The IE-2000-4T-G-B is engineered to withstand harsh conditions, ensuring continuous operation in demanding industrial settings while offering essential Layer 2 management features for network segmentation and traffic control.

Product Family	Industrial Ethernet 2000
Product Type	Ethernet Switch
Total Ports	6
RJ45 Ports	4 FE, 2 GE
Combo Ports (SFP or RJ45)	–
SFP Ports	–
Manufacturing License	LAN Base
Type of Possible Upgrade	1
IEEE 1588	–
NAT	–
PoE(+)	–
Conformal Coating	–
1	LAN Base to IP Lite Cisco IOS Software Upgrade
2	Enhanced LAN Base to IP Lite Cisco IOS Software Upgrade
3	LAN Lite to LAN Base Cisco IOS Software Upgrade
4	LAN Base to Enhanced LAN Base Cisco IOS Software Upgrade and License Upgrade
U	Upgradable to L2NAT via Enhanced Lan Base or IP Lite license
LAN Base license	Additional features
Layer 2 Switching	VTPv3, EtherChannel, Voice VLAN, Flexlink
Quality of service	IPv4 Ingress Policing, Rate-Limit, Egress Queuing/Shaping, AutoQoS, PROFINET QoS
Industrial Ethernet	–
IPv4 routing	IPv4 static routing
IPv6 routing	IPv6 host support, HTTP over IPv6, SNMP over IPv6
Utility	MODBUS TCP/IP
Dimensions (HxWxD) Inches	5.1″H x 2.95″W x 4.51″D (130mm H x 74.9mm W x 115mm D)
Weight	2.45 lb (1.11 kg)
DRAM	256 MB DRAM with ECC Memory
Flash Memory	64 MB
Hardware	1 GB removable SD flash memory card (optional) Mini-USB connector
Max. Forwarding Bandwidth	3.8 Gbps
Max. Switching Bandwidth	7.6 Gbps
Max. Forwarding Rate	5.66 Mpps
Egress Buffer	2 MB

Unicast MAC Addresses	8000
Internet Group Managament Protocol (IGMP) Multicast Groups	255
Max. VLANs	1005
IPv4 MAC Security ACEs	384 (default TCAM template) Bidirectional 128 NAT translation entries
IPv4 Routing	3500
IPv6 Routing	1750
Alarm	Alarm I/O: Two alarm inputs to detect dry contact open or close; one alarm output relay
Power consumption	9.5 – 15 W
Mean Time Between Failure (MTBF)	374,052 hours (42.7 years)
Storage Temperature	40 C to +85 C
Operating Altitude	Up to 15,000 ft
Safety Certifications	UL/CSA 60950-1 EN 60950-1 CB to IEC 60950-1 (with country deviations) NOM to NOM-019-SCF1 (through partners and distributors) CE Marking
Hazard Locations (* Cabinet enclosure required)	ANSI/ISA 12.12.01 (Class1, Div2 A-D) * EN 60079-0, -15 ATEX Certificate (Class 1, Zone2 A-D) *
Humidity	IEC 60068-2-52 (salt fog mist, test Kb) marine environments IEC 60068 -2-3 IEC 60068-2-30 Relative humidity: 5% to 95% non-condensing
SD-IE-1GB	1 GB Ruggedized SD memory card (must be ordered, not inclueded by default)
STK-RACK-DINRAIL	19 in. DIN Rail mount kit
IE-LICENSE-SPARE	Spare license for software upgrade (L2 to L3 features, MRP ring, etc)
L-IE2000-L-B	IE2000 LAN Lite to LAN Base e-license
L-IE2000-B-E	IE2000 LAN Base to Enhanced LAN Base e-license
LIC-IE2000-IP-L	IE2000 LAN Base or Enhanced LAN Base to IPLite e-license
LIC-IE2000-L-IP	IE2000 LAN Lite to IPLite e-license
LIC-MRP-MANAGER	MRP Ring Manager license
LIC-MRP-Client	MRP Ring Client license
Wallmount-IE2k-04	Wall mount kit accessory for IE2000 4-ports downlink PID
Product Number	Wattage
PWR-IE50W-AC	50W AC Power Supply
PWR-IE50W-AC-L	50W AC-L Power Supply
PWR-IE65W-PC-AC	65W PC- AC Power Supply
PWR-IE65W-PC-DC	65W PC – DC Power Supply
PWR-IE170W-PC- AC	170W PC – AC Power Supply
PWR-IE170W-PC- DC	170W PC – DC Power Supply
PWR-IE240W-PCAC-L	240W PC – AC-L Power Supply
PWR-IE480W-PCAC-L	480W PC – AC-L Power Supply

Cisco IE-2000-4T-G-B Industrial Ethernet Switch

Key Features

4 x Fast Ethernet + 2 x Gigabit Ports: Provides reliable data connectivity for a range of industrial devices, ensuring stable and efficient network communication.
Ruggedized Design: Built to operate in harsh industrial environments, capable of withstanding extreme temperatures, shock, and vibration.
Layer 2 Management: Includes essential Layer 2 features such as VLANs, QoS, and IGMP snooping, providing flexibility and control over network traffic.
Compact Form Factor: Designed for space-constrained installations, making it suitable for small enclosures and industrial cabinets.
Energy Efficient: Engineered to minimize power consumption, reducing operational costs while maintaining high performance.

Technical Overview

Recommended for: Industrial environments requiring reliable Ethernet connectivity with basic management features.
Ports: 4 x Fast Ethernet ports, 2 x Gigabit Ethernet ports
Operating Temperature: Designed to operate in a wide temperature range suitable for industrial applications.
Management: Managed through a web interface, CLI, and SNMP for easy network setup and monitoring.
Form Factor: Rugged, compact design suitable for space-constrained industrial environments.
