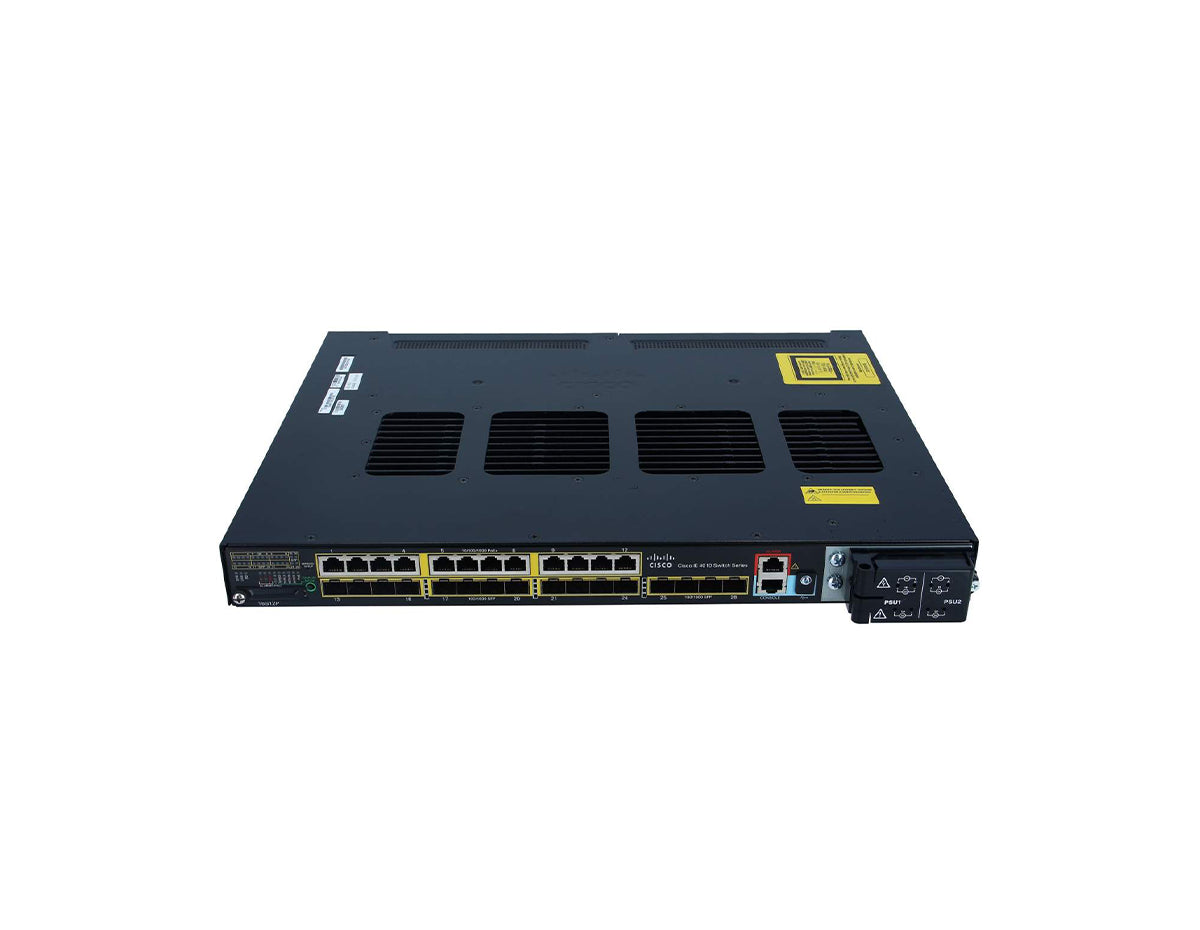

Cisco IE-4010-16S12P Switch
Switch managed 12 x 10/100/1000 (PoE+) + 4 x 10/100/1000/SFP (uplink) + 12 x 10/100/1000/SFP DIN rail mountable
| Ports | 4 FE/GE |
|---|---|
| PoE budget | Not applicable |
| Storage | 1 GB |
$5,306.03
Ask an engineer about this modelAdd several items, then request a quote at checkout.
- Free US shipping on orders over $300
- Manufacturer warranty
- 30-day returns on unopened items
Where it fits
The Cisco IE-4010-16S12P is a high-performance industrial Ethernet switch designed to deliver reliable and secure network connectivity in harsh and demanding environments. This switch features 16 SFP ports and 12 PoE+ Gigabit Ethernet ports, making it an ideal solution for connecting and powering critical industrial devices such as IP cameras, sensors, and controllers. The IE-4010-16S12P is engineered to operate under extreme conditions, ensuring continuous operation while offering advanced Layer 2 and Layer 3 management features for effective network segmentation, security, and traffic control.
| Product Family | Industrial Ethernet 4000 |
|---|---|
| Product Type | Ethernet Switch |
| Total Ports | 28 |
| SFP Uplinks | 4 FE/GE |
| SFP fiber ports (S) | 12 FE/GE |
| Copper PoE/PoE+ Ports(P) | 12 FE/GE |
| Default software | LAN Base |
| LAN Base License (Default) | Features |
| Layer 2 Switching | IEEE 802.1, 802.3, 802.3at, 802.3af standard, VTPv2, NTP, UDLD, CDP, LLDP, Unicast Mac filter, Flexlink, VTPv3, EtherChannel, Voice VLAN, QinQ tunneling |
| Layer 2 multicast | IGMPv1, v2, v3 Snooping, IGMP filtering, IGMP Querier |
| Quality of Service (QoS) | Ingress Policing, Rate-Limit, Egress Queueing/shaping, AutoQoS, Modular QoS CLI (MQC),PROFINET QoS |
| Layer 2 IPv6 | IPv6 Host support, HTTP over IPv6, SNMP over IPv6 |
| Layer 3 Routing | IPv4 Static Routing |
| Industrial Ethernet | CIP Ethernet/IP, Profinet v2, IEEE 1588 PTP v2 Default Profile |
| Industrial Management | Layer 2 switching with 1:1 static Network Address Translation (NAT) |
| Weight | 12.7 lb (5.78 kg) |
| Power Supply Weight | —_x008f_ PWR-RGD-AC-DC-H: 2.55 lb (1.16 kg) —_x008f_ PWR-RGD-LOW-DC-H: 2.5 lb (1.13 kg) —_x008f_ PWR-RGD-AC-DC-250: 3.1 lb (1.4 kg) |
| DRAM | 1 GB |
| Flash Memory | 128 MB |
| PoE power budget | Not applicable |
| Removable storage | 1-GB removable SD flash memory card (Included) Mini-USB connector |
| Alarms | Alarm I/O: two alarm inputs to detect dry contact open or closed, one alarm output relay |
| Console ports | RJ-45 connector |
| Power inputs | Dual DC power inputs |
| 150W | 80 |
| 150W (dual) | 200 |
| 250W | 180 |
| 250W + 150W | 285 |
| 250W (dual) | 360 |
| Number of Queues | 4 egress |
| Forwarding bandwidth | 28 Gbps (line rate/non-blocking) |
| Unicast MAC addresses | 16,000 |
| Switching bandwidth | 56 Gbps(Switching bandwidth is full-duplex capacity) |
| No. of VLANs | 1,000 |
| Internet Group Managament Protocol (IGMP) Multicast Groups | 1000 |
|---|---|
| IPv4 MAC security ACEs | 1,000 with default TCAM Template |
| NAT translation | Bidirectional, 128 unique subnet NAT translation entries, which can expand to tens of thousands of translated entries if designed properly |
| Power Consumption | Maximum of 70W not including PoE consumption |
| Storage Temperature | 40 C to +85 C |
| Operating Altitude | Up to 13,800 feet |
| Storage Altitude | 15,000 feet |
| Mean Time Between Failures (MTBF) | 415,160 hours |
| Industrial Automation Control System | IEC 62443-4-1 IEC 62443-4-2 |
| Electromagnetic emissions | FCC 47 CFR Part 15 Class A EN 55032 Class A VCCI Class A AS/NZS CISPR 22 Class A CISPR 11 Class A CISPR 32 Class A ICES 003 Class A EN 300 386 CNS 13438 Class A |
| Humidity | Relative humidity of 5% to 95% noncondensing IEC 60068-2-3 IEC 60068-2-30 |
| Corrosion | ISO 9223: Corrosion class C3-Medium class C4-High EN 60068-2-52 (Salt Fog) EN 60068-2-60 (Flowing Mixed Gas) |
| IE-LICENSE-SPARE | Spare license for software upgrade (L2 to L3 features) |
| L-IE4000-RTU= | IE4010 Electronic software license upgrade from LAN base L2 to IP Services L3 features |
| LIC-MRP-Manager= | MRP ring manager license |
| LIC-MRP-Client= | MRP ring client license |
| SD-IE-1GB= | IE 1GB SD Memory Card – Spare |
| C1F1PIE4K5K1K9 | Cisco ONE Foundation Lite Perpetual Includes Prime Infrastructure (LF and AS), Identity Services Engine – Base |
| C1F1PIE40001K9 | Cisco ONE Foundation Perpetual Includes Full flexible Netflow, Stealthwatch, Prime Infrastructure, and Identity Services Engineer – Base |
| C1A1PIE40001K9 | Cisco ONE Advanced Perpetual Includes IP Services |
| C1-FLOW-IE4K | Cisco ONE Netflow IE4000 |
| C1A1AIE40001K9 | Cisco ONE Advanced Perpetual – IE 4000 |
| C1F1AIE40001K9 | Cisco ONE Foundation Perpetual – IE 4000, BROWNFIELD |
| C1F1AIE4K5K1K9 | Cisco ONE Foundation Lite Perpetual – IE 4000/5000 |
| C1F1PIE40001K9 | Cisco ONE Foundation Perpetual – IE 4000 |
| IE4010-DNA-E-H | Cisco DNA Essentials license |
| IE4010-DNA-E-H-3Y | Cisco DNA Essentials 3-year term license option |
| IE4010-DNA-E-H-5Y | Cisco DNA Essentials 5-year term license option |
| IE4010-DNA-E-H-7Y | Cisco DNA Essentials 7-year term license option |
| IE4010-DNA-A-H | Cisco DNA Advantage license |
| IE4010-DNA-A-H-3Y | Cisco DNA Advantage 3-year term license option |
| IE4010-DNA-A-H-5Y | Cisco DNA Advantage 5-year term license option |
| IE4010-DNA-A-H-7Y | Cisco DNA Advantage 7-year term license option |
Cisco IE-4010-16S12P Industrial Ethernet Switch
The Cisco IE-4010-16S12P is a high-performance industrial Ethernet switch designed to deliver reliable and secure network connectivity in harsh and demanding environments. This switch features 16 SFP ports and 12 PoE+ Gigabit Ethernet ports, making it an ideal solution for connecting and powering critical industrial devices such as IP cameras, sensors, and controllers. The IE-4010-16S12P is engineered to operate under extreme conditions, ensuring continuous operation while offering advanced Layer 2 and Layer 3 management features for effective network segmentation, security, and traffic control.
Key Features
- 16 x SFP Ports: Provides flexible and high-speed fiber connectivity for various industrial applications, ensuring stable network communication.
- 12 x Gigabit PoE+ Ports: Delivers power and high-speed data connectivity to PoE-enabled devices, reducing the need for additional power supplies.
- Ruggedized Design: Built to withstand extreme temperatures, shock, and vibration, making it ideal for challenging industrial environments.
- Advanced Layer 2 and Layer 3 Features: Supports VLANs, QoS, and routing protocols to enhance network control, security, and traffic management.
- High Availability: Offers redundancy features to ensure continuous network operation in mission-critical applications.
Technical Overview
- Recommended for: Industrial environments requiring robust fiber-based Ethernet connectivity with PoE+ support, advanced management, and high availability.
- Ports: 16 x SFP ports, 12 x Gigabit PoE+ ports
- Operating Temperature: Designed to operate in a wide temperature range, suitable for extreme industrial applications.
- Management: Managed through a web interface, CLI, SNMP, and Cisco DNA Center for comprehensive network setup and monitoring.
- Form Factor: Rugged, compact design suitable for space-constrained industrial environments.
