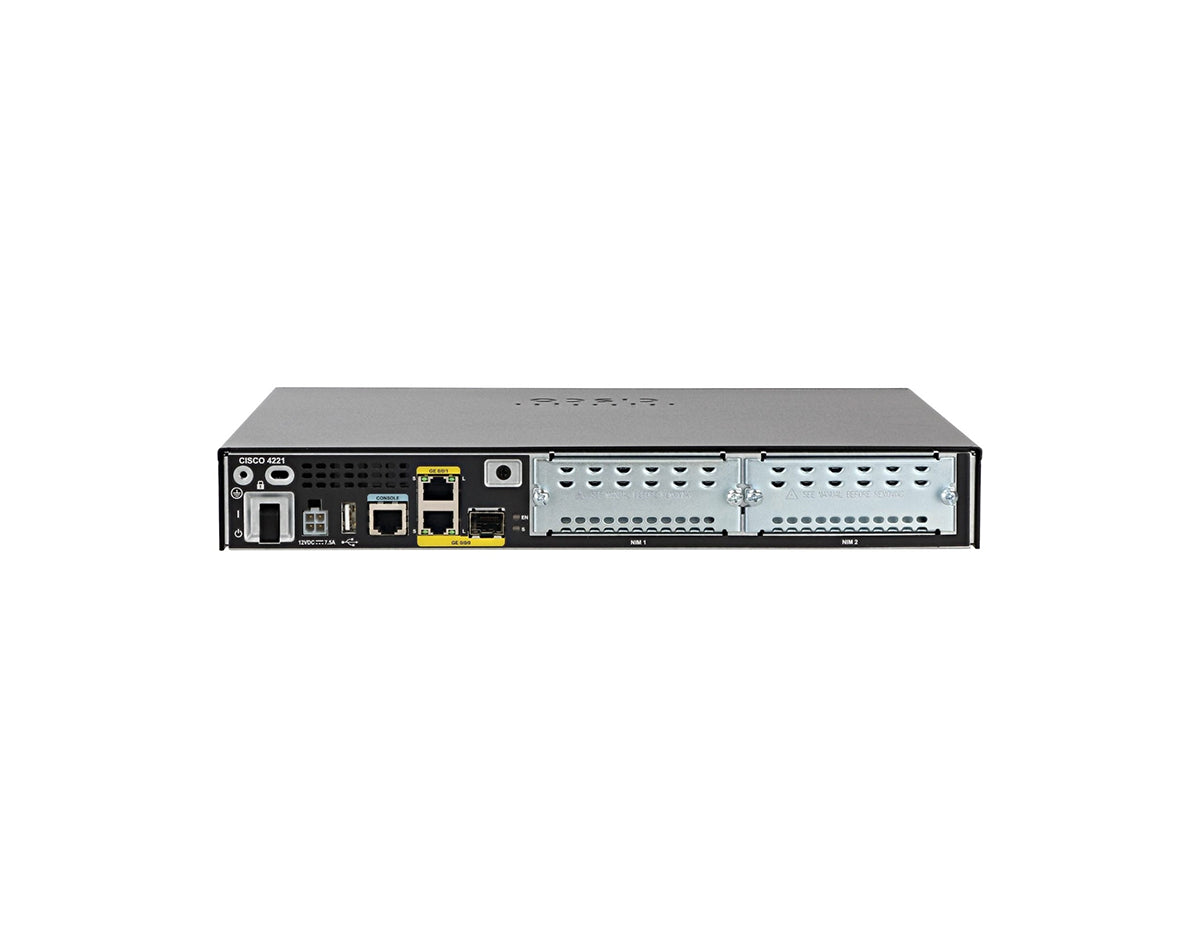

Cisco ISR4221/K9 Router
Cisco ISR4221/K9 Router — photo 2

Cisco SKU ISR4221/K9

Cisco ISR4221/K9 Router

35Mbps-75Mbps system throughtput 2 WAN/LAN ports 1 SFP port multi-Core CPU 2 NIM

Throughput35 Mbps

$605.00

Ask an engineer about this model

Add several items, then request a quote at checkout.

  • Free US shipping on orders over $300
  • Manufacturer warranty
  • 30-day returns on unopened items

The Cisco 4000 Family Integrated Services Router (ISR) enhances WAN communications in enterprise branches, tailored for application-aware networking in sites with limited IT resources. The router dynamically routes traffic based on current application and network conditions, ensuring optimal application performance and efficient bandwidth usage. The Cisco ISR4221/K9 Router comes with 2 onboard GE, 2 NIM slots, 1 ISC slot, 8 GB Flash Memory default, 4 GB DRAM default. New services can be activated on demand through simple licensing changes.

Product FamilyISR 4000 Series
Product TypeRouters
Total onboard WAN or LAN 10/100/1000 ports2
RJ-45-based ports2
SFP-based ports1
Enhanced service- module slots0
Aggregate Throughput (Default)35 Mbps
AC input voltage100 to 240 VAC autoranging
Power-supply optionsExternal AC only
Maximum power with AC power supply (watts)90
Maximum power with PoE power supply (platform only) (watts)NA (No PoE Support)
Unit dimensions in. (W x D x H)1.72 x 12.7 x 10
Rack-mount 19inOptional
Wall-mountYes
Default memory DDR3 ECC DRAM (data plane)NA
Maximum memory DDR3 ECC DRAM (data plane)NA
Default memory DDR3 ECC DRAM (control/services plane)NA
Maximum memory DDR3 ECC DRAM (control/services plane)NA
Default flash memory8 GB
Maximum Flash Memory8 GB
Operating Temperature32 to 104°F (0 to 40°C)
Operating humidity5% to 85%
SafetyUL 60950-1
EMCICES-003 Class A
AccessoriesThere is no additional accessories
BundlesFeatures
Application Experience with Voice (AXV)AX + Voice
Voice with Security (VSEC)Voice + Security
Application Experience (AX)IP Base + Security + advanced networking protocols: L2TPv3, BFD, MPLS, VRF, VXLAN10 (Bandwidth <100Mbps)
Voice (V)IP Base + Unified Communications: CME, SRST, CUBE
Security (SEC)IP Base + Advanced Security: Zone Based Firewall, IPSec VPN, EZVPN, DMVPN,

The Cisco 4000 Family Integrated Services Router (ISR) enhances WAN communications in enterprise branches, tailored for application-aware networking in sites with limited IT resources. The router dynamically routes traffic based on current application and network conditions, ensuring optimal application performance and efficient bandwidth usage. The Cisco ISR4221/K9 Router comes with 2 onboard GE, 2 NIM slots, 1 ISC slot, 8 GB Flash Memory default, 4 GB DRAM default. New services can be activated on demand through simple licensing changes.

Key Features

  • Intent-based Cisco DNA
  • Cisco Integrated Services Card (ISC)
  • Cisco® Software Defined WAN (SDWAN)

The tabs contain the ISR4221/K9 datasheet with all the specifics you need.
