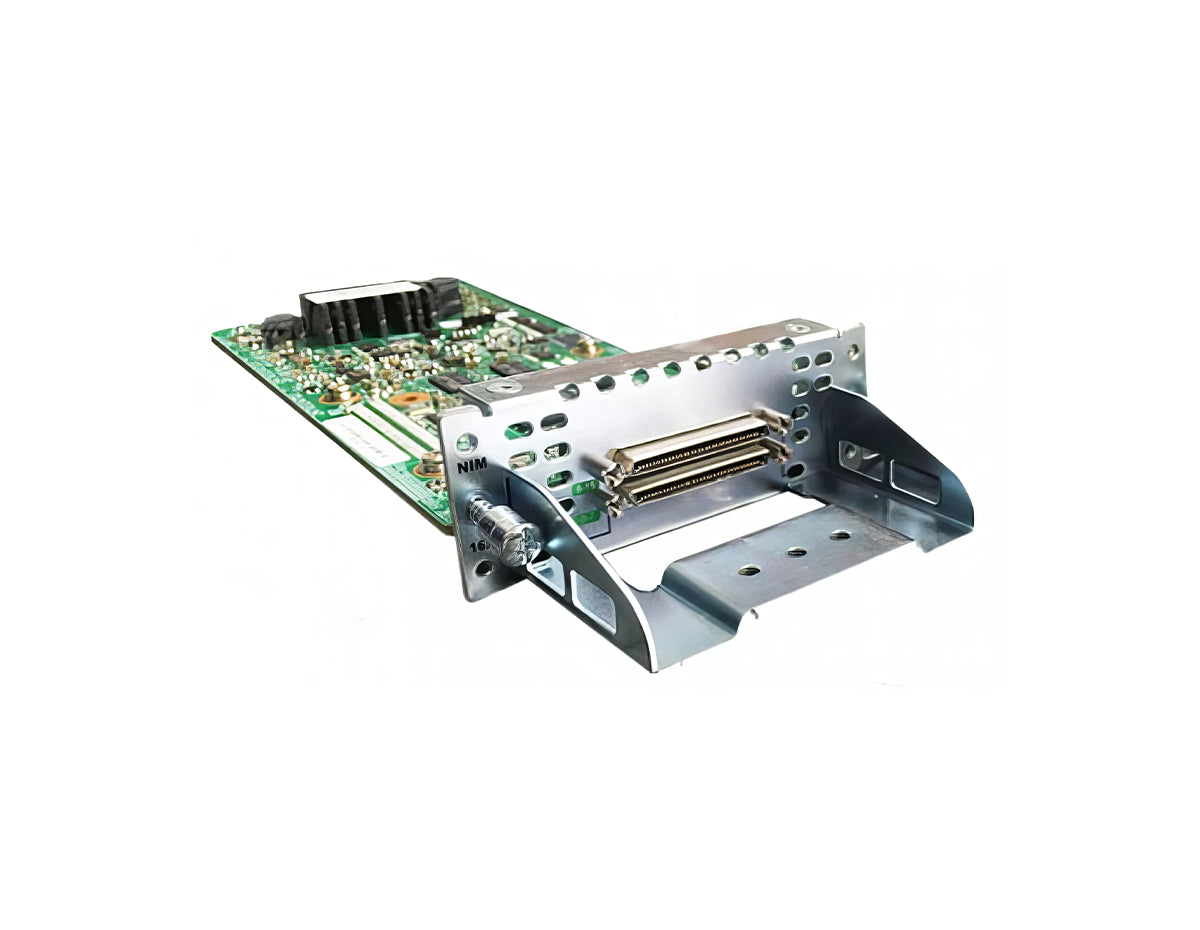

Name: Cisco NIM-16A Expansion Module
SKU: NIM-16A-NEW
Price: 1753.79 USD
Availability: InStock

On Sale

Cisco NIM-16A Expansion Module

Expansion module RS-232/449/530/V.35/X.21 x 16 for ISR 4321 4331 4351 4431

Categories: Expansion Modules, Modules & CardsSKU: NIM-16A-NEW

Price

1-Year Manufacturer Warranty

Free Shipping on Orders Over $500

Secure Payment

Description
Additional information

Expansion module
RS-232/449/530/V.35/X.21 x 16
for ISR 4321
4331
4351
4431

Properties	Cisco NIM-16A 16-Port Async Serial Network Interface Module
Description	High-density RS-232 terminal server module for out-of-band console access over LAN/WAN
Product Type	Async Serial Network Interface Module (NIM)
Compatibility	Cisco ISR 4000 Series: 4221, 4321, 4331, 4351, 4431, 4451
Mount Type	Router internal NIM slot (hot-swappable)

Interface	RS-232 asynchronous
Ports	16 async serial ports via Octal cables
Baud Rates	9600 bps recommended; up to 115200 bps supported with low connection counts
Cable Support	CAB-HD8-ASYNC or CAB-ASYNC-8 (upper/lower sockets)
Software Compatibility	Cisco IOS XE 16.3.1 or higher
Dimensions (H x W x D)	32 x 89 x 172 mm
Operating Temperature	0°C to 40°C
Humidity	10% to 90% (non-condensing)

Included Items	NIM-16A module only (no cables included)
Compatible Cables	CAB-HD8-ASYNC, CAB-ASYNC-8 (sold separately)
Optional Accessories	RJ-45 to DB-25 adapters (for legacy device connectivity)

Cisco NIM-16A EXPANSION MODULE for Superior Networking Performance

CISCO NIM-16A EXPANSION Module features multi-protocol asynchronous serial network interface modules (NIMs) supported on the Cisco ISR 4321, 4331, 4351 & 4431.

Key Benefits of CISCO NIM-16A EXPANSION MODULE

CISCO NIM-16A EXPANSION Module ensures high-performance from users network with the Cisco WAN Network Interface Module.

Weight	5.0 lbs
Ports	16 async serial ports via Octal cables
Connectivity	RS-232 asynchronous
Rack Mountable	Router internal NIM slot (hot-swappable)
Brand	Cisco
