Cisco WS-C3560CX-8PC-S Switch
Cisco WS-C3560CX-8PC-S Switch — photo 2
Cisco WS-C3560CX-8PC-S Switch — photo 3
Cisco WS-C3560CX-8PC-S Switch — photo 4

Cisco SKU WS-C3560CX-8PC-S

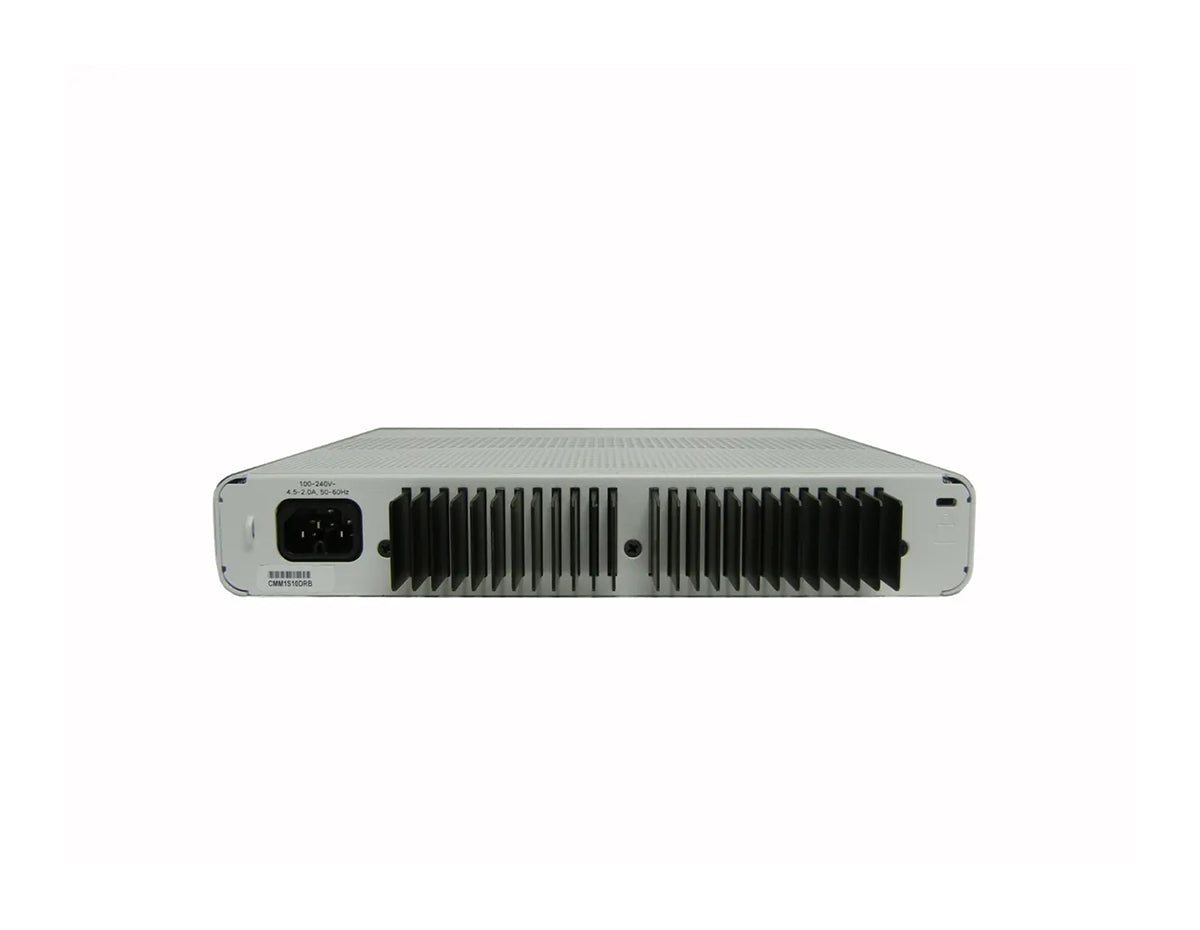

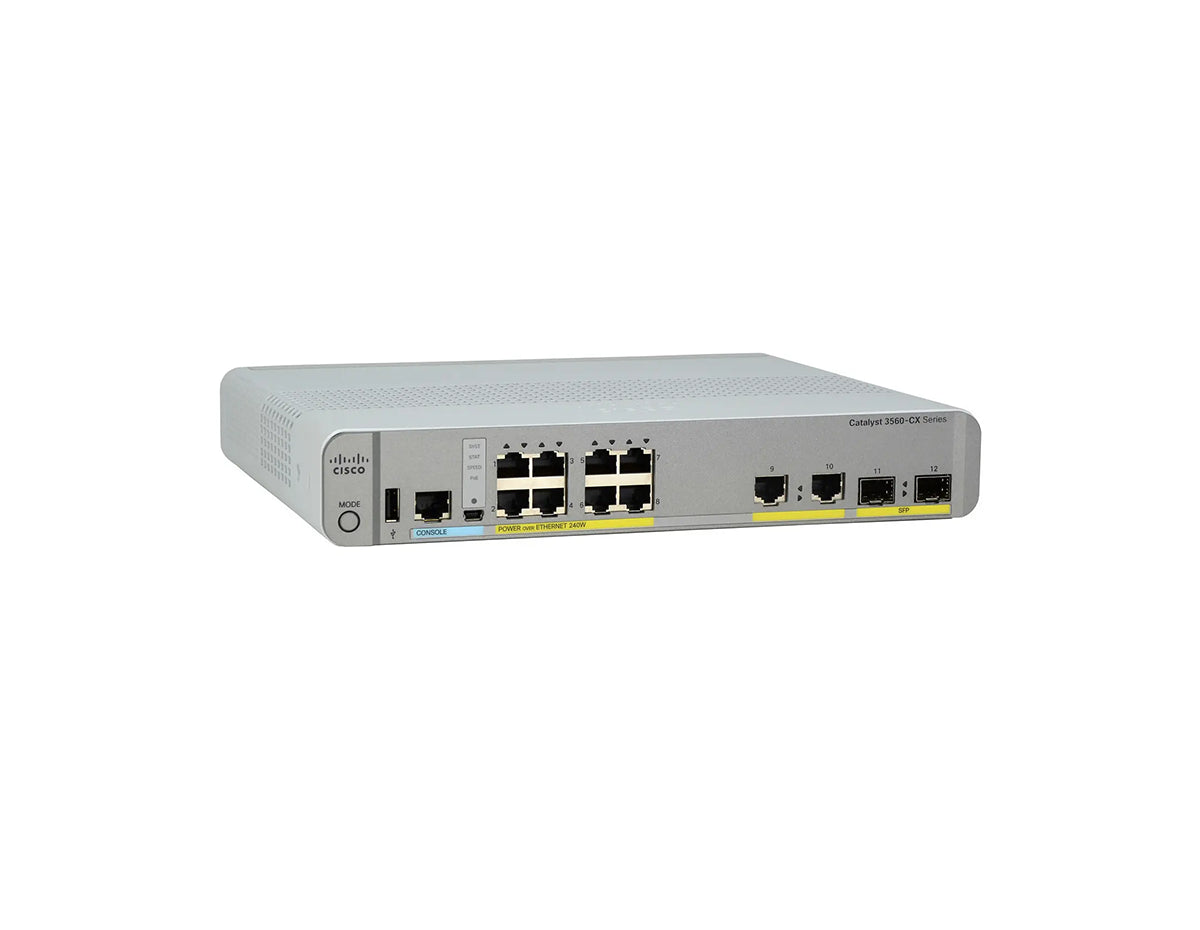

Cisco WS-C3560CX-8PC-S Switch

Managed, Fanless, 8 x 1G ports, 2 x 1G SFP Uplinks, PoE+ (240W), Layer 3

Switching capacity32 Gbps

$1,398.00

Ask an engineer about this model

Add several items, then request a quote at checkout.

  • Free US shipping on orders over $300
  • Manufacturer warranty
  • 30-day returns on unopened items

The Cisco Catalyst WS-C3560CX-8PC-S Switch provides a compact and high-performance networking solution for small to medium-sized businesses and branch offices. Featuring 8 PoE+ Gigabit Ethernet ports and 2 SFP uplinks, this fanless switch supports advanced Layer 3 IP Base software for reliable and scalable network management. Its Power over Ethernet Plus (PoE+) capability delivers up to 240W of power for connected devices like IP phones, wireless access points, and cameras, all while maintaining energy-efficient operation.

Product FamilyCatalyst 3560
Product TypeEthernet Switch
Ethernet Ports8 x 10/100/1000 Gigabit Ethernet
PoE Output Ports8 PoE+
Available PoE Power240W
Uplinks2 x 1G copper plus 2 x 1G SFP
Default SoftwareIP Base (IP Services with RTU License)
AC/DC input voltage and current100-240 VAC, 3.25-1.5A
Dimensions in1.75 x 10.6 x 9.4
DRAM512 MB
Flash Memory128 MB
Forwarding Rate17.9 mpps
Switching Bandwith32 Gbps
Max VLANs1023
VLAN IDs4000
Jumbo frames9198 bytes
MTBF569,53
Operating Temperature5 to 45 degree C
Safety● UL 60950-1 ● CAN/CSA 22.2 No. 60950-1 ● EN 60950-1 ● IEC 60950-1 ● CE Marking ● GB 4943 ● IEC 60825
EnvironmentalReduction of Hazardous Substances (RoHS) 6
TelcoCommon Language Equipment Identifier (CLEI) code
Telnet – SSHYes
TACACS+Yes
Part NumberDescription
PWR-CLP=Power clip for the 3560-CX and 2960-CX compact switches
CMPCT-CBLE-GRD=Cable guard for the 3560-CX and 2960-CX compact switches
CMPCT-MGNT-TRAY =Magnet and Mounting Tray for 3560-CX and 2960-CX compact switches
CMPCT-DIN-MNT=DIN Rail Mount for 3560-CX and 2960-CX compact switches
RCKMNT-19-CMPCT=19-Inch Rack Mounting Brackets for 3560-CX and 2960-CX compact switches
RCKMNT-23-CMPCT=23- and 24-Inch Rack Mounting Brackets for 3560-CX and 2960-CX compact switches
  • Managed, Fanless, 8 x 1G ports, 2 x 1G SFP Uplinks, PoE+ (240W), Layer 3.

The Cisco Catalyst WS-C3560CX-8PC-S Switch provides a compact and high-performance networking solution for small to medium-sized businesses and branch offices. Featuring 8 PoE+ Gigabit Ethernet ports and 2 SFP uplinks, this fanless switch supports advanced Layer 3 IP Base software for reliable and scalable network management. Its Power over Ethernet Plus (PoE+) capability delivers up to 240W of power for connected devices like IP phones, wireless access points, and cameras, all while maintaining energy-efficient operation.

Key Features

  • 8 x PoE+ Gigabit Ethernet Ports : Delivers up to 30W per port, with a total power budget of 240W for PoE-enabled devices.
  • 2 x 1G SFP Uplinks : Offers high-speed fiber connectivity for network expansion.
  • Silent Fanless Design : Ensures quiet operation, perfect for office environments.
  • Layer 3 IP Base : Supports advanced routing protocols like OSPF, EIGRP, and VRF-Lite for enhanced network management.
  • Energy-Efficient : Complies with IEEE 802.3az standards, minimizing power consumption.

Technical Overview

  • Recommended for : Offices, small to medium-sized businesses, and branch networks.
  • Ports : 8 x 10/100/1000 Mbps Gigabit Ethernet PoE+ ports
  • Uplink Modules : 2 x 1G SFP uplinks
  • Switching Capacity : 32 Gbps
  • Forwarding Rate : 17.9 Mpps
  • Layer 3 Features : OSPF, EIGRP, VRF-Lite
  • Management : Web UI, CLI, SNMP, and Cisco DNA Center
  • Licensing : IP Base
  • Energy Efficiency : Supports IEEE 802.3az standards for energy-saving operations.
