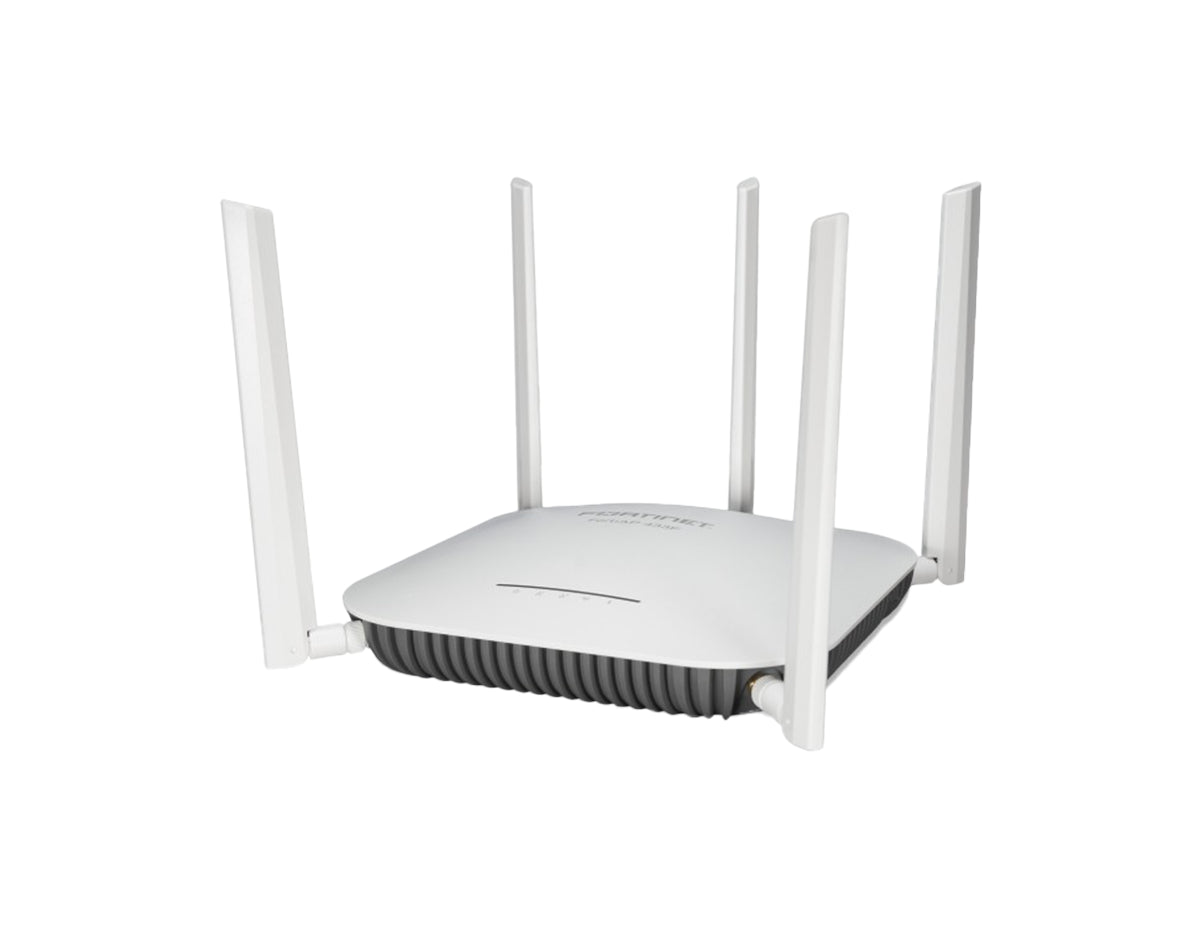

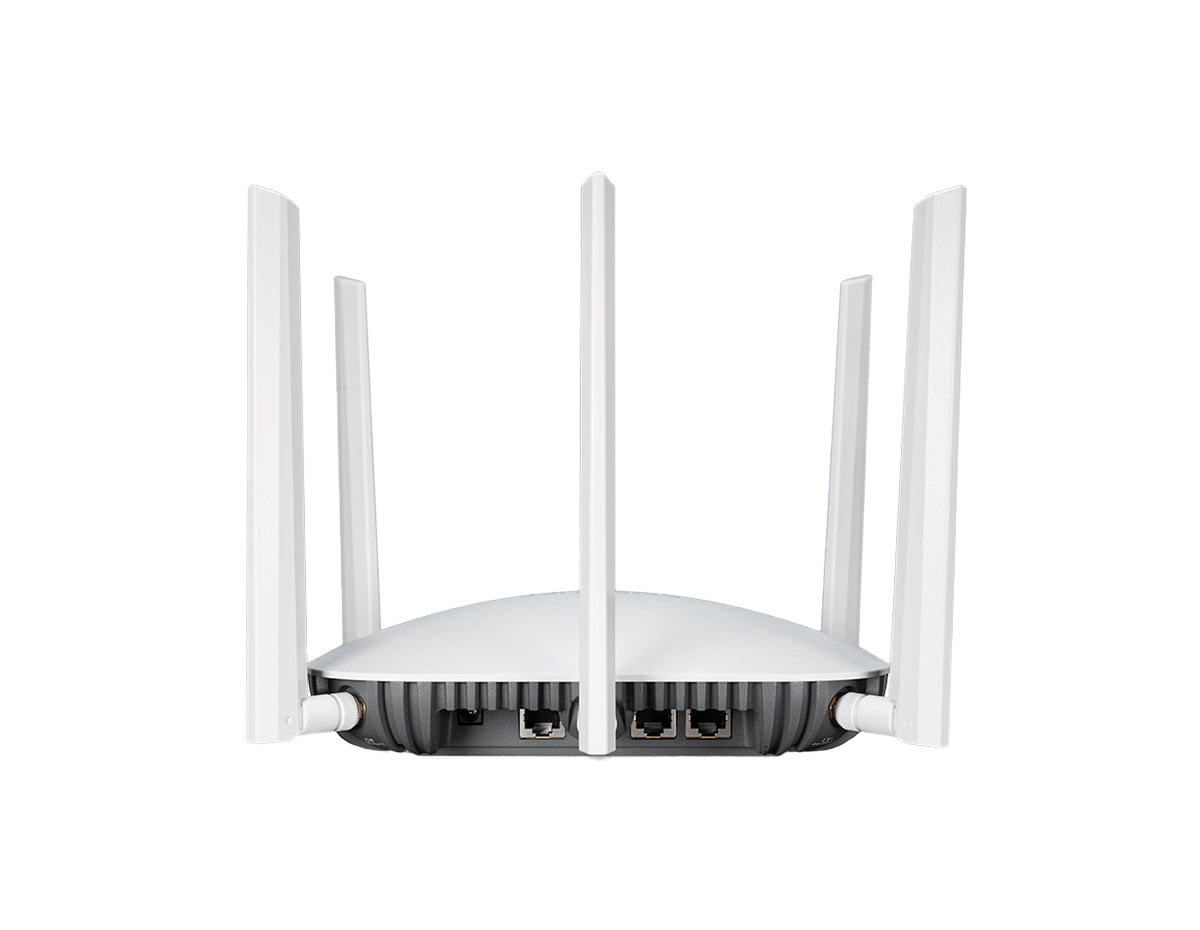

Fortinet FAP-433F-A Access Point
Indoor Wireless AP – Tri radio (2x 802.11 a/b/g/n/ac/ax, 4×4 MIMO and 1x 802.11 a/b/g/n/ac Wave 2, 1×1 MU-MIMO), external antennas included, 1x 10/100/1000/2500 Base-T RJ45, 1x 10/100/1000 Base-T RJ45, BT/BLE, 1x Type A USB, 1x RS-232 RJ45 Serial Port.
Price
1-Year Manufacturer Warranty
Free Shipping on Orders Over $500
Secure Payment
- Indoor Wireless AP – Tri radio (2x 802.11 a/b/g/n/ac/ax, 4×4 MIMO and 1x 802.11 a/b/g/n/ac Wave 2, 1×1 MU-MIMO), external antennas included, 1x 10/100/1000/2500 Base-T RJ45, 1x 10/100/1000 Base-T RJ45, BT/BLE, 1x Type A USB, 1x RS-232 RJ45 Serial Port. Ceiling/wall mount kit included.For power order: 802.3at PoE injector GPI-130 or AC adapter SP-FAP400-PA. Region Code A
| Properties | FAP-433F-A |
| Description | Indoor Wireless AP – Tri radio (2x 802.11 a/b/g/n/ac/ax, 4×4 MIMO and 1x 802.11 a/b/g/n/ac Wave 2, 1×1 MU-MIMO), external antennas included, 1x 100/1000/2500 Base-T RJ45, 1x 10/100/1000 Base-T RJ45, BT/BLE, 1x Type A USB, 1x RS-232 RJ45 Serial Port. Ceiling/wall mount kit included. For power order 802.3at PoE injector GPI-130 or AC adapter SP-FAP400-PA. |
| Product Family | Fortinet Indoor Wireless AP |
| Product Type | Access Points |
| Hardware Type | Indoor AP |
| Number of Radios | 3 + 1 BLE |
| Number of Antennas | 5 External (RP-SMA) + 1 BLE Internal |
| Antenna Type and Peak Gain | Omni directional rubber duck antenna: 4 dBi for 2.4 GHz, 6 dBi for 5 GHz |
| Frequency Bands (GHz)* | 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850 |
| Radio 1 Capabilities | Frequency Band: 2.4 GHz Channel width: 4×4 20/40 MHz Modulation: BPSK, QPSK, QAM64, QAM256, and QAM1024 MIMO chains: 4×4 service |
| Radio 2 Capabilities | Frequency Band: 5.0 GHz Channel width: 4×4 20/40/80MHz and 2×2 160MHz contiguous Modulation: BPSK, QPSK, QAM64, QAM256, and QAM1024 Mimo chains: 4×4 service |
| Radio 3 Capabilities | Frequency band: 2.4/5.0 GHz MIMO chains: 1×1 frequency scanning |
| Maximum Data Rate | Radio 1: up to 1147 Mbps Radio 2: up to 2402 Mbps Radio 3: scan only |
| Bluetooth Low Energy Radio | Bluetooth scanning and iBeacon advertisement @ 6 dBm max TX power |
| Interfaces | 1x 100/1000/2500 Base-T RJ45, 1 x 10/100/1000 Base-T RJ45, 1x Type A USB, 1x RS-232 RJ45 Serial Port |
| Power over Ethernet (PoE) | 802.3at PoE default 1 port powered by 802.3at or 2 ports powered by 802.3af – Full System functionality + USB support 1 port is connected to 802.3af – No USB support, Operate in 2×2 mode with reduced power R1/R2 17dBm(Tx power) |
| Simultaneous SSIDs | Up to 16 (14 if background scanning enabled) |
| EAP Type(s) | EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0/EAPMSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST |
| User/Device Authentication | WPA™, WPA2™, and WPA3™ with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blocklist & allowlist |
| Maximum Tx Power | Radio 1: 2.4 GHz 24 dBm / 251 mW (4 chains combined)* Radio 2: 5 GHz 23 dBm / 200 mW (4 chains combined)* Radio 3: NA |
| Per Radio Client Capacity | 512 per Radio1 and Radio2 |
| Cellular Co-existence | Yes |
| Advanced 802.11 Features | OFDMA |
| Spatial Reuse (BSS | |
| Coloring) | |
| HE-MU-MIMO | |
| UL-MU-MIMO 802.11ax | |
| mode | |
| DL-MU-MIMO | |
| Enhanced Target Wake | |
| Time (TWT) | |
| Dimensions in. | 6.0 x 6.0 x 2.86 |
| Power Consumption (Max) | 24.5 W |
| Operating Temperature | 32–113°F (0–45°C) |
| IEEE Standards | 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11w, 802.11ac, 802.11ax, 802.1Q, 802.1X, 802.3ad, 802.3af, 802.3at, 802.3az |
| Certifications | FCC, IC, CE, Japan, Brazil and Taiwan |
| Mounting Options | Ceiling, T-Rail, and Wall |
| Included Accessories | Mount kit for Ceiling, T-Rail and Wall. 5 RP-SMA Male dual-band dipole antenna |
| Power Supply | SP-FAP400-PA-XX or GPI-130 |
| Optional Antennas | FANT-04ABGN-0606-O-R FANT-04ABGN-0606-P-R |
FortiAP access points are managed centrally by the integrated WLAN controller of any FortiGate security appliance or through the FortiAP Cloud provisioning and management portal. With the integration of the wireless controller functionality into the market-leading FortiGate appliance, these APs are perfect for protecting your LAN Edge from the campus to branch deployments. Fortinet’s Security Fabric enables you to easily manage wired and wireless security from a single pane-of-glass management console and protects your network from the latest security threats.
| Weight | 4.41 lbs |
|---|---|
| Speed | Radio 1: up to 1147 Mbps Radio 2: up to 2402 Mbps Radio 3: scan only |
| Power | |
| Connectivity | 1x 100/1000/2500 Base-T RJ45, 1 x 10/100/1000 Base-T RJ45, 1x Type A USB, 1x RS-232 RJ45 Serial Port |
| Wireless Standard | |
| Frequency | 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850 |
| Capacity | |
| Brand |
