Fortinet FG-40F-BDL-950-12 Firewall
Hardware plus 24×7 FortiCare and FortiGuard Unified Threat Protection (UTP), 1Yr Bundle
Price
1-Year Manufacturer Warranty
Free Shipping on Orders Over $500
Secure Payment
- Hardware plus 24×7 FortiCare and FortiGuard Unified Threat Protection (UTP), 1Yr Bundle
| Properties | FG-100F-BDL-950-12 |
| Description |
22x GE RJ45 ports (including 2x WAN ports, 1x DMZ port, 1x Mgmt port, 2x HA ports, 16x switch ports with 4 SFP port shared media), 4 SFP ports, 2x 10 GE SFP+ FortiLinks, dual power supplies redundancy
|
| Product Family | Mid Range Firewalls |
| Product Type | Firewall |
| GE RJ45 Ports | 12 |
| GE RJ45 Management/DMZ/HA Ports | 1/2/1 |
| GE RJ45/SFP Shared Media Pairs | 4 |
| GE RJ45 WAN Port | 2 |
| USB Port | 1 |
| Console (RJ45) | 1 |
| Wireless Interface | 0 |
| Bundle |
24×7 FortiCare and FortiGuard Unified Threat Protection (UTP)
|
| Bundle Duration | 1 Years |
| Firewall Throughput (1518 / 512 / 64 byte, UDP) | 20 / 18 / 10 Gbps |
| Firewall Latency (64 byte UDP packets) | 4.97 μs |
| Firewall Throughput (Packets Per Second) | 15 Mpps |
| Concurrent Sessions (TCP) | 1.5 Million |
| New Sessions/Second (TCP) | 56.000 |
| Firewall Policies | 10.000 |
| IPsec VPN Throughput (512 byte packets) | 11.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 2000 |
| Client-to-Gateway IPsec VPN Tunnels | 16000 |
| SSL-VPN Throughput | 1 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum) | 500 |
| SSL Inspection Throughput | 1 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 1800 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 135000 |
| Application Control Throughput | 2.2 Gbps |
| IPS Throughput | 2.6 Gbps |
| NGFW Throughput | 1.6 Gbps |
| Threat Protection Throughput | 1 Gbps |
| CAPWAP Throughput | 15 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiSwitches Supported | 32 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 128 / 64 |
| Maximum Number of FortiTokens | 5000 |
| Maximum Number of Registered FortiClients | – |
| High Availability Configurations | Active/Active, Active/Passive, Clustering |
| Dimensions in. | 1.73 x 17 x 10 |
| Form Factor | Rack Mount, 1 RU |
| Power Required | 100240V AC, 5060 Hz |
| Maximum Current | 100V / 1A, 240V / 0.5A |
| Power Consumption (Average / Maximum) | 35.1 W / 38.7 W |
| Operating Temperature | 32104°F (040°C) |
| Regulatory Compliance |
FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI
|
| Certifications | USGv6/IPv6 |
| FN-TRAN-GC |
1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+slots.
|
| FN-TRAN-SX |
1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots
|
| FN-TRAN-LX |
1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots.
|
| FN-TRAN-SFP+GC |
10 GE SFP+ RJ45 transceiver module for systems with SFP+ slots.
|
| FN-TRAN-SFP+SR |
10 GE SFP+ transceiver module, short range for all systems with SFP+ and SFP/SFP+ slots.
|
| FN-TRAN-SFP+LR |
10 GE SFP+ transceiver module, long range for all systems with SFP+ and SFP/SFP+ slots
|
| FN-TRAN-SFP+ER |
10 GE SFP+ transceiver module, extended range for all systems with SFP+ and SFP/SFP+ slots
|
| FN-TRAN-SFP+BD27 |
10GE SFP+ transceiver module, 30KM long range single BiDi for systems with SFP+ and SFP/ SFP+ slots (connects to FN-TRAN-SFP+BD33, ordered separately)
|
| FN-TRAN-SFP+BD33 |
10GE SFP+ transceiver module, 30KM long range single BiDi for systems with SFP+ and SFP/ SFP+ slots (connects to FN-TRAN-SFP+BD27, ordered separately)
|

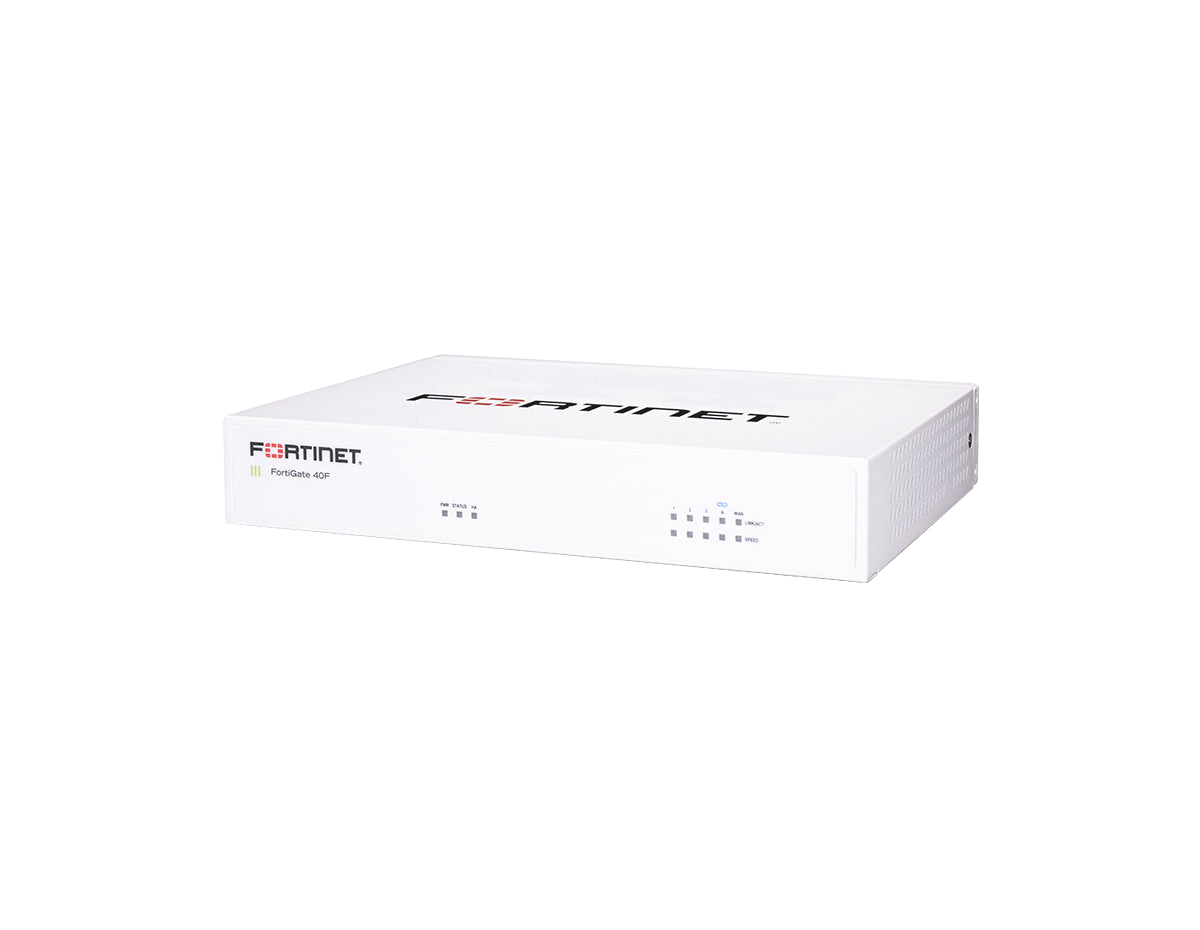

FortiGate FG-40F-BDL-950-12 Firewall
The FortiGate FG-40F-BDL-950-12 offers an ideal balance of security and performance for small to mid-sized businesses. Featuring a compact, fanless design, it integrates advanced SD-WAN functionality and deep threat protection. This model provides 1x GE RJ45 WAN port, 3x GE RJ45 LAN ports, and 1x FortiLink port for easy network integration. The 1-year subscription to FortiCare support and FortiGuard UTM ensures reliable protection against evolving threats.
Key Features:
- 5 Gbps firewall throughput for effective network protection

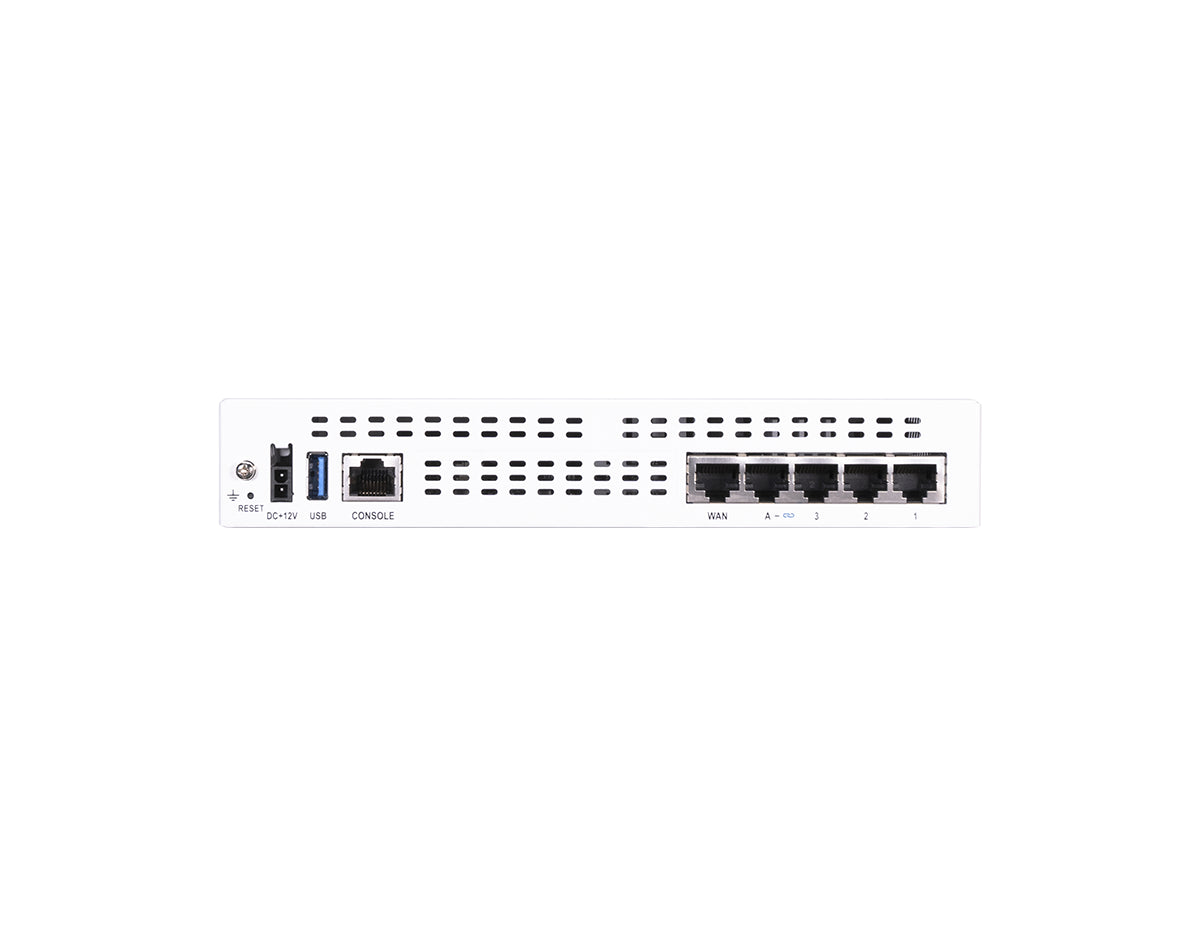

- 1x GE RJ45 WAN, 3x GE RJ45 LAN, and 1x FortiLink port for versatile connectivity
- Secure SD-WAN powered by ASIC SOC4 for improved application performance
- Includes 1-year FortiCare and FortiGuard UTM subscription
Please see the related tabs for the FG-40F-BDL-950-12 datasheet and compatible accessories.
| Weight | 5.07 lbs |
|---|---|
| Ports | |
| Speed | |
| Form Factor | |
| Power | |
| Connectivity | |
| Brand |
