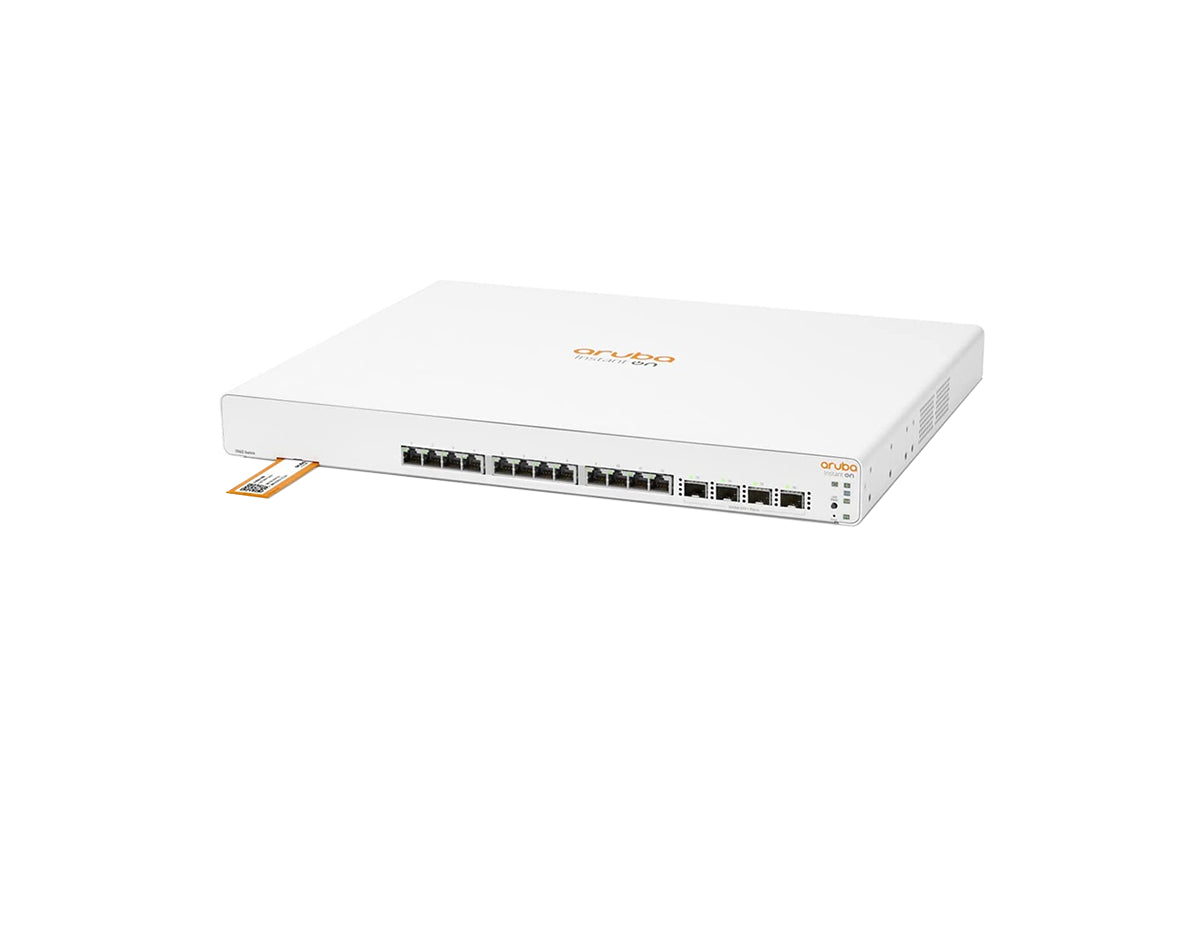

HPE Aruba Networking JL805A Instant On 1960 12XGT 4SFP+ Switch

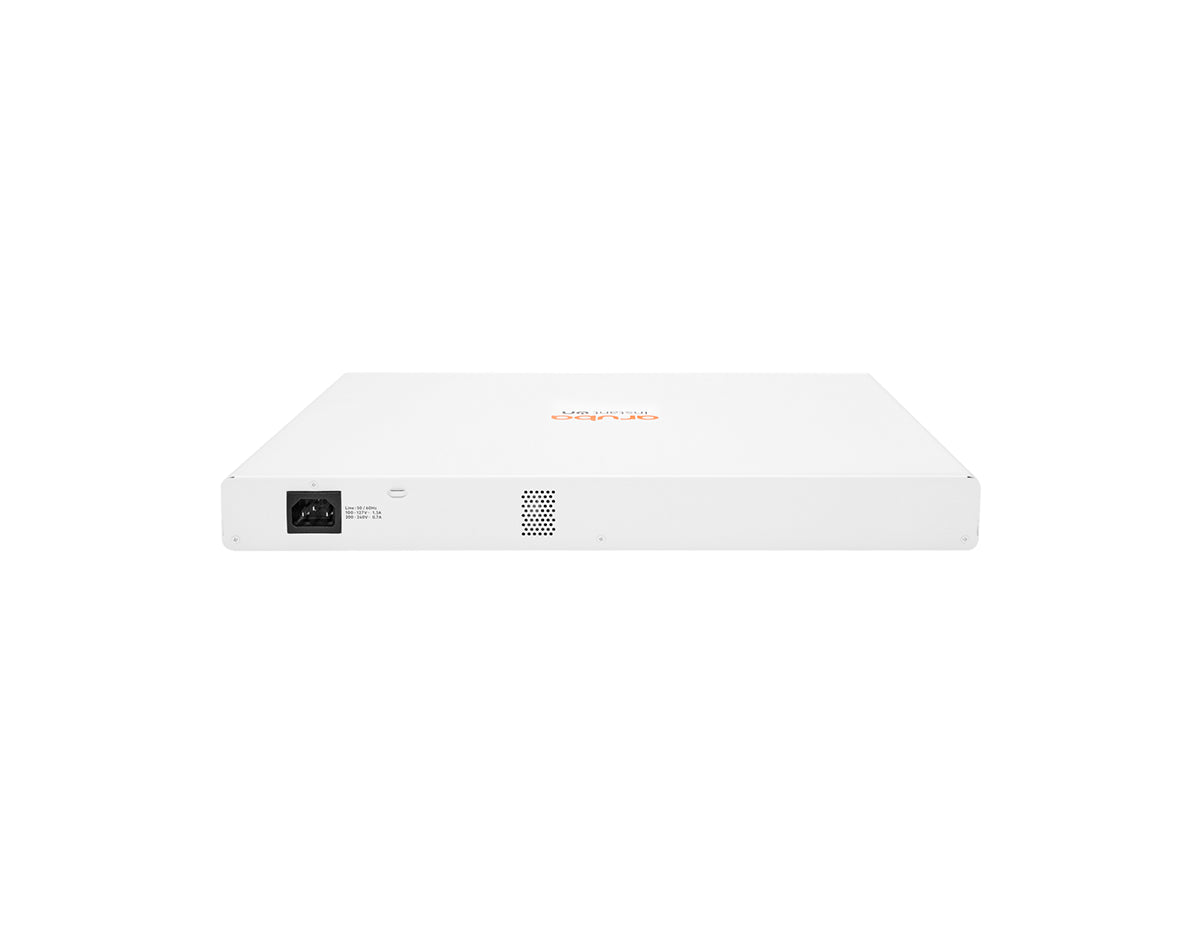

HPE Aruba Networking JL805A Instant On 1960 12XGT 4SFP+ Switch — photo 2

HPE Aruba SKU JL805A

HPE Aruba Networking JL805A Instant On 1960 12XGT 4SFP+ Switch

Managed, rack-mountable, 12 x 10GBASE-T (1G/10G), fixed uplinks (4 x SFP+ 10GbE), no PoE (data only), Layer 2+

Switching capacity	320 Gbps

$1,275.00

Ask an engineer about this model

Add several items, then request a quote at checkout.

Free US shipping on orders over $300
Manufacturer warranty
30-day returns on unopened items

Where it fits

Firewalls · 149 products · from $515

Transceivers · 50 products · from $29

Access Points · 119 products · from $29

The HPE Aruba Instant On 1960 12XGT 4SFP+ Switch (JL805A) is a high-performance smart-managed switch designed for small and growing businesses that require fast data transfer and advanced connectivity. With 12 multi-gigabit 10GbE ports and 4 dedicated SFP+ uplink ports, this switch delivers exceptional performance for bandwidth-intensive applications. Its easy-to-use cloud-based management system allows for quick deployment and remote monitoring, making it ideal for businesses with limited IT resources.

Product Family	Aruba Instant On 1960 Switch Series
Product Type	Switch
Dimensions	350.5(d) x 442.5(w) x 43.95(h) mm
Weight	9.6 lb (4.3 kg)
CPU	Single-core ARM v7 Cortex-A9 @ 800 MHz; 1 GB DDR3; 512 MB NAND flash
100 Mb Latency	< 7.4 uSec
1000 Mb Latency	< 4.2 uSec
10000 Mb Latency	< 1.1 uSec
Throughput (Mpps)	238 Mpps
Capacity	320 Gbps
Routing Table size (# of static entries)	512 IPv4/IPv6
MAC Address table size (# of entries)	16,000 entries
Reliability MTBF (years)	88.8
Operating temperature	0-40°C, 0-10,000 ft
Operating relative humidity	15% to 95% @ 104°F (40°C) non-condensing
Nonoperating/Storage temperature	40°F to 158°F (-40°C to 70°C) up to 15000 ft
Nonoperating/Storage relative humidity	15% to 90% @ 149°F (65°C) non-condensing
Altitude	up to 10,000 ft (3 km)
Frequency	50Hz/60Hz
AC voltage	100-127VAC / 200-240VAC

Current	1.3A/0.4A
Power consumption Maximum	100–127V: 130W; 200–220V: 160W
Idle power	100–127V: 60W; 200–220V: 80W
PoEpower	(-)
Power Supply	Internal power supply
Emissions	EN 55032:2015/CISPR 32, Class A FCC CFR 47 Part 15: 2018 Class A ICES-003 Class A VCCI Class A CNS 13438 Class A KN 32 Class A AS/NZS CISPR 32 Class A
Generic	EN 55035, CISPR 35, KN35
EN	EN 55035, CISPR 35
ESD	EN/IEC 61000-4-2
Radiated	EN/IEC 61000-4-3
EFT/Burst	EN/IEC 61000-4-4
Surge	EN/IEC 61000-4-5
Conducted	EN/IEC 61000-4-6
Power frequency magnetic field	EN/IEC 61000-4-8
Voltage dips and interruptions	EN/IEC 61000-4-11
Harmonics	EN/IEC 61000-3-2
Flicker	EN /IEC 61000-3-3
Device Management	HPE Networking Instant On Cloud; web browser; SNMP manager
IETF Standard SNMP Traps Supported	RFC 1157 • RFC 1493 • RFC 1215 • RFC 3416 • RFC 3418

Managed, rack-mountable, 12 x 10GBASE-T (1G/10G), fixed uplinks (4 x SFP+ 10GbE), no PoE (data only), Layer 2+.

HPE Aruba Instant On 1960 12XGT 4SFP+ Switch (JL805A)

Key Features

12 x 10GbE Ports: Provides high-speed 10GbE connectivity for devices requiring fast data transfers and low-latency performance.
4 x SFP+ Uplink Ports: Supports high-speed uplinks, enabling seamless network expansion and improved bandwidth management.
Cloud-Based Management: Easily monitor and manage the switch remotely via the Aruba Instant On mobile app or cloud-based web portal.
Advanced Security Features: Includes support for ACLs, VLANs, and 802.1X authentication for enhanced network security.
Stacking Capability: Supports cloud-managed stacking of up to four switches, simplifying network operations and scalability.

Technical Overview

Recommended for: Small businesses, retail, and educational institutions.
Ports: 12 x 10GbE ports, 4 x SFP+ uplinks
Switching Capacity: 320 Gbps
Forwarding Rate: 238 Mpps
Management: Managed via Aruba Instant On mobile app or cloud-based GUI.
Security: Supports ACLs, 802.1X authentication, and denial-of-service protection.
