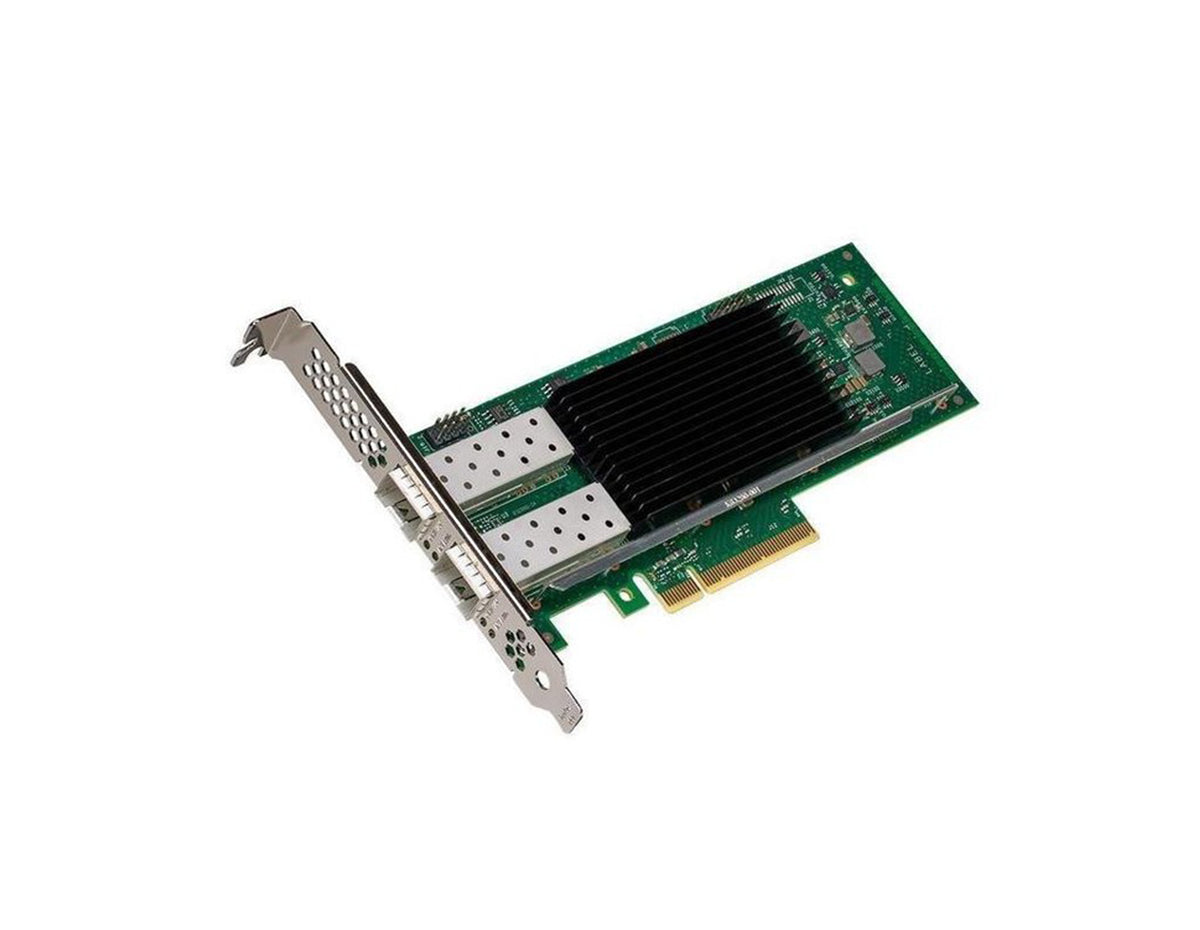

Intel Ethernet Network Adapter E810-XXVDA2 Dual 25GbE Network Adapter

Intel SKU E810XXVDA2

Intel Ethernet Network Adapter E810-XXVDA2 Dual 25GbE Network Adapter

Dual 25GbE SFP28 ports, PCIe 4.0 x8, RDMA iWARP and RoCEv2, ADQ and DDP acceleration, IEEE 1588 PTP Model Intel Ethernet Network Adapter E810-XXVDA2 SKU E810XXVDA2 Product Type Ethernet Network Adapter Series Intel Ethernet 800 Series Ports Dual Port SFP28…

Form factor	Full-height and Low-profile brackets included

$250.00

Ask an engineer about this model

Add several items, then request a quote at checkout.

Free US shipping on orders over $300
Manufacturer warranty
30-day returns on unopened items

Dual 25GbE SFP28 ports, PCIe 4.0 x8, RDMA iWARP and RoCEv2, ADQ and DDP acceleration, IEEE 1588 PTP.

SKU	E810XXVDA2
Product Type	Ethernet Network Adapter
Series	Intel Ethernet 800 Series
Ports	Dual Port SFP28
Data Rate Supported	25/10/1GbE per port
Bus Type	PCI Express (PCIe) 4.0 x8
Controller	Intel Ethernet Controller E810-XXVAM2
RDMA Support	iWARP and RoCEv2
Time Synchronization	IEEE 1588 Precision Time Protocol (PTP) v1 and v2
Bracket	Full-height bracket installed; Low-profile bracket included in package
Dimensions	167 mm x 68 mm (6.57 in x 2.67 in)
Hardware Certifications	FCC B, UL, CE, VCCI, BSMI, RCM, KCC
RoHS	Compliant with EU RoHS Directive 2011/65/EU and amendments (e.g. 2015/863/EU)
Operating Temperature	0 C to 55 C (32 F to 131 F)
Storage Temperature	40 C to 70 C (-40 F to 158 F)
Storage Humidity	Maximum: 90% non-condensing relative humidity at 35 C

Supported Physical Layer Interfaces	25GBASE-CR (Twinax), 25GBASE-SR, 25GBASE-LR, 10GBASE-SR, 10GBASE-LR, SFP+ Twinax
SFP28 Max Power Per Port	1.5 W
Power Consumption (DACs)	25GbE Max: Typical 8.9 W, Max 9.8 W; Idle: Typical 8.0 W, Max 8.8 W
Power Consumption (Optics)	25GbE Max: Typical 12.1 W, Max 13.7 W; Idle: Typical 11.6 W, Max 12.6 W
LED Indicators	ACTIVITY (blinking); LINK SPEED (green = 25GbE; amber = less than 25GbE; off = no link)
Airflow (Extended Temp 1.5W Optics)	100 LFM at 45 C; 100 LFM at 55 C; 150 LFM at 60 C
Airflow (Commercial Temp DAC)	100 LFM at 45 C; 100 LFM at 55 C; 150 LFM at 60 C
Airflow (Commercial Temp 1.5W Optics)	150 LFM at 45 C; 350 LFM at 55 C
Tx/Rx Queues	2048 Tx queues and 2048 Rx queues with Dynamic Allocation
Interrupt Vectors	2048 vectors; 20M interrupts/sec
SR-IOV Virtual Functions	Up to 256 SR-IOV Virtual Functions
VLAN Support	Support for up to 4096 VLAN tags; Tag insertion, stripping and filtering
Tunneling / Encapsulation	VXLAN, GENEVE, NVGRE, MPLS, VXLAN-GPE with NSH
Security	Hardware-based Root of Trust; NIST 800-193 Platform Firmware Resiliency (Protect, Detect, Recover)
Pre-Boot	Signed UEFI option ROM compatible with HTTPS boot
Power Management	PCI power management states D3hot and D3cold

Dual 25GbE SFP28 ports, PCIe 4.0 x8, RDMA iWARP and RoCEv2, ADQ and DDP acceleration, IEEE 1588 PTP.

Accelerate Cloud, Storage, and 5G Workloads with Intelligent 25GbE

The Intel Ethernet Network Adapter E810-XXVDA2 is a dual-port 10/25GbE PCIe 4.0 adapter engineered for high-performance data centers. Built on the Intel Ethernet 800 Series architecture, it delivers predictable, low-latency performance through Application Device Queues (ADQ) and Dynamic Device Personalization (DDP). Designed for cloud, enterprise, storage, and communications deployments, it enhances packet processing efficiency while significantly reducing CPU overhead.

Key Benefits & Features

Dual 25GbE SFP28 Connectivity: Two high-speed SFP28 ports support 25/10/1GbE per port, enabling scalable bandwidth for virtualization, storage, and high-density server environments.
Application Device Queues (ADQ): Dedicated traffic queues reduce jitter and latency, improving workload predictability and SLA compliance in modern data centers.
Dynamic Device Personalization (DDP): Protocol-specific acceleration enhances packet processing efficiency and lowers CPU utilization for NFV and cloud workloads.
RDMA over Converged Ethernet: Supports both iWARP and RoCEv2 for high-throughput, low-latency storage and NVMe over Fabrics (NVMe-oF) environments.
Precision Time Protocol Support: IEEE 1588 PTP v1 and v2 enables nanosecond-level synchronization for 5G RAN, financial services, and industrial applications.
