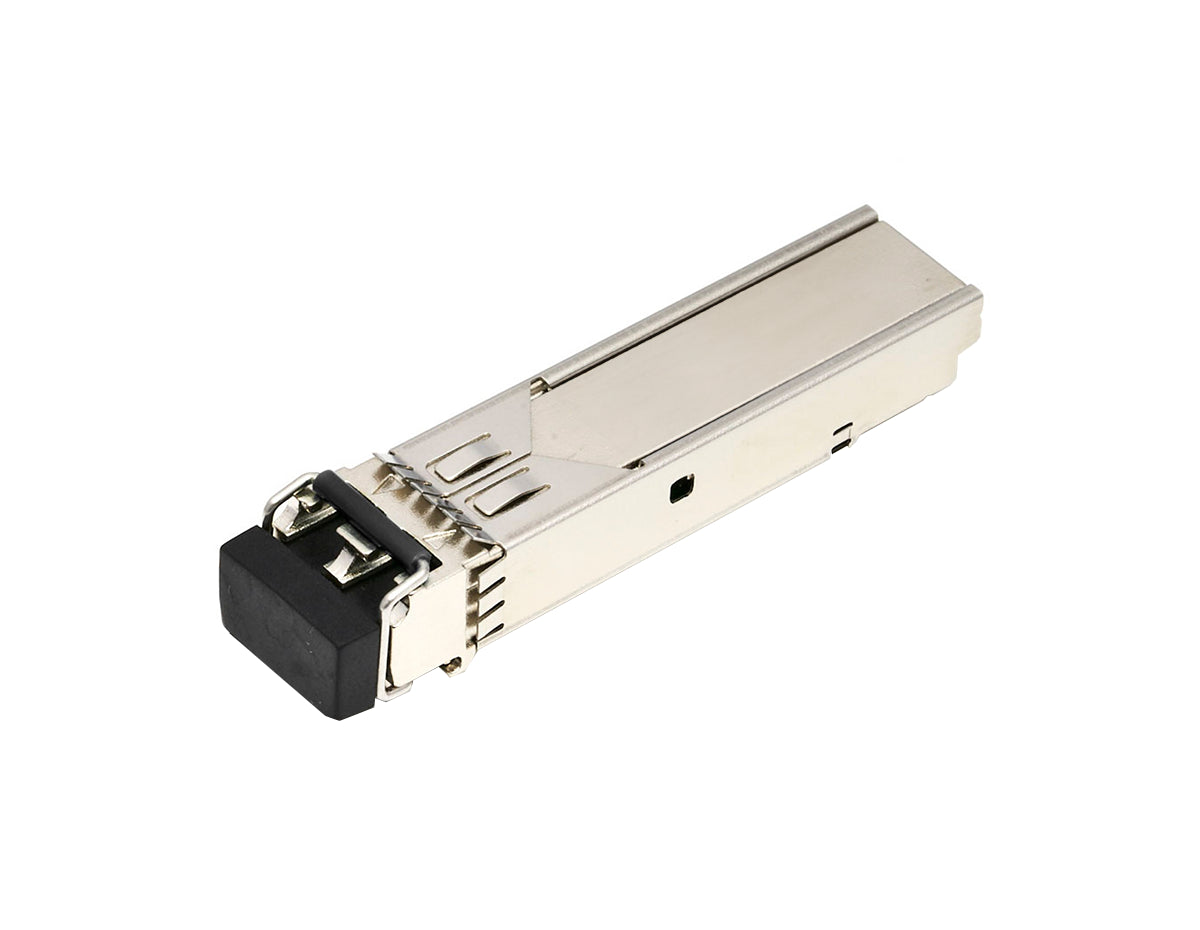

Juniper EX-SFP-1GE-SX Transceiver
SFP (mini-GBIC) transceiver module, GigE, 1000Base-SX
Price
1-Year Manufacturer Warranty
Free Shipping on Orders Over $500
Secure Payment
| Specifications | EX-SFP-1GE-SX |
| Description | EX-SFP-1GE-SX is a SFP 1000Base-SX Gigabit Ethernet Optics Module, 850nm |
| Product Family | Juniper Transceivers |
| Product Type | Optical Transceiver |
| Transceiver Type | SFP |
| Signaling rate, each lane | 1000 Mbps |
| Connectors | Duplex LC |
| Fiber mode | MMF |
| Transmitter wavelengths (range) | 850 nm |
| Transmit power range | -9.5 to -3 |
| Receive power range | -21 to 0 |
| Max Power consumption (W) | 1 W |
| Operating Temperature | 0° C to 70° C |
| DOM | Yes |
| Wavelength (nm) | Cable Type | Core Size (Microns) | Modal Bandwidth (MHz*km) | Cable Distance |
|---|---|---|---|---|
| 850 | MMF | 62.5 | 160(FDDI) | 220 m |
| 200(OM1) | 275 m | |||
| 50.0 | 400 | 500 m | ||
| 500(OM2) | 550 m | |||
| 2000(OM3) | 500 m | |||
| 4700(OM4) | 550 m |
Juniper EX-SFP-1GE-SX Transceiver
The Juniper Networks EX-SFP-1GE-SX SFP transceiver provides 1000Base-SX throughput up to 550m over multi-mode fiber (MMF) at a wavelength of 850nm using an LC connector. This product features a 1000 Mbps signaling rate and dual transmitter fibers.
Quick Specs:
- Signaling rate, each lane: 1000 Mbps
- Transmitter wavelengths: 850 nm
- Operating Temperature: -10 C to 85 C
- Transceiver Type: SFP
Please see the related tabs for the EX-SFP-1GE-SX datasheet and compatible accessories.
| Weight | 3.0 lbs |
|---|---|
| Power | |
| Brand |
