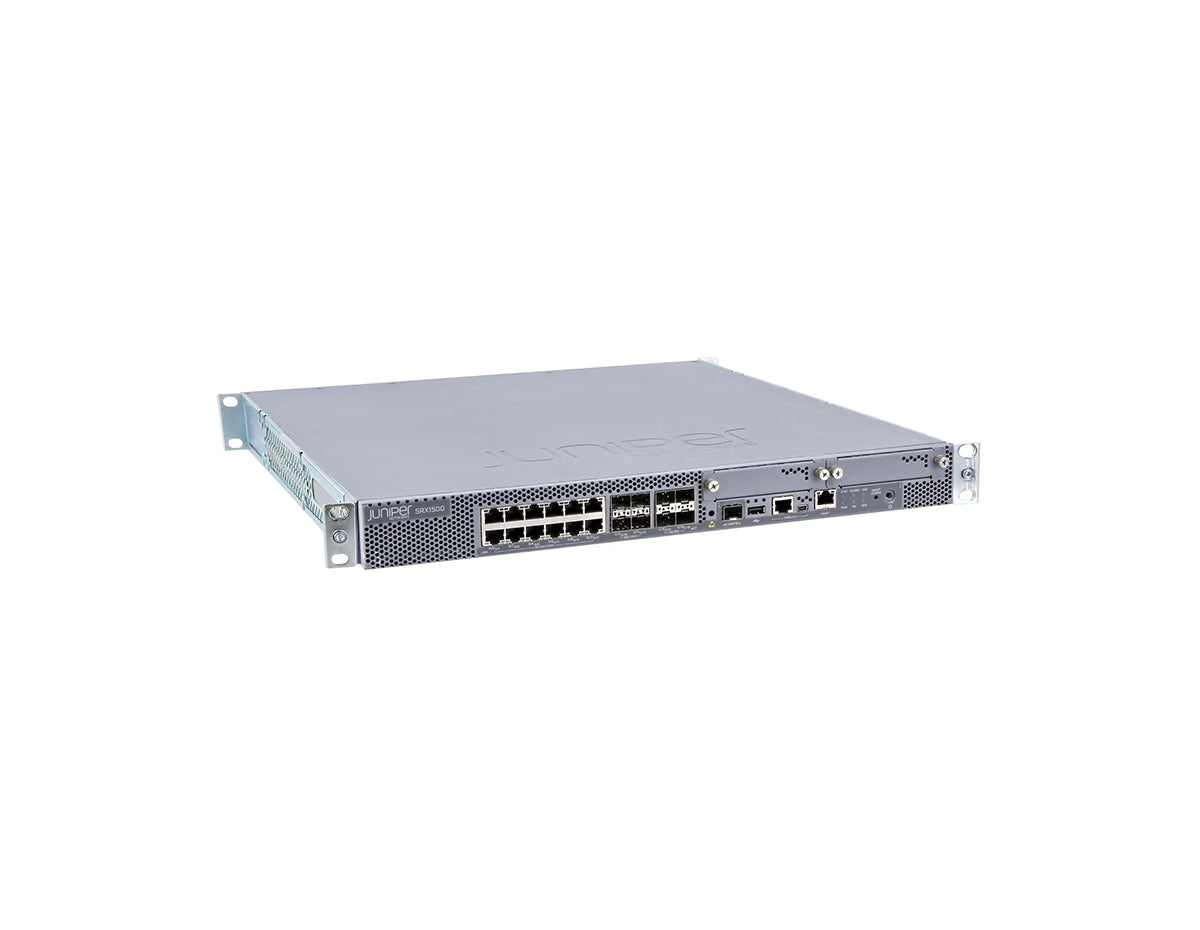

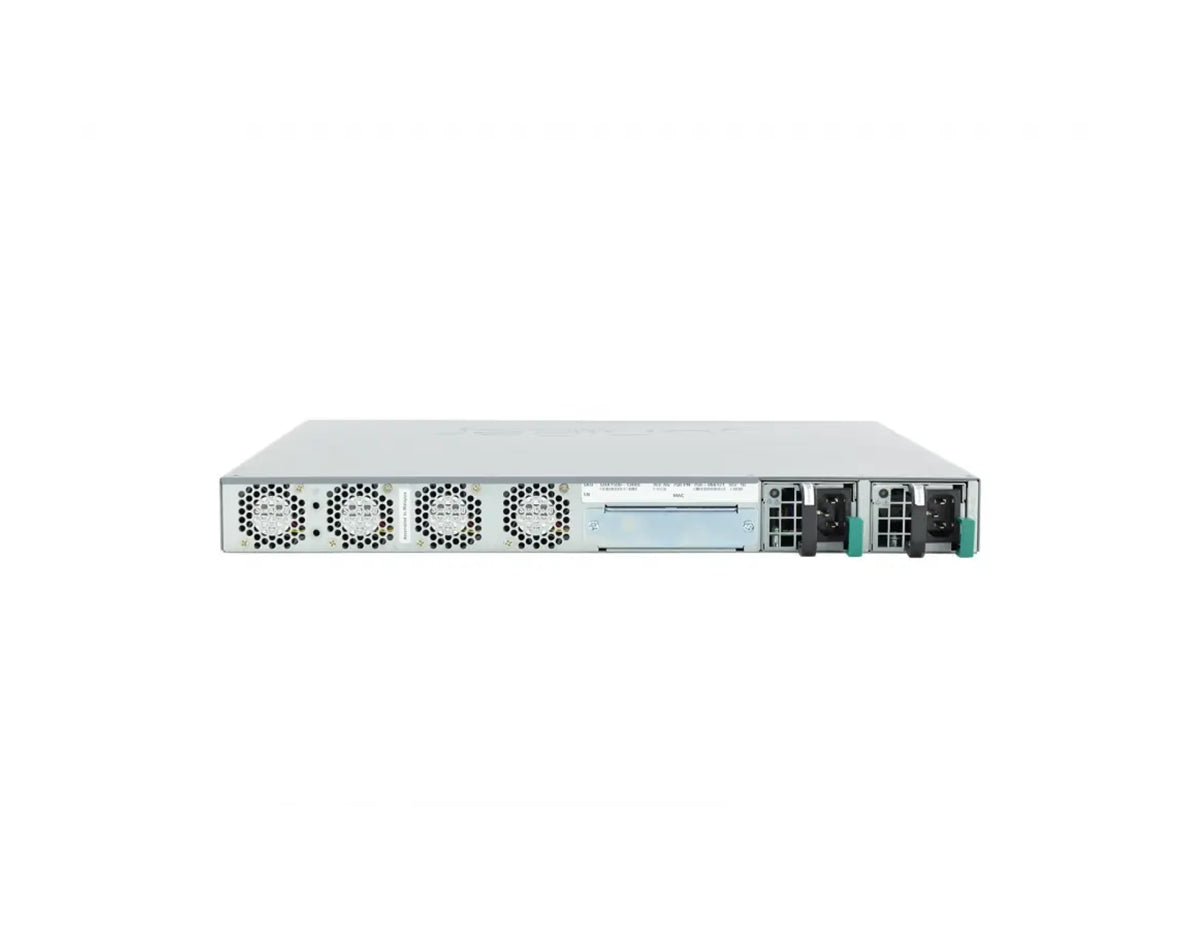

Juniper SRX1500-SYS-JB-DC Firewall
$21,929.88
SRX1500 Services Gateway Junos Software Base 16GbE 4 x 10GbE 16G RAM 16G Flash 100G SSD AC power supply Routing & switching MPLS IPSec NAT
| Form factor | 1 U |
|---|---|
| Storage | 16 GB |
$21,929.88
Ask an engineer about this modelAdd several items, then request a quote at checkout.
The Juniper SRX1500 is an advanced next-generation firewall and security services gateway designed to safeguard vital networks in campus settings, regional headquarters, and sizable branch offices. This device offers comprehensive SD-WAN functionality to enterprises and service providers, featuring Zero-Touch Provisioning (ZTP) for streamlining branch network connectivity during setup and maintenance processes. It is capable of providing firewall performance of up to 9.2 Gbps, intrusion prevention of 3.3 Gbps, and IPsec VPN of 4.5 Gbps in scenarios such as enterprise campus, regional headquarters, and large branch deployments.
| Product Family | SRX1500 Series |
|---|---|
| Product Type | Security Firewall |
| Total onboard ports | 16x1GbE and 4x10GbE |
| Onboard RJ-45 ports | 12x1GbE |
| Onboard small form-factor pluggable (SFP) transceiver ports | 4x1GbE |
| MACsec-capable ports | 2x1GbE |
| Onboard SFP+ ports | 4x10GbE |
| Out-of-band (OOB) management ports | 1x1GbE |
| Dedicated high availability (HA) ports | 1x1GbE (SFP) |
| PIM slots | 2 |
| Console (RJ-45 + miniUSB) | 1 |
| USB 2.0 ports (type A) | 1 |
| Form factor | 1 U |
| Dimensions (WxHxD) | 17.28 x 1.75 x 18.2 in (43.9 x 4.44 x 46.22 cm) |
| Weight (device and PSU) | 16.1 lb (7.30 kg) |
| Power supply | AC (external) |
| Redundant PSU | 1+1 |
| Average power consumption | 150 W |
| Average heat dissipation | 512 BTU / hour |
| Maximum current consumption | 2.5A (for AC PSU) |
| Maximum inrush current | 50A by 1 AC cycle |
| Airflow/cooling | Front to back |
| Acoustic noise level | 66.5dBA |
| System memory (RAM) | 16 GB |
| Primary boot storage (mSATA) | 16 GB |
| Secondary storage (SSD) | 100 GB |
| Routing/firewall (IMIX packet size) Gbps | 4.8 |
| Routing/firewall (1,518 B packet size) Gbps | 9.2 |
| IPsec VPN (IMIX packet size) Gbps | 1.3 |
| IPsec VPN (1400 B packet size) in Gbps | 4.5 |
| Application visibility and control in Gbps | 7.9 |
| Recommended IPS in Gbps | 3.3 |
| Next-generation firewall in Gbps | 2.1 |
| Secure Web Access firewall in Gbps | 1.6 |
| Route table size (RIB/FIB) (IPv4) | 2 million / 1 million |
| Maximum concurrent sessions (IPv4 or IPv6) | 2,000,000 |
| Maximum security policies | 16,000 |
| Connections per second | 90,000 |
| NAT rules | 8,000 |
| Media access control (MAC) table size | 64,000 (standalone mode) |
| IPsec VPN tunnels | 2,000 |
| Number of remote access/SSL VPN (concurrent) users | 2,000 |
| GRE tunnels | 2,048 |
| Maximum security zones | 512 |
| Maximum virtual router | 512 |
| Maximum VLANs | 3,900 |
| Network Address Translation (NAT) | Source NAT with Port Address Translation (PAT) Bidirectional 1:1 static NAT Destination NAT with PAT Persistent NAT IPv6 address translation |
| Operating temperature | 32° to 104° F (0° to 40° C) |
| Storage temperature | 4° to 158° F (-20° to 70° C) |
| Relative humidity operating | 10% to 90% (noncondensing) |
| Relative humidity non-operating | 5% to 95% (noncondensing) |
| Meantime between failures (MTBF) | 9.78 years (85,787 hours) |
|---|---|
| FCC classification | Class A |
| RoHS compliance | RoHS 2 |
| FIPS 140-2 | Level 2 (Junos 19.2) |
| EX-SFP-1FE-FX | Small Form Factor Pluggable 100Base-FX Fast Ethernet Optics |
| EX-SFP-1FE-LX | SFP 100BASE-LX, LC connector, 1310nm, 10km Reach on Single Mode Fiber |
| CTP-SFP-1GE-LX | Small Form Factor Pluggable 1000Base-LX Gigabit Ethernet Optic Module, CTP1000 |
| CTP-SFP-1GE-SX | Small Form Factor Pluggable 1000Base-SX Gigabit Ethernet Optic Module, CTP1000 |
| CTP-SFP-1GE-T | Small Form Factor Pluggable 1000Base-T Gigabit Ethernet Module (uses Cat 5 cable) |
| EX-SFP-1GE-LH | Small Form Factor Pluggable 1000Base-LH Gigabit Ethernet Optics |
| EX-SFP-1GE-LX | Small Form Factor Pluggable 1000Base-LX Gigabit Ethernet Optics |
| EX-SFP-1GE-SX | Small Form Factor Pluggable 1000Base-SX Gigabit Ethernet Optics |
| EX-SFP-1GE-SX-ET | SFP, 1000Base-SX Gigabit Ethernet, Extended Temperature Range Optics |
| EX-SFP-1GE-T | Small Form Factor Pluggable 10/100/1000 Copper Transceiver Module |
| QFX-SFP-1GE-LX | SFP 1000Base-LX Gigabit Ethernet Optics, 1310nm for 10km transmission on SMF |
| QFX-SFP-1GE-SX | SFP 1000Base-SX Gigabit Ethernet Optics, 850nm for upto 550m transmission on MMF |
| QFX-SFP-1GE-T | SFP 1000Base-T Copper Transceiver Module for up to 100m transmission |
| SFP-1G-LH-C | SFP, 1G, SMF 70km, Industrial Temperature (-40 through 85 DegC), Duplex LC connector |
| SFP-1G-LX-C | SFP, 1G, SMF 10km and MMF 550m, Extended Temperature (-5 through 70 DegC), Duplex LC connector |
| SFP-1G-SX-C | SFP, 1G, FDDI 220m and OM1 275m/OM2 MMF 550m, Extended Temperature (-10 through 85 DegC), Duplex LC connector |
| SFP-1G-T-C | Small Form Factor Pluggable 1000Base-T Gigabit Ethernet Module (uses Cat 5 cable) |
| SRX-SFP-1GE-LH | Small Form Factor Pluggable 1000Base-LH Gigabit Ethernet Optic Module |
| SRX-SFP-1GE-LH-ET | Small Form Factor Pluggable 1000Base-LH Gigabit Ethernet Optic Module – Extended temperature |
| SRX-SFP-1GE-LX | Small Form Factor Pluggable 1000Base-LX Gigabit Ethernet Optic Module |
| SRX-SFP-1GE-LX-ET | Small Form Factor Pluggable 1000Base-LX Gigabit Ethernet Optic Module – Extended temperature |
| SRX-SFP-1GE-SX | Small Form Factor Pluggable 1000Base-SX Gigabit Ethernet Optic Module |
| SRX-SFP-1GE-SX-ET | Small Form Factor Pluggable 1000Base-SX Gigabit Ethernet Optic Module – Extended temperature |
| SRX-SFP-1GE-T | Small Form Factor Pluggable 1000Base-T Gigabit Ethernet Module |
| SRX-SFP-1GE-T-ET | Small Form Factor Pluggable 1000Base-T Gigabit Ethernet Module – Extended temperature |
| EX-SFP-10GE-DAC-1M | SFP+ 10 Gigabit Ethernet Direct Attach Copper (Twinax Copper Cable), 1M |
| EX-SFP-10GE-DAC-3M | SFP+ 10 Gigabit Ethernet Direct Attach Copper (Twinax Copper Cable), 3M |
| EX-SFP-10GE-ER | SFP+ 10GBase-ER 10 Gigabit Ethernet Optics Module, 1550nm for 40Km Transmission |
| EX-SFP-10GE-LR | Small Form Factor Pluggable 10 Gigabit Ethernet (SFP+) LR Optics |
| EX-SFP-10GE-LRM | Small Form Factor Pluggable 10 Gigabit Ethernet (SFP+) LRM Optics |
| EX-SFP-10GE-SR | Small Form Factor Pluggable 10 Gigabit Ethernet (SFP+) SR Optics |
| QFX-SFP-10GE-ER | SFP+ 10GBase-ER 10 Gigabit Ethernet Optics, 1550nm for 40km transmission on SMF |
| QFX-SFP-10GE-LR | SFP+ 10GBase-LR 10 Gigabit Ethernet Optics, 1310nm for 10km transmission on SMF |
| QFX-SFP-10GE-SR | SFP+ 10GBase-SR 10 Gigabit Ethernet Optics, 850nm for up to 300m transmission on MMF |
| QFX-SFP-DAC-1M | SFP+ 10 Gigabit Ethernet Direct Attach Copper (twinax copper cable) 1m |
| QFX-SFP-DAC-3M | SFP+ 10 Gigabit Ethernet Direct Attach Copper (twinax copper cable) 3m |
| SFP-10G-LRM-C | Small Form Factor Pluggable 10 Gigabit Ethernet (SFP+) LRM Optics |
| SFPP-10G-LRT2-C | SFP+, 10G-LR Transceiver type 2 |
| SFPP-10G-SR-C | SFP+, 10G-SR Transceiver |
| SFPP-10GE-LRM | 10 Gigabit Ethernet Long Reach Multimode (LRM) SFP+ |
| SRX-SFP-10GE-DAC-1M | SFP+ 10 Gigabit Ethernet Direct Attach Copper (Twinax Copper Cable), 1M |
| SRX-SFP-10GE-DAC-3M | SFP+ 10 Gigabit Ethernet Direct Attach Copper (Twinax Copper Cable), 3M |
| SRX-SFP-10GE-ER | SFP+ 10GBase-ER 10 Gigabit Ethernet Optics Module, 1550nm for 40Km transmission |
| SRX-SFP-10GE-LR | Small Form Factor Pluggable 10 Gigabit Ethernet (SFP+) LR Optics |
| SRX-SFP-10GE-LRM | Small Form Factor Pluggable 10 Gigabit Ethernet (SFP+) LRM Optics |
| SRX-SFP-10GE-SR | Small Form Factor Pluggable 10 Gigabit Ethernet (SFP+) SR Optics |
The Juniper SRX1500 is an advanced next-generation firewall and security services gateway designed to safeguard vital networks in campus settings, regional headquarters, and sizable branch offices. This device offers comprehensive SD-WAN functionality to enterprises and service providers, featuring Zero-Touch Provisioning (ZTP) for streamlining branch network connectivity during setup and maintenance processes. It is capable of providing firewall performance of up to 9.2 Gbps, intrusion prevention of 3.3 Gbps, and IPsec VPN of 4.5 Gbps in scenarios such as enterprise campus, regional headquarters, and large branch deployments.
