Mikrotik CCR2216-1G-12XS-2XQ Router
Cloud core router, 100 gbps, 16-core cpu, 12 sfp28 ports, gigabit ethernet port
Price
1-Year Manufacturer Warranty
Free Shipping on Orders Over $500
Secure Payment
- Cloud core router, 100 gbps, 16-core cpu, 12 sfp28 ports, gigabit ethernet port
|
Properties |
CCR2216-1G-12XS-2XQ |
| Description |
Explore the CCR2216-1G-12XS-2XQ, boasting2x QSFP28 cages for blazing-fast 100 Gigabit connectivity, 12x SFP28 cages for 25 Gigabit networking, and a Gigabit Ethernet port for exceptional connectivity.
|
| Product Family | CCR Series |
| Product Type | Router |
| Number of 1G Ethernet ports | 1 |
| Number of 25G SFP28 ports | 12 |
| Number of 100G QSFP28 ports | 2 |
| Number of M.2 slots | 2 |
| Extras | |
| Serial console port | RJ45 |
| Number of AC inputs | 2 |
| AC input range | 100-240 V |
| Power adapter nominal voltage | 12 V |
| Power adapter nominal current | 12.5 A |
| Max power consumption (without attachments) | 80 W |
| Max power consumption | 121 W |

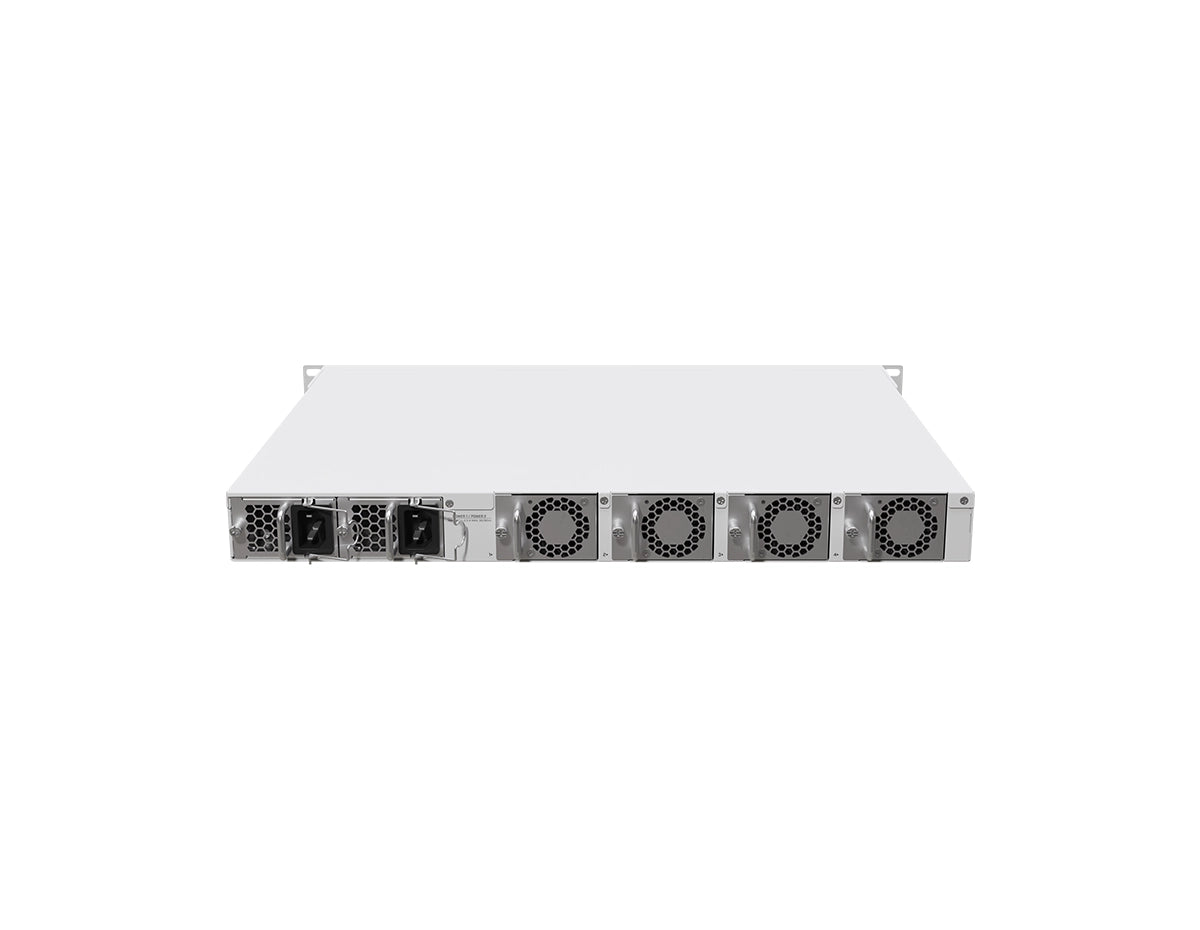

| Fans | Four hot-swappable fans |
| Dimensions | 443 x 367 x 44 mm |
| Specifications | CCR2216-1G-12XS-2XQ |
| CPU | AL73400 2 GHz |
| CPU architecture | ARM 64bit |
| CPU core count | 16 |
| Size of RAM | 16 GB |
| RAM type | DDR4 |
| Storage | 128 MB, NAND |
| Operating system | RouterOS (License level 6) |
| Switch chip model | 98DX8525 |
| Switch connection to CPU | 4×25 Gbps |
| Operating temperature | -20°C to +60°C |
| Certification | CE, EAC, ROHS |
| IP | 20 |
| Included in package |
2 Power cords
Rackmount ears Rackmount rear support ears Fastening set Cable managment bracket |

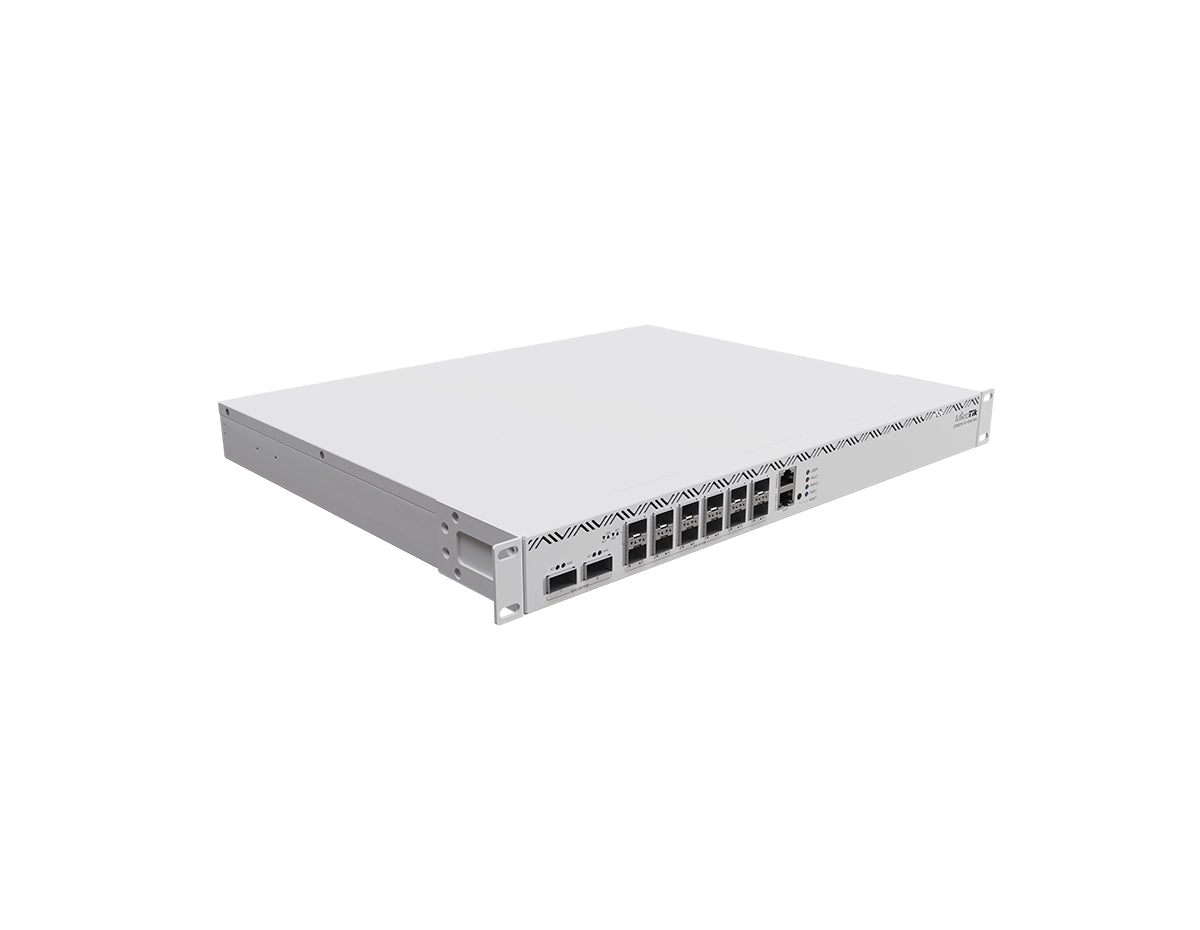

MikroTik CCR2216-1G-12XS-2XQ Router
The CCR2216-1G-12XS-2XQ serves as an accessible and efficient means of accessing 100 Gigabit networking. It is equipped with 2x QSFP28 cages for ultra-fast 100 Gigabit connectivity, in addition to 12x SFP28 cages for 25 Gigabit networking, and a Gigabit Ethernet port. This router ensures seamless data transmission, rendering it well-suited for managing data-intensive operations.
Quick Specs:
- 1x 1 Gigabit Ethernet ports
- 12x 25G SFP28 ports
- 2x 100G QSFP28 ports
- 2x M.2 Slot
- 16 GB RAM
Please see the related tabs for the CCR2216-1G-12XS-2XQ datasheet and compatible accessories.
