Mikrotik hAP ac Access Point (RB962UiGS-5HacT2HnT-US)

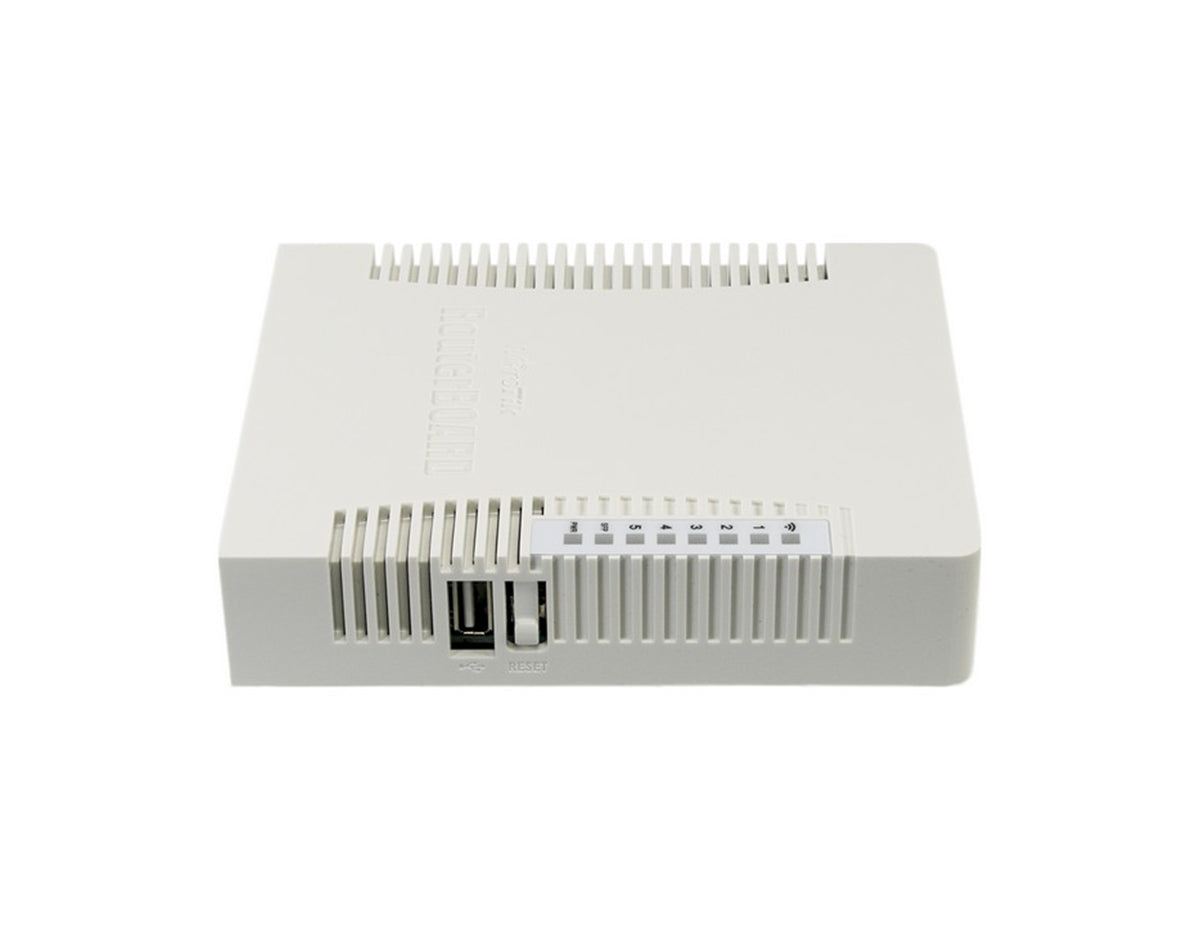

Mikrotik hAP ac Access Point (RB962UiGS-5HacT2HnT-US) — photo 2

Mikrotik SKU RB962UiGS-5HacT2HnT-US

Mikrotik hAP ac Access Point (RB962UiGS-5HacT2HnT-US)

Dual concurrent triple chain 2.4/5GHz AP, 802.11ac/a/n/b/g, Five Gigabit Ethernet ports, PoE-out on port 5, SFP, USB for 3G/4G support or storage

$117.00

Ask an engineer about this model

Add several items, then request a quote at checkout.

  • Free US shipping on orders over $300
  • Manufacturer warranty
  • 30-day returns on unopened items

24V 1.2A power adapter</p><h3>MikroTik RB962UIGS-5HACT2HNT-US Access Point</h3><p>The RB962UIGS-5HACT2HNT-US is a versatile wireless device designed for use in home or office environments. It operates on dual bands and features Gigabit ports to maximize the benefits of 802.11ac technology, while also ensuring compatibility with older devices operating on 2GHz 802.11 b/g/n and 5GHz a/n modes. It is equipped with omnidirectional antennas, it can be mounted in any location, and its high-power transmitter ensures reliable coverage for mobile devices in homes, offices, or public spaces. The RB962UiGS-5HacT2HnT-US (USA) is factory-locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed due to country regulations.

Product FamilyhAP Series
Product TypeAccess Point
10/100/1000 Ethernet ports5
SFP1
Number of USB ports1
ExtrasPCB temperature monitor Voltage Monitor Beeper
Dimensions114 x 137 x 29mm
Number of DC inputs2 (DC jack, PoE-IN)
DC jack input Voltage11-57 V
Max power consumption17 W
Cooling typePassive
PoE inPassive PoE
PoE in input Voltage11-57 V
PoE-out portsEther5
PoE outPassive PoE
Max out per port output (input 18-30 V)700 mA
Max out per port output (input 30-57 V)350 mA
Max total out (A)700 mA
Memory128 MB
Flash Storage size16 MB
CPUQCA9558 720 MHz
CPU core count1
OSRouterOS level 4 license
Wireless 2.4 GHz Max data rate450 Mbit/s
Wireless 2.4 GHz number of chains3
Wireless 2.4 GHz standards802.11b/g/n
Antenna gain dBi for 2.4 GHz2.5
Wireless 2.4 GHz chip modelQCA9558
Wireless 2.4 GHz generationWi-Fi 4
Wireless 5 GHz Max data rate1300 Mbit/s
Wireless 5 GHz number of chains3
Wireless 5 GHz standards802.11a/n/ac
Antenna gain dBi for 5 GHz2
Wireless 5 GHz chip modelQCA9880
Wireless 5 GHz generationWi-Fi 5
WiFi speedAC1750
1MBit/sTransmit (dBm): 29 Receive Sensitivity: -100
11MBit/sTransmit (dBm): 29 Receive Sensitivity: -94
6MBit/sTransmit (dBm): 29 Receive Sensitivity: -96
54MBit/sTransmit (dBm): 26 Receive Sensitivity: -81
MCS0Transmit (dBm): 29 Receive Sensitivity: -96
MCS7Transmit (dBm): 25 Receive Sensitivity: -77
6MBit/sTransmit (dBm): 28 Receive Sensitivity: -96
54MBit/sTransmit (dBm): 25 Receive Sensitivity: -81
MCS0Transmit (dBm): 28 Receive Sensitivity: -96
MCS7Transmit (dBm): 24 Receive Sensitivity: -77
MCS9Transmit (dBm): 21 Receive Sensitivity: -72
MTBFApproximately 200.000 hours at 25C
Temperature40°C to 70°C tested
CertificationCE, FCC, IC, EAC, ROHS
IPIP20

24V 1.2A power adapter

MikroTik RB962UIGS-5HACT2HNT-US Access Point

The RB962UIGS-5HACT2HNT-US is a versatile wireless device designed for use in home or office environments. It operates on dual bands and features Gigabit ports to maximize the benefits of 802.11ac technology, while also ensuring compatibility with older devices operating on 2GHz 802.11 b/g/n and 5GHz a/n modes. It is equipped with omnidirectional antennas, it can be mounted in any location, and its high-power transmitter ensures reliable coverage for mobile devices in homes, offices, or public spaces. The RB962UiGS-5HacT2HnT-US (USA) is factory-locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed due to country regulations.

Quick Specs

  • 5x 10/100/1000 Ethernet ports
  • 1 SFP port uplink
  • PoE Out Ports: Ether5
  • USB port 3G/4G modem
