Name: Mikrotik MTAS-5G-15D120 mANT 15s Antenna
SKU: MTAS-5G-15D120-NEW
Price: 57 USD
Availability: InStock

On Sale

Mikrotik MTAS-5G-15D120 mANT 15s Antenna

Dual-polarization 5Ghz 15dBi 120 degree beamwidth antenna with two RP-SMA connectors Product Name MikroTik MTAS-5G-15D120 mANT 15s Antenna Product Description Dual-polarization 5 GHz 15 dBi 120-degree beamwidth sector antenna with two RP-SMA connectors.

Categories: Networking, Wireless EquipmentSKU: MTAS-5G-15D120-NEW

Price

1-Year Manufacturer Warranty

Free Shipping on Orders Over $500

Secure Payment

Description
Additional information

Dual-polarization 5Ghz 15dBi 120 degree beamwidth antenna with two RP-SMA connectors

Product Name	MikroTik MTAS-5G-15D120 mANT 15s Antenna
Product Description	Dual-polarization 5 GHz 15 dBi 120-degree beamwidth sector antenna with two RP-SMA connectors.
Compatibility	BaseBox, NetBox, NetMetal, and other outdoor wireless devices.
Frequency Range	5.17 – 5.825 GHz
Gain	15 dBi
Polarization	Vertical and horizontal
Beamwidth (Azimuth)	120°
Beamwidth (Elevation)	10°
Front-to-Back Ratio	>30 dB
Cross Polarization	>30 dB
Port-to-Port Isolation	>40 dB
VSWR	1.43 (typical), 1.8 (maximum)

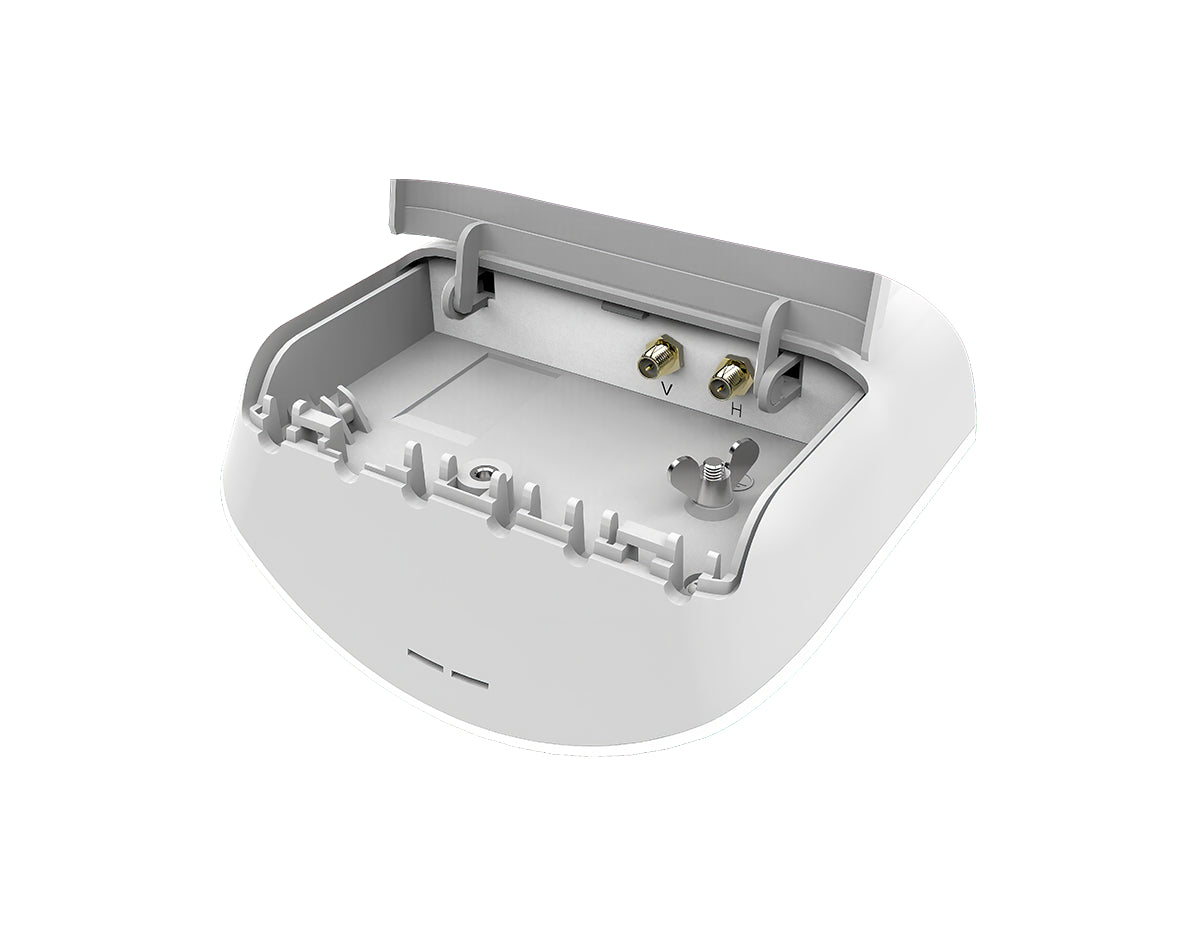

Connector Type	2 x RP-SMA
Mounting	Compatible with SXT type mount; includes quickMOUNT PRO
Dimensions (W x H x D)	140 x 348 x 82 mm
Weight	734 g
Operating Temperature Range	-40°C to 70°C

Product Code	MTAS-5G-15D120
Antenna Type	Sector
Frequency Range	5.17 – 5.825 GHz
Gain	15 dBi
Polarization	Dual (vertical and horizontal)
3 dB Beamwidth (Azimuth)	120°
3 dB Beamwidth (Elevation)	10°
Front-to-Back Ratio	>30 dB
Cross Polarization	>30 dB
Port-to-Port Isolation	>40 dB
VSWR	1.43 (typical), 1.8 (maximum)
Connector Type	2 x RP-SMA
Mounting	Compatible with SXT type mount; includes quickMOUNT PRO
Dimensions (W x H x D)	140 x 348 x 82 mm
Weight	734 g
Operating Temperature Range	-40°C to 70°C

MikroTik MTAS-5G-15D120 Antenna

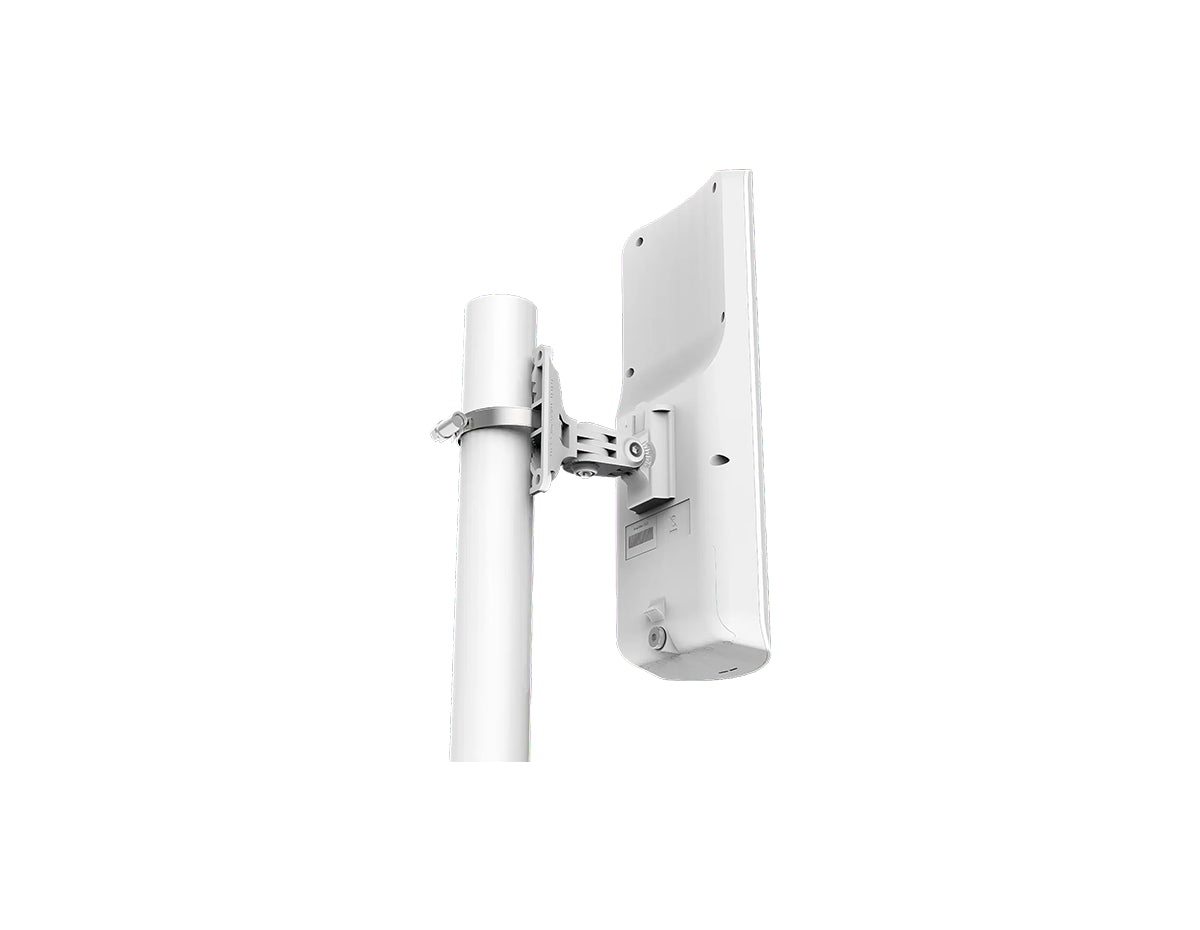

The MTAS-5G-15D120 is a 15dBi 120-degree beamwidth antenna with dual-polarization and two RP-SMA connectors. It is designed to be compatible with the SXT type mount, allowing for use with QuickMount systems. Additionally, it includes the quickMOUNT PRO for added convenience and versatility. The frequency range is between 5.17 – 5.875.
