Mikrotik RB912UAG-2HPnD-OUT Access Point
Mikrotik RB912UAG-2HPnD-OUT Access Point — photo 2
Mikrotik RB912UAG-2HPnD-OUT Access Point — photo 3

Mikrotik SKU RB912UAG-2HPnD-OUT

Mikrotik RB912UAG-2HPnD-OUT Access Point

2.4Ghz integrated AP/Backbone/CPE, 2xRPSMA connectors, miniPCI-e slot, Gigabit Ethernet

$84.00

Ask an engineer about this model

Add several items, then request a quote at checkout.

  • Free US shipping on orders over $300
  • Manufacturer warranty
  • 30-day returns on unopened items

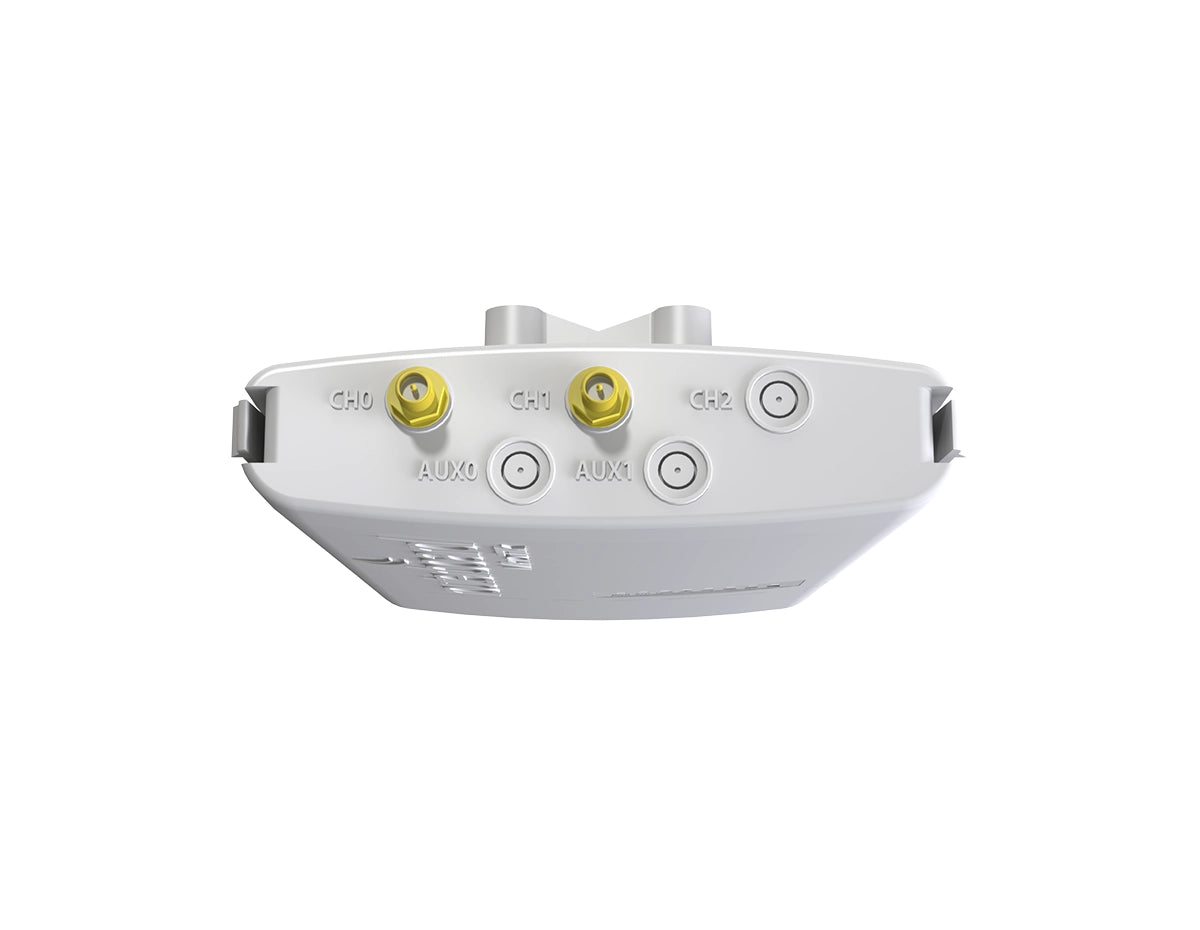

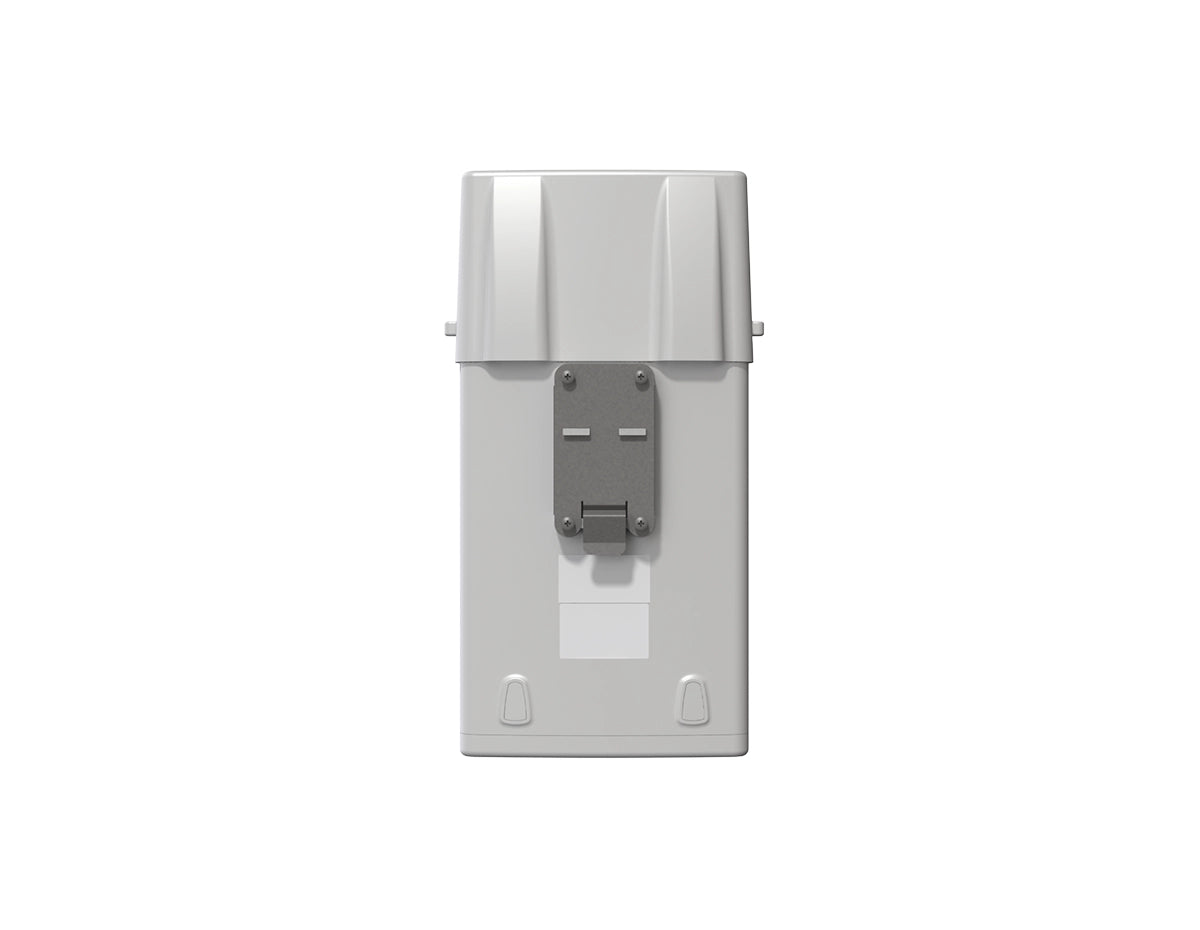

The BaseBox2 is an outdoor 2.4Ghz wireless device, based on our popular RB912 model, fitted with two SMA connectors for antennas, and a cable hood for protection against moisture. Also available are three additional places for antenna connectors, in case you wish to use the BaseBox miniPCIe slot for one more wireless interface to make a dual band device, or a 3G/4G modem. The case can be opened with one hand, and is protected against the elements. USB, Ethernet and a Grounding wire exits are provided on the bottom, behind a protective door. Comes with a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided. Package also includes a PoE injector and power supply unit.

Product FamilyBaseBox Series
Product TypeAccess Point
10/100/1000 Ethernet ports1
Number of SIM slots1 (Mini SIM)
Number of USB ports1
Connector typeRP-SMA Female (outside thread)
ExtrasPCB temperature monitor Voltage Monitor Beeper
Dimensions246x135x50mm
Number of DC inputs1 (PoE-IN)
Max power consumption10 W
Cooling typePassive
PoE inPassive PoE
PoE in input Voltage8-30 V
Memory64 MB
NAND Storage size64 MB
CPUAR9342 600 MHz
CPU core count1
OSRouterOS level 4 license
Frequency range2400MHz-2500MHz
Wireless 2.4 GHz Max data rate300 Mbit/s
Wireless 2.4 GHz number of chains2
Wireless 2.4 GHz standards802.11b/g/n
Wireless 2.4 GHz chip modelAR9342
Wireless 2.4 GHz generationWi-Fi 4
1MBit/sTransmit (dBm): 30 Receive Sensitivity: -100
11MBit/sTransmit (dBm): 30 Receive Sensitivity: -94
6MBit/sTransmit (dBm): 30 Receive Sensitivity: -96
54MBit/sTransmit (dBm): 27 Receive Sensitivity: -78
MCS0Transmit (dBm): 30 Receive Sensitivity: -96
MCS7Transmit (dBm): 24 Receive Sensitivity: -73
MTBFApproximately 100.000 hours at 25C
Temperature40°C to 70°C tested
CertificationFCC, IC
IPIP54

The BaseBox2 is an outdoor 2.4Ghz wireless device, based on our popular RB912 model, fitted with two SMA connectors for antennas, and a cable hood for protection against moisture. Also available are three additional places for antenna connectors, in case you wish to use the BaseBox miniPCIe slot for one more wireless interface to make a dual band device, or a 3G/4G modem. The case can be opened with one hand, and is protected against the elements. USB, Ethernet and a Grounding wire exits are provided on the bottom, behind a protective door. Comes with a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided. Package also includes a PoE injector and power supply unit.
