Mikrotik RB941-2nD-TC Access Point — photo 2

Mikrotik SKU RB941-2nD-TC

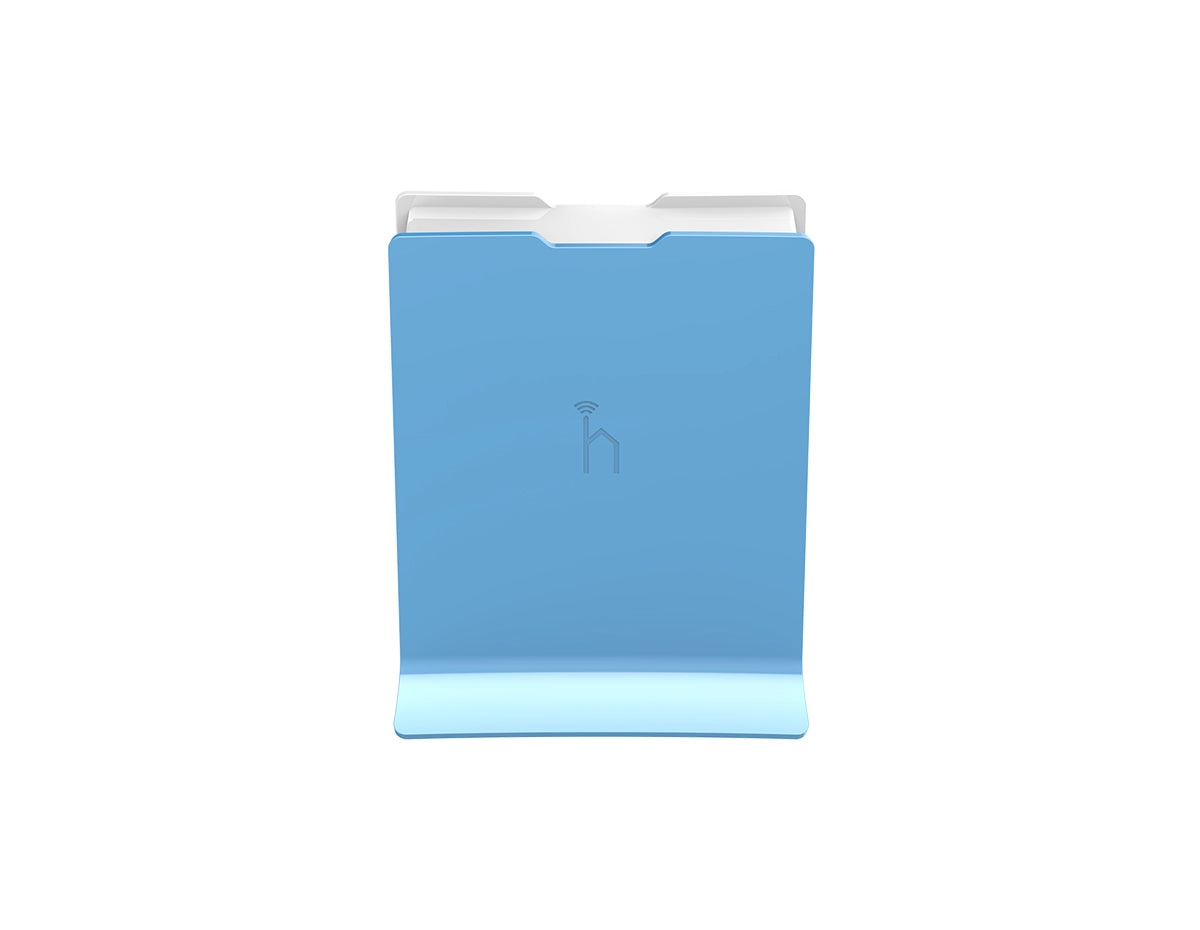

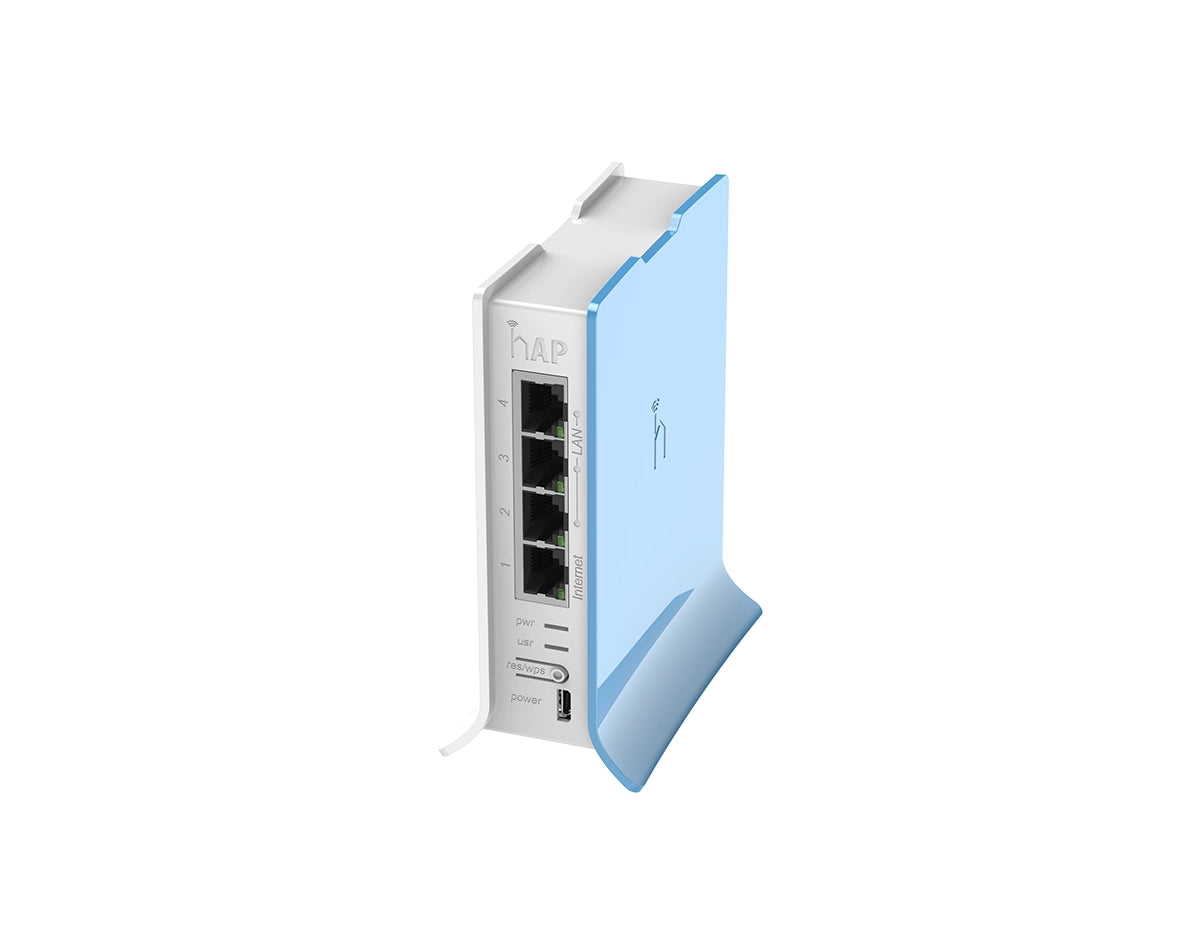

Mikrotik RB941-2nD-TC Access Point

Name: Mikrotik RB941-2nD-TC Access Point
Brand: Mikrotik
SKU: RB941-2nD-TC
Price: 29.00 USD

Small home AP with four ethernet ports and a colorful enclosure

$29.00

Ask an engineer about this model

Add several items, then request a quote at checkout.

Free US shipping on orders over $300
Manufacturer warranty
30-day returns on unopened items

Where it fits

Switches · 200 products · from $110

Wireless Equipment · 28 products · from $57

5V 1A power adapter</p><p>The RB941-2ND-TC is a compact and versatile device suitable for use in residential or commercial settings. It features a button-triggered WPS function for simplified wireless internet access, eliminating the need to enter a complex password. Additionally, it can easily switch to cAP mode and connect to a centrally managed CAPsMAN network with the push of a button. Equipped with a robust 650MHz CPU, 32MB RAM, dual chain 2.4GHz onboard wireless, four Fast Ethernet ports, and a RouterOS L4 license, this device offers reliable performance. It also comes with a USB power supply for added convenience.

Product Family	hAP Series
Product Type	Access Point
10/100/1000 Ethernet ports	4
Dimensions	113 x 89 x 28mm
MicroUSB input Voltage	5-5 V
Number of DC inputs	1 (MicroUSB)
Max power consumption	3.5 W
Cooling type	Passive
Memory	32 MB
Flash Storage size	16 MB
CPU	QCA9533 650 MHz
CPU core count	1
Switch chip model	QCA9533-BL3A
OS	RouterOS level 4 license
Wireless 2.4 GHz Max data rate	300 Mbit/s

Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	1.5
Wireless 2.4 GHz chip model	QCA9533
Wireless 2.4 GHz generation	Wi-Fi 4
1MBit/s	Transmit (dBm): 22 Receive Sensitivity: -96
11MBit/s	Transmit (dBm): 22 Receive Sensitivity: -89
6MBit/s	Transmit (dBm): 20 Receive Sensitivity: -93
54MBit/s	Transmit (dBm): 18 Receive Sensitivity: -74
MCS0	Transmit (dBm): 20 Receive Sensitivity: -93
MCS7	Transmit (dBm): 16 Receive Sensitivity: -71
MTBF	Approximately 100.000 hours at 25C
Temperature	20°C to 60°C tested
Certification	FCC, IC

5V 1A power adapter

The RB941-2ND-TC is a compact and versatile device suitable for use in residential or commercial settings. It features a button-triggered WPS function for simplified wireless internet access, eliminating the need to enter a complex password. Additionally, it can easily switch to cAP mode and connect to a centrally managed CAPsMAN network with the push of a button. Equipped with a robust 650MHz CPU, 32MB RAM, dual chain 2.4GHz onboard wireless, four Fast Ethernet ports, and a RouterOS L4 license, this device offers reliable performance. It also comes with a USB power supply for added convenience.
