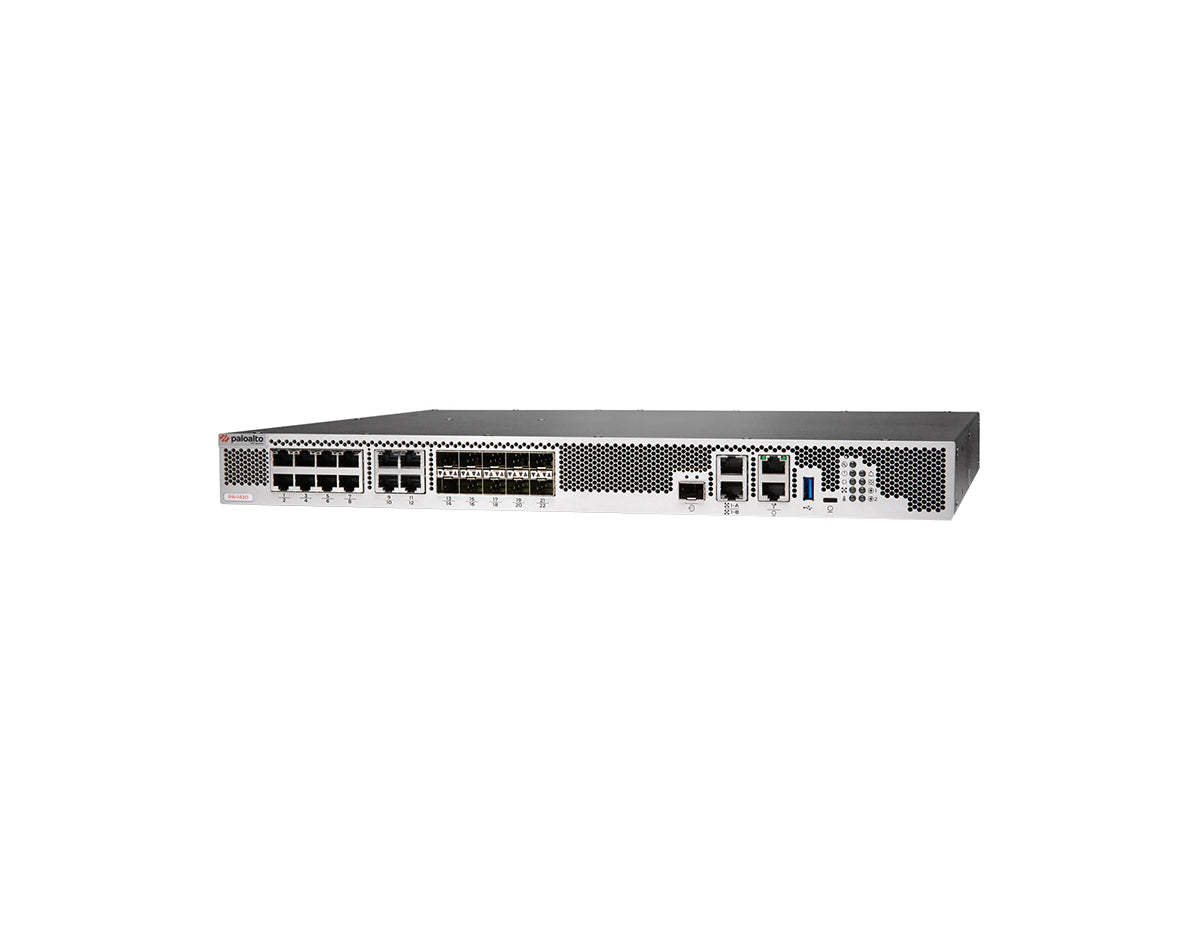

Palo Alto PA-1410 ML Powered Firewall
Palo Alto Networks PA-1410 – Security appliance – 10 GigE, 5 GigE, 2.5 GigE – front to-back airflow – 1U – rack-mountable
Price
1-Year Manufacturer Warranty
Free Shipping on Orders Over $500
Secure Payment
- Palo Alto Networks PA-1410 – Security appliance – 10 GigE, 5 GigE, 2.5 GigE – front to-back airflow – 1U – rack-mountable
| Properties | Palo Alto PAN-PA-1410 Firewall |
| Description | Palo Alto Networks PA-1410 – Security appliance – 10 GigE, 5 GigE, 2.5 GigE – front to-back airflow – 1U – rack-mountable |
| Product Family | PA-1400 Series Firewalls |
| Product Type | Firewall |
| Key Features: | Full Layer 7 inspection Point-to-Point Protocol over Ethernet (PPPoE) Firewall throughput (HTTP/appmix): 8.9/6.8 Gbps |
| Advanced Features | Advanced Threat Prevention Advanced WildFire Advanced URL Filtering DNS Security Enterprise DLP SaaS Security IoT Security |
| Specifications | Palo Alto PAN-PA-1410 Firewall |
| Performance and Capacities | |
| Firewall throughput (HTTP/appmix) (Firewall throughput is measured with App-ID and logging enabled, with 64 KB HTTP/appmix transactions.) | 8.9/6.8 Gbps |
| Threat Prevention throughput (HTTP/appmix) (Threat Prevention throughput measured with App-ID, IPS, antivirus, antispyware, WildFire, DNS Security, file blocking, and logging enabled, utilizing 64 KB HTTP/appmix transactions) | 3.3/3.2 Gbps |
| IPsec VPN throughput ( IPsec VPN throughput is measured with 64 KB HTTP transactions, and logging enabled.) | 4.6 Gbps |
| Max concurrent sessions (Max concurrent sessions are measured utilizing HTTP transactions.) | 945.000 |
| New sessions per second (New sessions per second is measured with application override, utilizing 1 byte HTTP transactions.) | 100.000 |
| Virtual systems (base/max) (Adding virtual systems over base quantity requires a separately purchased license) | (1/6) |
| Note: Results were measured on PAN-OS 11.0. | |
| Networking Features | |
| Interface Modes | L2, L3, tap, virtual wire (transparent mode) |
| Routing | OSPFv2/v3 with graceful restart, BGP with graceful restart, RIP, static routing Policy-based forwarding Point-to-Point Protocol over Ethernet (PPPoE) Multicast: PIM-SM, PIM-SSM, IGMP v1, v2, and v3 |
| SD-WAN | Path quality measurement (jitter, packet loss, latency) Initial path selection (PBF) Dynamic path change |
| IPv6 | L2, L3, tap, virtual wire (transparent mode) Features: App-ID, User-ID, Content-ID, WildFire, and SSL decryption SLAAC |
| IPsec and SSL VPN | Key exchange: manual key, IKEv1, and IKEv2 (pre-shared key, certificate-based authentication) Encryption: 3des, AES (128-bit, 192-bit, 256-bit) Authentication: MD5, SHA-1, SHA-256, SHA-384, SHA-512 GlobalProtect Large Scale VPN for simplified configuration and management (Requires GlobalProtect license.) Secure access over IPsec and SSL VPN tunnels using GlobalProtect gateway and portals (Requires GlobalProtect license.) |
| VLANs | 802.1Q VLAN tags per device/per interface: 4,094/4,094 Aggregate interfaces (802.3ad), LACP |
| Network Address Translation | NAT modes (IPv4): static IP, Dynamic IP, Dynamic IP and Port (port address translation) NAT64, NPTv6 Additional NAT features: Dynamic IP reservation, tunable Dynamic IP and Port oversubscription |
| High Availability | Modes: active/active, active/passive Failure detection: path monitoring, interface monitoring |
| Zero Touch Provisioning (ZTP) | Requires Panorama 9.1.3 or higher that is managing PA-1400 Series with PAN-OS 11.0 or higher |
| Hardware Specifications | |
| I/O | 10/100/1000 (8), 1G/2.5G/5G (4)/PoE, 1G SFP (6), 1G/10G SFP/SFP+ (4) |
| Management I/O | 10/100/1000 out-of-band management port (1) HSCI 10 gigabit high availability (1) RJ-45 console port (1) USB port (1) Micro USB console port (1) |
| Power over Ethernet (PoE) | Total PoE Power Budget: 151W, Maximum load on single port: 90W |
| Storage Capacity | 120 GB SSD |
| Power Supply (Avg/Max Power Consumption) | AC 450W power supply (1); Optional for purchase 2nd AC 450W power supply (1) |
| Power Consumption (Avg/Max) | 250 W/290 W (Power consumption values include a 150 W PoE load.) |
| Mean Time Before Failure (MTBF) | 24 Years |
| Input Voltage Frequency | 100–240 VAC (50–60 Hz) |
| Rack Mount Dimensions | PA-1410: 1U, 19″ standard rack (1.70″ H x 14.15″ D x 17.15″ W) |
| Weight (Standalone Device/As Shipped) | 15.5 lbs |
| Safety | cTUVus, CB |
| EMI | FCC Class A, CE Class A, VCCI Class A |
| Environment | Operating temperature: 0°C to 40°C at 10,000 feet Nonoperating temperature: -4°F to 158°F; -20°C to 70°C |
| Airflow | Front to back |
Palo Alto PAN-PA-1410 Firewall
The Palo Alto PAN-PA-1410 is a member of the PA-1400 series. The PA-1400 Series Next-Generation Firewalls, developed by Palo Alto Networks, incorporate machine learning technology to deliver secure connectivity for branch offices and midsize businesses. The PAN-PA-1410 firewall features signatureless attack prevention, ensuring the security of networks against both known and previously unidentified threats. Furthermore, the automation of policy recommendations facilitates timesaving and minimizes the potential for errors.
Quick Specs:
- Storage Capacity: 120 GB SSD
- 1x 10/100/1000 out-of-band management port
- 1x HSCI 10 gigabit high availability
- PoE Power Budget: 151W
Please see the related tabs for the PAN-PA-1410 datasheet and compatible accessories.
| Weight | 20.0 lbs |
|---|---|
| PoE | Total PoE Power Budget: 151W, Maximum load on single port: 90W |
| Power | Total PoE Power Budget: 151W, Maximum load on single port: 90W |
| Connectivity | |
| Frequency | |
| Capacity | |
| Brand |
