APC SRT5KRMXLT-5KTF - Smart-UPS On-Line 5kVA 5U Rackmount

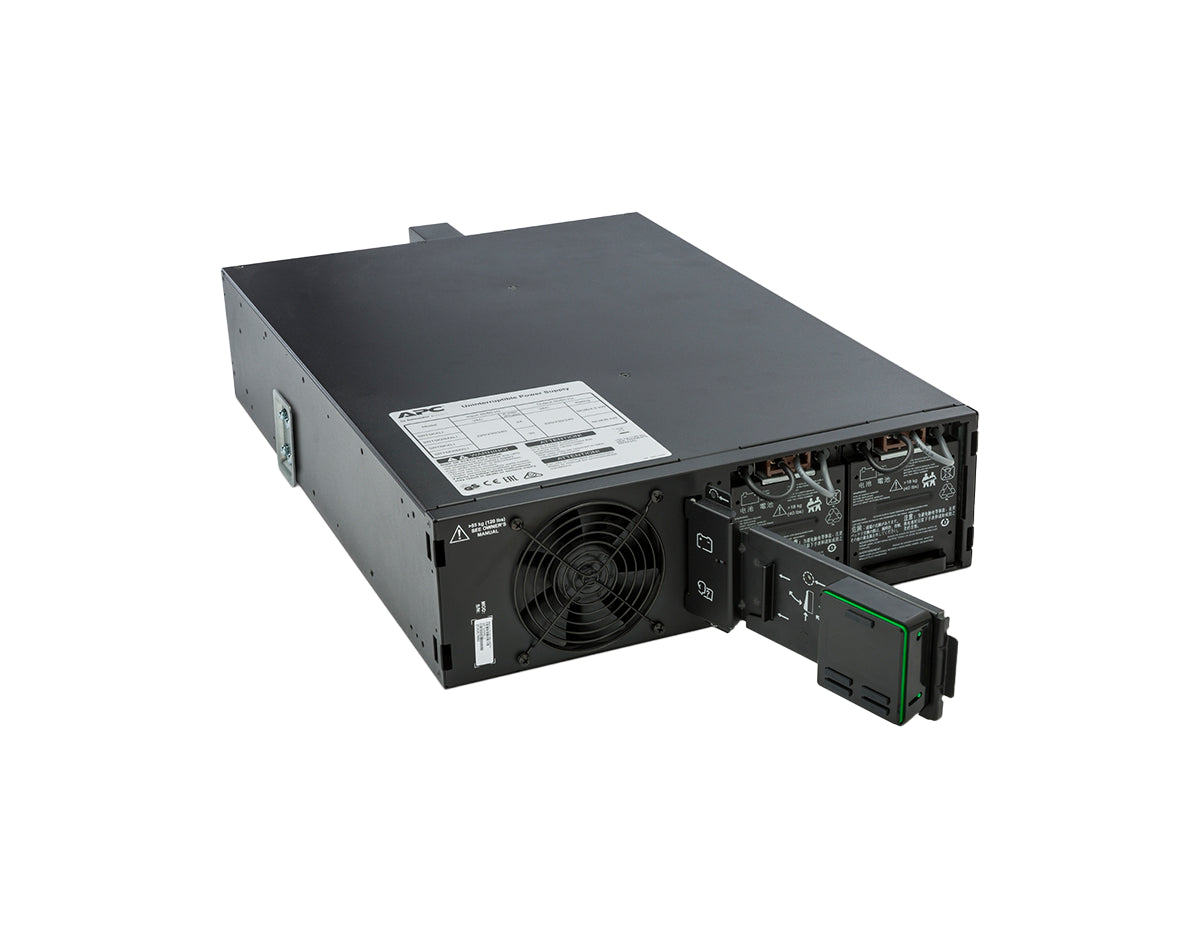

APC SRT5KRMXLT-5KTF - Smart-UPS On-Line 5kVA 5U Rackmount — photo 2

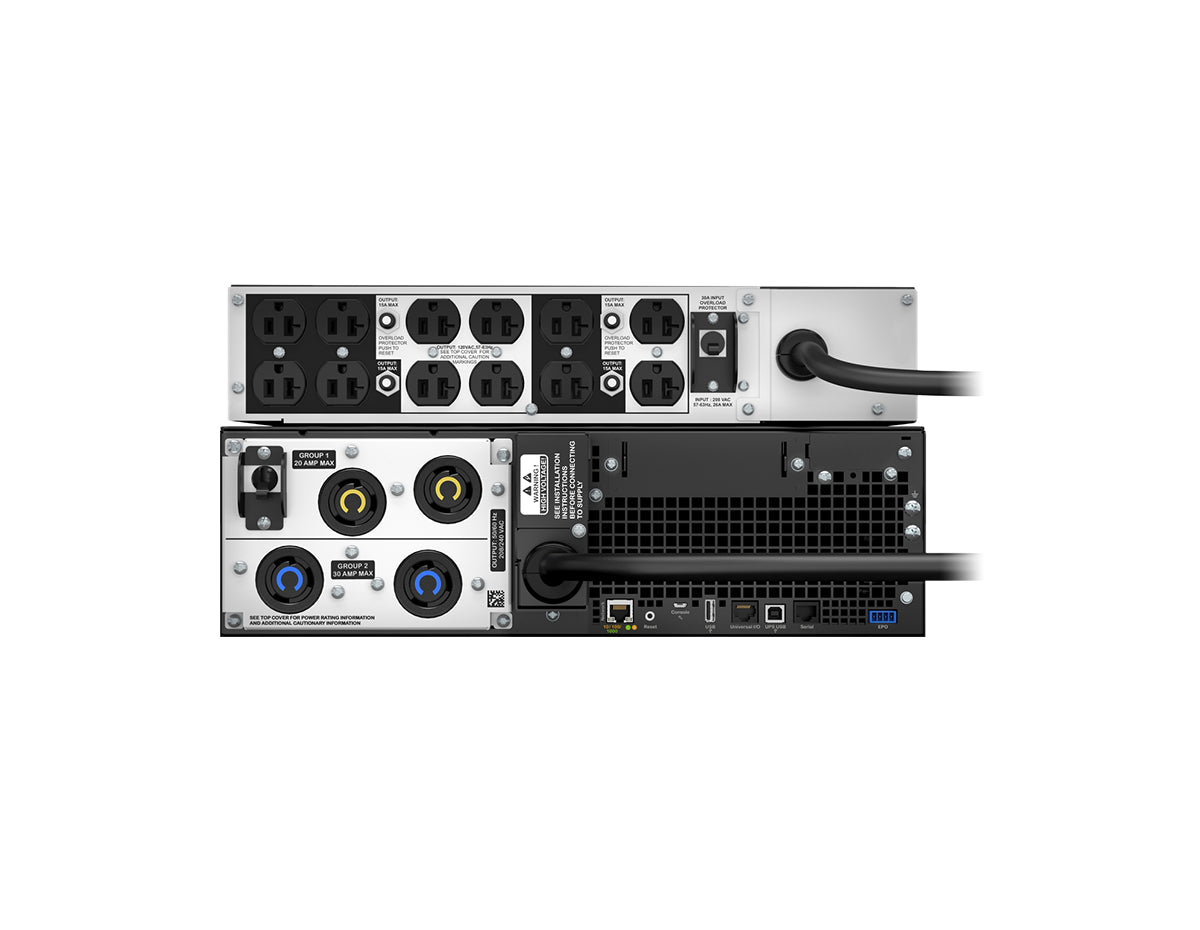

APC SRT5KRMXLT-5KTF - Smart-UPS On-Line 5kVA 5U Rackmount — photo 3

APC SKU SRT5KRMXLT-5KTF

APC SRT5KRMXLT-5KTF - Smart-UPS On-Line 5kVA 5U Rackmount

5kVA / 4800W Online, Integrated 208V→120V Transformer, 12x NEMA 5-20R + 2x L6-20R + 2x L6-30R, Pre-installed Network Management Card 3

$8,086.00

Ask an engineer about this model

Add several items, then request a quote at checkout.

  • Free US shipping on orders over $300
  • Manufacturer warranty
  • 30-day returns on unopened items

5kVA / 4800W Online, Integrated 208V→120V Transformer, 12x NEMA 5-20R + 2x L6-20R + 2x L6-30R, Pre-installed Network Management Card 3.

BrandAPC by Schneider Electric
Product TypeSmart-UPS On-Line with Transformer
Form FactorRackmount 5U
Dimensions (H x W x D)8.6″ x 17.0″ x 28.3″ (218 x 432 x 719 mm)
Weight217.99 lb (98.88 kg)
ColorBlack
Number of Rack Units5U
Cable Length10 ft (3.05 m)
CoolingNot specified
Capacity5000 VA / 4800 W
Input Voltage208 V (other: 220 V) • Adjustable (half load): 100–275 V
Input Connection TypeNEMA L6-30P
Input Frequency40–70 Hz auto-sensing
Output Voltage120 V
Output Connections12 × NEMA 5-20R, 2 × NEMA L6-20R, 2 × NEMA L6-30R
Waveform TypeSine wave
TopologyDouble Conversion On-Line
Transfer TimeNot specified
Bypass TypeInternal Bypass (Automatic and Manual)
Crest Factor3:1
Harmonic Distortion<2%
Battery TypeLead-Acid • Voltage: 192 V • Recharge: 1.5 h • Life: 3–5 years • RBC Qty: 1 • Replacement: APCRBC140 • Charge power: 556 W rated
Extendable RuntimeYes
Surge Energy Rating480 J
Acoustic Noise55 dBA
Thermal Dissipation1047 BTU/h
Operating Temperature0–40 °C (32–104 °F)
Operating Humidity0–95% non-condensing
Altitude0–10,000 ft operating
CommunicationsUSB compatible, EPO, Audible/visible alarms, 1 SmartSlot (free), Pre-installed Network Management Card 3 with environmental monitoring
CertificationsENERGY STAR V2.0 (USA)
Warranty3 years repair or replace (UPS), 2 years for battery
Rack Mounting HardwareIncluded in the box
Rack Mounting BracketsIncluded in the box
Rack Mounting Support RailsIncluded in the box
USB CableIncluded in the box
DocumentationDocumentation CD, Installation guide, User Manual, Warranty card
Web/SNMP Management CardPre-installed in the unit

5kVA / 4800W Online, Integrated 208V→120V Transformer, 12x NEMA 5-20R + 2x L6-20R + 2x L6-30R, Pre-installed Network Management Card 3.

Overview

The APC Smart-UPS On-Line SRT5KRMXLT-5KTF delivers 5kVA/4800W of conditioned power in a 5U rackmount design. With true double-conversion protection, an integrated 208V to 120V transformer, a comprehensive outlet mix, and a factory-installed Network Management Card 3 with environmental monitoring, it safeguards mission-critical servers, storage, and network devices with centralized visibility and control.

Key Features & Benefits

  • Double Conversion Online – Continuous AC-DC-AC conditioning provides stable, low-distortion sine wave output.
  • 208V→120V Transformer – Built-in step-down conversion broadens compatibility for downstream 120 V equipment.
  • Comprehensive Outlets – 12× 5-20R, 2× L6-20R, 2× L6-30R support diverse IT loads and higher-current connections.
  • Pre-installed NMC 3 – Enables secure remote monitoring, control, and environmental sensing.
  • Internal Bypass – Automatic and manual bypass paths help maintain power to the load during certain events.
  • Extendable Runtime – External battery support with typical 1.5 h recharge restores readiness quickly.
  • ENERGY STAR® V2.0 – High-efficiency design helps reduce operating impact.

Technical Deep Dive

Online Topology: The UPS isolates connected loads from sags, surges, and line noise by regenerating AC power. Output harmonic distortion is less than 2%, and a 3:1 crest factor handles transient inrush typical of electronic equipment.

Power Distribution & Conversion: An integrated transformer converts 208 V input to regulated 120 V output. The outlet mix (5-20R, L6-20R, L6-30R) simplifies distribution across mixed equipment profiles while retaining locking options for higher-current devices.

Energy Storage & Controls: A 192 V lead-acid battery system supports extended runtime and typically recharges in about 1.5 hours. The unit includes Emergency Power Off (EPO), prioritized audible/visible alarms, USB compatibility, and a SmartSlot architecture with the Network Management Card 3 pre-installed.

Ideal Applications

  • Rack-mounted servers, high-capacity storage, and core network hardware.
  • Sites needing 120 V distribution from a 208 V source
  • Distributed IT and edge locations requiring remote monitoring.
  • Environments within 32–104 °F (0–40 °C) and up to 95% RH non-condensing.

Frequently Asked Questions (FAQs)

Q1: How is the SRT5KRMXLT-5KTF installed? A: It is a 5U rackmount UPS and ships with rack hardware, brackets, support rails, user manual, and USB cable. Input uses a NEMA L6-30P; cord length is 10 ft (3.05 m).

Q2: What performance can I expect? A: Rated 5kVA / 4800 W with sine wave output. Runtime varies by load and any external battery packs; consult APC’s runtime chart for exact values. Typical recharge is ~1.5 hours.

Q3: How can it be managed? A: The pre-installed Network Management Card 3 enables remote monitoring and environmental inputs. USB compatibility, EPO, and prioritized alarms support local control and safety integration.
