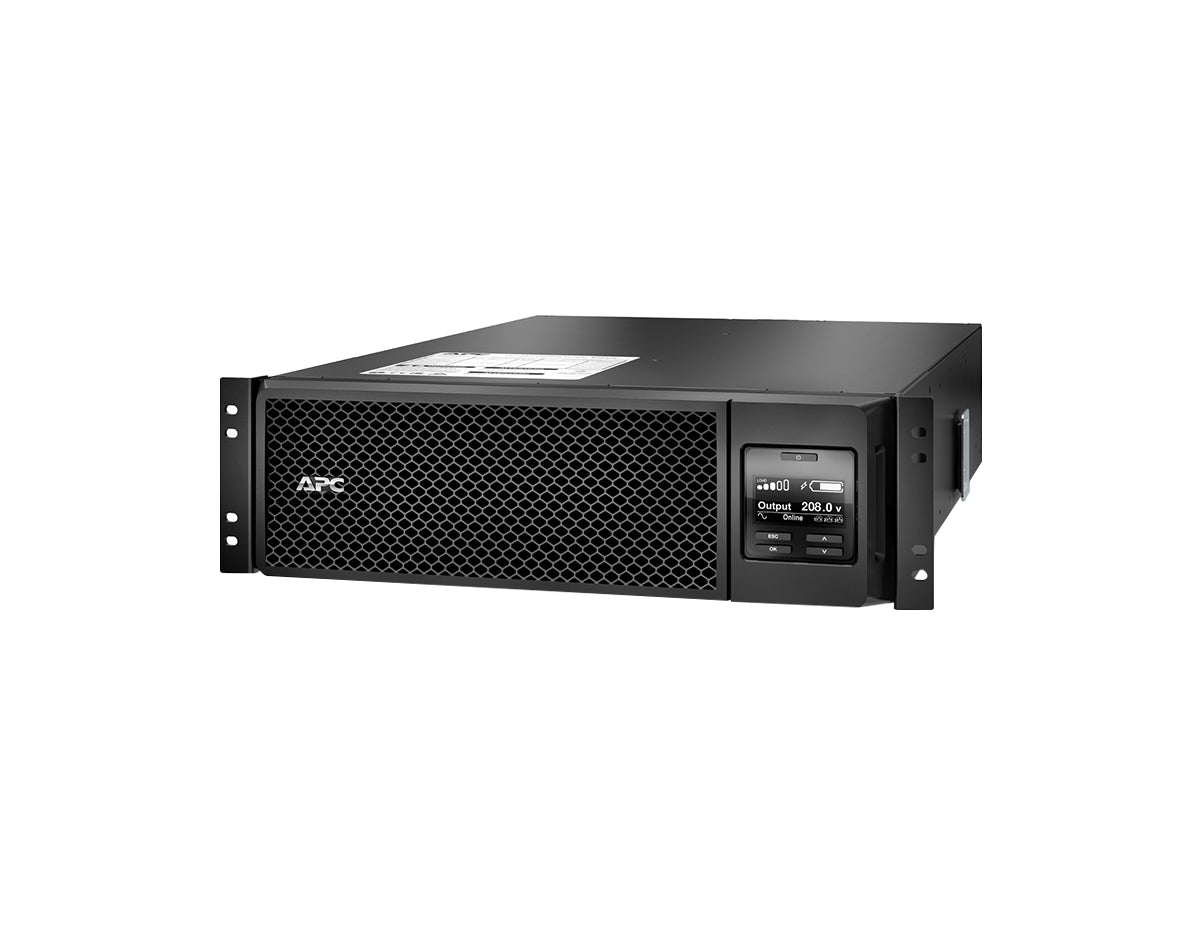

APC SRT5KRMXLT-IEC - Smart-UPS On-Line 5kVA 3U Rackmount UPS

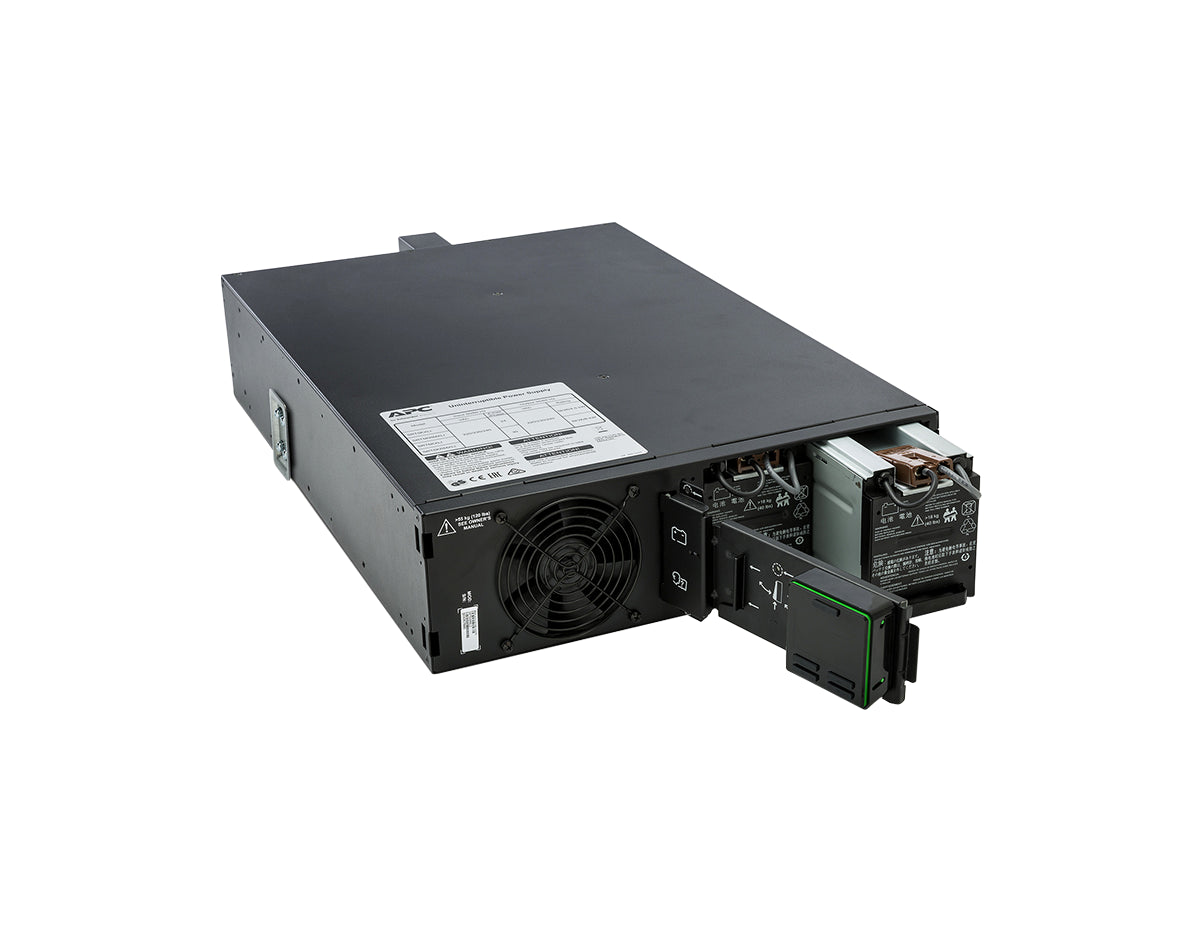

APC SRT5KRMXLT-IEC - Smart-UPS On-Line 5kVA 3U Rackmount UPS — photo 2

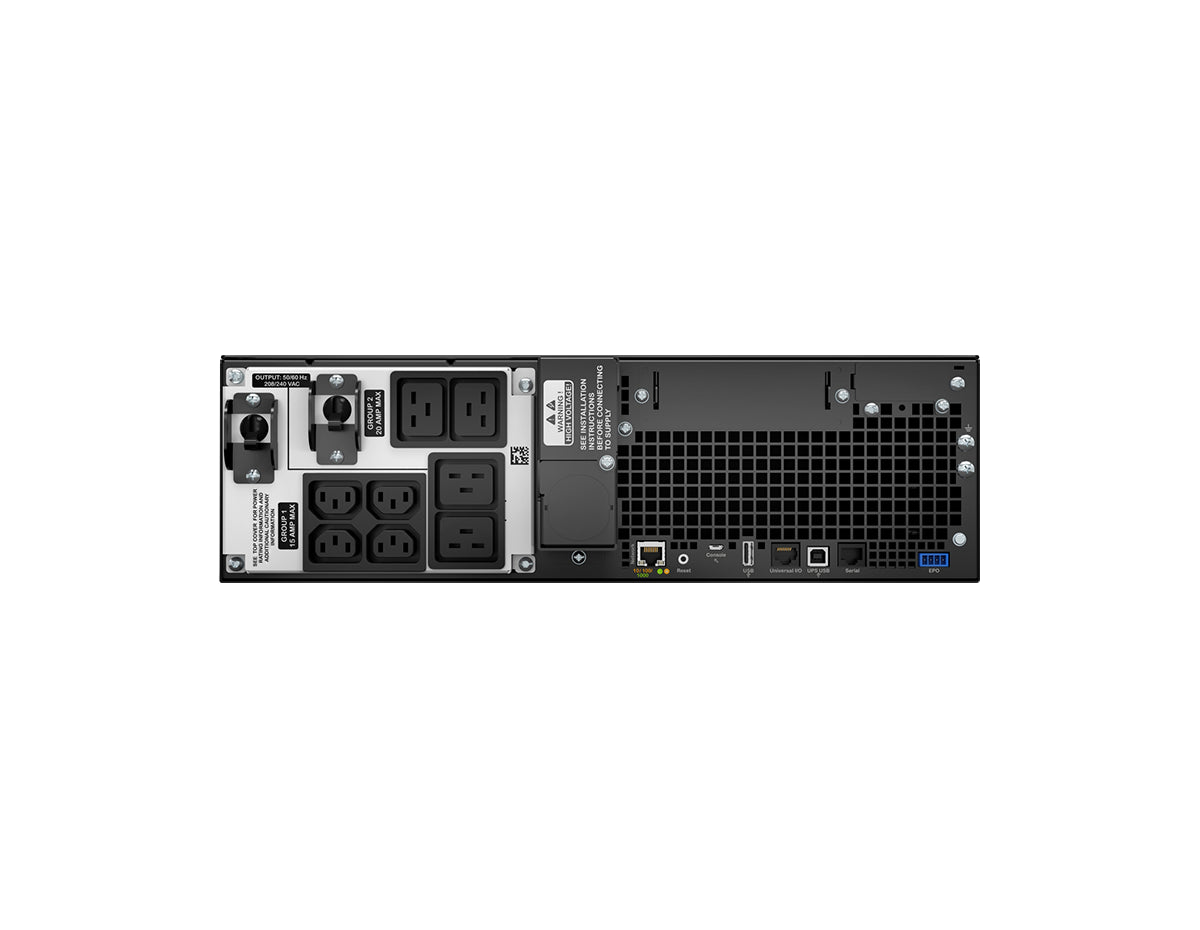

APC SRT5KRMXLT-IEC - Smart-UPS On-Line 5kVA 3U Rackmount UPS — photo 3
APC SRT5KRMXLT-IEC - Smart-UPS On-Line 5kVA 3U Rackmount UPS — photo 4

APC SKU SRT5KRMXLT-IEC

APC SRT5KRMXLT-IEC - Smart-UPS On-Line 5kVA 3U Rackmount UPS

5kVA / 4800W, 3U Rackmount, 4x IEC C13 + 4x IEC C19, Pre-installed Network Management Card 3

$7,531.00

Ask an engineer about this model

Add several items, then request a quote at checkout.

  • Free US shipping on orders over $300
  • Manufacturer warranty
  • 30-day returns on unopened items

5kVA / 4800W, 3U Rackmount, 4x IEC C13 + 4x IEC C19, Pre-installed Network Management Card 3.

BrandAPC by Schneider Electric
Product TypeSmart-UPS On-Line, Double Conversion
Form FactorRackmount 3U
Dimensions (H x W x D)5.1″ x 17.0″ x 28.3″ (130 x 432 x 719 mm)
Weight123 lb (55.79 kg)
ColorBlack
Number of Rack Units3U
Cable Length10 ft (3.05 m)
CoolingNot specified
Capacity5000 VA / 4800 W
Input Voltage208 V (other: 240 V) • Adjustable (half load): 100–275 V
Input Connection TypeNEMA L6-30P
Input Frequency40–70 Hz auto-sensing
Output Voltage208 V (other: 240 V)
Output Connections4 × IEC C13, 4 × IEC C19, 2 × IEC Jumpers
Waveform TypeSine wave
TopologyDouble Conversion On-Line
Transfer TimeNot specified
Bypass TypeInternal Bypass (Automatic and Manual)
Crest Factor3:1
Harmonic Distortion<2%
Battery TypeLead-Acid • Voltage: 192 V • Recharge: 1.5 h • Life: 3–5 years • RBC Qty: 1 • Replacement: APCRBC140 • Charge power: 556 W rated
Extendable RuntimeYes
Surge Energy Rating480 J
Acoustic Noise55 dBA
Thermal Dissipation1047 BTU/h
Operating Temperature0–40 °C (32–104 °F)
Operating Humidity0–95% non-condensing
Altitude0–10,000 ft operating
CommunicationsUSB compatible, EPO, Audible/visible alarms, 1 SmartSlot (free), Pre-installed Network Management Card 3 with environmental monitoring
CertificationsENERGY STAR V2.0 (USA)
Warranty3 years repair or replace (excluding battery) and 2 years for battery
Rack Mounting HardwareIncluded in the box
Rack Mounting BracketsIncluded in the box
Rack Mounting Support RailsIncluded in the box
USB CableIncluded in the box
DocumentationDocumentation CD, Installation guide, User Manual, Warranty card
Web/SNMP Management CardPre-installed in the unit

5kVA / 4800W, 3U Rackmount, 4x IEC C13 + 4x IEC C19, Pre-installed Network Management Card 3.

Overview

The APC Smart-UPS On-Line SRT5KRMXLT-IEC provides continuous double-conversion protection in a compact 3U rackmount chassis. Delivering 5000 VA / 4800 W at 208/240 V with low-distortion sine wave output, it pairs an IEC C13/C19 outlet mix with an integrated Network Management Card 3 (environmental monitoring) and internal automatic/manual bypass, supporting scalable runtime with a typical ~1.5 hour recharge.

Key Features & Benefits

  • Double Conversion Online – Continuous AC-DC-AC conditioning yields regulated, low-distortion sine wave power.
  • 5kVA / 4800 W Capacity – Full-rated output for demanding IT loads at 208/240 V.
  • IEC Distribution – 4x IEC C13 and 4x IEC C19 plus two IEC jumpers for flexible downstream connections.
  • Pre-installed Network Management Card 3 – Enables remote monitoring/control with environmental inputs.
  • Internal Bypass – Automatic and manual bypass paths help maintain load power during certain events.
  • Extendable Runtime – 192 V lead-acid battery system; typical recharge about 1.5 h (rated charge power ~556 W).
  • ENERGY STAR® UPS V2.0 – Efficiency aligned to recognized standards.

Technical Deep Dive

Conversion & Conditioning: The SRT topology regenerates AC power to isolate connected equipment from sags, surges, and noise. Output harmonic distortion is less than 2%, and a 3:1 crest factor manages transient inrush common to electronic loads.

Power & Distribution: Nominal operation at 208/240 V supports mixed equipment through four C13 and four C19 receptacles, with internal automatic/manual bypass for service continuity. Output frequency tracks mains at 50/60 Hz (±3 Hz) to align with site requirements.

Energy System & Control: A 192 V battery bus supports extended runtime options and quick recovery (~1.5 h typical). Management interfaces include a pre-installed SmartSlot™ Network Management Card 3, USB for local access, prioritized audible/visible alarms, and Emergency Power Off (EPO) for facility integration.

Ideal Applications

  • Racks needing regulated 208/240 V sine-wave output with IEC C13/C19 distribution.
  • Deployments requiring extendable runtime and fast recharge
  • Sites benefiting from Ethernet-based remote monitoring and EPO integration.
  • Environments within 32–104 °F (0–40 °C), up to 95% RH non-condensing.

Frequently Asked Questions (FAQs)

Q1: What’s the installation form factor? A: It is a 3U rackmount UPS and ships with rack mounting hardware, brackets, support rails, a USB cable, and a Web/SNMP management card. Input uses a NEMA L6-30P with a 10 ft (3.05 m) cord.

Q2: What performance should I expect? A: Rated 5000 VA / 4800 W with sine-wave output at 208/240 V. Runtime varies by load and external batteries; consult APC runtime charts for exact values. Typical battery recharge is about 1.5 hours.

Q3: How do I monitor and manage the unit? A: Use the pre-installed Network Management Card 3 for remote monitoring and environmental inputs. USB provides local access; EPO and prioritized alarms support safety and clear status indication.
