Name: AXIS Q1809-LE 41 MP 8K Outdoor Bullet Camera (02870-001)
SKU: 02870-001-NEW
Price: 6430 USD
Availability: InStock

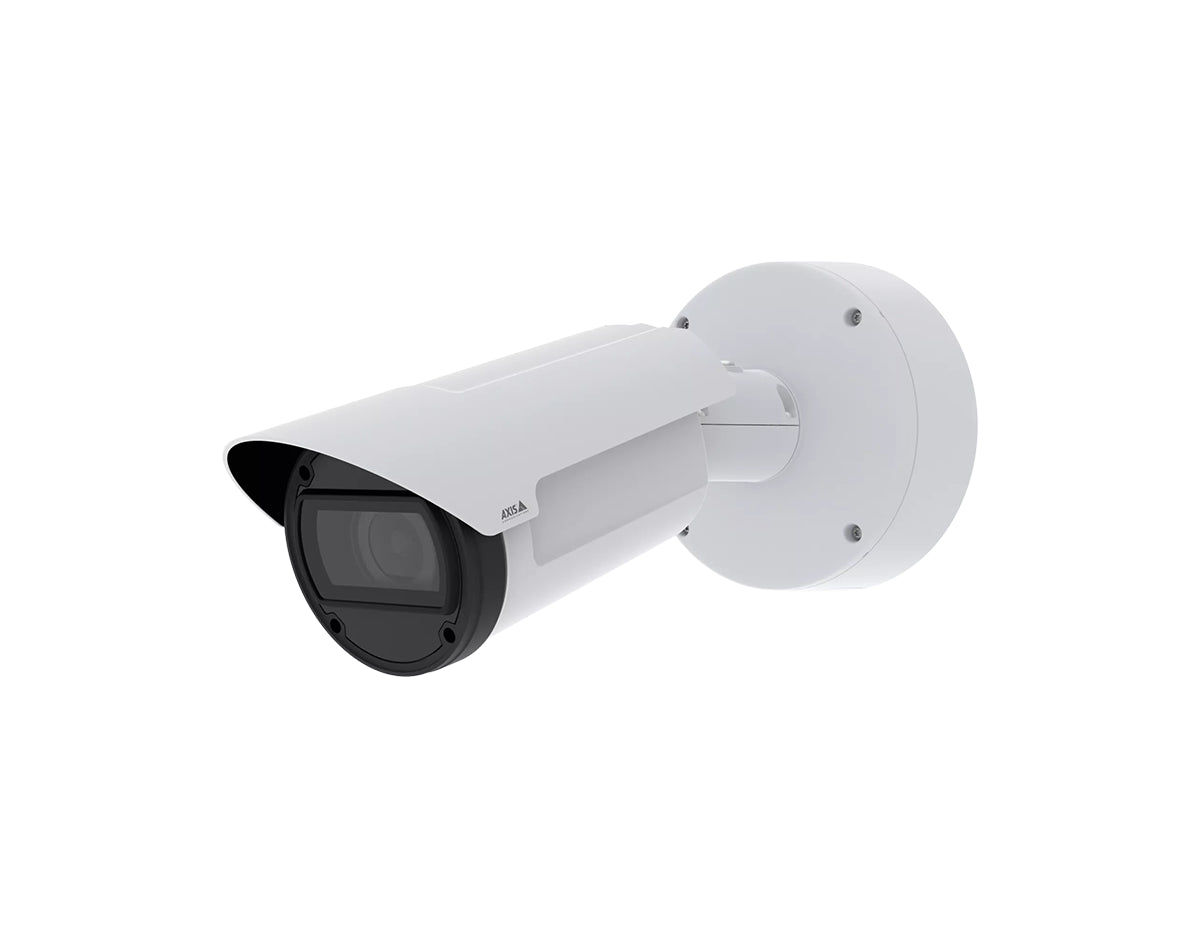

AXIS Q1809-LE 41 MP 8K Outdoor Bullet Camera (02870-001)

Outdoor-ready 41 MP 8K bullet camera with high light-sensitive 4/3″ sensor, 24 mm varifocal Canon lens, OptimizedIR up to 60 m, dual ARTPEC-8 SoCs, Edge Vault cybersecurity, and PoE out for powering an additional network device.

Categories: Cameras, SurveillanceSKU: 02870-001-NEW

Price

$6,430.00

1-Year Manufacturer Warranty

Free Shipping on Orders Over $500

Secure Payment

Description
Additional information

Outdoor-ready 41 MP 8K bullet camera with high light-sensitive 4/3″ sensor, 24 mm varifocal Canon lens, OptimizedIR up to 60 m, dual ARTPEC-8 SoCs, Edge Vault cybersecurity, and PoE out for powering an additional network device.

Model	AXIS Q1809-LE Bullet Camera (02870-001)
Product Type	41 MP bullet camera
Image Sensor	4/3” progressive scan RGB CMOS; pixel size 2.315 µm
Lens (variant)	24 mm Canon varifocal lens, 12–24 mm F2.0–3.0, remote zoom and focus, P-Iris control
Field of View (8K)	Horizontal 90°–44°, vertical 49°–25°
Field of View (41 MP)	Horizontal 87°–42°, vertical 64°–32°
Minimum Illumination (24 mm)	Color: 0.12 lux at 50 IRE, F2.0; B/W: 0.02 lux at 50 IRE, F2.0; 0 lux with IR illumination on
Day and Night	Automatically removable IR-cut filter (day mode) and IR-pass filter 800–900 nm (night mode)
Maximum Resolution	Up to 8K: 7424×5568 (4:3), 7680×4320 (16:9), 7680×3240 (21:9)
Frame Rate	Up to 30 fps in 8K mode; up to 15 fps in 41 MP mode
System on Chip	Dual ARTPEC-8 SoC with integrated deep learning processing unit (DLPU)
Memory	4096 MB RAM (×2), 8192 MB Flash
IR Illumination (24 mm lens)	OptimizedIR with 850 nm IR LEDs and white LED combo; range 60 m (197 ft) or more depending on scene
Power Options	PoE IEEE 802.3at Type 2 Class 4; PoE IEEE 802.3bt Type 3 Class 6; 10–28 V DC; 20–24 V AC
PoE Out	PoE out IEEE 802.3at Type 2 Class 4 (30 W) to a second device via 60 W midspan
Operating Conditions	Temperature with 30 W: -20 °C to 55 °C (4 °F to 131 °F); temperature with 60 W: -40 °C to 55 °C (-40 °F to 131 °F); humidity 10–100% RH (condensing)
Storage Conditions	-40 °C to 65 °C (-40 °F to 149 °F); 5–95% RH (non-condensing)
Casing	IP66/IP67 and NEMA 4X-rated, IK10 impact-resistant aluminum enclosure, IK08 impact-resistant glass front window, weathershield with black anti-glare coating
Environmental Ratings	IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10 body and IK08 glass, NEMA 250 Type 4X, NEMA TS 2, IEC 60068-2-1/2/6/14/27/78
Edge Storage	microSD/microSDHC/microSDXC with SD card encryption (AES-XTS-Plain64 256-bit); NAS recording
Interfaces / Connectors	Shielded RJ45 10/100/1000BASE-T PoE; RJ45 1000BASE-T PoE output; 4-pin alarm I/O; 3.5 mm mic/line in; DC input
Cybersecurity Platform	Axis Edge Vault with secure element (CC EAL 6+, FIPS 140-3 Level 3), secure boot, signed OS, encrypted filesystem, signed video, secure keystore
Weight (24 mm lens)	3.4 kg (7.50 lb)
Effective Projected Area	0.0455 m² (0.49 ft²)
Languages	English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese
Video Management Compatibility	AXIS Camera Station Edge, Camera Station Pro, Camera Station 5, and partner VMS
Certifications	EMC, Safety, Environmental, NEMA 4X, IK10, Cybersecurity (ETSI EN 303 645, BSI Security Label, FIPS 140)

Camera	4/3” progressive scan RGB CMOS image sensor; pixel size 2.315 µm. Day/night with removable IR-cut filter and IR-pass filter 800–900 nm. Minimum illumination (24 mm lens): color 0.12 lux at 50 IRE, F2.0; B/W 0.02 lux at 50 IRE, F2.0; 0 lux with IR on. Shutter: 1/10500 s to 2 s (4:3); 1/15500 s to 2 s (16:9). Camera adjustment: pan ±180°, tilt 0 to -90°, roll -90 to 270°.
Lens (24 mm)	Canon varifocal 12–24 mm, F2.0–3.0. 8K HFOV 90°–44°, VFOV 49°–25°; 41 MP HFOV 87°–42°, VFOV 64°–32°. Minimum focus distance 1.5 m (4.9 ft). Remote zoom and focus, P-Iris.
Video Compression	H.264 Baseline/Main/High; H.265 Main; Motion JPEG. Axis Zipstream. VBR/ABR/MBR. Low latency mode.
Video Resolution & Frame Rate	4:3: 7424×5568; 16:9: 7680×4320; 21:9: 7680×3240. Up to 30 fps in 8K; up to 15 fps in 41 MP. Signal-to-noise ratio > 55 dB. Up to 20 unique streams; up to 8 cropped view areas.
Image Processing & Settings	Axis Zipstream, Lightfinder, OptimizedIR. Spatial (2D) and temporal (3D) noise reduction. Electronic image stabilization (EIS). Settings: saturation, contrast, brightness, sharpness, white balance, exposure zones, day/night threshold, tone mapping, defog, barrel distortion correction, overlays, privacy masks. Scene profiles: forensic, vivid. Digital PTZ.
Audio	Mic/line in, optional 5 V mic power. Automatic gain control, 10-band EQ, speaker pairing. Audio encoding: LPCM, AAC-LC, G.711, G.726, Opus.
Network Protocols	IPv4, IPv6 USGv6, HTTP/HTTPS, HTTP/2, TLS, FTP/SFTP, CIFS/SMB, SMTP, mDNS, UPnP, SNMP v1/v2c/v3, DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP/RTP/SRTP, TCP/UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, secure syslog, link-local address.
System Integration & VMS	VAPIX, ACAP, ONVIF G/M/S/T. One-click cloud connection. Built-in installation aids: pixel counter, remote zoom/focus, level grid, leveling assistant. Edge-to-edge pairing.
Events & Actions	Event triggers: device status, temperature, network lost, digital input, storage issues, day/night mode, tampering, MQTT, schedules. Actions: I/O control, illumination control, uploads, recordings, SNMP, overlay text, configuration erase.
Analytics	AXIS Video Motion Detection, active tampering alarm, audio detection. ACAP support for third-party apps.
Edge Security	Signed OS, secure boot, encrypted filesystem, brute-force delay protection, OAuth2/OpenID, Axis Cryptographic Module. Axis Edge Vault secure element (CC EAL 6+, FIPS 140-3 Level 3).
Network Security	IEEE 802.1X, IEEE 802.1AE MACsec, IEEE 802.1AR, HTTPS/HSTS, TLS 1.2/1.3, NTS, X.509 PKI, firewall.
IR Illumination	OptimizedIR with 850 nm IR LEDs + white LED combo. Range: 60 m or more.
Power & Consumption	PoE+ (18.9 W typical / 25.5 W max). PoE++ (18.9 W typical / 51 W max). DC 10–28 V (17.6 W typical / 35 W max). AC 20–24 V (25 VA typical / 33 VA max). Power meter, power profiles.
Connectors	RJ45 10/100/1000BASE-T PoE; RJ45 PoE out; 4-pin alarm I/O; 3.5 mm mic/line input; DC power.
Operating & Storage Conditions	Operating: -20 °C to 55 °C (30 W); -40 °C to 55 °C (60 W). Storage: -40 °C to 65 °C. Humidity: 10–100% (condensing). Wind load: 60 m/s (134 mph).
DORI (24 mm lens)	Detect: 210.8 m (wide) / 407.1 m (tele). Observe: 83.6 m / 161.6 m. Recognize: 42.2 m / 81.4 m. Identify: 21.0 m / 40.7 m.
Dimensions & Weight	EPA: 0.0455 m² (0.49 ft²). Weight: 3.4 kg (7.50 lb).
System Tools	AXIS Site Designer, AXIS Device Manager, product selector, accessory selector, lens calculator.

Included	Camera, installation guide, terminal block connector, RJ45 cable, connector guard, cable gaskets, owner authentication key
Optional accessories	AXIS T8415 Wireless Installation Tool; AXIS Surveillance Cards

High-detail 41 MP 8K surveillance with wide Canon lens and built-in cybersecurity

AXIS Q1809-LE is an outdoor-ready 41 MP bullet camera designed to deliver extreme detail in demanding wide-area surveillance. Powered by dual ARTPEC-8 system-on-chip processors and a high light-sensitive 4/3” sensor, it captures 8K video with excellent low-light performance so you can see fine details around the clock. The 24 mm Canon varifocal lens offers flexible 12–24 mm coverage with remote zoom and focus, making it ideal for covering open areas while maintaining precise control over viewing angles.

Housed in a robust IP66/IP67- and NEMA 4X-rated aluminum enclosure with IK10 impact resistance on the body, this camera is built for harsh environments. OptimizedIR with an 850 nm LED array and white LED combo provides powerful illumination up to 60 m or more, while Axis Edge Vault and FIPS 140-certified secure key storage protect your system at the hardware level. With PoE out, extensive edge storage, and a comprehensive set of integration options, AXIS Q1809-LE is ready for enterprise deployments that demand both image quality and cybersecurity.

Key Benefits

Capture extreme detail with 41 MP resolution and 8K video for precise identification and evidence-quality footage.
High light-sensitive 4/3” sensor and Lightfinder technology deliver clear, low-noise images even in very low light.
24 mm Canon varifocal lens with remote zoom and focus lets you fine-tune coverage of open areas without physical adjustments.
OptimizedIR with IR and white LEDs extends visibility up to 60 m or more, ensuring coverage in complete darkness.
Dual ARTPEC-8 SoCs and built-in deep learning processing unit enable advanced analytics and efficient Zipstream compression.
Axis Edge Vault, secure boot, signed OS, encrypted storage, and FIPS 140-certified secure element strengthen end-to-end cybersecurity.
Rugged IP66/IP67, IK10, and NEMA 4X housing withstands harsh weather, vibration, and industrial environments.
PoE out and rich I/O/audio interfaces simplify system design by powering and integrating additional devices directly from the camera.

Ideal Use Cases

Perimeter and fence-line protection where high-resolution imaging and long DORI distances are essential for detection and identification.
Large open areas such as parking lots, logistics yards, and industrial sites requiring wide coverage from a fixed bullet camera.
Critical infrastructure and transportation hubs needing hardened, IP66/IP67 and NEMA 4X-compliant video devices with strong cybersecurity.
City surveillance and public spaces where detailed 8K overviews combined with multi-view streaming improve situational awareness.
Enterprise campuses and data centers that must integrate secure, analytics-ready cameras into ONVIF-based or AXIS Camera Station VMS solutions.

Technical Specifications Summary

Image sensor: 4/3” progressive scan RGB CMOS, 2.315 µm pixel size, high light-sensitive design
Lens (24 mm): Canon varifocal 12–24 mm, F2.0–3.0, HFOV up to 90°, minimum focus distance 1.5 m, remote zoom and focus, P-Iris
Video: Up to 8K (7424×5568 / 7680×4320 / 7680×3240), up to 30 fps in 8K mode, up to 15 fps in 41 MP mode, SNR > 55 dB
Compression: H.264, H.265, Motion JPEG with Axis Zipstream, multi-streaming up to 20 unique streams and 8 cropped view areas
IR & low light: OptimizedIR with 850 nm IR LEDs and white LED combo, range 60 m or more; day/night IR-cut filter and Lightfinder technology
Audio: Mic/line in, audio detection, automatic gain control, 10-band equalizer, multiple codecs including AAC, Opus, and LPCM
Networking: IPv4/IPv6, HTTPS/TLS, SRTP, MQTT, SNMP, QoS, ONVIF Profiles G/M/S/T for broad VMS compatibility
Cybersecurity: Axis Edge Vault, secure boot, signed OS, encrypted filesystem, FIPS 140-certified secure element, IEEE 802.1X and MACsec
Power & PoE: PoE+ and PoE++ support, DC and AC power options, PoE out up to IEEE 802.3at Type 2 Class 4 to a second device
Environmental: Operating down to -40 °C with 60 W, IP66/IP67, IK10 body, IK08 glass, NEMA 4X, NEMA TS 2, wind load up to 60 m/s
Edge storage: microSD/microSDHC/microSDXC with SD card encryption and NAS recording support

Upgrade Your Operations

Deploy AXIS Q1809-LE Bullet Camera to gain extreme 41 MP 8K detail, robust outdoor performance, and hardened cybersecurity in a single, PoE-powered solution

Weight	7.5 lbs
PoE	PoE+ and PoE++ support, DC and AC power options, PoE out up to IEEE 802.3at Type 2 Class 4 to a second device
Power	PoE+ and PoE++ support, DC and AC power options, PoE out up to IEEE 802.3at Type 2 Class 4 to a second device
Brand	Axis
