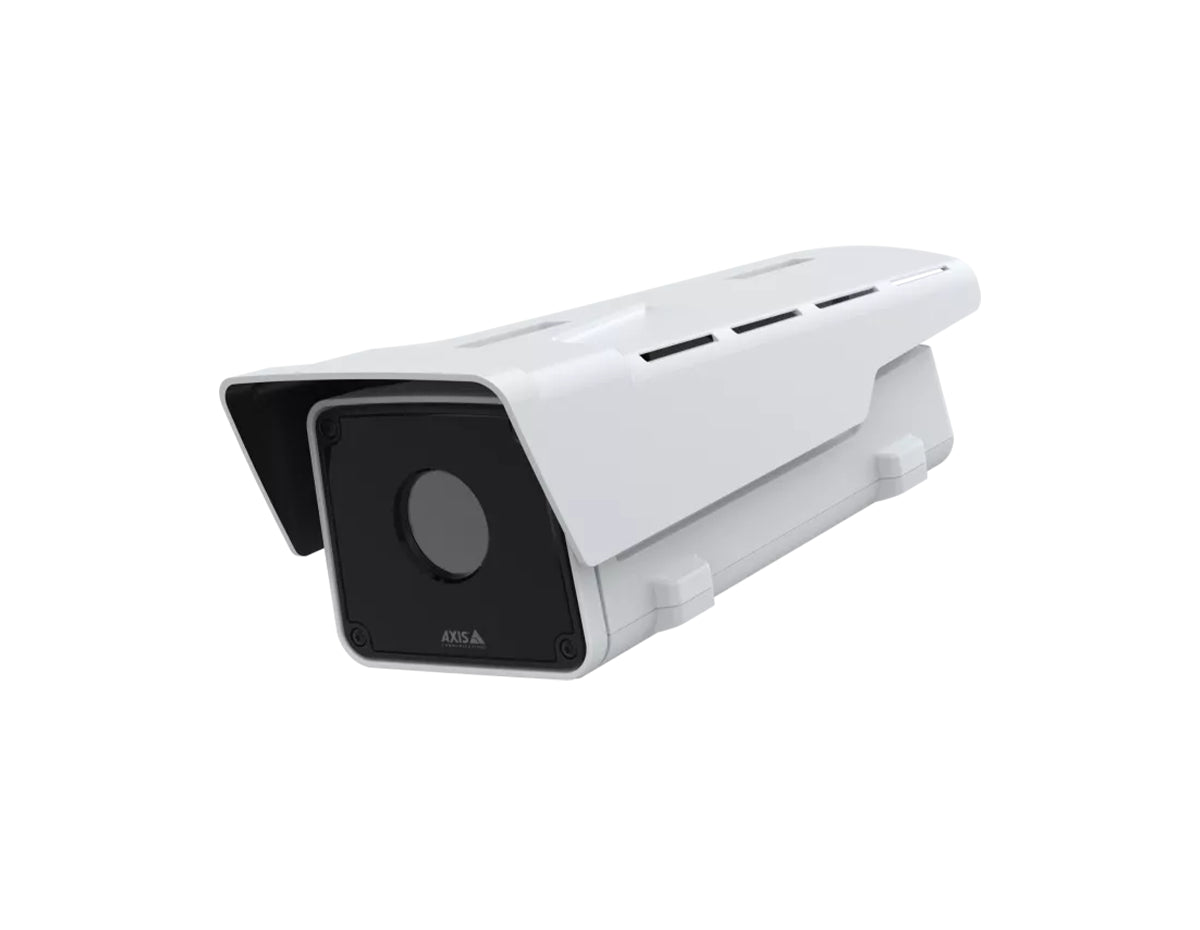

AXIS Q2112-E 19 mm 30 fps Thermal Camera (02606-001)
AXIS Q2112-E 19 mm 30 fps Thermal Camera (02606-001) — photo 2

Axis SKU 02606-001

AXIS Q2112-E 19 mm 30 fps Thermal Camera (02606-001)

Outdoor-ready 19 mm thermal camera with a 640×480 sensor, <20 mK sensitivity, up to 30 fps thermal imaging, and ARTPEC-8 SoC with deep-learning acceleration for real-time perimeter protection

$6,370.00

Ask an engineer about this model

Add several items, then request a quote at checkout.

  • Free US shipping on orders over $300
  • Manufacturer warranty
  • 30-day returns on unopened items

Outdoor-ready 19 mm thermal camera with a 640×480 sensor, <20 mK sensitivity, up to 30 fps thermal imaging, and ARTPEC-8 SoC with deep-learning acceleration for real-time perimeter protection.

Product TypeThermal Camera
Image SensorUncooled microbolometer, 640×480 pixels, 17 μm; spectral range 8–14 μm
LensAthermalized 19 mm, F1.0; horizontal FOV 31°; vertical FOV 24°; near focus distance 8.5 m (28 ft)
SensitivityNETD <20 mK @25 °C, F1.0
System on ChipARTPEC-8 with deep learning processing unit (DLPU)
Memory2048 MB RAM, 8192 MB Flash
PowerPoE IEEE 802.3af/802.3at Type 2 Class 4; typical 5.2 W, max 25.5 W; 10–28 V DC (typical 4.6 W, max 25.5 W)
Operating Conditions40 °C to 60 °C; up to 74 °C per NEMA TS 2; humidity 10–100% RH (condensing)
Storage Conditions40 °C to 65 °C; humidity 5–95% RH (non-condensing)
CasingIP66/IP67, NEMA 4X, and IK10-rated aluminum housing; white NCS S 1002-B
DimensionsSee datasheet dimension drawing; EPA 0.05 m² (0.48 ft²)
Weight3.3 kg (7.3 lb)
StoragemicroSD/microSDHC/microSDXC support; encrypted SD card support; NAS recording
CertificationsCSA, UL/cUL, CE, KC, VCCI, RCM; CISPR 32/35; EN 50121-4; FCC Part 15 Class A; IEC 62236-4
SafetyCAN/CSA/IEC/EN/UL 62368-1 ed.3; IS 13252
CybersecurityAxis Edge Vault (TPM 2.0), secure boot, signed firmware, encrypted filesystem, secure keystore, Axis device ID, OAuth 2.0, brute force delay protection
VideoH.264, H.265, Motion JPEG; 640×480 scalable to 800×600; up to 30 fps; up to 20 streams; controllable frame rate; Zipstream; VBR/ABR/MBR
AudioTwo-way audio; AGC; EQ; external mic input (optional 5 V); line in/out; network speaker pairing; LPCM, AAC-LC, G.711, G.726, Opus
System IntegrationONVIF Profiles G/M/S/T; VAPIX; ACAP; one-click cloud; AXIS Camera Station support
Event ConditionsAudio detection; device status; bitrate degradation; IP changes; storage conditions; I/O events; tampering; MQTT subscribe; scheduling
Pan/Tilt SupportSupports guard tours with up to 256 presets (requires external positioning unit)
EnvironmentalIP66/IP67, IK10, NEMA 4X; IEC 60068; MIL-STD-810H (Methods 501.7, 502.7, 505.7, 506.6, 507.6, 509.7, 510.7, 512.6, 521.4)
SecurityTPM 2.0, secure boot, encrypted storage, MACsec, TEE, TLS v1.2/v1.3, 802.1X, password protection, brute force delay protection
IncludedCamera, installation guide, terminal block connectors, connector guard, cable gaskets, owner authentication key
Optional AccessoriesAXIS TQ1818-E Positioning Unit; AXIS TQ1003-E Wall Mount

Outdoor-ready 19 mm thermal camera with a 640×480 sensor, <20 mK sensitivity, up to 30 fps thermal imaging, and ARTPEC-8 SoC with deep-learning acceleration for real-time perimeter protection.

The AXIS Q2112-E 19 mm 30 fps Thermal Camera delivers wide-area thermal imaging optimized for real-time perimeter protection. Its 640×480 thermal sensor combined with a 19 mm F1.0 athermalized lens provides broad coverage, reliable thermal contrast, and effective detection across large outdoor zones. With extremely high thermal sensitivity of <20 mK, the camera ensures strong visibility even through rain, fog, smoke, and total darkness.

Powered by the ARTPEC-8 SoC with an integrated deep learning processing unit, it supports advanced on-edge analytics such as AXIS Perimeter Defender and third-party ACAP applications. Its rugged outdoor-ready design—with IP66/IP67, IK10, and NEMA 4X ratings—ensures dependable 24/7 performance in harsh and demanding environments. Comprehensive cybersecurity protections and wide protocol support make integration secure and efficient.

High-Sensitivity Thermal Imaging for Wide-Area Perimeter Protection

  • 19 mm athermalized lens provides wide coverage and effective thermal detection in large perimeter zones.
  • High-resolution 640×480 thermal sensor enhances object clarity and contrast.
  • <20 mK NETD ensures visibility in low-contrast thermal conditions.
  • ARTPEC-8 with DLPU provides advanced on-edge analytics processing.
  • Rugged IP66/IP67, IK10, and NEMA 4X housing ensures reliable all-weather operation.
  • Comprehensive cybersecurity with TPM 2.0, secure boot, and encrypted storage.
  • ONVIF and VAPIX support enable seamless VMS integration and automated workflows.

Ideal Use Cases

  • Wide-area perimeter protection for utilities, airports, ports, and industrial facilities.
  • Outdoor security zones requiring strong contrast and broad monitoring coverage.
  • Critical infrastructure requiring privacy-friendly thermal detection.
  • Border and transportation monitoring in all weather and lighting conditions.
  • Analytics-driven security operations with automated response workflows.

Technical Specifications Summary

  • Image sensor: 640×480 uncooled microbolometer, 17 μm
  • Lens: Athermalized 19 mm F1.0; HFOV 31°; VFOV 24°; near focus 8.5 m.
  • Sensitivity: NETD <20 mK @25 °C
  • Video: Up to 30 fps; H.264/H.265/MJPEG; scalable to 800×600
  • Audio: Two-way audio; LPCM, AAC-LC, G.711, G.726, Opus
  • Power: PoE Type 2 Class 4; 10–28 V DC
  • Operating conditions: -40 °C to 60 °C; up to 74 °C NEMA TS 2
  • Durability: IP66/IP67, IK10, NEMA 4X, MIL-STD-810H
  • Cybersecurity: TPM 2.0, secure boot, encrypted storage, MACsec, 802.1X.

Upgrade Your Operations

Enhance real-time perimeter protection with high-sensitivity thermal imaging designed for wide-area coverage and 24/7 reliability.
