Cisco SKU C1000-8FP-E-2G-L

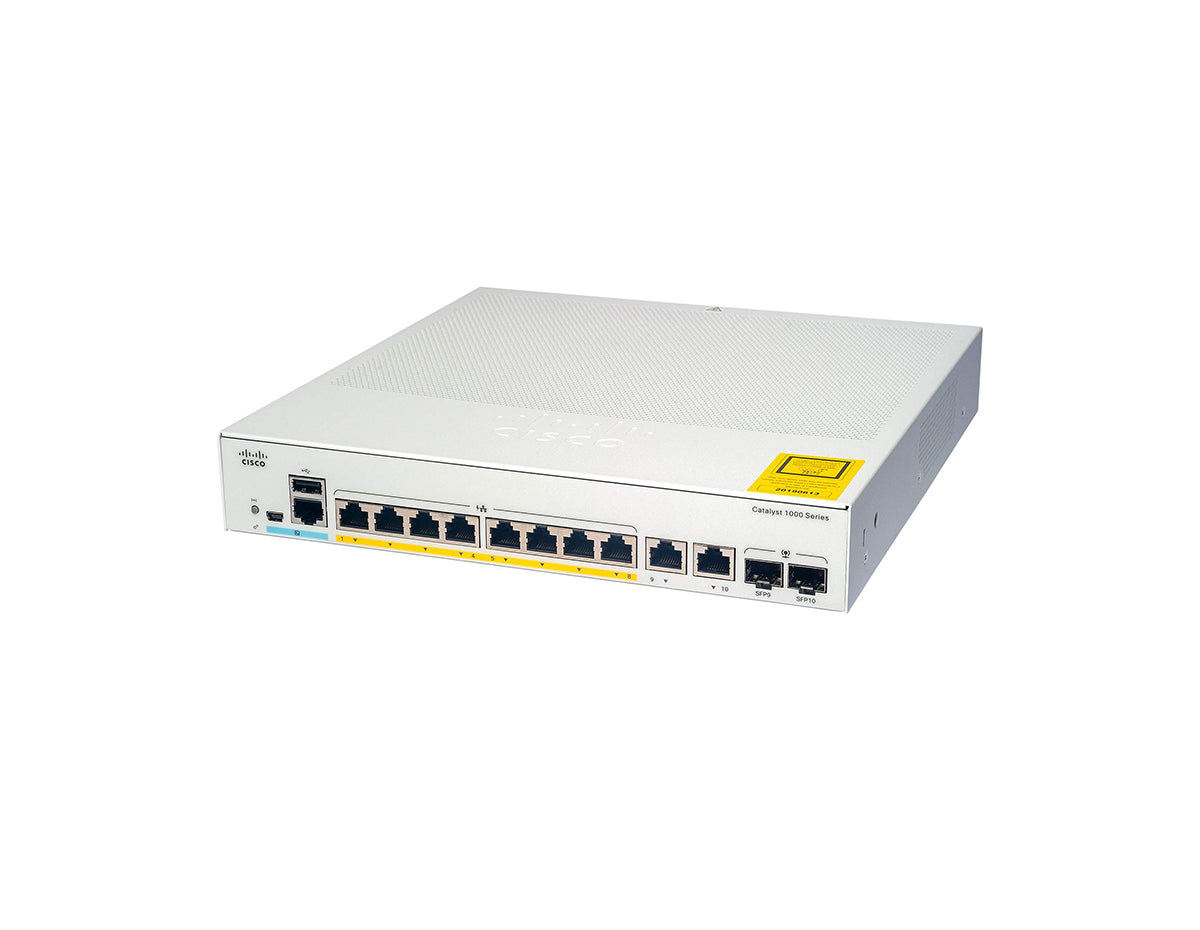

Cisco C1000-8FP-E-2G-L Switch

Switch, Managed, 8x 10/100/1000 Ethernet PoE+ ports and 120W PoE budget, 2x 1G SFP and RJ-45 combo uplinks, with external PS

Ports	2 × 1G SFP / RJ-45 combo
Throughput	10 Gbps
Switching capacity	20 Gbps

$595.00

Ask an engineer about this model

Add several items, then request a quote at checkout.

Free US shipping on orders over $300
Manufacturer warranty
30-day returns on unopened items

Where it fits

Firewalls · 149 products · from $515

Transceivers · 50 products · from $29

Access Points · 119 products · from $29

The Cisco Catalyst C1000-8FP-E-2G-L Switch is a robust and compact network solution designed for small businesses and branch offices that require efficient power and data connectivity. Featuring 8 Gigabit Ethernet PoE+ ports and 2 SFP/RJ-45 combo uplinks, this switch provides a substantial 120W PoE budget, making it ideal for powering multiple devices such as IP phones, cameras, and access points. The external power supply adds deployment flexibility, ensuring the C1000-8FP-E-2G-L meets diverse networking needs.

Product Family	Catalyst 1000
Product Type	Ethernet Switch
Number of Ports	8
Uplink Interfaces	2 × 1G SFP / RJ-45 combo
Available PoE power	120W
Fanless	Yes
Width	10.56″
Depth	7.28″
Height	1.73″
Management	Managed (Cisco IOS XE WebUI/CLI; optional Cisco Catalyst Center)
Power Supply	External
Console Ports	1x RJ-45 (console) 1x USB mini-B 1x USB-A port for storage and Bluetooth console
CPU	ARM v7 800 MHz
DRAM	512 MB
Flash Memory	256 MB
Forwarding Bandwidth	10 Gbps
Switching Bandwidth	20 Gbps
Forwarding Rate (64-byte L3)	14.88 Mpps

MAC addresses	16000
Maximum Active VLANs	256
Operating Temperature (Sea level)	–5 to 50 °C*
Operating Temperature Up to 5,000 ft (1500 m)	5 to 45 deg C
Operating Temperature Up to 10,000 ft (3000 m)	5 to 40 deg C
EMC: immunity	EN55024 (including EN 61000-4-5), EN300386, KN35
Environmental	Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
Telco	Common Language Equipment Identifier (CLEI) code
U.S. Government certifications	TBD
Telnet – SSH	Yes
TACACS, TACACS+, Radius	Yes
Part Number	Description
CAB-CONSOLE-RJ45	Console Cable 6 Feet with RJ-45
CAB-CONSOLE-USB	Console Cable 6 Feet with USB Type A and mini-B Connectors
PWR-CLP	Power Cable Restraining Clip
RCKMNT-19-CMPCT	19-inch rack mount bracket for C1000, 3560-CX and 2960-CX
RCKMNT-23-CMPCT	23- and 24-inch rack mount bracket for C1000, 3560-CX and 2960-CX

Switch, Managed, 8x 10/100/1000 Ethernet PoE+ ports and 120W PoE budget, 2x 1G SFP and RJ-45 combo uplinks, with external PS.

Cisco Catalyst C1000-8FP-E-2G-L Switch

Key Features

8 x Gigabit Ethernet PoE+ Ports: Delivers power and data connectivity for PoE-enabled devices, with a 120W PoE budget.
2 x SFP/RJ-45 Combo Uplinks: Offers flexible uplink options for connecting to various network devices and expanding your network.
Simple Management: Supports both web-based UI and Command-Line Interface (CLI) management for easy configuration and monitoring.
External Power Supply: Enhances deployment flexibility, suitable for environments with specific power requirements.
Enhanced Security: Features such as 802.1X, BPDU Guard, and SPAN for improved network security and monitoring.

Technical Overview

Recommended for: Small businesses, branch offices, and environments requiring reliable PoE networking solutions.
Ports: 8 x 10/100/1000 Mbps Gigabit Ethernet PoE+ ports with 2 SFP/RJ-45 combo uplinks.
PoE Budget: 120W
Switching Capacity: 20 Gbps
Forwarding Rate: 14.88 Mpps
Management: Web-based GUI and CLI for simplified network management.
Security: Includes 802.1X, BPDU Guard, and SPAN for comprehensive security and monitoring.
Energy Efficiency: Compact design with an external power supply for efficient operation.
