Cisco SKU IE-2000-4T-L

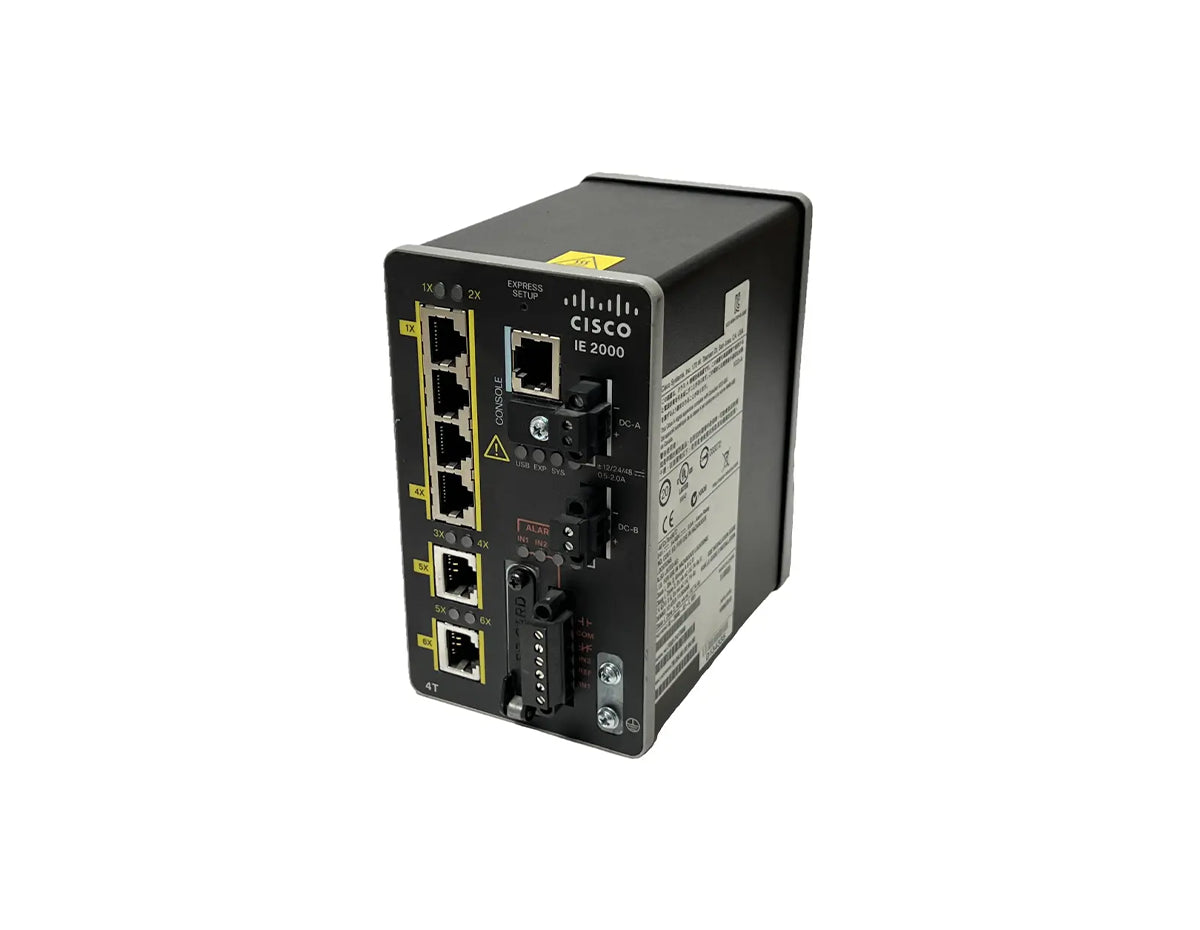

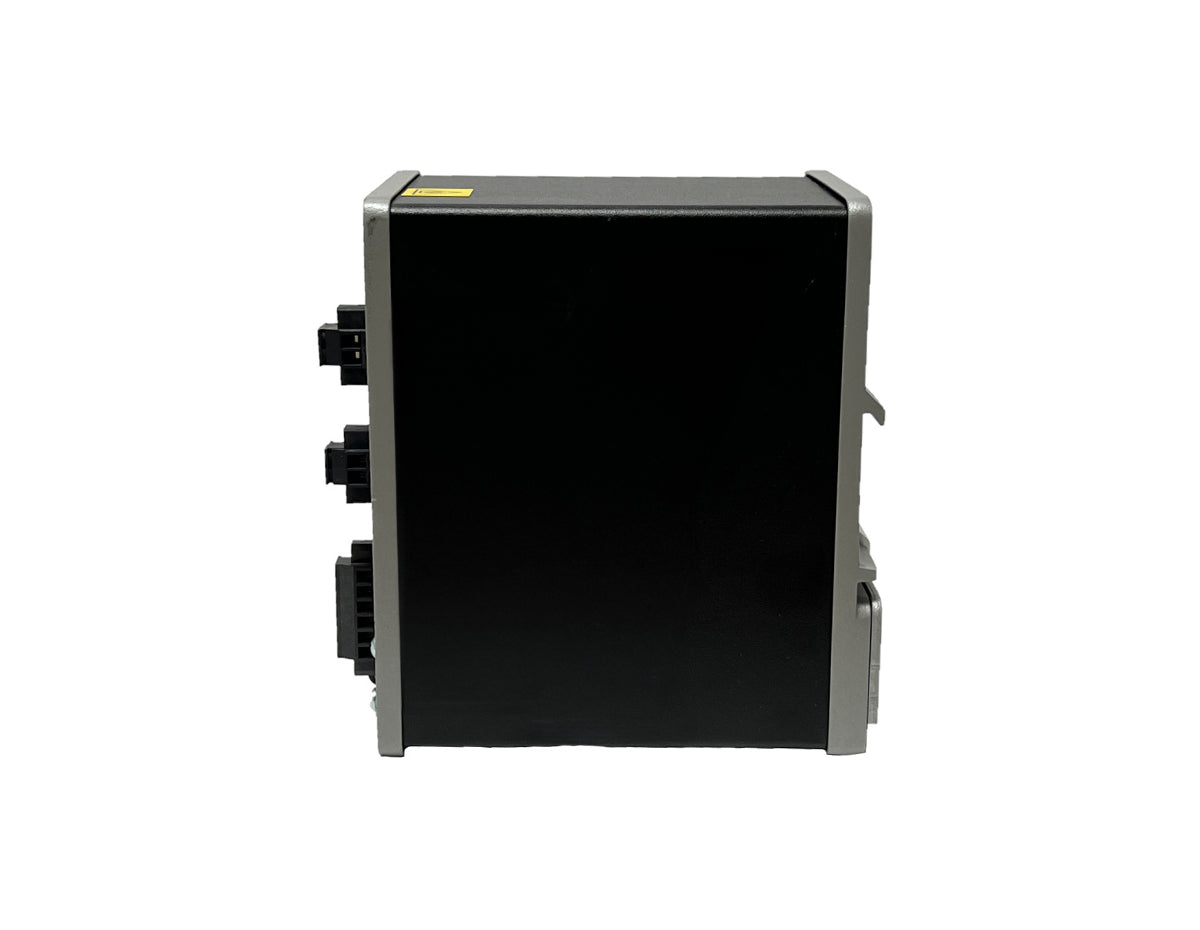

Cisco IE-2000-4T-L Switch

Switch Managed 6 × 10/100 DIN-rail mountable

Throughput	3.8 Gbps

$589.00

Ask an engineer about this model

Add several items, then request a quote at checkout.

Free US shipping on orders over $300
Manufacturer warranty
30-day returns on unopened items

Where it fits

Firewalls · 149 products · from $515

Transceivers · 50 products · from $29

Access Points · 119 products · from $29

IE2000 switch with 6 FE copper ports (LAN Lite license).

Product Family	Industrial Ethernet 2000
Product Type	Ethernet Switch
Total Ports	6
RJ45 Ports	6 FE
Combo Ports (SFP or RJ45)	–
SFP Ports	–
Manufacturing License	LAN Lite
Type of Possible Upgrade	3
IEEE 1588	–
NAT	–
PoE(+)	–
Conformal Coating	–
1	LAN Base to IP Lite Cisco IOS Software Upgrade
2	Enhanced LAN Base to IP Lite Cisco IOS Software Upgrade
3	LAN Lite to LAN Base Cisco IOS Software Upgrade
4	LAN Base to Enhanced LAN Base Cisco IOS Software Upgrade and License Upgrade
U	Upgradable to L2NAT via Enhanced LAN Base or IP Lite license
LAN Lite license	Baseline features
Security	SCP, SSH, SNMPv3, TACACS+, RADIUS Server/Client, MAC Address Notification, BPDU Guard, SPAN session
Multicast	IGMPv1/v2/v3 Snooping, IGMP filtering, IGMP Querier
Management	Fast Boot, Express Setup, Web Device Manager, CNA, Cisco Prime, LMS, MIB, SmartPort, SNMP, syslog
Industrial Ethernet	EtherNet/IP, PROFINET v2
Dimensions (H×W×D)	5.1″H × 2.95″W × 4.51″D (130 mm H × 74.9 mm W × 115 mm D)
Weight	2.45 lb (1.11 kg)
DRAM	256 MB DRAM with ECC memory
Flash Memory	64 MB
Hardware	IEEE 1588v2 FPGA; 1 GB removable SD flash memory card (optional); Mini-USB connector
Max. Forwarding Bandwidth	3.8 Gbps
Max. Switching Bandwidth	7.6 Gbps
Max. Forwarding Rate	5.66 Mpps
Egress Buffer	2 MB
Unicast MAC Addresses	8000
Internet Group Management Protocol (IGMP) Multicast Groups	255

Max. VLANs	1005
IPv4 MAC Security ACEs	384 (default TCAM template) bidirectional; 128 NAT translation entries
IPv4 Routing	3500
IPv6 Routing	1750
Alarm	Alarm I/O: two alarm inputs (dry contact) and one alarm output relay
Power consumption	9.5–15 W
Mean Time Between Failure (MTBF)	374,052 hours (42.7 years)
Storage Temperature	40°C to +85°C
Operating Altitude	Up to 15,000 ft
Safety Certifications	UL/CSA 60950-1; EN 60950-1; CB to IEC 60950-1 (with country deviations); NOM-019-SCF1; CE Marking
Shock and Vibration	IEC 60068-2-27 (Operational shock: 30G 11 ms, half-sine); IEC 60068-2-27 (Non-operational shock: 55–70G, trapezoidal); IEC 60068-2-6 / -2-64; EN 61373
Hazard Locations (* Cabinet enclosure required)	ANSI/ISA 12.12.01 (Class 1, Div 2 A–D) ; EN 60079-0, -15 ATEX (Class 1, Zone 2 A–D)
Humidity	IEC 60068-2-52 (salt fog mist, test Kb) marine environments; IEC 60068-2-3; IEC 60068-2-30; Relative humidity: 5% to 95% non-condensing
SD-IE-1GB=	1 GB Ruggedized SD memory card (must be ordered, not included by default)
STK-RACK-DINRAIL=	19 in. DIN Rail mount kit
IE-LICENSE-SPARE	Spare license for software upgrade (L2 to L3 features, MRP ring, etc)
L-IE2000-L-B=	IE2000 LAN Lite to LAN Base e-license
L-IE2000-B-E=	IE2000 LAN Base to Enhanced LAN Base e-license
LIC-IE2000-IP-L=	IE2000 LAN Base or Enhanced LAN Base to IP Lite e-license
LIC-IE2000-L-IP=	IE2000 LAN Lite to IP Lite e-license
LIC-MRP-MANAGER=	MRP Ring Manager license
LIC-MRP-Client=	MRP Ring Client license
Wallmount-IE2k-04=	Wall mount kit accessory for IE2000 4-ports downlink PID
Product Number	Wattage
PWR-IE50W-AC=	50W AC Power Supply
PWR-IE50W-AC-L=	50W AC-L Power Supply
PWR-IE65W-PC-AC=	65W AC Power Supply
PWR-IE65W-PC-DC=	65W DC Power Supply
PWR-IE170W-PC-AC=	170W AC Power Supply
PWR-IE170W-PC-DC=	170W DC Power Supply
PWR-IE240W-PCAC-L=	240W AC-L Power Supply
PWR-IE480W-PCAC-L=	480W AC-L Power Supply
