Cisco C8200-1N-4T Router
C8200 1RU w/ 1 NIM slot and 4×1 Gigabit Ethernet WAN ports Product Family The Catalyst 8200 Series Edge Platforms Product Type Router Features ● C8200-1N-4T uses an Intel® x86 CPU with 8 GB DRAM memory default ● High-performance multicore processors support…
| Form factor | 1 RU |
|---|---|
| Storage | 8 GB |
$1,495.00
Ask an engineer about this modelAdd several items, then request a quote at checkout.
- Free US shipping on orders over $300
- Manufacturer warranty
- 30-day returns on unopened items
Where it fits
The Cisco Catalyst 8200-1N-4T is a multi-functional router specifically designed for rack-mounting, catering to the needs of small to medium-sized branches. Equipped with Gigabit Ethernet connectivity, it delivers increased data transfer speeds, scalability, and adaptability to accommodate the changing requirements of networks. This router is compatible with Secure Access Service Edge (SASE) standards for cloud-based security services, ensuring comprehensive protection for network systems.
| Product Family | The Catalyst 8200 Series Edge Platforms |
|---|---|
| Product Type | Router |
| 1G port density | 4 |
| Slots | 1 NIM 1 PIM |
| Memory (DRAM) default | 8 GB |
| Storage (M.2 SSD) default | 16 GB |
| SD-WAN IPsec throughput (1400 bytes) | Up to 1 Gbps |
| SD-WAN IPsec throughput (IMIX*) | 900 Mbps |
| SD-WAN overlay tunnels scale | 2500 |
| IPv4 forwarding throughput (1400 bytes) | Up to 3.8 Gbps |
| IPsec throughput (1400 bytes) | Up to 1 Gbps |
| Number of Access Control Lists (ACLs) per system | 4000 |
| Number of IPv4 Access Control Entries (ACEs) per system | 72,000 |
| Number of IPv4 routes | 1.6M with default 8 GB, up to 4M with 32 GB |
| Number of IPv6 routes | 1.5M with default 8 GB, up to 4M with 32 GB |
| Number of queues | 16,000 |
| Number of Network Address Translation (NAT) sessions | 1.2M with default 8 GB, up to 2M with 32 GB |
|---|---|
| Number of firewall sessions | 512,000 |
| Number of Virtual Route Forwarding (VRF) instances | 4000 |
| Minimum software requirement | Cisco IOS XE Software Release 17.4.1 |
| Dimensions (H x W x D) | 1.73 x 17.25 x 11.8 in. (4.39 x 43.81 x 29.97 cm) |
| Rack Units (RU) | 1 RU |
| Chassis weight | 10 lb (4.54 kg) |
| Input voltage | AC: 90 to 264 VAC |
| Operating temperature | 32° to 104°F (0° to 40°C) |
| Storage temperature | (-40° to 150°F) (-40° to 70°C) |
| Acoustics: Sound pressure (Typical/maximum) | 54 dBA |
| Acoustics: Sound power (Typical/maximum) | 68 dBA |
| Relative humidity operating and nonoperating noncondensing | Ambient (noncondensing) operating: 5% to 85% Ambient (noncondensing) nonoperating and storage: 5% to 95% |
| Altitude | 0 to 10,000 feet (0 to 3050 meters) |
| Mean Time Between Failures (MTBF) | 692,577 hours |
| Safety certifications | UL 60950-1 CAN/CSA-C22.2 No. 60950-1 EN 60950-1 IEC 60950-1 AS/NZS 60950-1 IEC/EN 60825 Laser Safety FDA: Code of Federal Regulations Laser Safety |

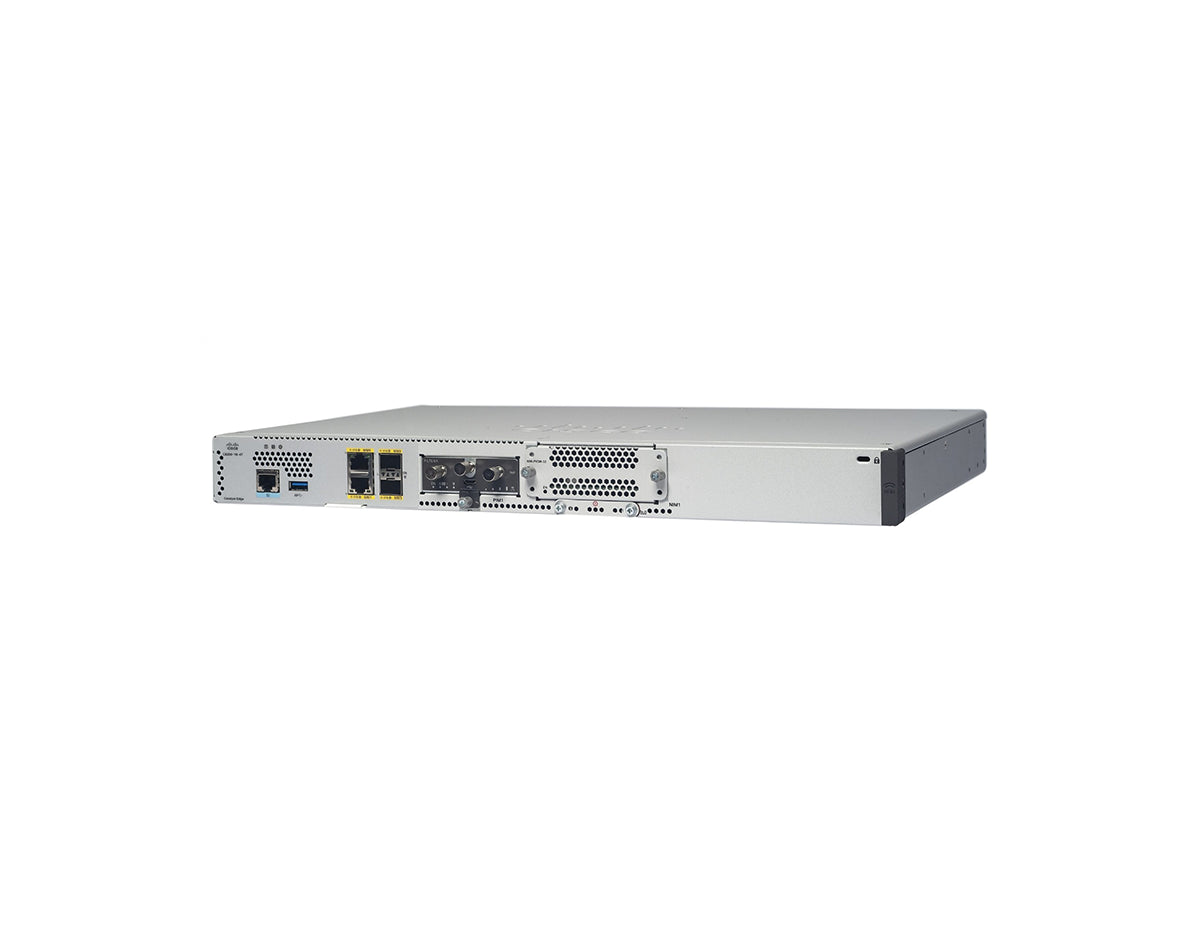

Cisco 8200-1N-4T Router
The Cisco Catalyst 8200-1N-4T is a multi-functional router specifically designed for rack-mounting, catering to the needs of small to medium-sized branches. Equipped with Gigabit Ethernet connectivity, it delivers increased data transfer speeds, scalability, and adaptability to accommodate the changing requirements of networks. This router is compatible with Secure Access Service Edge (SASE) standards for cloud-based security services, ensuring comprehensive protection for network systems.
Quick Specs
- 8GB DRAM
- Intel x86 CPU
- Enables up to 1Gbps IPsec traffic
- shipped with default 16G M.2 storage and can be upgraded to 32G M.2 USB and 600G M.2 Non-Volatile Memory Express (NVMe) Storage.
