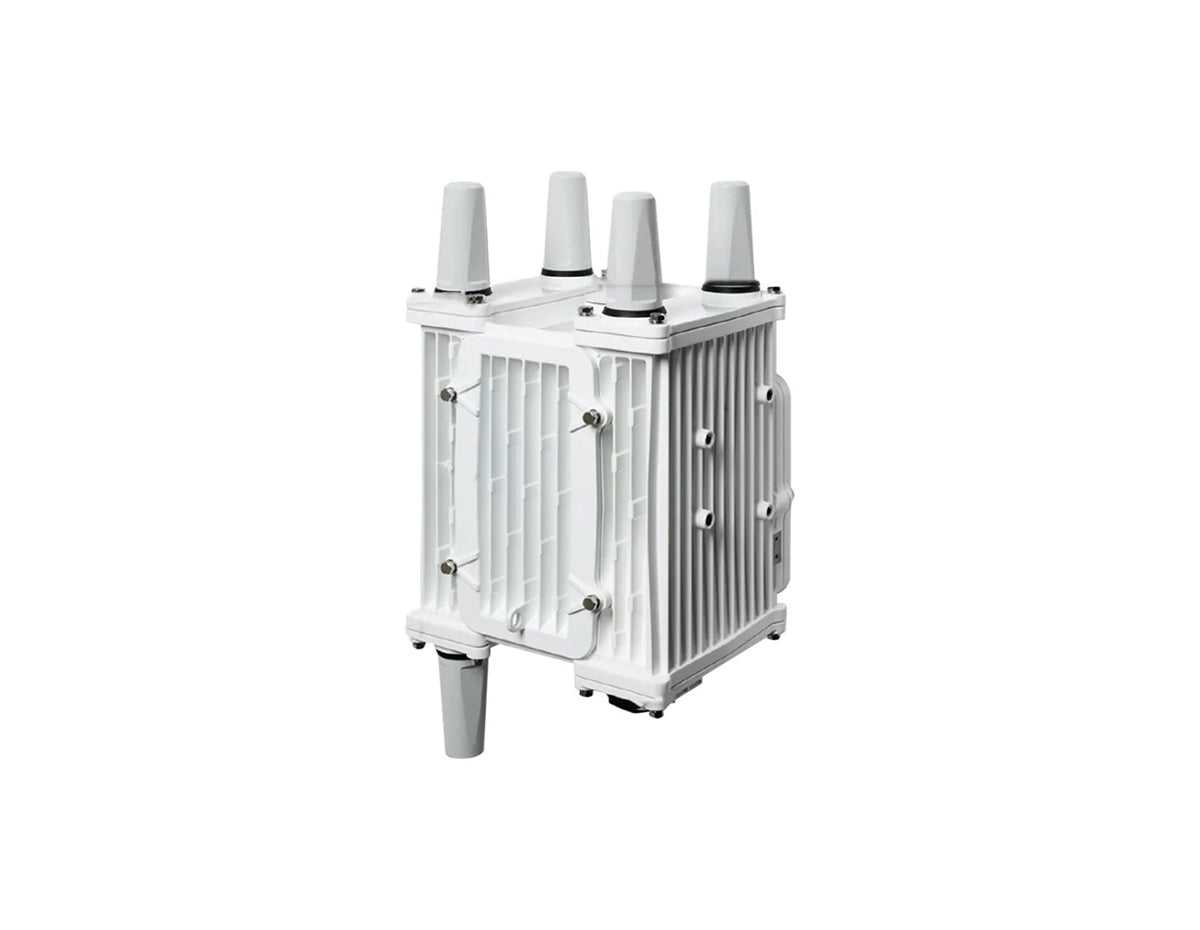

Cisco Catalyst IR8140H-P Heavy Duty Router with PoE (IR8140H-P-K9)
Cisco Catalyst IR8140H-P Heavy Duty Router with PoE (IR8140H-P-K9) — photo 2

Cisco SKU IR8140H-P-K9

Cisco Catalyst IR8140H-P Heavy Duty Router with PoE (IR8140H-P-K9)

1x 10/100/1000 Gigabit Ethernet port (cooper) PoE enabled, 2x Digital Alarms, 100GB SSD, 8GB DRAM

PortsEthernet, 4G LTE, 5G, Wi-Fi

$1,445.00

Ask an engineer about this model

Add several items, then request a quote at checkout.

  • Free US shipping on orders over $300
  • Manufacturer warranty
  • 30-day returns on unopened items

1x 10/100/1000 Gigabit Ethernet port (cooper) PoE enabled, 2x Digital Alarms, 100GB SSD, 8GB DRAM.

Product NameIR8140H-P-K9
Device TypeIndustrial outdoor router with PoE
ConnectivityEthernet, 4G LTE, 5G, Wi-Fi
Interfaces4 x 1GE LAN ports with PoE, 1 x 1GE WAN port, cellular interface
Wireless Support4G LTE and 5G
PoE SupportIEEE 802.3af/at compliant, providing up to 30W per port
Operating Temperature40°C to 75°C (-40°F to 167°F)
Storage Temperature50°C to 85°C (-58°F to 185°F)
Humidity5% to 95% non-condensing
Power InputAC or DC input, 24V to 48V DC
Dimensions35.6 cm x 25.4 cm x 10.2 cm (14 in x 10 in x 4 in)
Weight7.48 kg (16.5 lbs)
CoolingPassive cooling, no fan
Mounting OptionsPole or wall mount
Ingress ProtectionIP67 rated for dust and water resistance
UsageIdeal for outdoor industrial environments such as mining, oil and gas, transportation, and smart cities
DurabilityRugged construction, vibration and impact resistant
ProcessorQuad-core ARM-based processor
Memory4GB DDR4 RAM
Storage16GB flash memory
SecuritySupports IPsec, VPN, firewall, and secure boot
CertificationsCE, FCC, UL, RoHS compliant
Environmental SafetyDesigned for hazardous locations, conforms to ATEX and Class I Div 2 standards
EMC ComplianceMeets industrial EMC standards for harsh environments
Supported ProtocolsIPv4/IPv6, OSPF, BGP, MPLS, GRE, L2TP
ReliabilityMTBF of over 300,000 hours
Operating SystemCisco IOS-XE
Wireless FeaturesMIMO support, carrier aggregation for LTE/5G
Power ManagementSupports PoE with a total power budget of 120W for connected devices
Firmware UpdatesRemote software and firmware updates supported
DeploymentOptimized for industrial IoT applications, edge computing, and outdoor connectivity
Shock and VibrationBuilt to withstand extreme shock and vibration levels in industrial environments
Network ManagementCisco DNA Center, WebUI, CLI, SNMP
RedundancySupports dual SIM for cellular network redundancy

1x 10/100/1000 Gigabit Ethernet port (cooper) PoE enabled, 2x Digital Alarms, 100GB SSD, 8GB DRAM.

The Cisco Catalyst IR8140H-P is a member of the Cisco Catalyst IR8100 Heavy Duty Series. This line of routers represents Cisco’s most adaptable 5G multi-access outdoor industrial router. Its versatile and highly customizable physical design renders it a suitable option for overseeing remote assets in various industrial sectors. The IR8140H-P-K9 allows up to 15-W PoE output power.

Quick Specs

PoE enabled • 1x 10/100/1000 Gigabit Ethernet port (copper) • 100GB SSD • 8GB DRAM.
