Cisco SKU C9300-24P-A

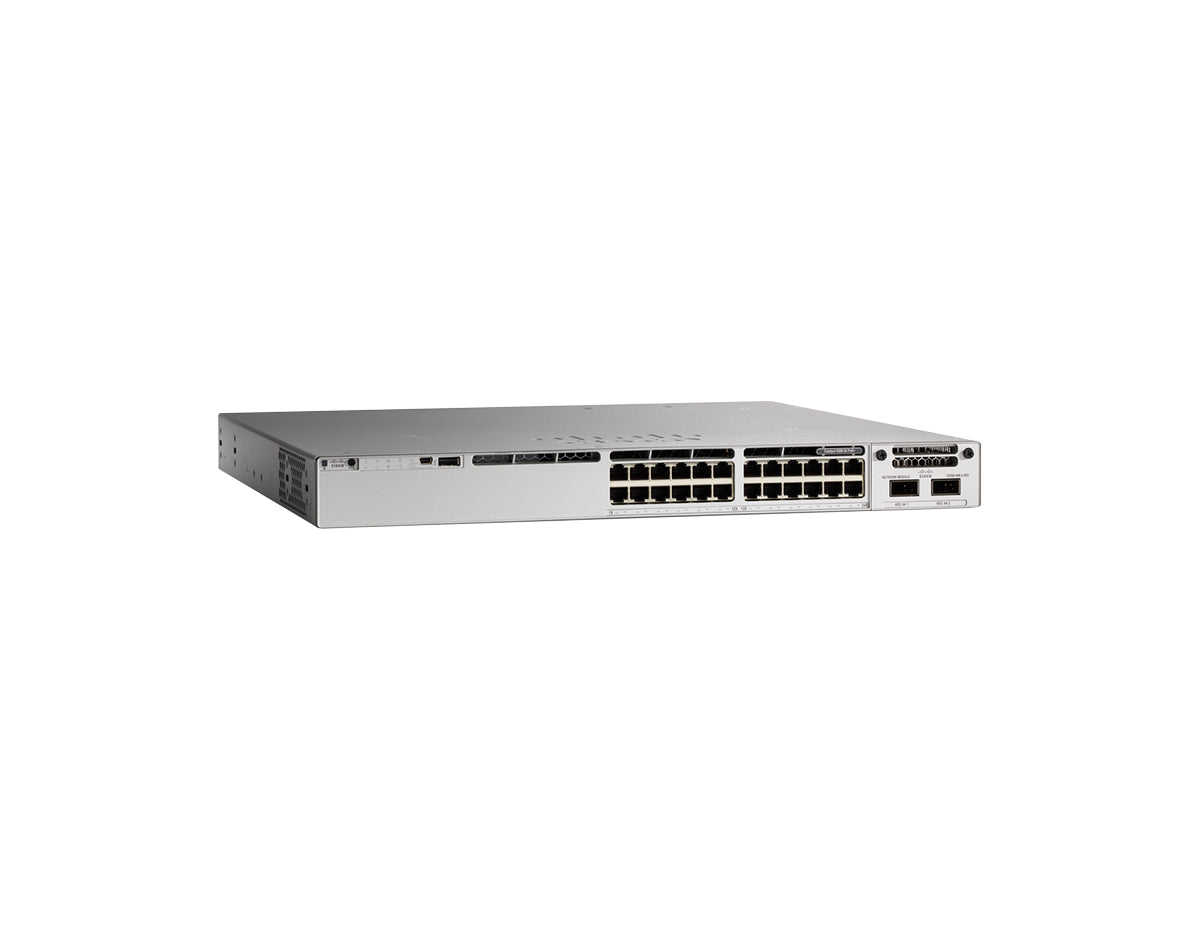

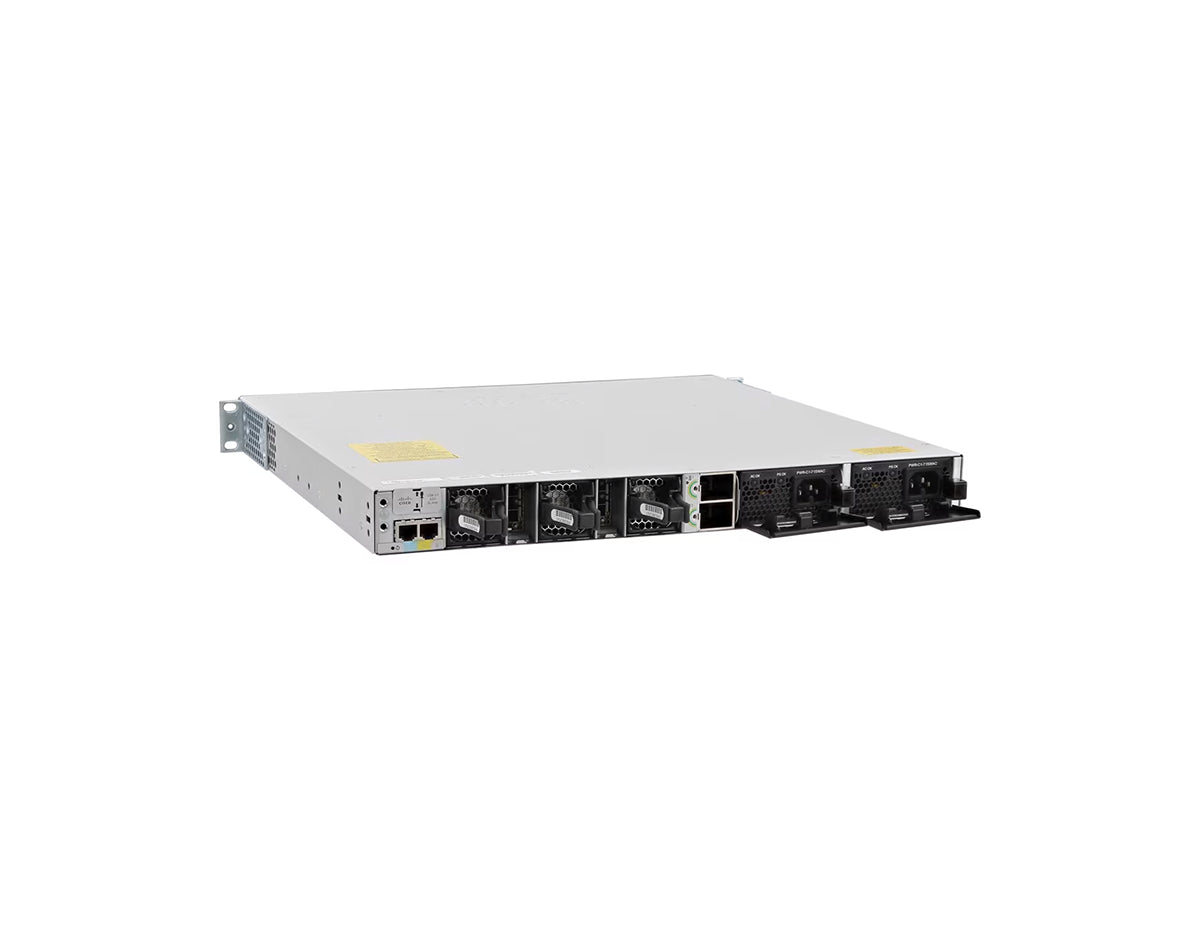

Cisco C9300-24P-A Switch

Managed, Rack-mountable, 24 x 1G ports, Modular Uplinks, PoE+ (445 W)

Throughput	480 Gbps
Switching capacity	208 Gbps

$3,025.00

Ask an engineer about this model

Add several items, then request a quote at checkout.

Free US shipping on orders over $300
Manufacturer warranty
30-day returns on unopened items

Where it fits

Firewalls · 149 products · from $515

Transceivers · 50 products · from $29

Access Points · 119 products · from $29

The Cisco Catalyst C9300-24P-A Switch is an enterprise-class solution designed for organizations that need high-performance networking, advanced security, and reliable power delivery. Equipped with 24 Gigabit Ethernet ports with PoE+ support, this Layer 3 switch is perfect for powering devices like IP phones, cameras, and access points, ensuring seamless connectivity across your network. Its modular uplink options and advanced routing capabilities make it an ideal choice for scalable and flexible network architectures.

Product Family	Catalyst 9300
Product Type	Ethernet Switch
Number of Ports	24
Total 10/100/1000, Multigigabit copper or SFP Fiber	24 port PoE+
Uplink configuration	Modular Uplinks
Cisco IOS Software	Network Advantage
Default primary AC power supply	715W AC
Available PoE power with additional secondary power supply	720W
Fans	Three field-replaceable fans
Dimensions W/ Default Power Supply	1.73 x 17.5 x 17.7
DRAM	8 GB
Flash Memory	16 GB
Switching capacity	208 Gbps
Forwarding rate	154.76 Mpps

MAC addresses	32000
Operating Temperature Up to 5,000 ft (1500 m)	5°C to +45°C
Operating Temperature Up to 10,000 ft (3000 m)	5°C to +40°C
Safety	UL 60950-1 CAN/CSA-C222.2 No. 60950-1 EN 60950-1 IEC 60950-1 AS/NZS 60950.1 IEEE 802.3
Environmental	Reduction of Hazardous Substances (ROHS) 5
Stacking Support	StackWise-480
Stacking bandwidth support	480 Gbps
Optional Stacking hardware	StackWise Cable
Number of members	8
Supported stack members	Other C9300 SKUs with same license level C9300 higher scale SKUs only stack with other like higher scale models
STACK-T1-50CM	Data stack 50 cm (cable option with C9300 and C9300X SKUs)
STACK-T1-1M	Data stack 1m (cable option with C9300 and C9300X SKUs)
STACK-T1-3M	Data stack 3m (cable option with C9300 and C9300X SKUs)

Cisco Catalyst C9300-24P-A Switch

Key Features

24 x Gigabit Ethernet Ports with PoE+: Delivers up to 30W per port, allowing efficient power delivery and high-speed data transmission to connected devices.
Modular Uplinks: Supports a range of uplink options including 1G, 10G, and 40G, ensuring the switch can adapt to future network demands.
Advanced Layer 3 Routing: Features protocols like OSPF, EIGRP, and BGP for dynamic routing and optimized network traffic management.
StackWise-480 Technology: Provides up to 480 Gbps of stacking bandwidth, facilitating simplified management and high availability across stackable switches.
Energy-Efficient Design: Complies with IEEE 802.3az standards, reducing power consumption while maintaining superior performance.
Robust Security: Integrates MACsec encryption, access control lists (ACLs), and advanced security protocols to protect your network from unauthorized access.

Technical Overview

Recommended for: Enterprise environments, data centers, and large branch offices.
Ports: 24 x 10/100/1000 Mbps Gigabit Ethernet ports with PoE+ (up to 30W per port).
Uplink Modules: Modular uplinks supporting 1G, 10G, and 40G for flexible network growth.
Switching Capacity: 208 Gbps
Forwarding Rate: 154.76 Mpps
Layer 3 Features: OSPF, EIGRP, BGP, VLANs, and ACLs for advanced network control.
Management: Web-based GUI, CLI, SNMP, and Cisco DNA for comprehensive network automation and monitoring.
Licensing: Network Advantage
Security: MACsec encryption and advanced access control features.
Energy Efficiency: Meets IEEE 802.3az standards for energy-efficient operation.
