Cisco SKU C9300-24T-A

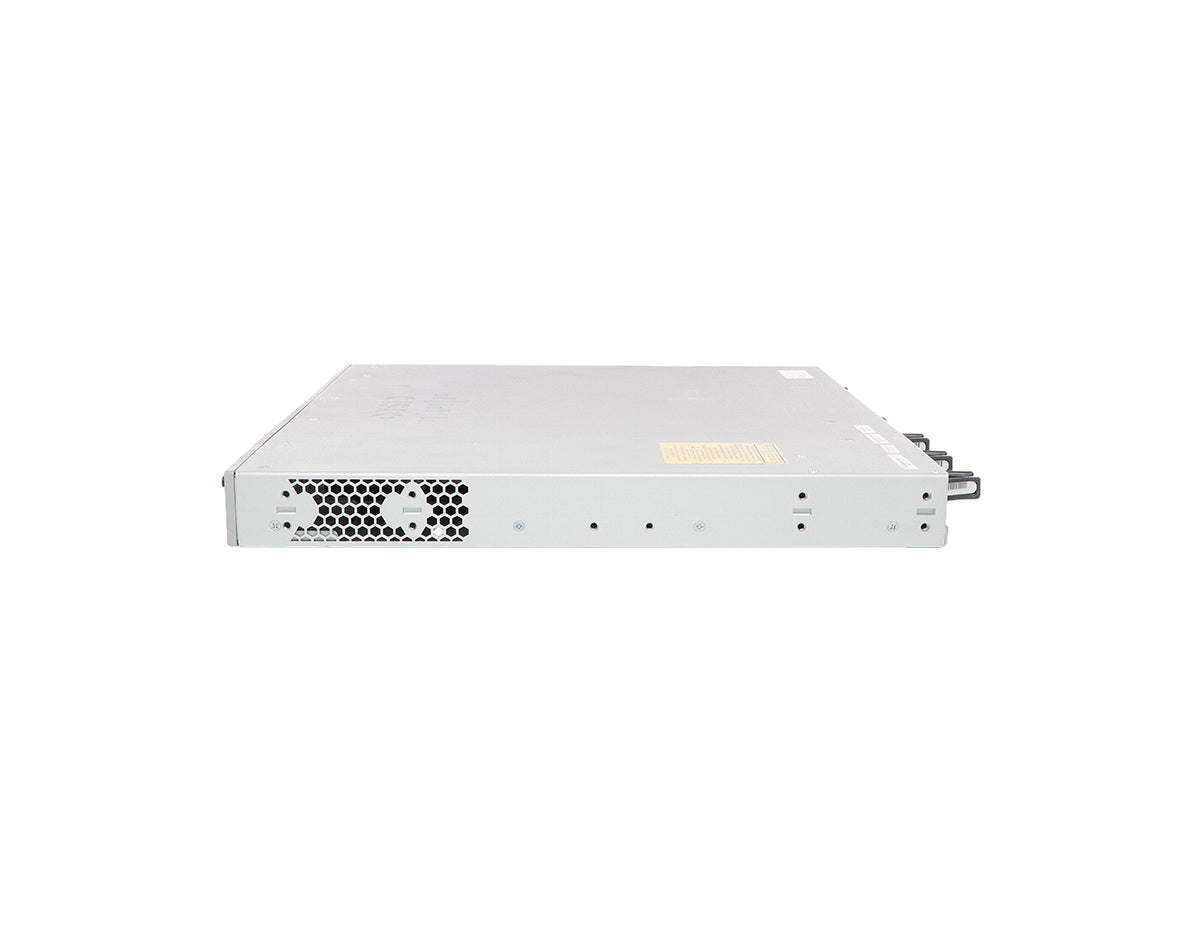

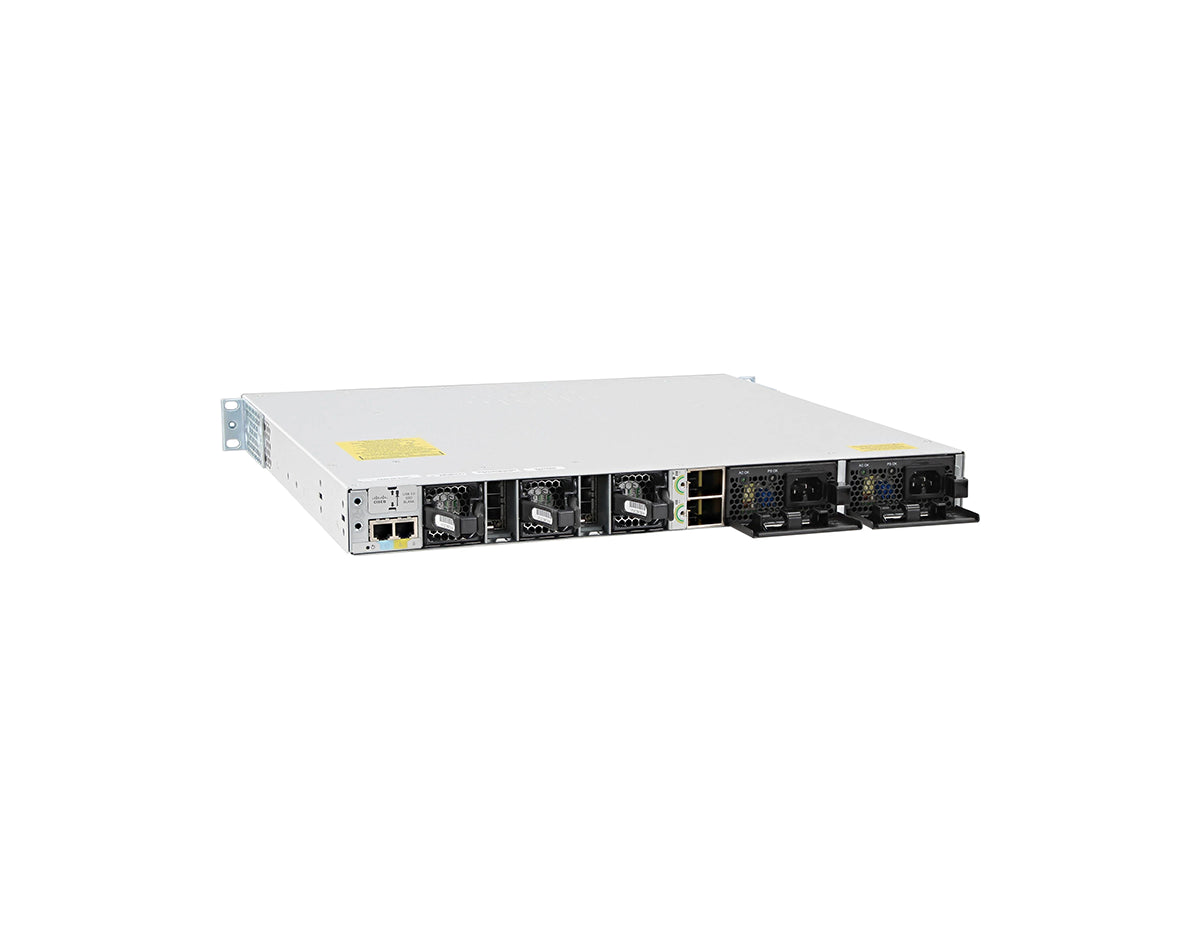

Cisco C9300-24T-A Switch

Managed, Rack-mountable, 24 x 1G ports, Modular Uplinks, nonPoE

Throughput	480 Gbps
Switching capacity	208 Gbps

$3,180.50

Ask an engineer about this model

Add several items, then request a quote at checkout.

Free US shipping on orders over $300
Manufacturer warranty
30-day returns on unopened items

Where it fits

Firewalls · 149 products · from $515

Transceivers · 50 products · from $29

Access Points · 119 products · from $29

The Cisco Catalyst C9300-24T-A Switch is a high-performance, enterprise-class solution designed to meet the demands of modern network environments. Equipped with 24 Gigabit Ethernet ports, this switch offers reliable and secure connectivity, making it ideal for a wide range of applications in dynamic, data-driven environments. The C9300-24T-A comes with advanced Layer 3 routing capabilities and modular uplinks, providing the flexibility and scalability required for growing network infrastructures.

Product Family	Catalyst 9300
Product Type	Ethernet Switch
Number of Ports	24
Total 10/100/1000, Multigigabit copper or SFP Fiber	24 port Data
Uplink configuration	Modular Uplinks
Cisco IOS Software	Network Advantage
Default primary AC power supply	PWR-C1-350WAC***
Available PoE power with additional secondary power supply	No PoE
Dimensions W/ Default Power Supply	1.73 x 17.5 x 17.7
DRAM	8 GB
Flash Memory	16 GB
Switching capacity	208 Gbps
Forwarding rate	154.76 Mpps

MAC addresses	32000
Operating Temperature Up to 5,000 ft (1500 m)	5°C to +45°C
Operating Temperature Up to 10,000 ft (3000 m)	5°C to +40°C
Safety	UL 60950-1 CAN/CSA-C222.2 No. 60950-1 EN 60950-1 IEC 60950-1 AS/NZS 60950.1 IEEE 802.3
Environmental	Reduction of Hazardous Substances (ROHS) 5
Stacking Support	StackWise-480
Stacking bandwidth support	480 Gbps
Optional Stacking hardware	StackWise Cable
Number of members	8
Supported stack members	Other C9300 SKUs with same license level C9300 higher scale SKUs only stack with other like higher scale models
STACK-T1-50CM	Data stack 50 cm (cable option with C9300 and C9300X SKUs)
STACK-T1-1M	Data stack 1m (cable option with C9300 and C9300X SKUs)
STACK-T1-3M	Data stack 3m (cable option with C9300 and C9300X SKUs)

Cisco Catalyst C9300-24T-A Switch

Key Features

24 x Gigabit Ethernet Ports: Ensures fast and reliable connectivity across all connected devices, supporting seamless network operations.
Modular Uplinks: Supports a variety of uplink options including 1G, 10G, and 40G, offering flexibility for future network expansions.
Advanced Layer 3 Routing: Features protocols such as OSPF, EIGRP, and BGP, enabling sophisticated routing and efficient traffic management.
StackWise-480 Technology: Provides up to 480 Gbps of stacking bandwidth, ensuring high availability and simplified management across multiple switches.
Energy-Efficient Design: Compliant with IEEE 802.3az standards, reducing power consumption while maintaining superior network performance.
Enhanced Security: Integrates MACsec encryption, ACLs, and advanced security protocols to safeguard your network against unauthorized access.

Technical Overview

Recommended for: Medium to large enterprises, corporate campuses, and data-driven environments.
Ports: 24 x 10/100/1000 Mbps Gigabit Ethernet ports
Uplink Modules: Modular uplinks supporting 1G, 10G, and 40G for flexible network expansion.
Switching Capacity: 208 Gbps
Forwarding Rate: 154.76 Mpps
Layer 3 Features: OSPF, EIGRP, BGP, VLANs, and ACLs for advanced network control.
Management: Web-based GUI, CLI, SNMP, and Cisco DNA for comprehensive network automation and monitoring.
Licensing: Network Advantage
Security: MACsec encryption and advanced access control features.
Energy Efficiency: Meets IEEE 802.3az standards for energy-efficient operation.
