Cisco C9300-24S-A Switch
Managed, Rack-mountable, 24 x 1G SFP ports, Modular Uplinks, nonPoE
| Throughput | 480 Gbps |
|---|---|
| Switching capacity | 208 Gbps |
$8,245.00
Ask an engineer about this modelAdd several items, then request a quote at checkout.
- Free US shipping on orders over $300
- Manufacturer warranty
- 30-day returns on unopened items
Where it fits
The Cisco Catalyst C9300-24S-A Switch is a high-performance, enterprise-grade solution designed for organizations that require advanced security, flexible management, and reliable connectivity. Equipped with 24 SFP Gigabit Ethernet ports, this switch is ideal for fiber-rich networking environments, offering robust and high-speed connectivity across various network segments. With its advanced Layer 3 routing capabilities and modular uplinks, the C9300-24S-A provides the scalability and flexibility needed to support growing and evolving networks.
| Product Family | Catalyst 9300 |
|---|---|
| Product Type | Ethernet Switch |
| Number of Ports | 24 |
| Total 10/100/1000, Multigigabit copper or SFP Fiber | 24 1G SFP |
| Uplink configuration | Modular Uplinks |
| Cisco IOS Software | Network Advantage |
| Default primary AC power supply | PWR-C1-715WAC-P |
| Available PoE power with additional secondary power supply | No PoE |
| Fans | Three field-replaceable fans |
| Dimensions W/ Default Power Supply | 1.73 X 17.5 X 19.2 |
| DRAM | 8 GB |
| Flash Memory | 16 GB |
| Switching capacity | 208 Gbps |
| Forwarding rate | 154.76 Mpps |
| MAC addresses | 32000 |
| Operating Temperature Up to 5,000 ft (1500 m) | 5°C to +45°C |
| Operating Temperature Up to 10,000 ft (3000 m) | 5°C to +40°C |
| Safety | UL 60950-1 CAN/CSA-C222.2 No. 60950-1 EN 60950-1 IEC 60950-1 AS/NZS 60950.1 IEEE 802.3 |
|---|---|
| Environmental | Reduction of Hazardous Substances (ROHS) 5 |
| Stacking Support | StackWise-480 |
| Stacking bandwidth support | 480 Gbps |
| Optional Stacking hardware | StackWise Cable |
| Number of members | 8 |
| Supported stack members | Other C9300 SKUs with same license level C9300 higher scale SKUs only stack with other like higher scale models |
| STACK-T1-50CM | Data stack 50 cm (cable option with C9300 and C9300X SKUs) |
| STACK-T1-1M | Data stack 1m (cable option with C9300 and C9300X SKUs) |
| STACK-T1-3M | Data stack 3m (cable option with C9300 and C9300X SKUs) |
| STACK-T3-50CM | Data stack 50cm cable (default cable with C9300L Stack Kit) |
| STACK-T3-1M | Data stack 1m cable (cable option with C9300L Stack Kit) |
| STACK-T3-3M | Data stack 3m cable (cable option with C9300L Stack Kit) |
| C9300L-STACK-KIT2 | Stack kit for C9300LM and C9300L SKUs: Two data stack adapters and one data stack cable |
| STACK-T3A-50CM | Data stack 50cm cable (cable option with C9300L Stack Kit2) |
| STACK-T3A-1M | Data stack 1m cable (cable option with C9300L Stack Kit2) |
| STACK-T3A-3M | Data stack 3m cable (cable option with C9300L Stack Kit2) |

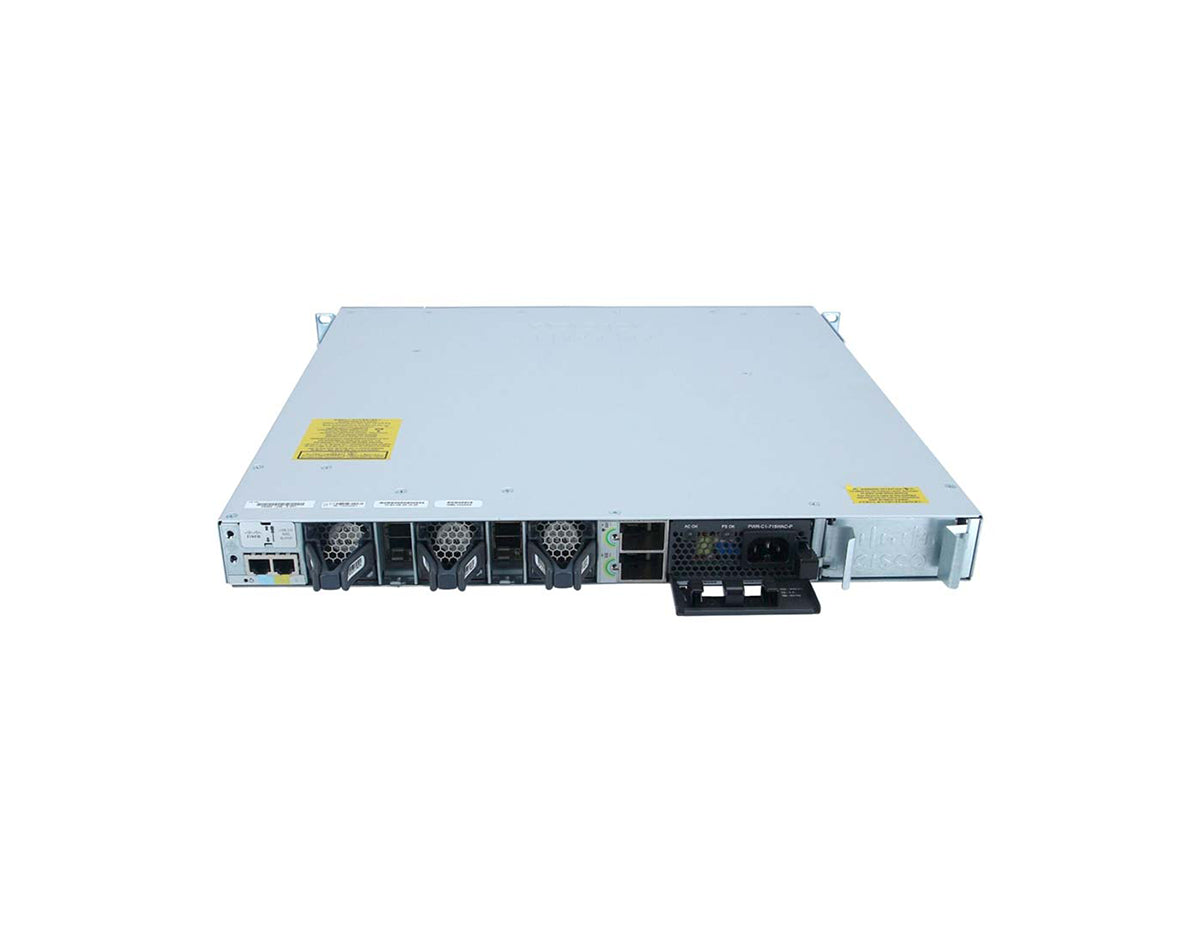

Cisco Catalyst C9300-24S-A Switch
The Cisco Catalyst C9300-24S-A Switch is a high-performance, enterprise-grade solution designed for organizations that require advanced security, flexible management, and reliable connectivity. Equipped with 24 SFP Gigabit Ethernet ports, this switch is ideal for fiber-rich networking environments, offering robust and high-speed connectivity across various network segments. With its advanced Layer 3 routing capabilities and modular uplinks, the C9300-24S-A provides the scalability and flexibility needed to support growing and evolving networks.
Key Features
- 24 x SFP Gigabit Ethernet Ports: Delivers high-speed fiber connectivity, ideal for connecting to servers, aggregation layers, or fiber-based networks.
- Modular Uplinks: Includes flexible uplink options supporting 1G, 10G, and 40G, ensuring scalability for future network expansions.
- Advanced Layer 3 Routing: Supports protocols such as OSPF, EIGRP, and BGP, enabling sophisticated routing and efficient traffic management.
- StackWise-480 Technology: Provides up to 480 Gbps of stacking bandwidth, ensuring high availability and simplified management across multiple switches.
- Energy-Efficient Design: Compliant with IEEE 802.3az standards, optimizing power consumption while maintaining superior network performance.
- Enhanced Security: Integrates MACsec encryption, ACLs, and advanced security protocols to safeguard your network from unauthorized access.
Technical Overview
- Recommended for: Fiber-rich environments, data centers, and enterprise networks.
- Ports: 24 x SFP Gigabit Ethernet ports
- Uplink Modules: Modular uplinks supporting 1G, 10G, and 40G for flexible network expansion.
- Switching Capacity: 208 Gbps
- Forwarding Rate: 154.76 Mpps
- Layer 3 Features: OSPF, EIGRP, BGP, VLANs, and ACLs for advanced network control.
- Management: Web-based GUI, CLI, SNMP, and Cisco DNA for comprehensive network automation and monitoring.
- Licensing: Network Advantage
- Security: MACsec encryption and advanced access control features.
- Energy Efficiency: Meets IEEE 802.3az standards for energy-efficient operation.
