Cisco C9300-48UN-A Switch

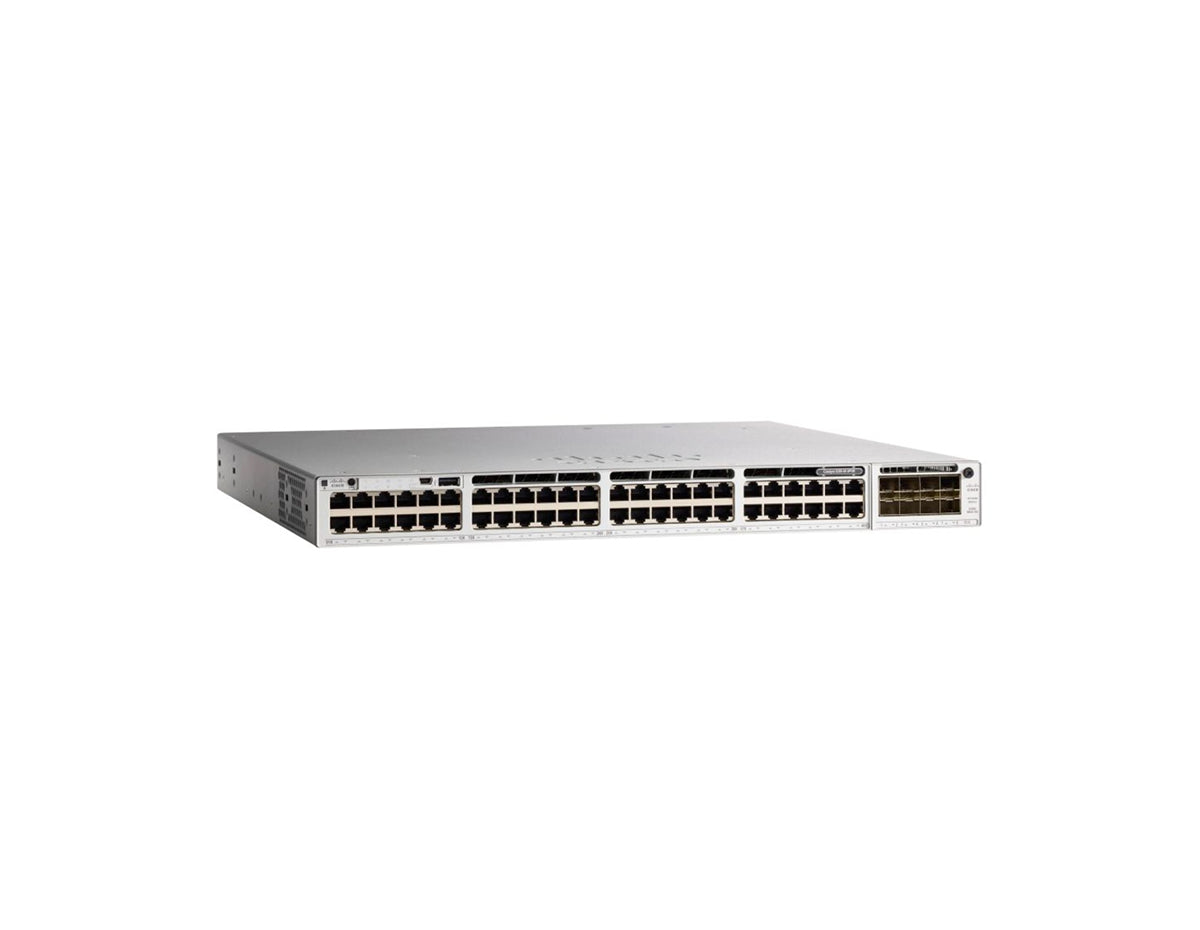

Cisco C9300-48UN-A Switch — photo 2

Cisco SKU C9300-48UN-A

Cisco C9300-48UN-A Switch

Managed, Rack-mountable, 48 x 5Gbps Multigigabit ports (5G/2.5G/1G/100M), Modular Uplinks, UPOE

Throughput480 Gbps
Switching capacity208 Gbps

$10,299.00

Ask an engineer about this model

Add several items, then request a quote at checkout.

  • Free US shipping on orders over $300
  • Manufacturer warranty
  • 30-day returns on unopened items

The Cisco Catalyst C9300-48UN-A Switch is an advanced, high-performance networking solution designed for enterprise environments that require scalable, secure, and efficient connectivity. With 48 Multigigabit Ethernet UPOE (Universal Power Over Ethernet) ports, this switch provides enhanced power delivery and high-speed connectivity for demanding devices such as IP phones, cameras, and wireless access points. The C9300-48UN-A is equipped with advanced Layer 3 routing features, modular uplinks, and StackWise-480 technology, making it an ideal solution for businesses looking to build a scalable, future-proof network infrastructure.

Product FamilyCatalyst 9300
Product TypeEthernet Switch
Number of Ports48
Downlinks total 10/100/1000 or PoE+ copper ports48 port 5Gbps Multigigabit UPOE ports (5G/2.5G/1G/100M)
Uplink configurationModular uplink options
Cisco IOS SoftwareNetwork Advantage
Default primary AC power supplyPWR-C1-1100WAC-P
Available PoE power with additional secondary power supply2880W** (With 1100W Secondary PS)
FansThree field-replaceable fans
Chassis + FEP + Fan Dimensions (HxWxD) Inches1.73 x 17.5 x 19.1
Console PortsRJ-45-to-DB9 cable for PC connections
DRAM8 GB
Flash Memory16 GB
Switching capacity640 Gbps
Forwarding rate476.19 Mpps
MAC addresses32000
Operating Temperature Up to 5,000 ft (1500 m)5°C to +45°C
Operating Temperature Up to 10,000 ft (3000 m)5°C to +40°C
SafetyUL 60950-1 CAN/CSA-C222.2 No. 60950-1 EN 60950-1 IEC 60950-1 AS/NZS 60950.1 IEEE 802.3
EnvironmentalReduction of Hazardous Substances (ROHS) 5
Stacking SupportStackwise-480
Stacking bandwidth support480 Gbps
Stacking hardwareStackWise Cable
Number of members8
Supported stack membersOther C9300 SKUs with same license level C9300 higher scale SKUs only stack with other like higher scale models
STACK-T1-50CMData stack 50 cm (cable option with C9300 and C9300X SKUs)
STACK-T1-1MData stack 1m (cable option with C9300 and C9300X SKUs)
STACK-T1-3MData stack 3m (cable option with C9300 and C9300X SKUs)

Cisco Catalyst C9300-48UN-A Switch

The Cisco Catalyst C9300-48UN-A Switch is an advanced, high-performance networking solution designed for enterprise environments that require scalable, secure, and efficient connectivity. With 48 Multigigabit Ethernet UPOE (Universal Power Over Ethernet) ports, this switch provides enhanced power delivery and high-speed connectivity for demanding devices such as IP phones, cameras, and wireless access points. The C9300-48UN-A is equipped with advanced Layer 3 routing features, modular uplinks, and StackWise-480 technology, making it an ideal solution for businesses looking to build a scalable, future-proof network infrastructure.

Key Features

  • 48 x Multigigabit UPOE Ports: Supports speeds up to 10 Gbps and delivers up to 60W per port, ensuring reliable power and high-speed connectivity for demanding devices.
  • Modular Uplinks: Offers flexible uplink options supporting 1G, 10G, and 40G, allowing for easy network expansion and scalability.
  • Advanced Layer 3 Routing: Supports protocols such as OSPF, EIGRP, and BGP, enabling sophisticated routing and efficient traffic management.
  • StackWise-480 Technology: Provides up to 480 Gbps of stacking bandwidth, ensuring high availability and simplified management across multiple switches.
  • Energy-Efficient Design: Compliant with IEEE 802.3az standards, optimizing power consumption while maintaining superior network performance.
  • Enhanced Security: Integrates MACsec encryption, ACLs, and advanced security protocols to safeguard your network from unauthorized access.

Technical Overview

  • Recommended for: Large enterprises, corporate campuses, and data-heavy environments.
  • Ports: 48 x Multigigabit UPOE ports (100M/1G/2.5G/5G/10G) with up to 60W per port.
  • Uplink Modules: Modular uplinks supporting 1G, 10G, and 40G for flexible network expansion.
  • Switching Capacity: 208 Gbps
  • Forwarding Rate: 154.76 Mpps
  • Layer 3 Features: OSPF, EIGRP, BGP, VLANs, and ACLs for advanced network control.
  • Management: Web-based GUI, CLI, SNMP, and Cisco DNA for comprehensive network automation and monitoring.
  • Licensing: Network Advantage
  • Security: MACsec encryption and advanced access control features.
  • Energy Efficiency: Meets IEEE 802.3az standards for energy-efficient operation.
