Mikrotik RBLHG-2nD LHG 2 Outdoor Wireless Device
Router, Mikrotik RB750P-PBr2, hEX PoE lite, 5-Port Ethernet, PoE Support
$73.00
Ask an engineer about this modelAdd several items, then request a quote at checkout.
- Free US shipping on orders over $300
- Manufacturer warranty
- 30-day returns on unopened items
Router, Mikrotik RB750P-PBr2, hEX PoE lite, 5-Port Ethernet, PoE Support.</p><p>The RBLHG-2nD is a small and lightweight wireless device operating on the 2.4 GHz 802.11b/g/n frequency band, featuring an integrated dual polarization 18 dBi grid antenna at an unprecedented cost. This device is well-suited for establishing point-to-point connections or serving as customer premises equipment (CPE) for extended distances, and it is compatible with the Nv2 TDMA protocol. The grid structure provides resistance against wind, and integrating the antenna element within the wireless unit eliminates signal loss typically associated with external cables.
| Product Family | Mikrotik LHG (Light Head Grid) |
|---|---|
| Product Type | Wireless Outdoor Device |
| Product code | RBLHG-2nD |
| Architecture | MIPSBE |
| CPU | QCA9533 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Dimensions | Ø 391 x 222 mm |
| RouterOS license | 3 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100’000 hours at 25C |
| Tested ambient temperature | 40°C to 70°C |
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 5 W |
| Cooling type | Passive |
|---|---|
| PoE in | Passive PoE |
| PoE in input Voltage | 10-30 V |
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 18 |
| Wireless 2.4 GHz chip model | QCA9533 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| Details | 10/100 Ethernet ports |
| Certification | CE, FCC, IC, EAC, ROHS |
| 1MBit/s | Transmit (dBm) : 26 Receive Sensitivity : -100 |
| 11MBit/s | Transmit (dBm) : 26 Receive Sensitivity : -93 |
| 6MBit/s | Transmit (dBm) : 28 Receive Sensitivity : -94 |
| 54MBit/s | Transmit (dBm) : 24 Receive Sensitivity : -78 |
| MCS0 | Transmit (dBm) : 28 Receive Sensitivity : -94 |
| MCS7 | Transmit (dBm) : 23 Receive Sensitivity : -75 |
Router, Mikrotik RB750P-PBr2, hEX PoE lite, 5-Port Ethernet, PoE Support.

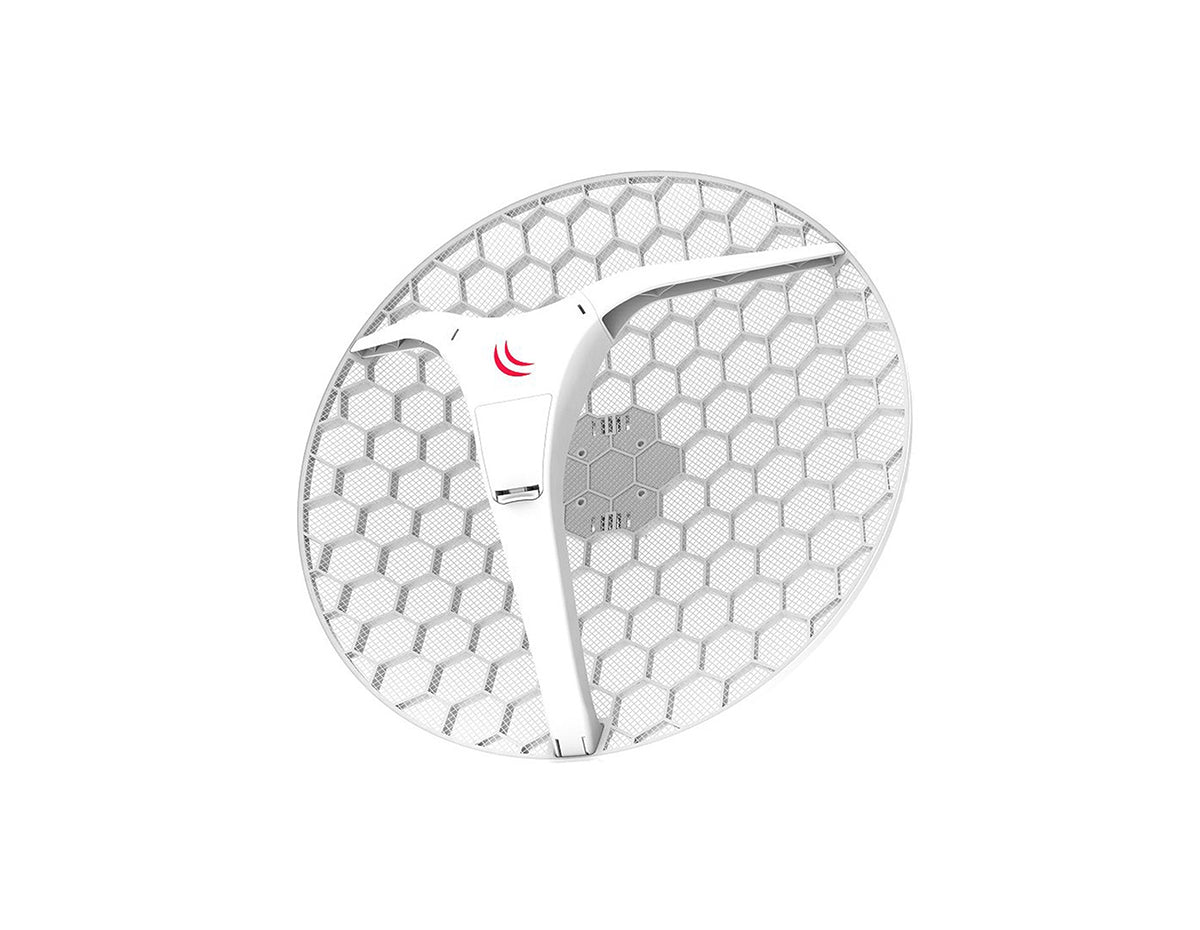

The RBLHG-2nD is a small and lightweight wireless device operating on the 2.4 GHz 802.11b/g/n frequency band, featuring an integrated dual polarization 18 dBi grid antenna at an unprecedented cost. This device is well-suited for establishing point-to-point connections or serving as customer premises equipment (CPE) for extended distances, and it is compatible with the Nv2 TDMA protocol. The grid structure provides resistance against wind, and integrating the antenna element within the wireless unit eliminates signal loss typically associated with external cables.
Quick Specs
- 1x 10/100 Ethernet Port
- QCA9533, 1 core, 650 MHz CPU
- 64MB RAM
- PoE-in: Passive PoE
