Cisco SKU C9400-LC-48UX

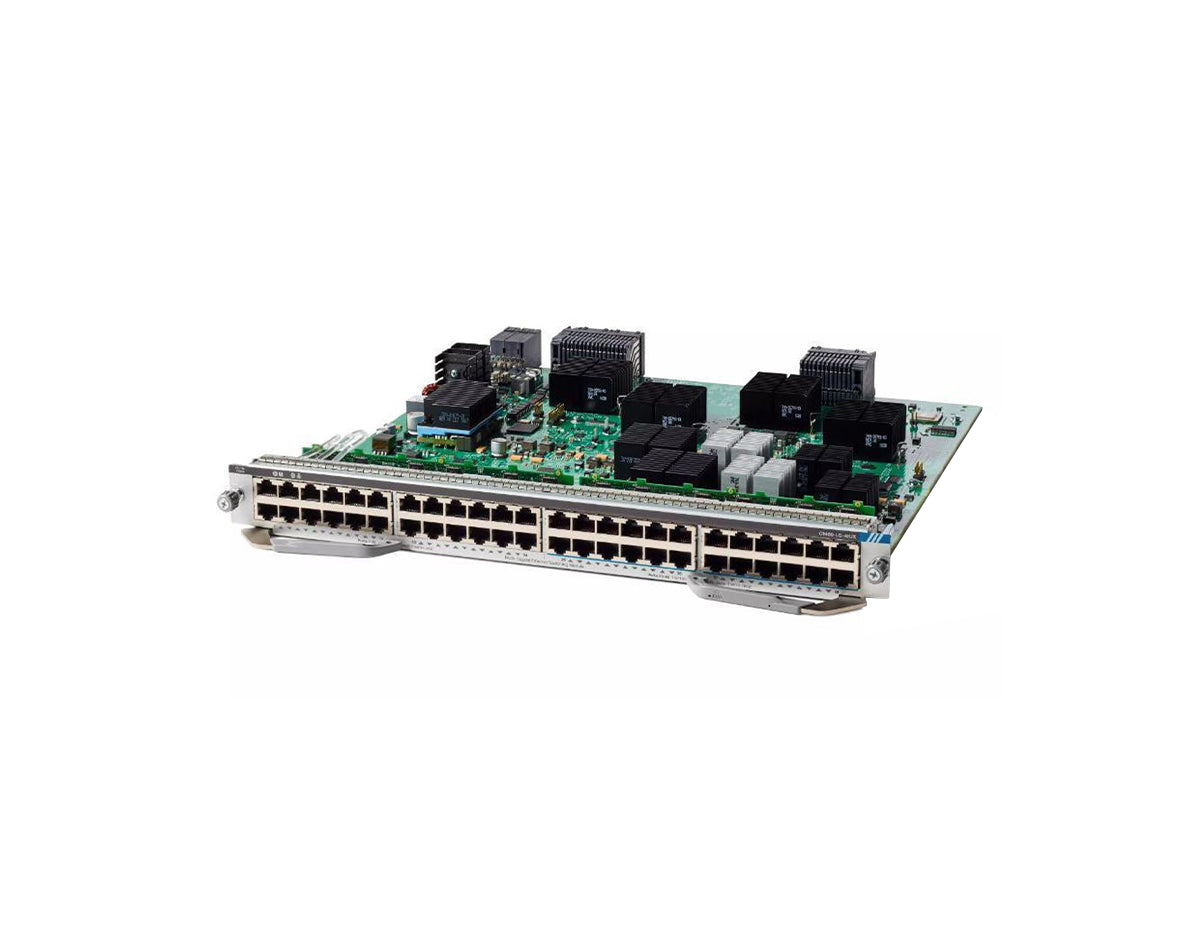

Cisco C9400-LC-48UX Line Card

Name: Cisco C9400-LC-48UX Line Card
Brand: Cisco
SKU: C9400-LC-48UX
Price: 8495.00 USD

Line Card, 24 x 100/1000/2.5G/5G/10GBase-T (UPOE) + 24 x 10/100/1000 (UPOE), Plug-in module, UPOE, For 9400 Chassis

$8,495.00

Ask an engineer about this model

Add several items, then request a quote at checkout.

Free US shipping on orders over $300
Manufacturer warranty
30-day returns on unopened items

The Cisco Catalyst C9400-LC-48UX Line Card is a high-performance module designed for the Cisco Catalyst 9400 Series modular switches, offering advanced connectivity and power options for enterprise networks. This line card provides 48 ports, including both Multigigabit Ethernet and UPOE+ (Universal Power Over Ethernet) capabilities, making it ideal for powering a wide range of devices while delivering fast and reliable data transfer. The C9400-LC-48UX is engineered to meet the demanding needs of modern enterprise environments, providing flexibility, scalability, and energy efficiency for growing network infrastructures.

Product Family	Catalyst 9400
Product Type	Switch Line Card
Number of ports	48
Port speed	24 Multigigabit 100/1000 Mbps 2.5/5 Gbps 10GBASE-T ports and 24 10/100/1000 ports
Port type	RJ-45 UPOE IEEE 802.3at, IEEE 802.3af, Cisco pre-standard
C9404R	48/96
C9407R	48/240
C9410R	48/384
Physical dimensions	Occupies one slot in Cisco Catalyst 9400 Series switches Dimensions (H x W x D): 1.6 x 14.92 x 14.57 in. (4.06 x 37.90 x 37.00 cm)
Max rated power (W)	240

Standards	Gigabit Ethernet: IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3bt, IEEE 802.3at, IEEE 802.3af, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3an, IEEE 802.3an
C9400 Supervisor Engine-1 (C9400-SUP-1)	Bandwidth per slot Chassis C9404R: 80 Gbps Chassis C9407R: 80 Gbps Chassis C9410R: 80 Gbps Oversubscription: 3:3:1
C9400 Supervisor Engine-2 (C9400X-SUP-2)	Bandwidth per slot Chassis C9404R: 240 Gbps Chassis C9407R: 240 Gbps Chassis C9410R: 240 Gbps Oversubscription: 1:1:1
Storage temperature	40° to 158° F (-40° to 70°C)
Relative humidity	10 to 95%, noncondensing
Operating altitude	60 to 3000m
Rated MTBF (hours)	469,550
Safety conditions	Fiber optic lasers: Class 1 laser products
Safety certifications	UL 60950-1 CAN/CSA-C222.2 No. 60950-1 EN 60950-1 IEC 60950-1 AS/NZS 60950.1 IEEE 802.3
ROHS compliance	ROHS5

Cisco Catalyst C9400-LC-48UX Line Card

Key Features

48 x Multigigabit Ethernet and UPOE+ Ports: Delivers high-speed connectivity and power for a variety of network devices, including wireless access points, IP phones, and more.
Advanced Power Capabilities: Supports UPOE+ to deliver up to 60W per port, ensuring sufficient power for high-demand devices.
Scalable Architecture: Seamlessly integrates with the Cisco Catalyst 9400 Series chassis, allowing for easy network expansion.
Enterprise-Grade Security: Includes advanced security features to protect your network from threats and unauthorized access.
Energy Efficient: Designed to reduce power consumption while maintaining high performance, contributing to lower operational costs.

Technical Overview

Recommended for: Large enterprise networks requiring scalable, high-performance connectivity with advanced power options.
Ports: 48 x Multigigabit Ethernet ports with UPOE+ support (up to 60W per port).
Compatibility: Fully compatible with Cisco Catalyst 9400 Series modular switches.
Management: Managed through Cisco DNA Center and other Cisco network management tools.
Security: Integrated with advanced security features, including network segmentation and access control.
