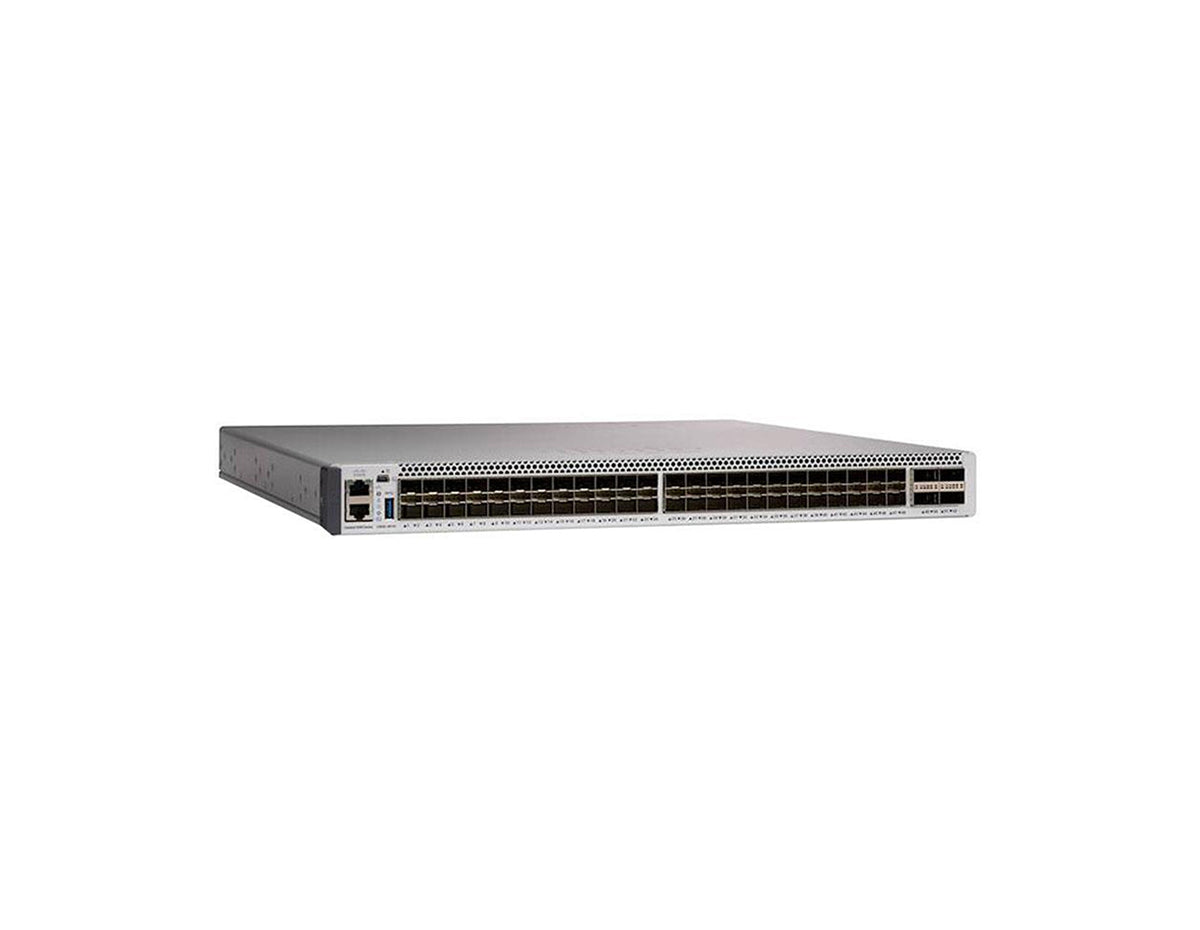

Cisco C9500-48Y4C-E Switch
Managed, Rack-mountable, 48 x 1/10/25G ports, 4 x 40/100G Uplinks, No PoE (Data Only), Layer 3, Network Essentials License
| Form factor | 1 RU |
|---|
$9,895.00
Ask an engineer about this modelAdd several items, then request a quote at checkout.
- Free US shipping on orders over $300
- Manufacturer warranty
- 30-day returns on unopened items
Where it fits
Cisco Catalyst 9500 Series high performance 48-port 25G switch, NW Ess. License.
| Product Family | Catalyst 9500 |
|---|---|
| Product Type | Ethernet Switch |
| Cisco IOS Software | Network Essentials |
| Number of Ports | 48 |
| 1G port density | 48 |
| 10G port density | 48 |
| 25G port density | 48 |
| 40G port density | 4 |
| 100G port density | 4 |
| 10G port density with breakout cable | – |
| 25G port density with breakout cable | – |
| FAN-T4-R (Max # of fans) | No |
| C9K-T1-FANTRAY (Max # of fans) | Yes (4) |
| Power Supply Selection | C9K-PWR-650WAC-R, C9K-PWR-650WACL-R or C9K-PWR-930WDC-R |
| Input Voltage | 90 to 264 VAC |
| Dimensions (HxWxD) Inches | 1.73 x 17.5 x 18.0 in |
| Weight | 21.96 lb (9.96 kg) |
| Rack Units (RU) | 1 RU |
| Minimum Software Requirements | Cisco IOS XE Software Release 16.8.1a |
| IoT integration PTP (IEEE1588v2) | – |
| Security MACsec-256, WAN MACsec | – |
| DRAM | 16 GB |
| Flash Memory | 16 GB |
| Switching Capacity | Up to 3.2 Tbps |
| Forwarding Rate | Up to 1 Bpps |
| Total Number of MAC addresses | Up to 82,000 |
| Total Number of IPv4 routes (Indirect Routes) | Up to 256,000 indirect + direct |
| Total Number of IPv6 (NDP and Direct Routes) | Up to 90,000 host |
| Total Number of IPv6 routes (Indirect Routes) | Up to 256,000 indirect + direct |
| VLAN IDs | 4,094 |
| Total Number of IPv4 Multicast Routes | Up to 32,000 |
|---|---|
| Total Number of IPv6 Multicast Routes | Up to 32,000 |
| QoS ACL Scale | Up to 16,000 |
| Security ACL Scale | Up to 27,000 |
| FNF entries | Up to 256,000 |
| Total Switched Virtual Interfaces (SVIs) | 4.000 |
| Jumbo Frame | 9,216 bytes |
| PVST Instances | 4,000 |
| STP Virtual Ports (Port VLANs) for PVST | 16,000 |
| STP Virtual Ports (Port VLANs) for MST | 52,000 |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Storage Temperature | 4° to 149°F (-20° to 65°C) |
| Operating Altitude | Operation up to 10,000 feet at 40°C; up to 6,000 feet at 45°C |
| Relative humidity operating and nonoperating (noncondensing) | Ambient (noncondensing) operating: 5% to 90% Ambient (noncondensing) nonoperating and storage: 5% to 95% |
| Mean-time between failures (MTBF) | 316,960 |
| C9500-ACCKITH-19I= | Accessory Kit for Cisco Catalyst 9500 Series High-End – 19″ rack mount |
| C9500-ACCKITH-23I= | Accessory Kit for Cisco Catalyst 9500 Series High-End – 23″ rack mount |
| C9500-4PTH-KIT= | Extension rails and brackets for four-point mounting for Cisco Catalyst 9500 Series High-End |
| C9K-F1-SSD-240G | Cisco pluggable SSD storage 240 GB |
| C9K-F1-SSD-480G | Cisco pluggable SSD storage 480 GB |
| C9K-F1-SSD-960G | Cisco pluggable SSD storage 960 GB |
| C9K-PWR-650WAC-R | 650W AC Power Supply |
| C9KPWR650WACL-R | 650W AC Power Supply |
| C9K-PWR-930WDC-R | 930W DC Power Supply |
| C9500-DNA-E-3Y | Catalyst 9500 NW and Cisco DNA Essentials. license (3Y) for 24Q, 40X, 32C, 32QC, 48Y4C SKU |
| C9500-DNA-E-5Y | Catalyst 9500 NW and Cisco DNA Essentials. license (5Y) for 24Q, 40X, 32C, 32QC, 48Y4C SKU |
| C9500-DNA-E-7Y | Catalyst 9500 NW and Cisco DNA Essentials. license (7Y) for 24Q, 40X, 32C, 32QC, 48Y4C SKU |
| C9500-DNA-A-3Y | Catalyst 9500 NW and Cisco DNA Advantage license (3Y) for 24Q, 40X, 32C, 32QC, 48Y4C SKU |
| C9500-DNA-A-5Y | Catalyst 9500 NW and Cisco DNA Advantage license (5Y) for 24Q, 40X, 32C, 32QC, 48Y4C SKU |
| C9500-DNA-A-7Y | Catalyst 9500 NW and Cisco DNA Advantage license (7Y) |
