Cisco IEM-3300-16T Expansion Module
$2,445.00

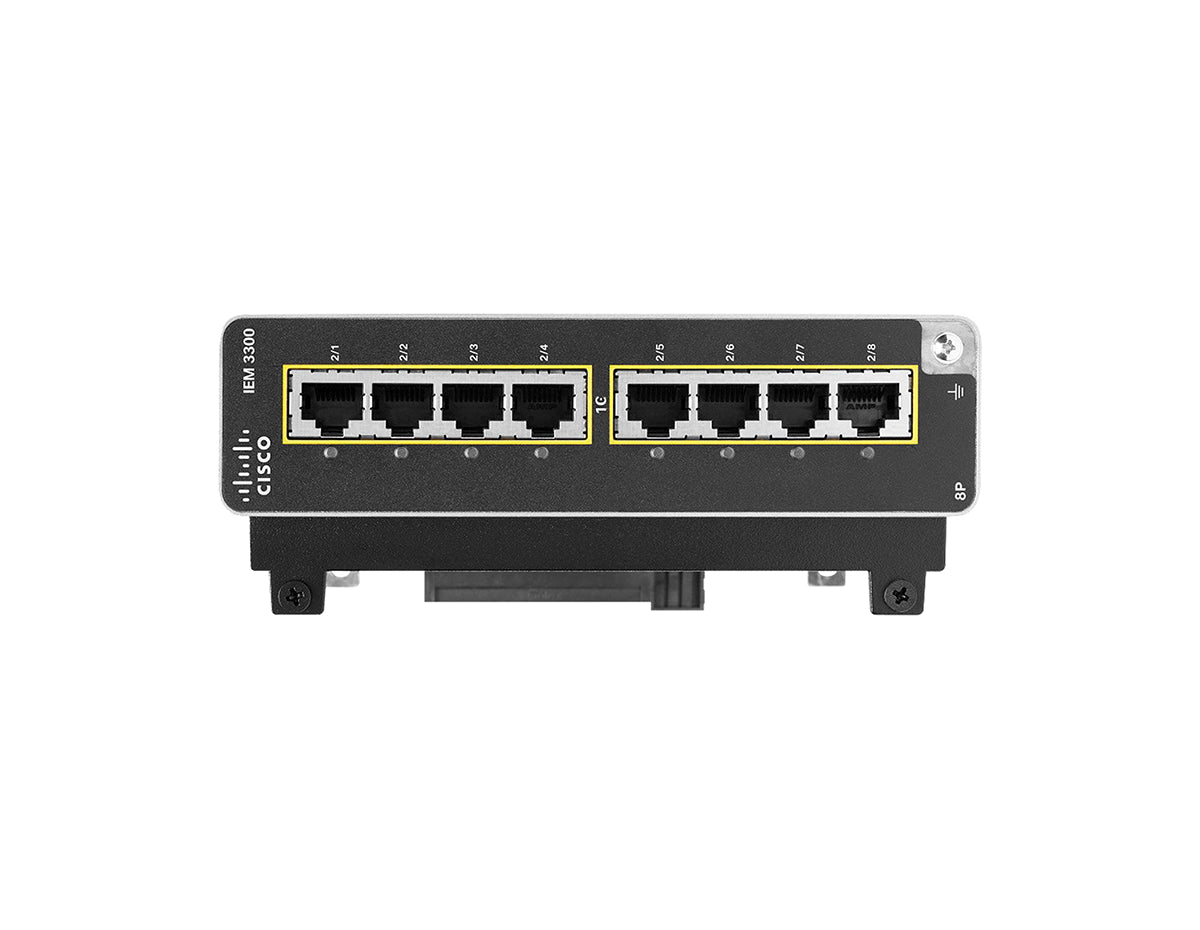

Cisco IEM-3300-8P Expansion Module
Expansion module Gigabit Ethernet (PoE+) x 8 for Catalyst IE3300 Rugged Series
$2,725.00
Ask an engineer about this modelAdd several items, then request a quote at checkout.
- Free US shipping on orders over $300
- Manufacturer warranty
- 30-day returns on unopened items
The Cisco Catalyst IE3300 Rugged Series expansion modules are designed for harsh industrial environments such as manufacturing, energy, transportation, mining, smart cities, and oil and gas. It is fanless, convection-cooled, and hardened for vibration, shock, surge, and electrical noise immunity. The Cisco IEM-3300-8P= has 8 PoE/PoE+100/1000Mbps ports, expanding the switch to 18 ports.
| Product Family | Industrial Ethernet 3300 |
|---|---|
| Product Type | Ethernet Switch Expansion Module |
| Total ports on expansion module | 8 |
| Copper (RJ45) 10/100/1000Mbps | 8 (PoE/PoE+) |
| SFP 100/1000Mbps | – |
| Copper (RJ45) 1GE/2.5G (with up to 802.3bt type 4 PoE) | – |
| Total system ports (including expansion module) | 18 |
| PoE / PoE (+) budget | Supported with IE3300 PoE base modules to provide a total PoE budget of 360W with the all GE base and up to 480Watts with IE3300 10G base and IE3400 PoE base |
| Dimensions (HxWxD) Inches | 6 in. X 2.6 in. X 5.3 in. 15.2 cm. x 6.6 cm. x 13.5 cm |
| Weight | 2.0 lbs (0.91 kg) |
| Mounting | DIN Rail |
| Power Consumption | 14W (Power consumption for non PoE supported model is measured at 12V and for the PoE supported model is measured at 54V.) |
| Storage Temperature | 40 C to +85 C |
| Operating Altitude | Up to 15,000 feet |
| Storage Altitude | 15,000 feet |
| Mean Time Between Failures (MTBF) | 2,931,233 |
|---|---|
| Industrial Automation Control System | IEC 62443-4-1 IEC 62443-4-2 |
| Marine I | DNC Certification according to class guideline DNV-CG-0339 Additional Standards: IEC 60945, IACS UR E10 |
| Humidity | Relative humidity of 5% to 95% non-condensing IEC 60068-2-78 IEC 60068-2-30 |
| Corrosion | IEC 60068-2-52 (salt fog) IEC 60068-2-60 (flowing mixed gas) |
| STK-RACK-DINRAIL | 19 in. DIN Rail mount kit |
| PWR-IE50W-AC | 50W AC Power Supply |
| PWR-IE50W-AC-IEC= | 50W AC-IEC Power Supply |
| PWR-IE50W-AC-L | 50W AC-L Power Supply |
| PWR-IE65W-PC-AC | 65W PC-AC Power Supply |
| PWR-IE65W-PC-DC | 65W PC-DC Power Supply |
| PWR-IE170W-PC- AC | 170W PC-AC Power Supply |
| PWR-IE170W-PC- DC | 170W PC-DC Power Supply |
| PWR-IE240W-PCAC-L | 240W PCAC-L Power Supply |
| PWR-IE480W-PCAC-L | 480W PCAC-L Power Supply |
The Cisco Catalyst IE3300 Rugged Series expansion modules are designed for harsh industrial environments such as manufacturing, energy, transportation, mining, smart cities, and oil and gas. It is fanless, convection-cooled, and hardened for vibration, shock, surge, and electrical noise immunity. The Cisco IEM-3300-8P= has 8 PoE/PoE+100/1000Mbps ports, expanding the switch to 18 ports.
Key Features
- Up to 480 Watts total PoE budget
- For IE3300 and IE3400 base switch
- IPv6 Ready Logo Certified
The tabs contain the Cisco IEM-3300-8P= datasheet with all the specifics you need.
